Dongfeng 8ton flat bed tow truck, tow truck with crane

Product Overview

Description

Dongfeng 8ton flat bed tow truck, tow truck with crane

we also manufacture kinds of tow truck, any enquiry of tow truck,please contact us.

Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc. Wrecker truck basically is refitted from  the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.



wrecker truck parameters

MAIN TECHNICAL PARAMETERS
pruduct name	Dongfeng 145 4*2 wrecker truck	overall dimensions(mm)	8500×2480×3350
gross vehicle weight(kg)	13495	rated passenger number in cab	3
unladen weight(kg)	6150	approach/departure angle(°)	22/11
suspension front/rear(mm)	1180/2420	axle number	2
wheelbase(mm)	4500	axle loading (kg)	3060/8435
top speed(km/h)	90
NOTE	1.Lift weight: 2150 kg; SQ3S type crane equipment, weight: 1050 kg, lifting weight : 3000 kg;   2.according to the chassis, we choose the cab.   3.protective materials: Q235A carbon steel, the mode of connection: left and right side protective device connected to the girder welding; the back of the special device and the rear protection are in intervention, therefore the rear protective immunity.
CHASSIS TECHNICAL PARAMETERS
chassis model	EQ1081TJ12D5	chassis name	th loading goods truck chassis(class 2)
brand name	DONG FENG	manufacturer	Dongfeng Motor Co., Ltd
overall dimensions(mm)	7695×2250×2350,2450	tyre number	6
approach/departure angle(°)	22/11	tyre parameters	8.25-16,7.50-16,7.50R16,8.25R16
spring number on steel plate	11/13+8	front tread(mm)	1770,1831
fuel type	diesel	rear tread(mm)	1640,1602
displacement standard	GB3847-2005,GB17691-2005 the third standard in China
engine type	engine manufacturer	displacement(ml)	power(Kw)
B170 B19	dongfeng cummins	8760	132/140

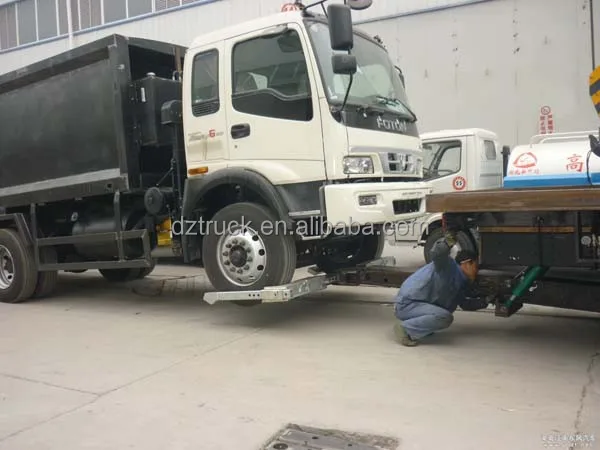

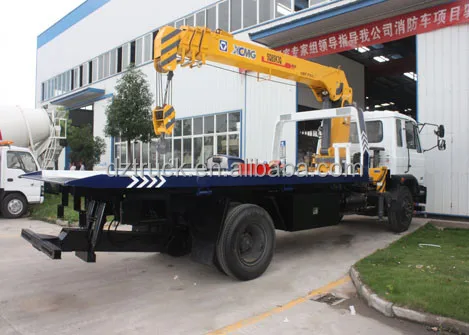

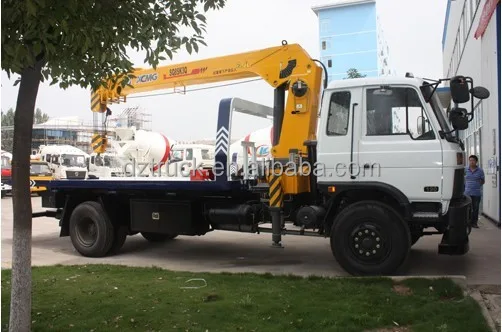

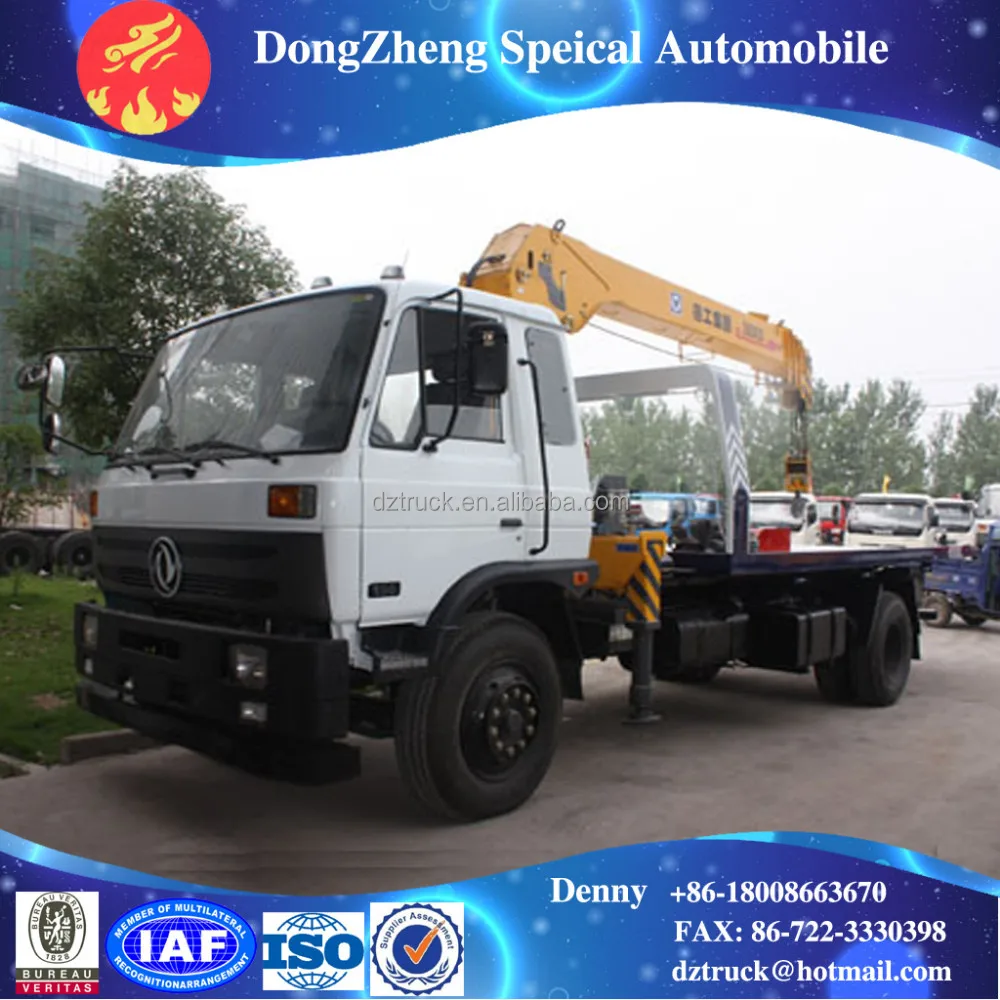

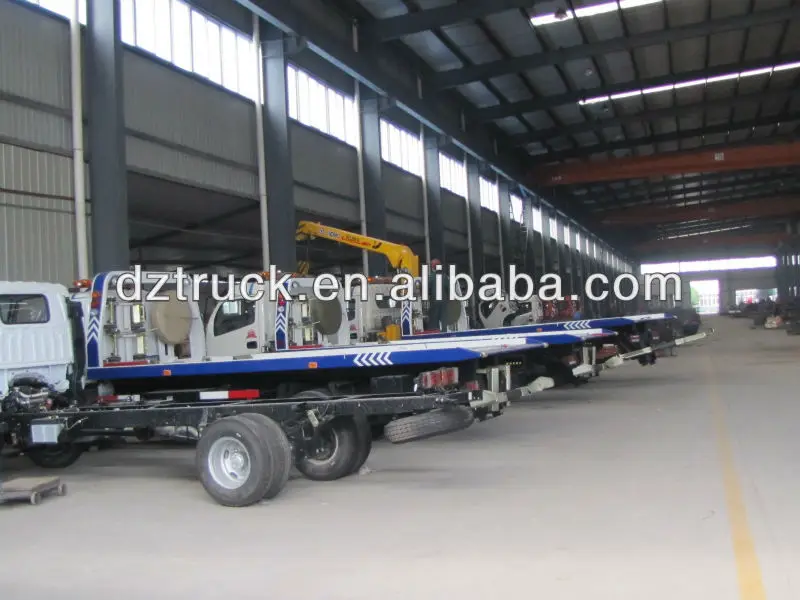

wrecker truck images













CLASSIFICATION

1.Wrecker truck by category is mainly divided into towing and lifting together,towing and lifting speperated, one to one type, flat-bed one for two type,multi-function wrecker truck and hydraulic clamping type automatically.



2.According to the traction tonnage, wrecker truck is divided into 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons and 80 tons.



3.According to the brand, it is divided into JAC , ISUZU, Dongfeng, Hongyan heavy duty wrecker truck, Steyr heavy duty wrecker truck, Jiangling , and Iveco wrecker truck and so on.



4.Wrecker truck according to the characteristics of its use can be divided into carrying type and lifting traction type. Carrying type wrecker is to pull the damaged vehicles to transport vehicle, and lifting drawing type wrecker is to use the truck lifting and the traction device to lift one end of the damaged vehicle off the ground, the other end is still on the ground, and then by lifting traction type wrecker truck pull away from the scene.



contact information



Denny            +86-18008663670

                        fax: 86-722-3330389

If you have any interest and need more information,pls feel free to let me know or give me an inquiry. We have so many types of wrecker trucks for sale. I will give you better service as soon as possible.
