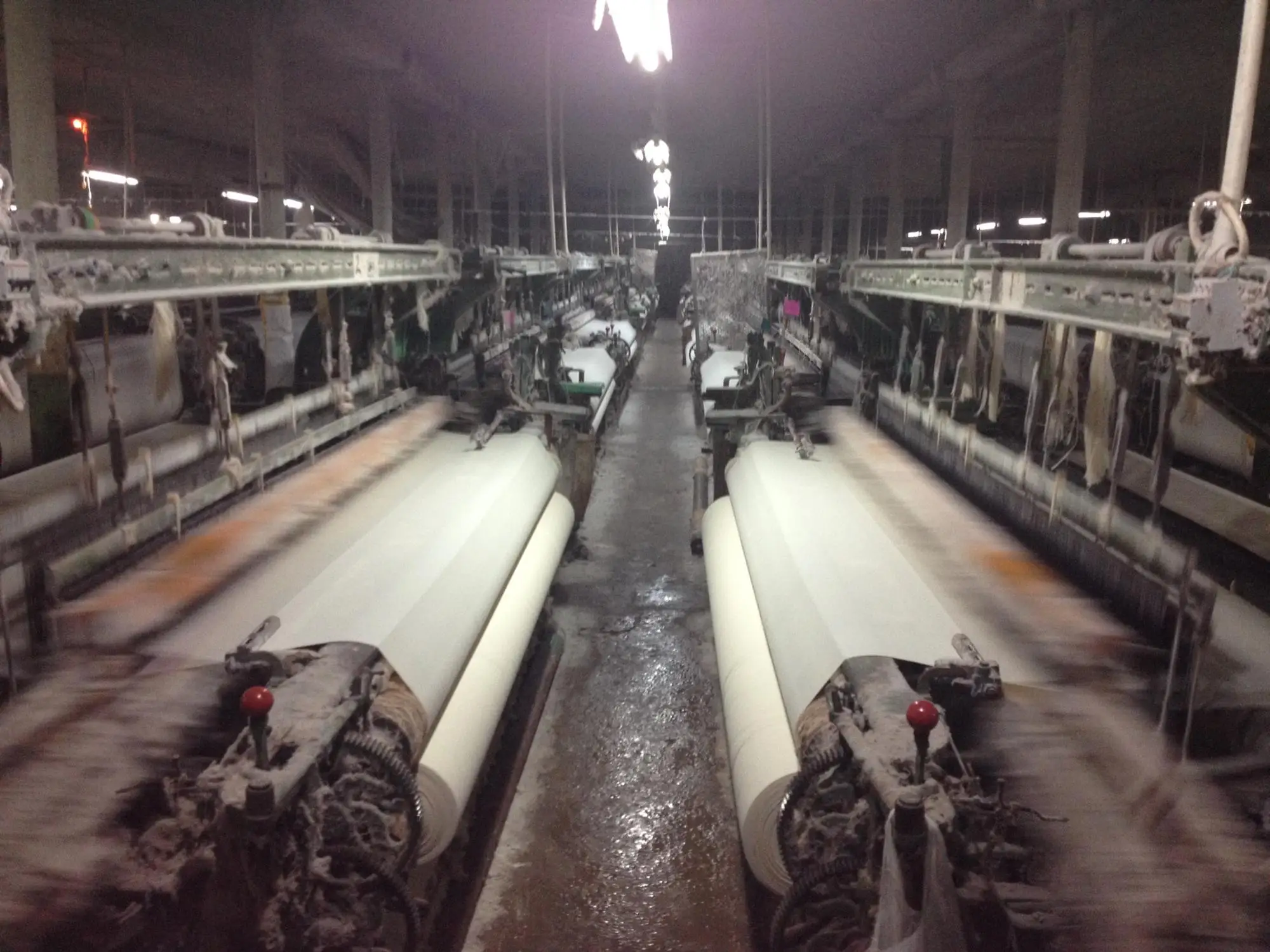

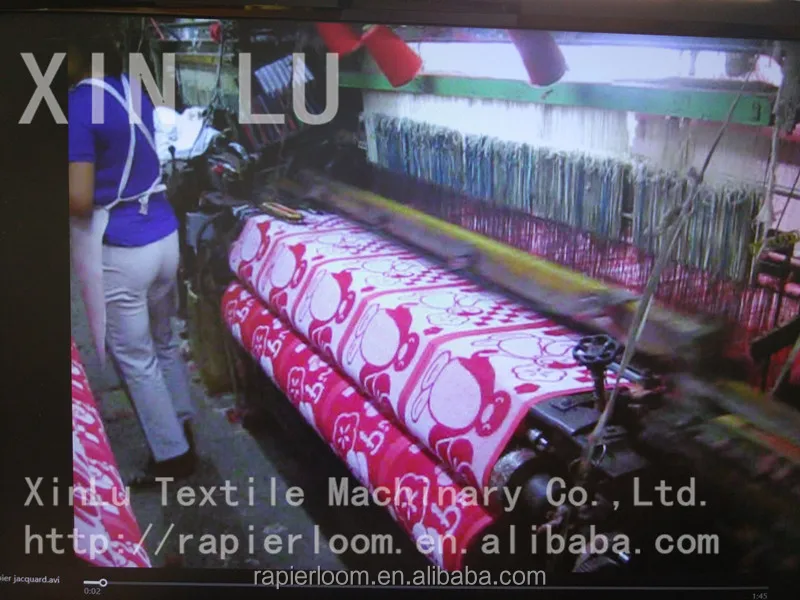

china textile GA615 Shuttle jacquaid loom machine

Model Number

Eagle GA798 Flexible Fabrics Rapier Loom

Reed width (cm)

150,180, 200, 230, 280, 330, 360.

Rotation speed

Design speed 160~250rpm.

Weft insertion

160-180 weft/min picked by left and right rapier band and head.

Warp beam dia.

Standard 600mm.

Cloth roll dia.

300mm, can match with big rolling cloth mechanism.

Weft feeder

FDP electronic weft accumulator.

Driving control

Rated 0.8~1.3kw main motor power, 3-phase line, 380v, 50hz.

Beat-up motion

Crankshaftweft insertion beating-up.

Lubrication

Oiling pump, automatic oil for dobby.

Electric circuit

Standard modularization design, LED displays working condition.

Weft selection

4-6 color mechanical dobby weft selector.

Pattern design

Pattern card design.

Yarn range

Spun yarns: 500tex (1.2Ne)~5tex (120Ne). Filament yarns: 10dte(9td)~1650dte(1500Td). Yarn count: 12-32S.

Shedding motion

8-12 pieces heddle frame, mechanical dobby with max. 20 shafts automatic shedding type, can match with big jacquard.

Let-off motion

Semi positive type mechanical let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.

Take-up motion

Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.

Selvage device

Mechanical selvage cutter, Leno selvedge.
Temple: ring type copper cylinder with pin.

Machine drive

V-belt direct machine drive, brake by electromagnetic clutch.

Stop motion

Warp yarn: separate electric automatic warp stop motions;Weft yarn: high-sensitivity piezoelectricity detector control automatic stop. Stop display: 4-colour multi-function indication lamps.

Electronic control

Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.

Size and weight

450*250*260cm³, 1.8~2.0 MTs.
