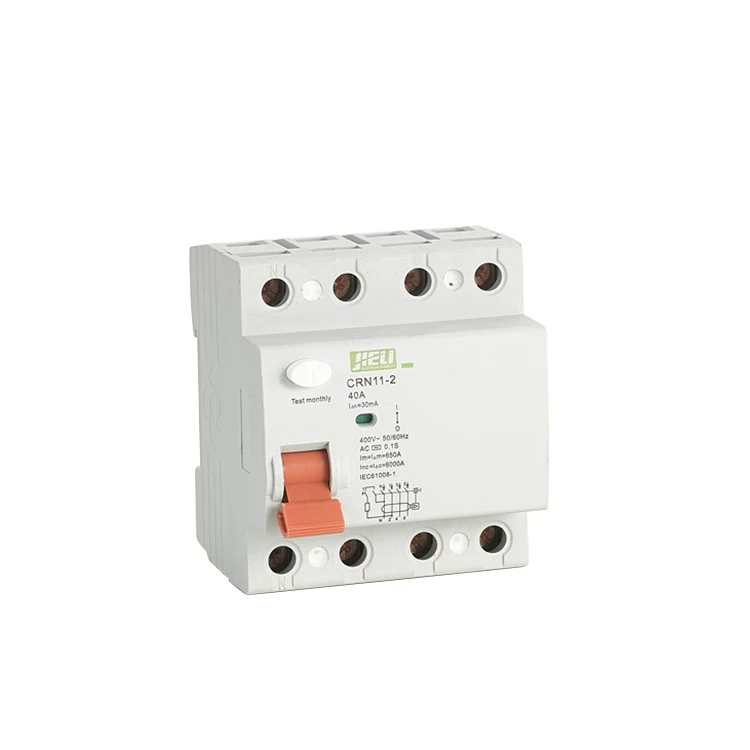

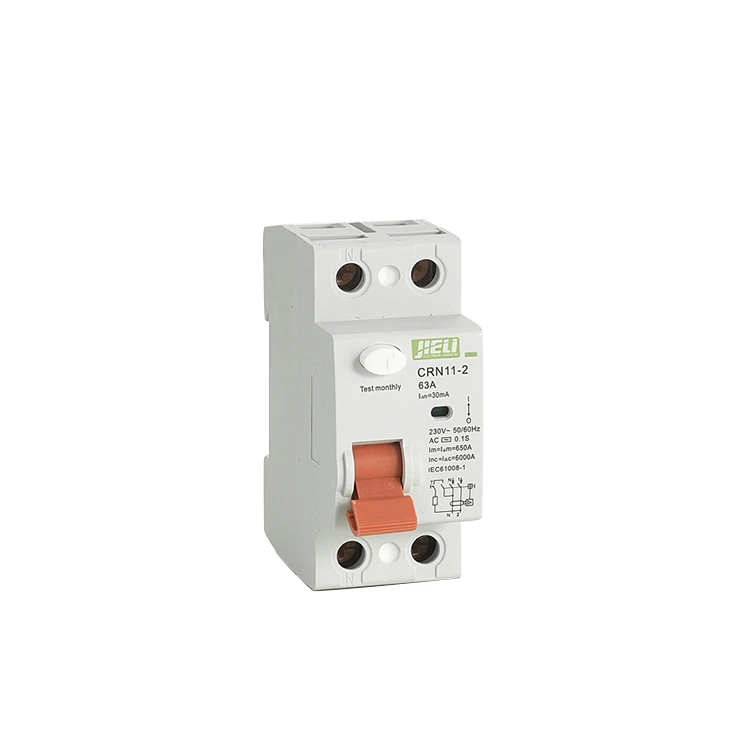

China wenzhou factory Over Voltage Protection Earth Leakage Circuit Breaker RN11 12

Product Overview

Description

This ID rccb breaker have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 30mA,100mA,300mA. RCCB is not suitable for use on DC pulse system. It conforms with the standards of IEC60947.

Poles	2p  4p
Rated current In	10A~63A
Rated voltage Un (V)	230/400
Residual current off-time	≤0.3S
Rated frequency	50/60Hz
Rated residual operation current	10mA 30mA 50mA, 100mA, 300mA
Ambient  temperature	-5°C ~ +40°C
Rated residual non-operating current (mA)	0.5
Short circuit capacity	6000A
Mechanical life	10000
Protection level	IP20

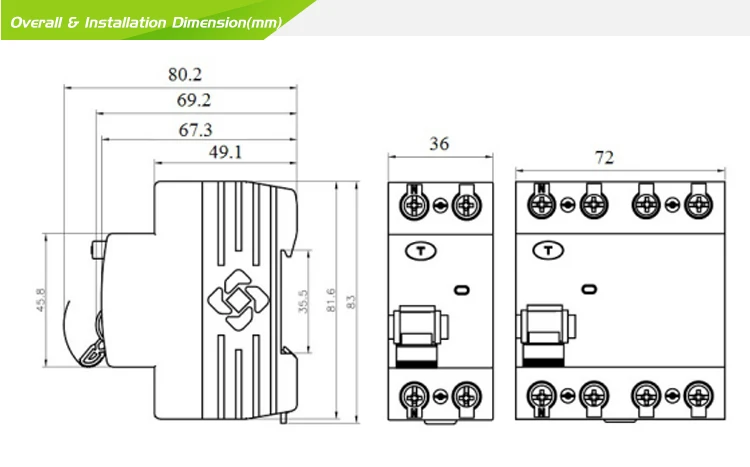

Installation style	Standard 35mm guide
Terminal connection type	Cable/U type/Pin type
Biggest wiring ability	25mm²



20 years industry experience

JIELI ELECTRICAL focus on the field of low voltage circuit breakers for 20 years. Specializing in the MCB,RCCB and Safety switch products.



12 years export experience

More than 12 years business experience on export.clients are widespread all over the world.



Professional R&D team provides technical support for products

Technical support- We have one group of technical team which can develop and design the product according to the requirements of customers.



Complete quality reflects product quality

Certification -We have passed ISO9001:2008 Quality Management System and CCC,  CE
