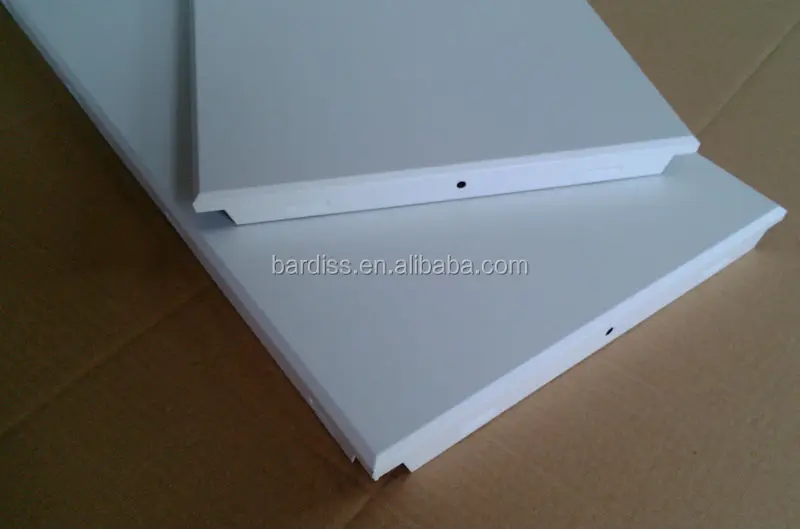

Aluminum False Ceiling Tile 300*1200mm

Product Overview

Description





Features description:

Bardiss clip-in series ceiling, with invisible structure and unique appearance. With strong functional and decorative effects, It has the advantages of stability, easy to install and repair. Corrosion prevention, moisture proof, sound absorbing and inflaming retaeding.



Application:

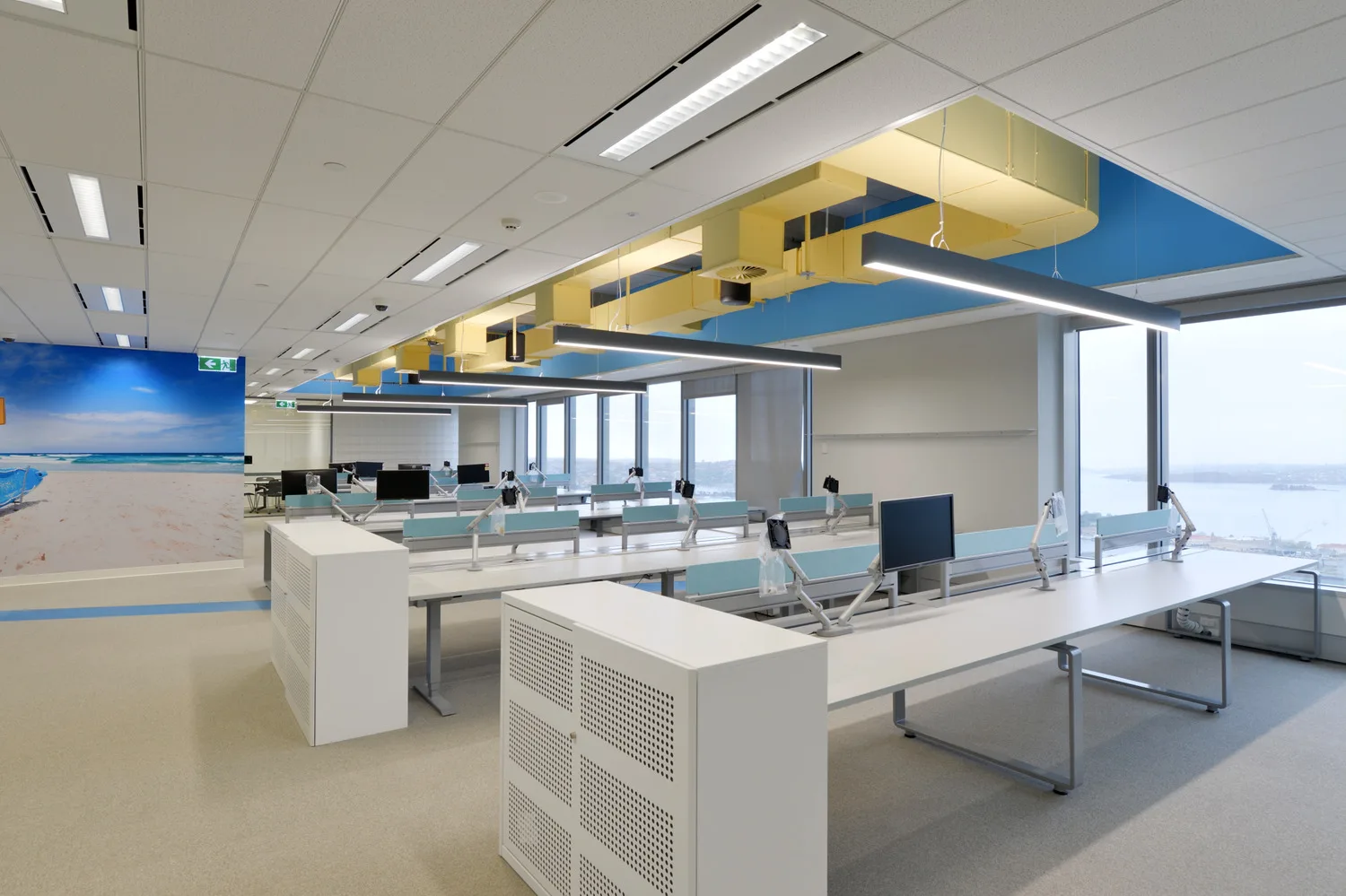

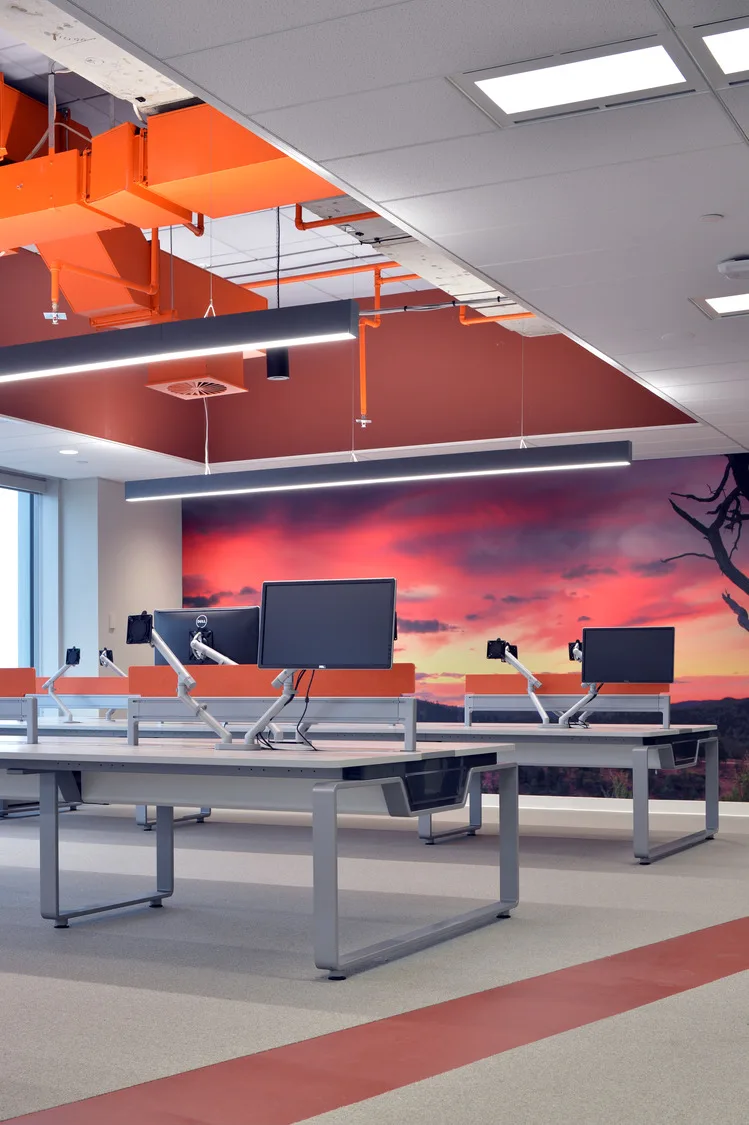

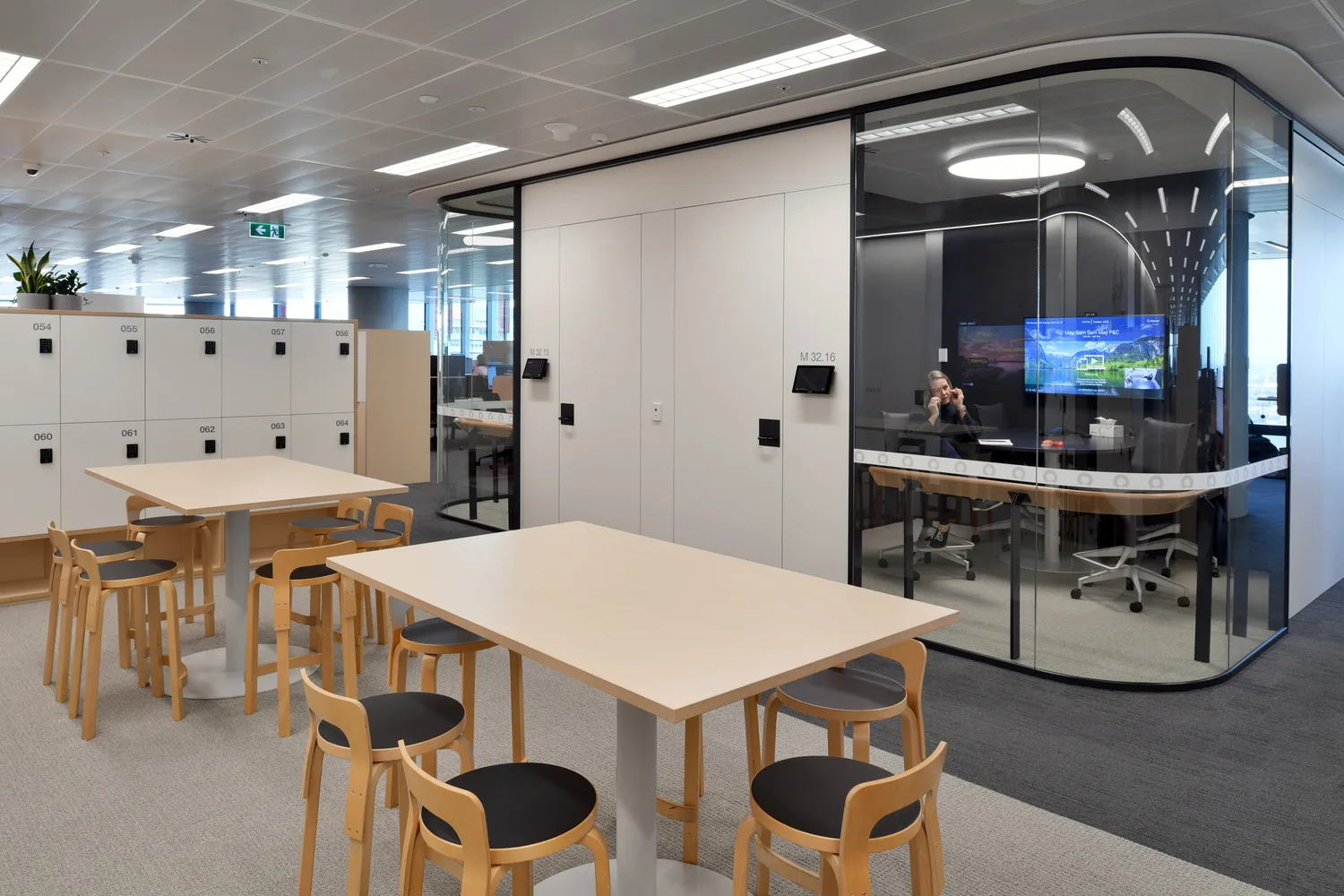

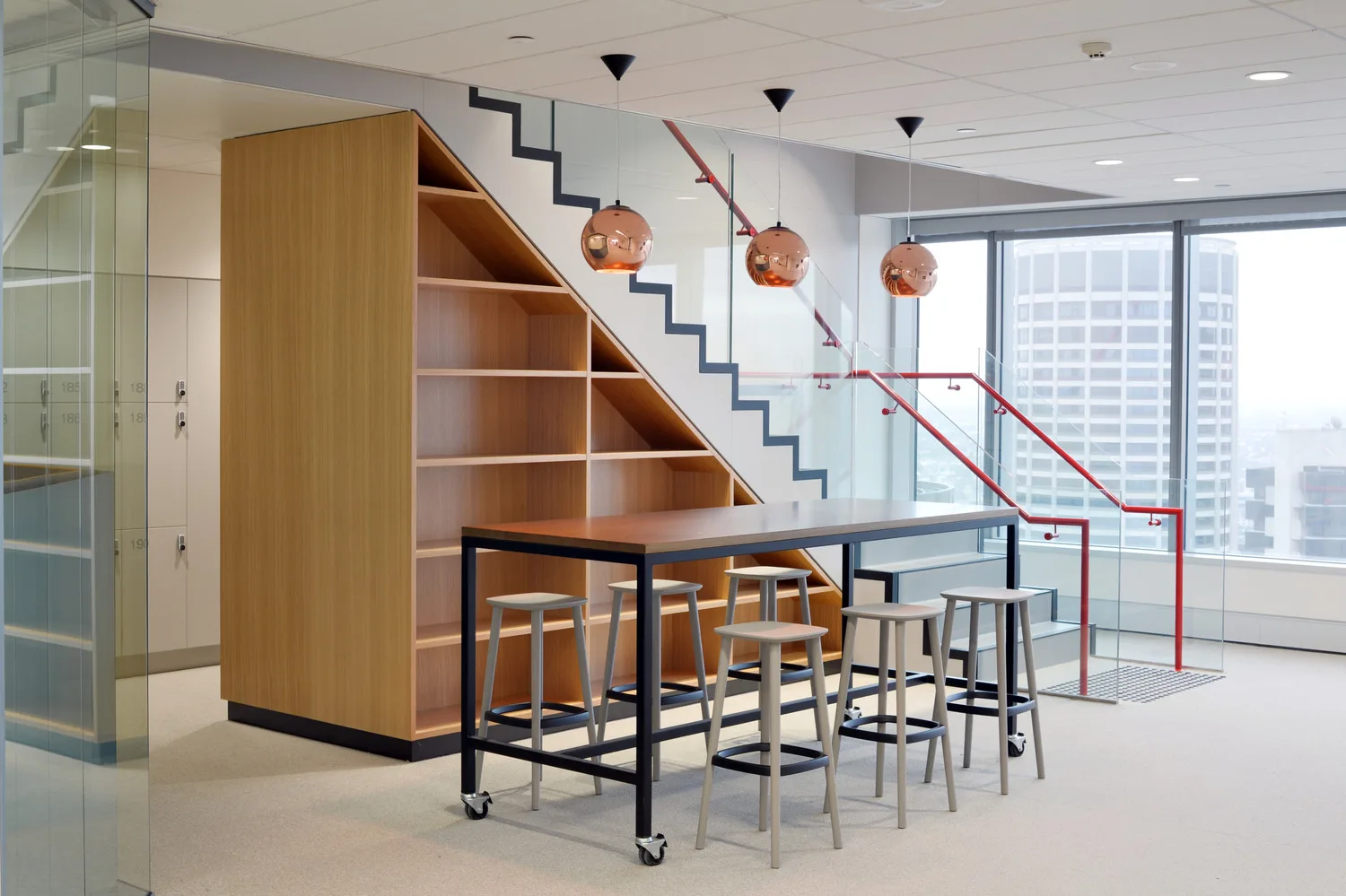

Large public building, such as office, airport, train station, subway stations, hospitals, hotels etc.



Specification	Thickness (recommend)	Height	Legend
300×300mm	0.4-1.0mm	19mm(short edge) 25mm(High edge)
300×450mm
300×600mm
300×1200mm
400×400mm	0.5-1.2mm
500×500mm
600×600mm
600×1200mm
Base materials	Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements; Besides, galvanized iron and stainless steel material is also available
Surface treatment	Powder coated(ordinary powder, Polyester powder), Paint coated, Film coated
Type of Surface	Plain plate or perforated plate is selected according to the actual requirements

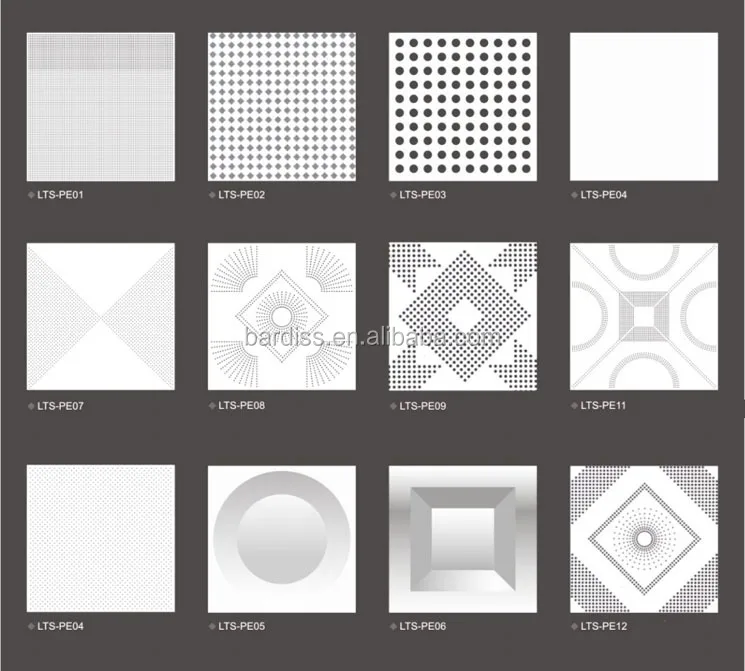

Punch Patterns

Diameter of holes	Base thickness	Diameter of holes	Base thickness
1.8 mm round holes	0.45-0.8	3.0 mm Square holes	0.45-0.8
2.0 mm round holes	0.45-1.0	5.0 mm Square holes	0.45-0.8
2.3 mm round holes	0.45-0.8	6.0 mm Square holes	0.45-1.0
2.5 mm round holes	0.45-0.8	3.0 different oatten	0.45-0.7
6.0 mm round holes	0.45-1.0	3.0 full perforation	0.45-0.8

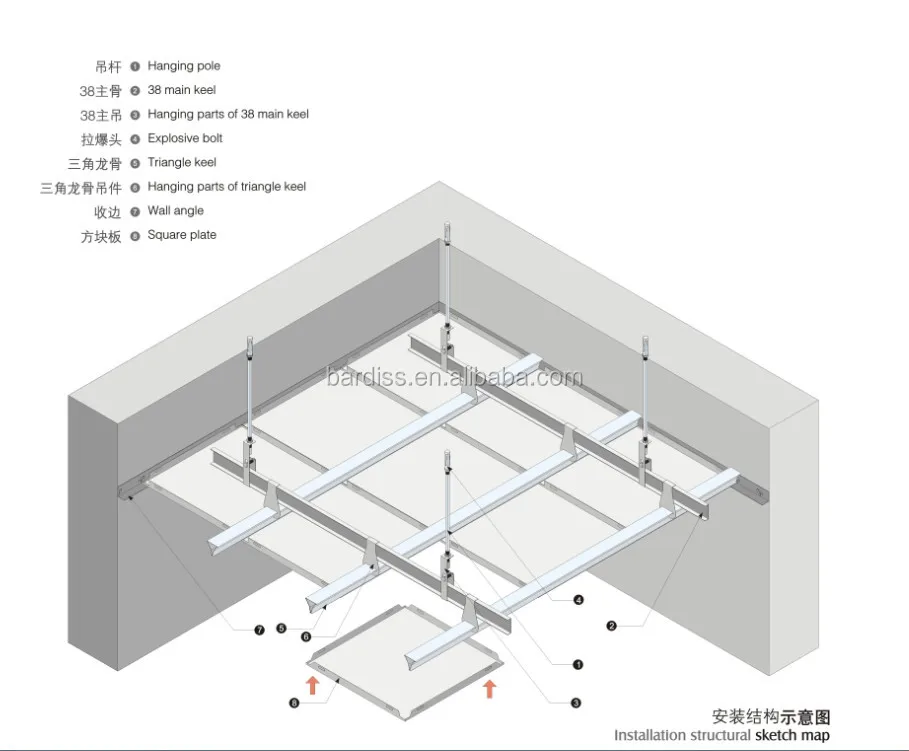

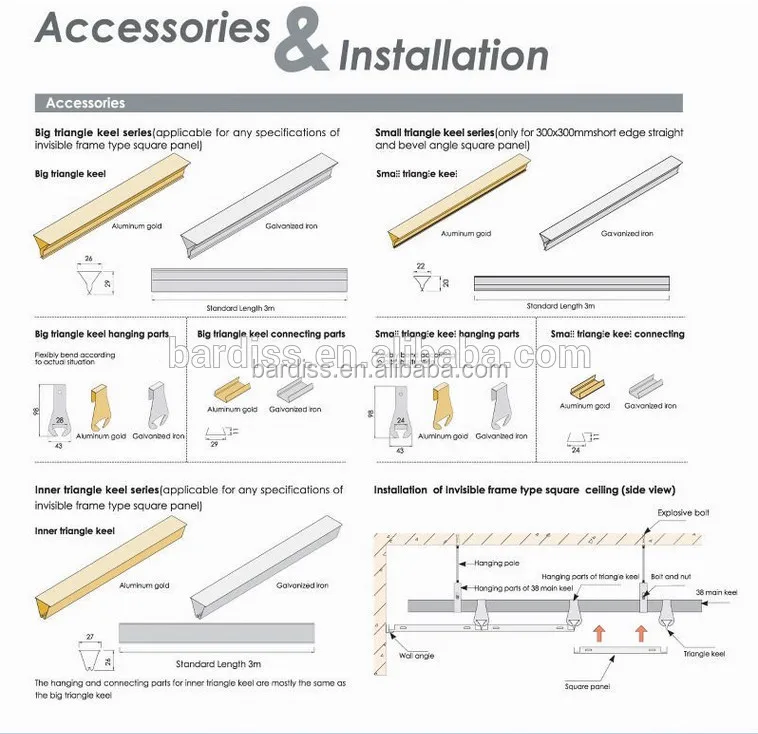

Accessories & Installation



1)      Installing the sideline in the same height.

2)      Installing light steel main keel in appreciate, the normal space is 1-1.2m, the hanging distance shall according to the light steel main keel.

3)      Binding the light steel main keel with the prepared hanging parts on the triangle keel, then clamp it under the light steel main keel in the vertical direction, the space of the triangle keel accords to the width of the plate. Then it is necessary to adjust it to plane after finish installation.

4)      Pressing the two parallel edges into the triangle keel slot, firstly installing the rest plates breadthwise and length ways, make sure they are perpendicular, then installing the rest plates.

5)      Pressing the square plates lightly, make sure the gap is perpendicular.

6)      Wearing gloves when installing plate, it finger printers or stains remain on the plate, pls remove it off with warm water and detergent, then fry it.



Certification:





















Our core competition:

1. Rich experience.  Established in 1992 with more than 20 years experience, the first in this trade    to be certified by ISO9001: 2000, with 50,000+ sqm worlshop.

2.  high quality with competitive price. Good materials and sophisticated    fabrication technology ensure durability of ceilings throughout their  lifespan.

3. Environmental protection.Aluminum ceiling does not contain harmful  substance to environment. The aluminum alloy is recyclable and reused.

  producing metal ceiling tiles.

4.  Annual output ceiling tiles for 5,000,000 sqm, plate for 300,000sqm and electrical    appliances for 500,000sqm

5.  900+ shops in 217 cities in 45 countries.



Business scope:

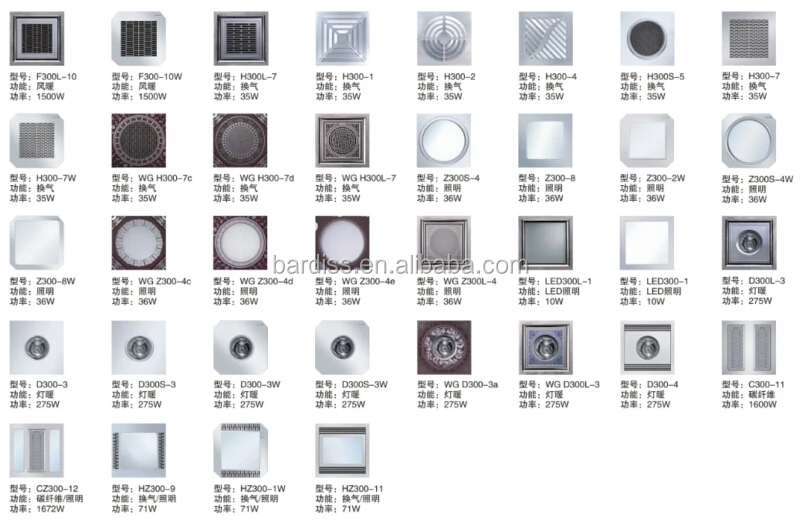

aluminium ceiling & lighting module & Ventilation module

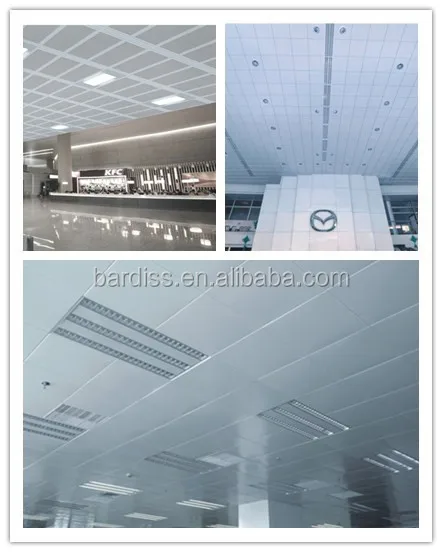

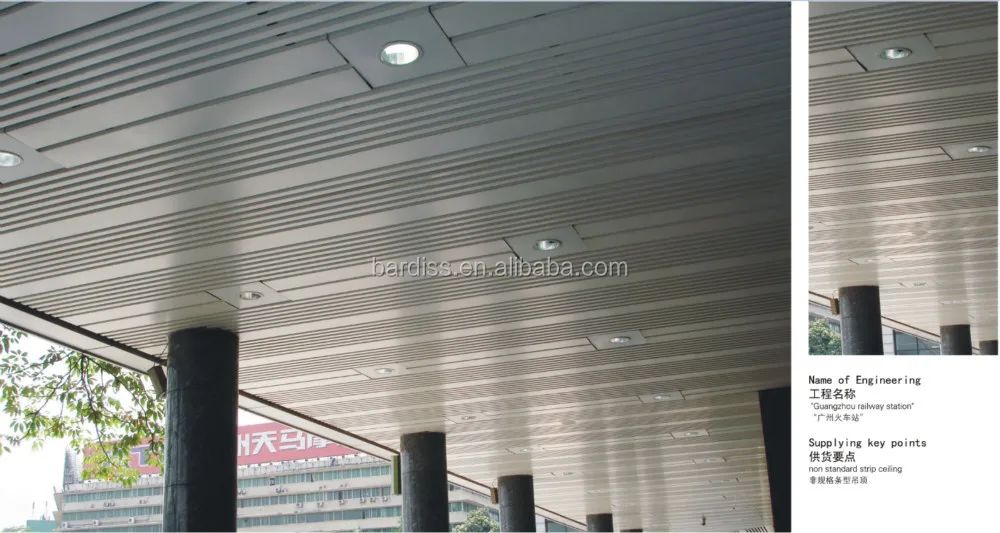

BARDISS Projects

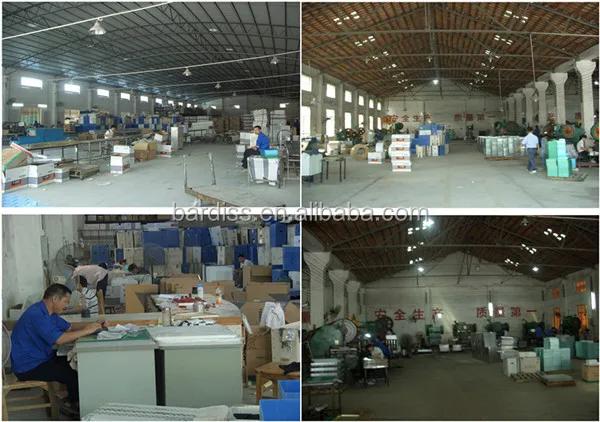

BARDISS workshop&showroom









A1: Our company is a manufacturer and supplier of metal ceiling tiles.


Q2: What other kind of ceiling tiles do your company produce?

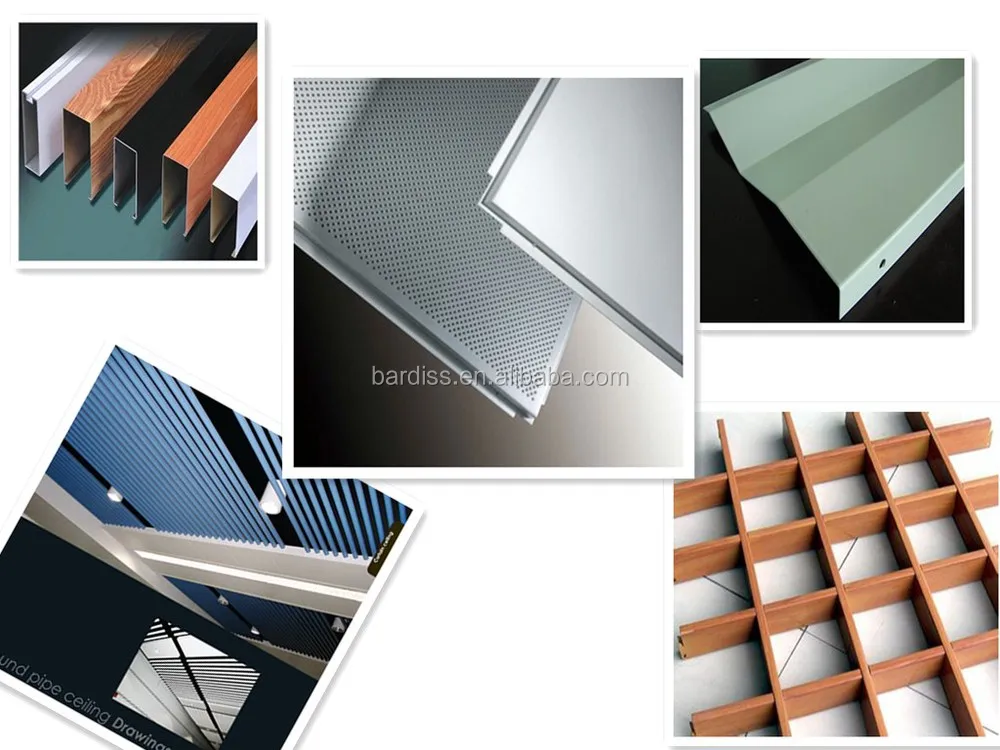

A2:  We produce Ceiling tiles with different Size and Color, such as Aluminum Ceiling, Aluminum Grid, Aluminum Square Tube Ceiling, Aluminum Strip Ceiling, and Art Carving Plate.



Q3: Is it difficult to install the Aluminum ceiling tiles?
A3: No, it is very easy to install, just like our install photos in the Product Description.

Q4: How much is your ceiling tiles capacity per much?
A4: Our company Established in 1992, our output ceiling tiles is 9,000,000 m² per year

Q5: can you accept OEM?
A5:Yes, we can. ceiling tiles can be customized according to your requirement .

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. And for bulk order, sea ship way is best, we will via our ship partnersend to you asap .

Q7: Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you,to find the best solution for you.



Q8: why choose us?

A8: 1. professional manufacturer with rich experience.

       2. provide free samples to check the quality.

       3. accept OEM.

       4. good service and  prompt delivery.

Welcome to contact us!

Your success,our business!
