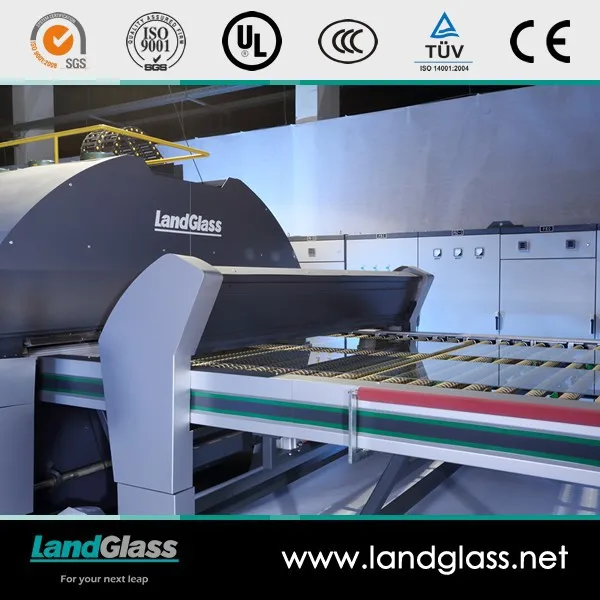

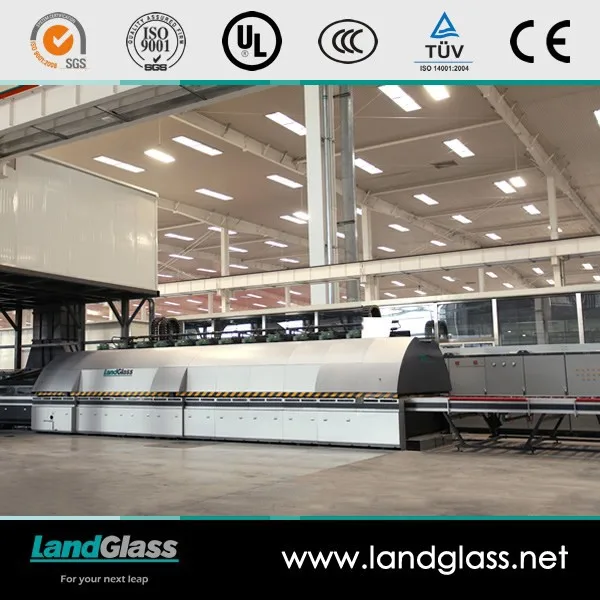

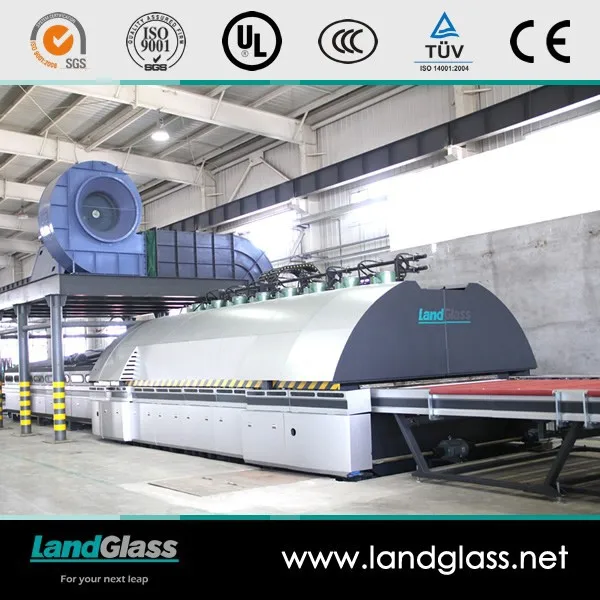

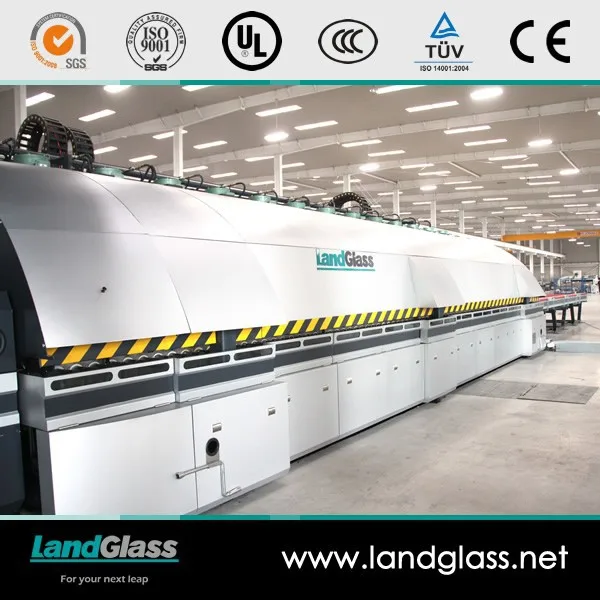

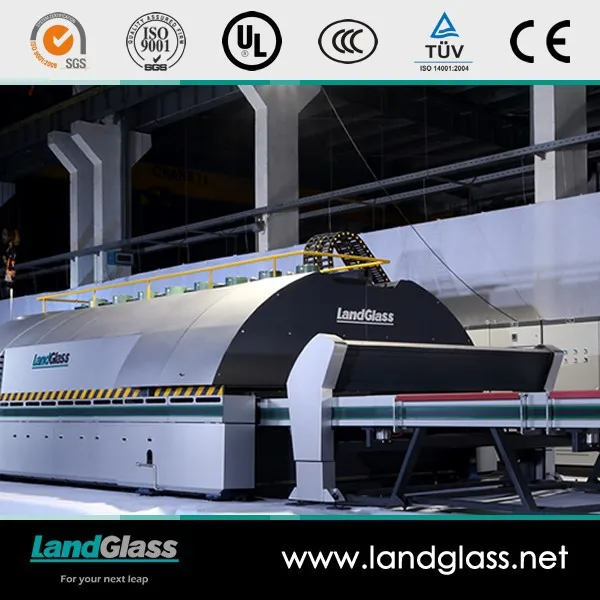

LandGlass Forced Convection Flat Toughened Glass Furnace/ Glass Toughening Machine
- Category: >>>
- Supplier: Luoyang Landglass Technology Co. Ltd.
Share on (60259603988):
Product Overview
Description
LandGlass Forced Convection Flat Toughened Glass Furnace/ Glass Toughening Machine
As various coated glasses, especially the online and offline low-E glass, are being used more and more extensively in the building industry, JetConvectionTM series tempering furnaces introduced by LandGlass have been winning high reputation in the domestic and foreign markets and heralded as efficient equipment in tempering high end glass products by glass processing companies. In 2015, LandGlass introduced a brand new series of forced convection tempering furnace, i.e. CycloneTM series, which achieved significant improvement in terms of product quality, productivity, energy saving, intelligent control, and wireless connection.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Model | Cyclone A2450 | Cyclone A2480 |
Max.size | 2440x5000 | 2440x8000 |
Min.size | 150x350 | 150x350 |
Thickness range | 4-19 | 4-19 |
Productivity(6mm) | 17-18(6mm clear glass edge waviness <=0.1) 15-16(6mm low-e glass edge waviness <=0.1) | 17-18(6mm clear glass edge waviness <=0.1) 15-16(6mm low-e glass edge waviness <=0.1) |
Installed Capacity | 1100kVA | 1800kVA |
Power Consumption | 3.7KW.H-4.05KW.H/㎡ | 3.7KW.H-4.05KW.H/㎡ |
Detailed Images
Full convection is a completely different approach to the traditional combination of radiation heating and convection pipes. The use of full convection solves a series of heating challenges that are due to the different emissivities at the top and bottom surfaces of coated glass.
With its leading energy-saving technologies, LandGlass CycloneTM can reduce The energy consumption by 10%, compared with the standard convection tempering furnace.
Intelligent Control
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
Manufacturing plantLandGlass Technology Co., Ltd.,
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D Team
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass has not only set up a complete and strict quality management system to ensure the long-term sound running of its tempering equipment, but also offers a after-sales service to support our customers and help them to optimize and bring more performance to their furnaces.
Certifications
Product Certification
Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.
