THE ONLY OWNER OF PERMANENT BRAND WELDING ELECTRODE MT 06 AWS E6011

Product Overview

Description

Speciality:

 1. First Chinese export brand with 57 years’history.

 2. First to obtain the shipping societies’approval: ABS, BV, CCS, DNV, GL,  LR,CE,TUV AND DB

3. Sales to more than 50 countries and areas.

4. Only supply to overseas market according to the international standards. Oem and small quantity orders are welcome.

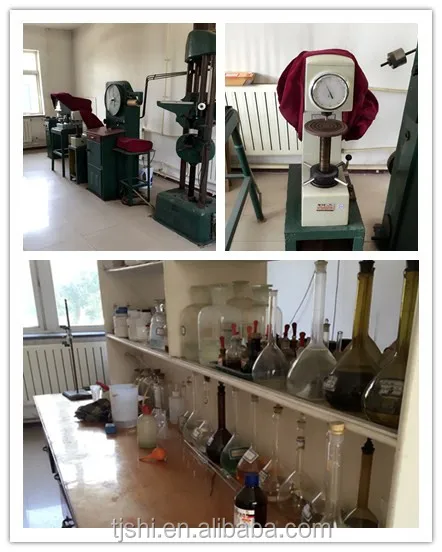

5. Raw materials, production line and inspection instruments imported from abroad.

Feature:

Brand: PERMANENT,MT-06

Certificate: ABS

Package: CARTONS,PALLETS

Sample: free

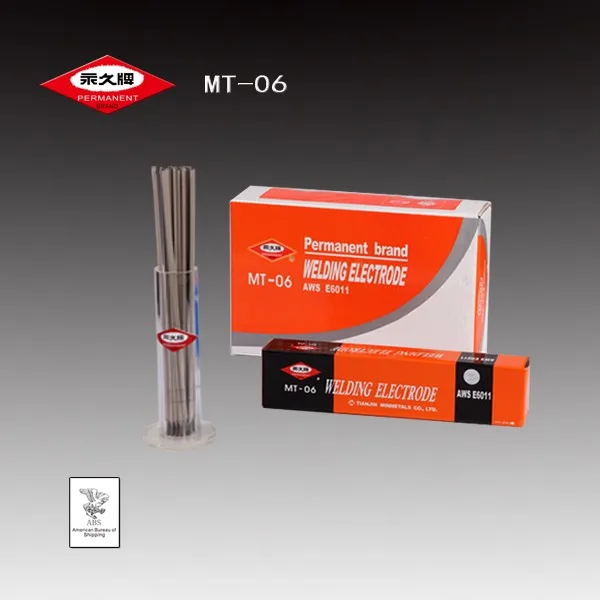

PERMANENT BRAND WELDING ELECTRODE MT-06  AWS E6011



Description:

MT-06 is of cellulose type electrodes for welding Iow carbon
steel. It gives a deep penetrating, forceful arc and is usable
in all welding position and above all for such multi-layers as
overhead and vertical positions. It develops a Iow volume of
slag that is easily removed. The deposited metal with high
porosity resistance usually have good mechanical properties
and are radiographically acceptable.

Applications:

For welding where welds must have high quality, such as pipelines of carbon steel, ships, bridges and buildings.

Chemical Composition of Weld Metal (%)

	C	Mn	Si	S	P
AWS Standard	≤0. 20	≤1. 20	≤1. 00	N. S.	N. S.
Typical	0. 10	0. 42	0. 30	0. 017	0. 020

Mechanical Properties of Weld Metal

	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)	Charpy V Impact Value (-30°C)
AWS Standard	≥330	≥430	≥22	≥27J
Typical	410	570	24	30J

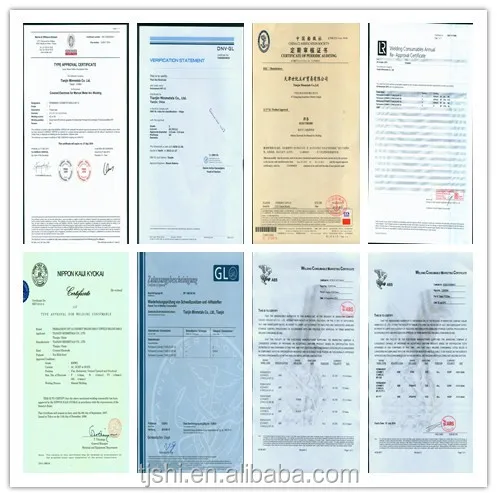

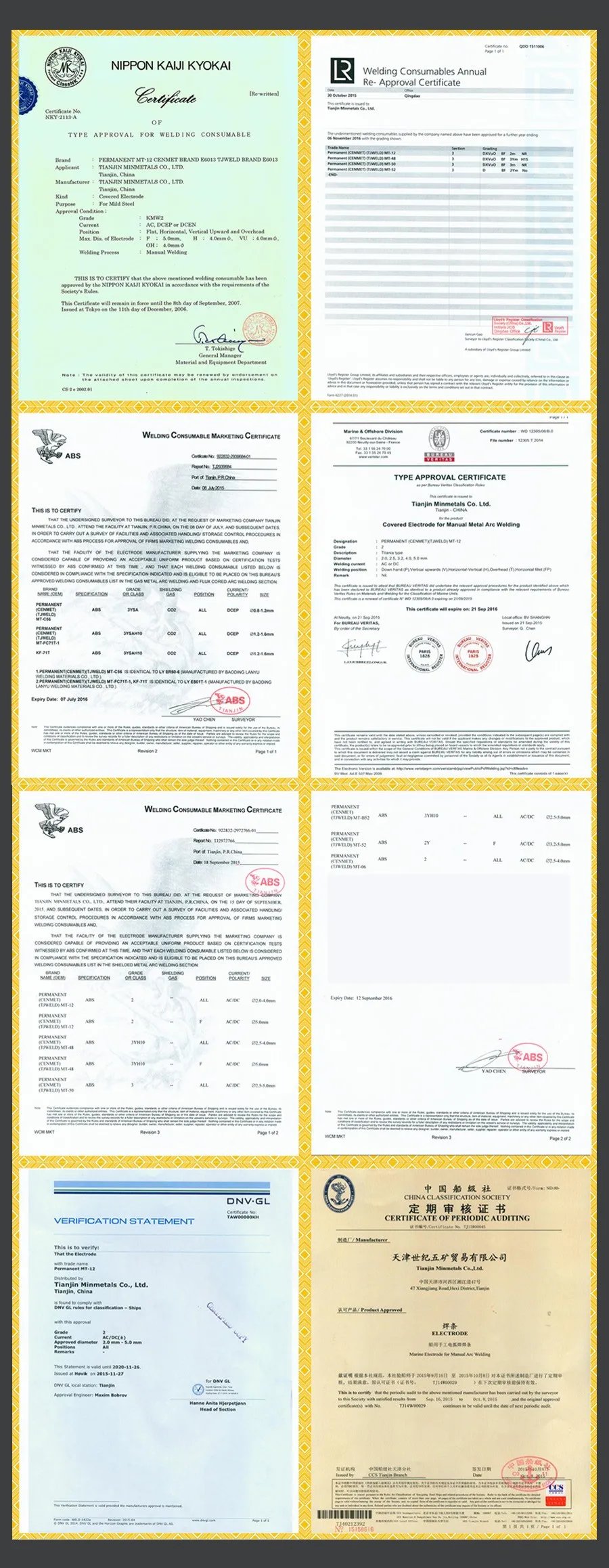

Our certificates

Detailed images

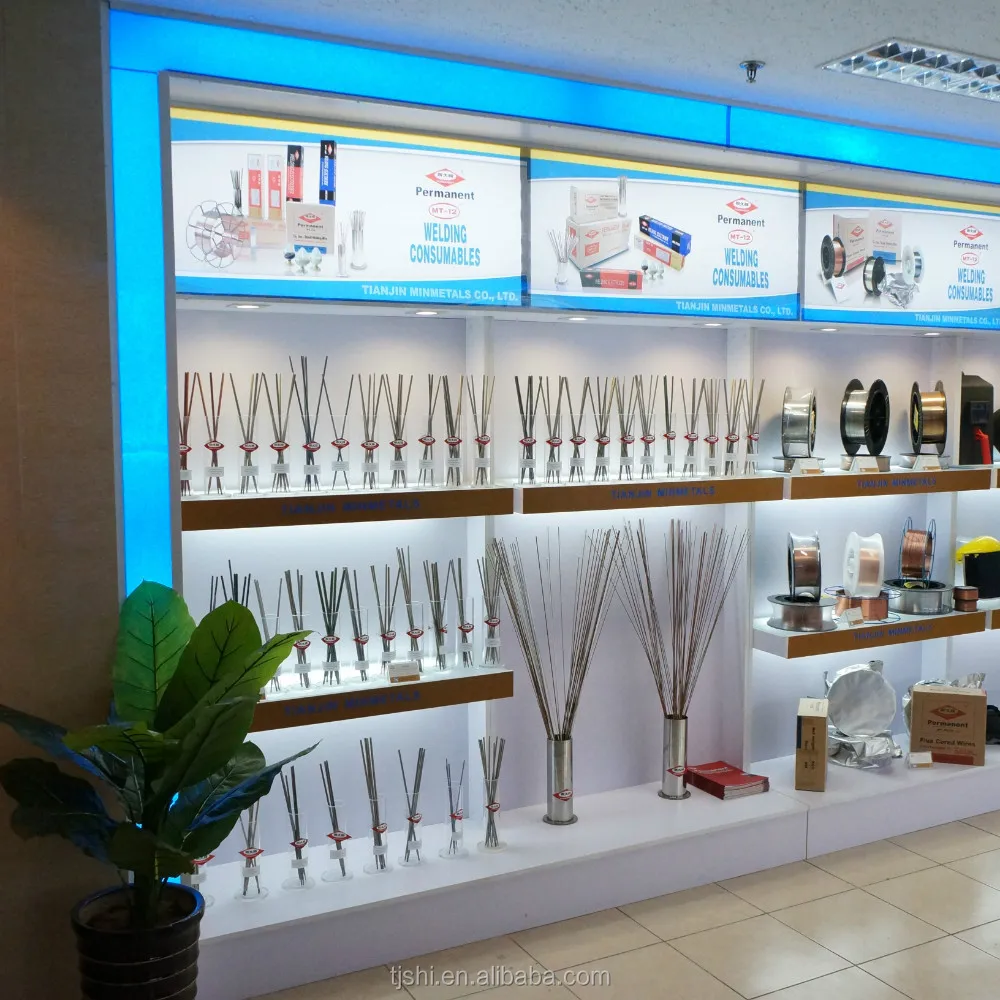

    Fair show



      WHY US



   1.Integrated industrial and trade enterprise



   2.58years history



   3.First Chinese welding consumables supplier to overseas market



   4.The vice chairman unit of the china welding association



   5. Approval: ISO DB TUV CE ABS BV CCS DNV GL LR NK



   6.overseasb ranches: AUSTRALIA, ECUADOR, JORDAN  AND SIR LANKA



    Contact us!



    Tel:(86) 022-28243768/28248804



    Fax:(86) 022-28248824
