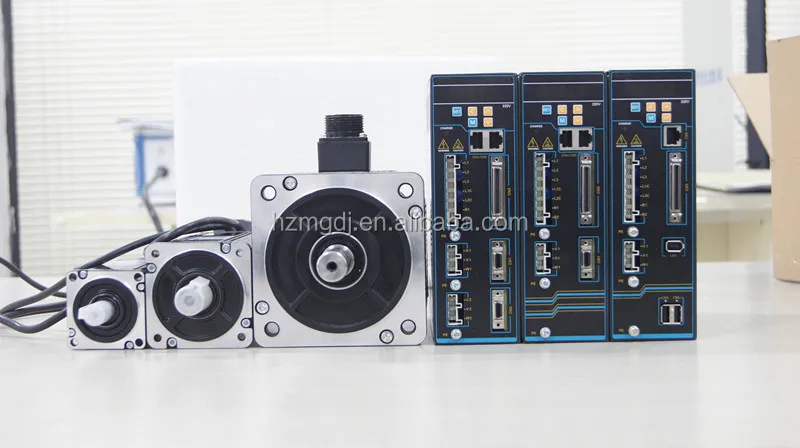

17 bit absolute servo motor and amplifier has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.

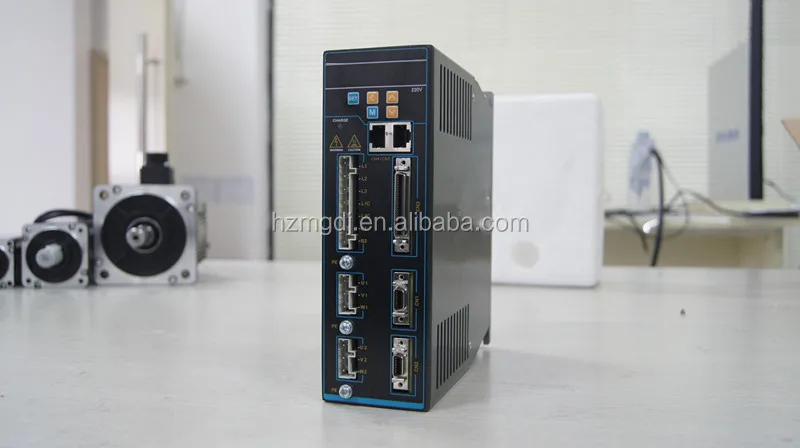

Driver with RS485
The specification of 17 bit absolute servo motor and amplifier

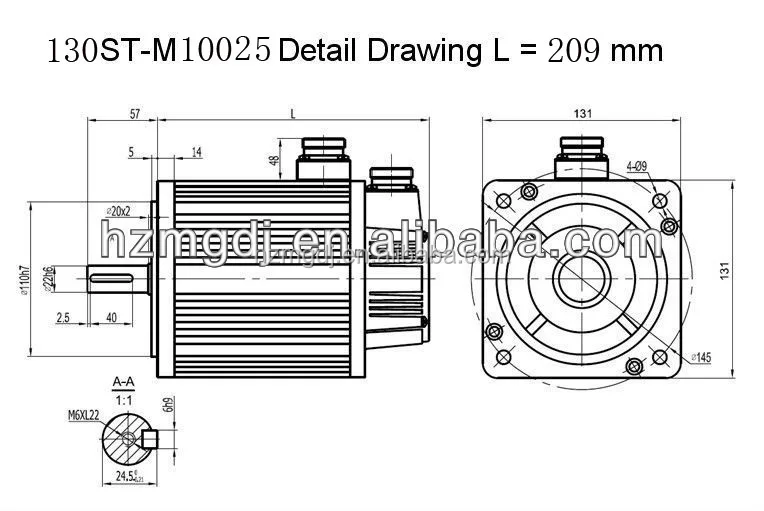

Motor model | 130ST-M10025 |
Rated power(KW) | 2.6 |
Rated voltage(V) | 220 |
Rated current(A) | 10 |
Rated speed(rpm) | 2500 |
Holding torque(N.m) | 10 |
Peak torque(N.m) | 25 |
Voltage constant(V/krpm) | 70 |
Torque coefficient(N.m/A) | 1.0 |
Rotor inertia(Kg.m2) | 1.94×10-3 |
Phase Resistance(Ω) | 1.29 |
Phase Inductance(mH) | 5.07 |
Machanical time-constant(Ms) | 3.93 |
Weight(Kg) | 11.5 |
