Светодиодный прожектор RGB 60 Вт IP66 Светодиодный проектор для наружного освещения строительного освещения
- Category: Flood Lights >>>
- Supplier: Beijing,Bestpower,Technology,&,Engineering,Co.,Ltd.
Share on:
Product Overview
Description
Product Details

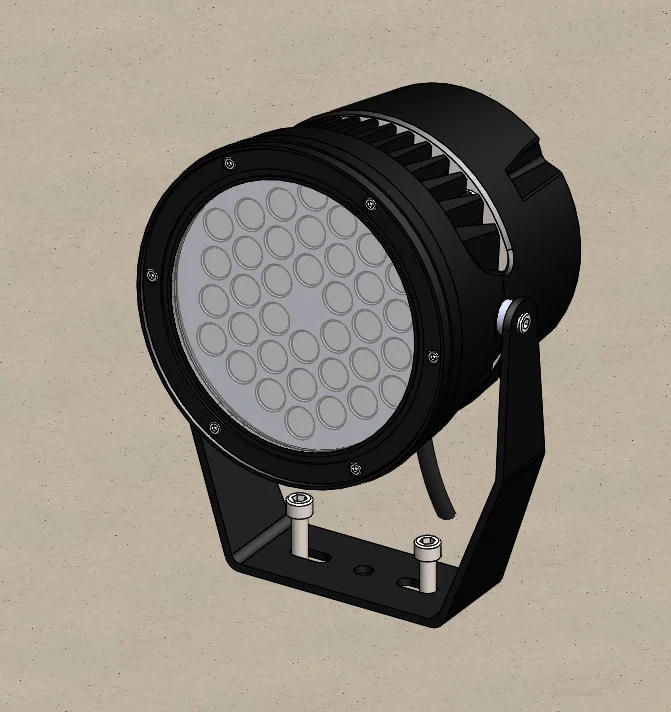

LED flood light RGB 60W IP66 led projector for outdoor lighting building lighting
Housing: Die-casting aluminum housing; 8mm thickness tempered glass with silicone rubber gasket, AkzoNobel corrosion-resistance coating; heat radiation rib can get remarkable ventilation and heat radiation, also with excellent self-cleaning performance.
Housing color: Gray (RAL9023)
Housing color: Gray (RAL9023)
Model: SL1102UB-36
LED Chips: 36PCS CREE chips.
Protection grade: IP66
Protection grade: IP66
Input Voltage: DC24V(AC100-305V, 50/60Hz)
Rated Power: 60W
Color Temperature: RGB
Efficiency: 40lm/W
Control: DMX512
Beam Angle: 8°/12.5°/20°/30°/ 45°/60°/15X30°/10X60°
Rated Power: 60W
Color Temperature: RGB
Efficiency: 40lm/W
Control: DMX512
Beam Angle: 8°/12.5°/20°/30°/ 45°/60°/15X30°/10X60°
Operating Temperature: -25℃-50℃
Life span: 50000h
Warranty: 2 years for whole light
Life span: 50000h
Warranty: 2 years for whole light
Model | SL1102UD-36 | SL1102UB-36 | SL1102UC-24 | ||||
LED Brand | CREE | CREE | CREE | CREE | |||
LED Quantity | 36pcs | 36pcs | 36pcs | 24pcs | |||
Rated Power | 105W | 86W | 60W | 50W | |||
Input Voltage | AC100-240V, 50/60Hz | DC24V/AC100-240V, 50/60Hz | DC24V/AC100-240V, 50/60Hz | DC24V/AC100-240V, 50/60Hz | |||
Color Temperature | Single | RGB/Single | RGB/Single | RGB/Single | |||
Beam Angle | 5°/8°/12.5°/20°/30°/ 45°/60°/15X30°/10X60° | ||||||
IP, IK | IP66, IK08 | IP66, IK08 | IP66, IK08 | IP66, IK08 | |||
Working Temperature | -25℃-50℃ | -25℃-50℃ | -25℃-50℃ | -25℃-50℃ | |||
Relalted Products

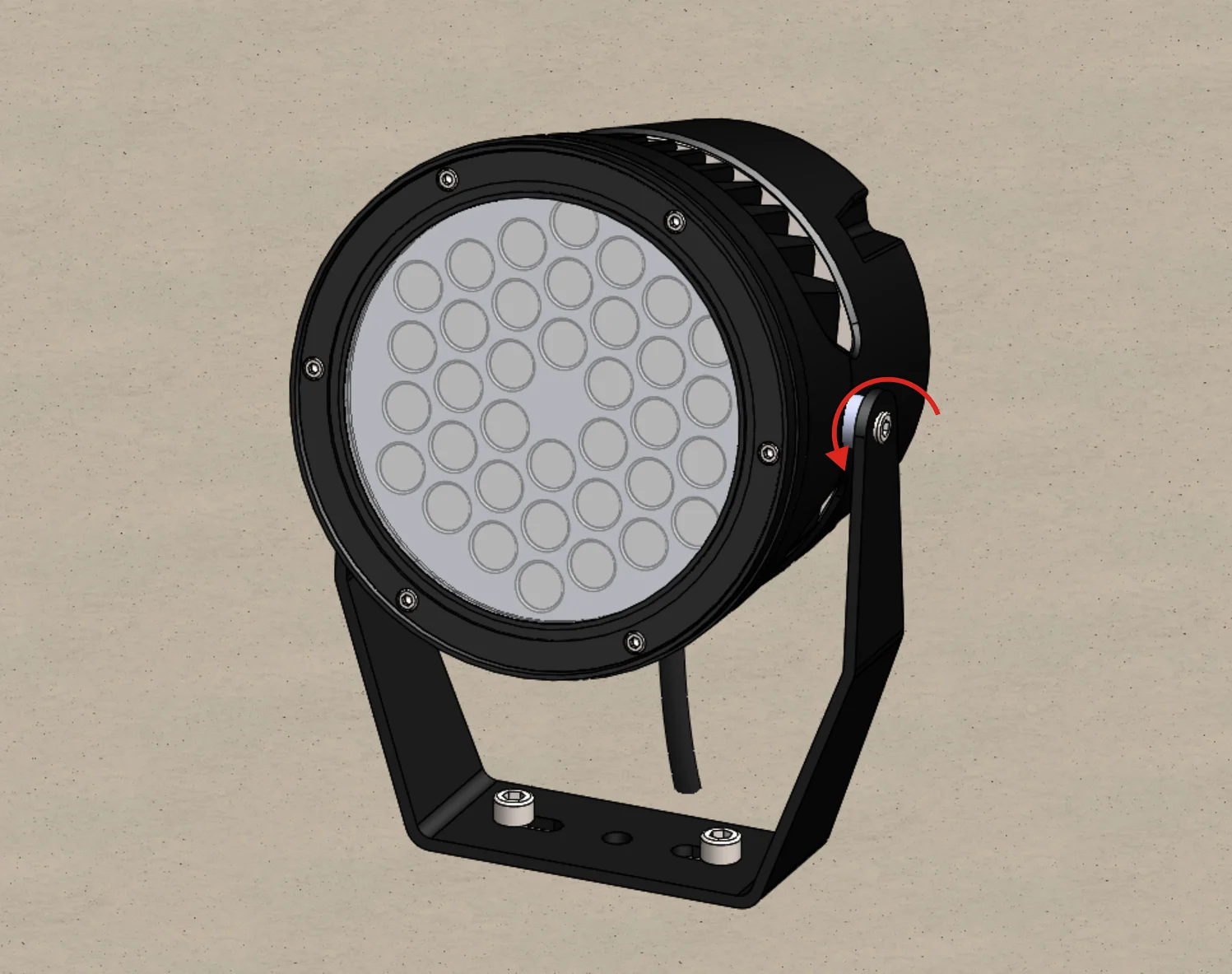

Installation Instructions
Certifications
Our SL1102，SL1125 series flood light have gotten EMC(CE), LVD(CE), RoHS certificate, and passed IP66 test.

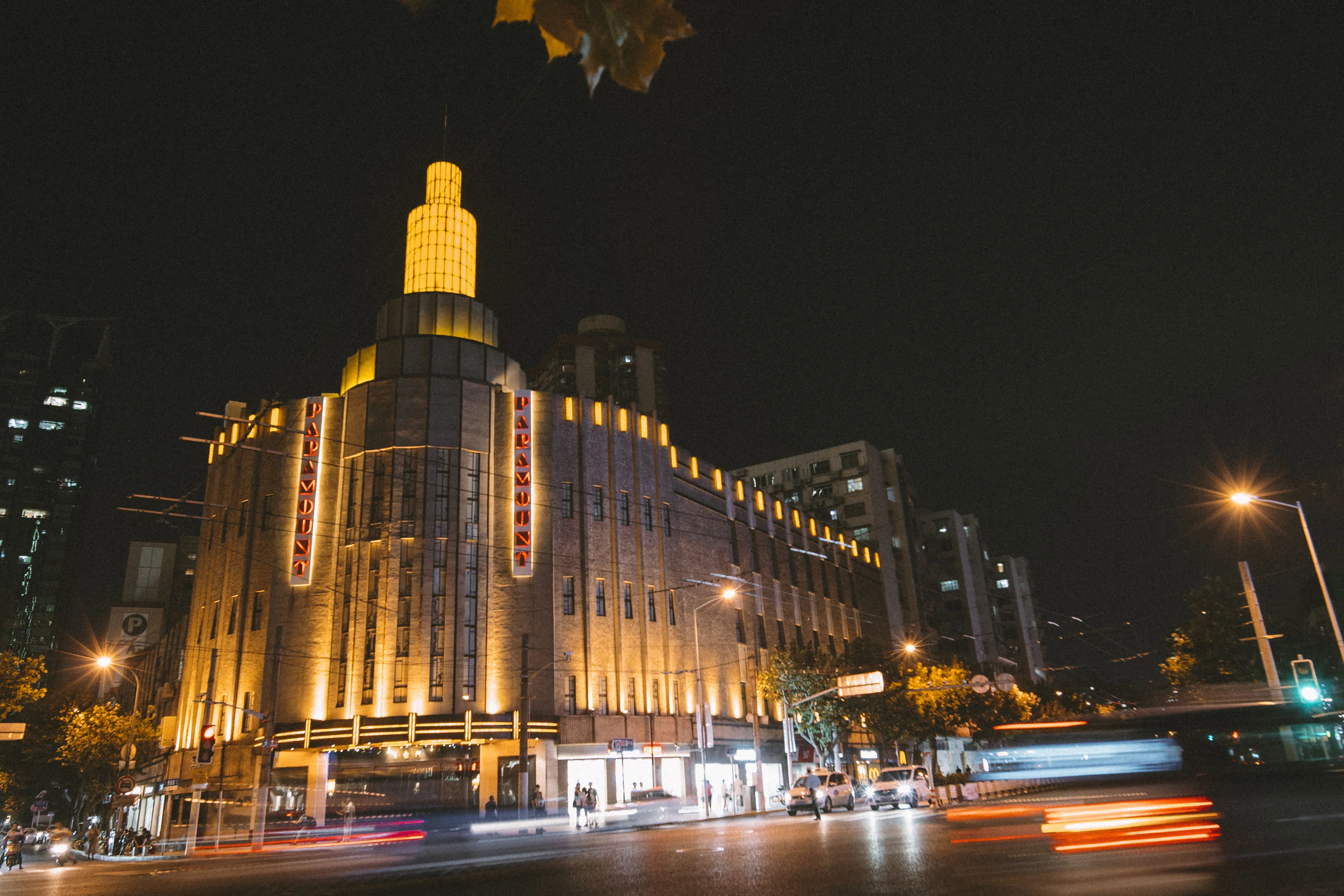

Project Reference
Package and Delivery
1.standard paper packaging: inner boxes+ourter boxes+pallets;
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
5.Sample delivery: 3-7days;
Bulk order delivery: 10-15days.
