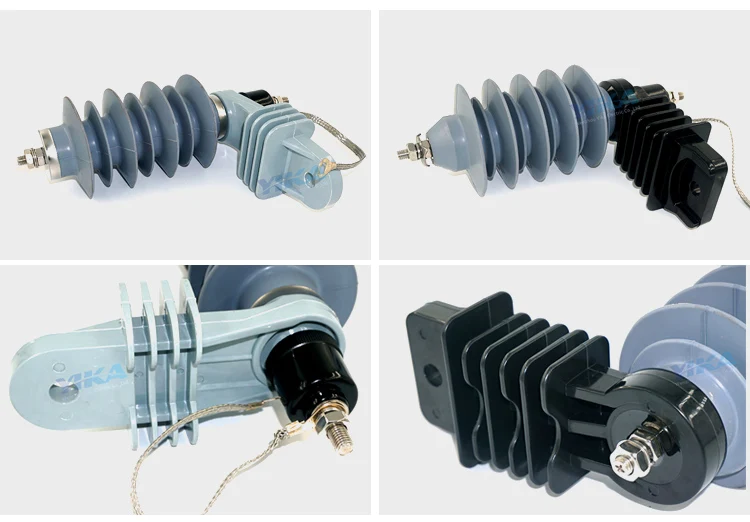

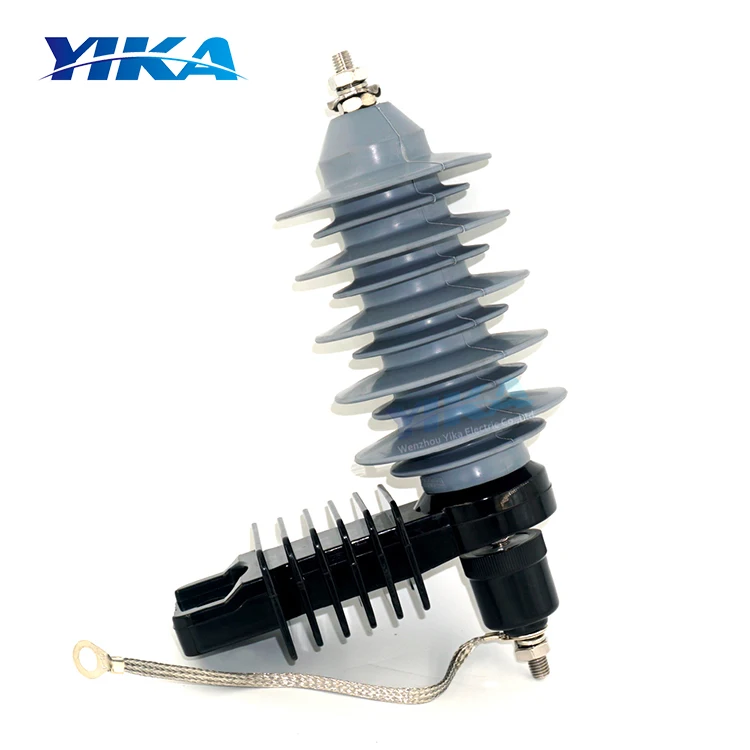

Wenzhou Yika 12KV Lightning Arrester Electrical Distribution Polymer Surge Arrester

Wenzhou Yika 12KV Lightning Arrester Electrical Distribution Polymer Surge Arrester

Name: Wenzhou Yika 12KV Lightning Arrester Electrical Distribution Polymer Surge Arrester
SKU: 60260095171
Availability: InStock

Price:

Quantity:

12KV Lightning Arrester Electrical Distribution Polymer Surge Arrester

Specifications

Normal operating conditions for Lightning Arrester:

1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .

2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)

3. AC system frequency is 50Hz or 60Hz.

4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.

5. Maximum wind speed does not exceed 35m/s.

6. Te earthquake intensity does not exceed 7 degrees.

7. The pollution area should be indicated.

Gapless Arrester Electrical Parameter
Type	Rated Voltage	MCOV	Max.Residual Viltage			2ms square wave impulse withstand current	High current impulse withstand 4/10μs
	Rated Voltage	MCOV	Steep current impuise1/4μS	Switching current lmpulse30/60μs	Nominal current lmpulse 8/20μs	2ms square wave impulse withstand current	High current impulse withstand 4/10μs
	kV	kV	kV	kV	kV	A	kV
HY5W-12	12	10.2	38.0	30.8	36.0	100	65
HY10W-12	12	10.2	38.0	30.8	36.0	250	100
