Fertilizer full automatic packaging line(filling, packing, sealing, conveying, palletising)
- Category: >>>
- Supplier: Shanghai Jinbao Packaging Machinery Co. Ltd.
Share on (60260375973):
Product Overview
Description
Product Description

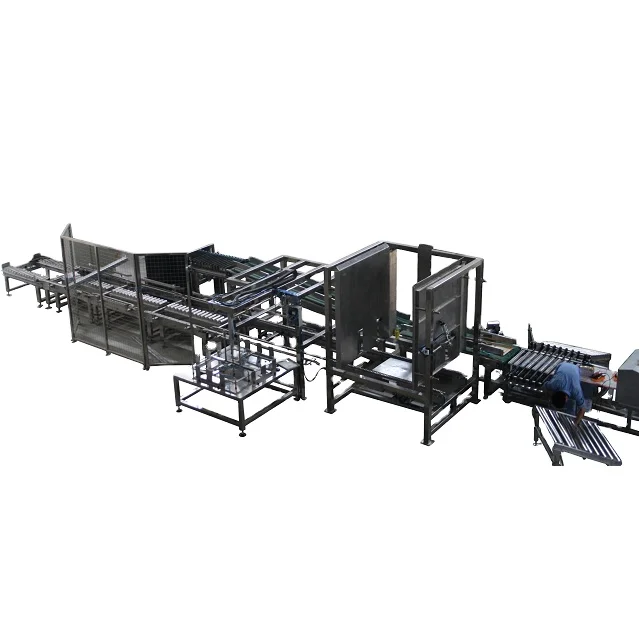

This 25KG bag packaging line consists of two parts: packing system and palletizing system.
Main equipment composition:
Main equipment composition:

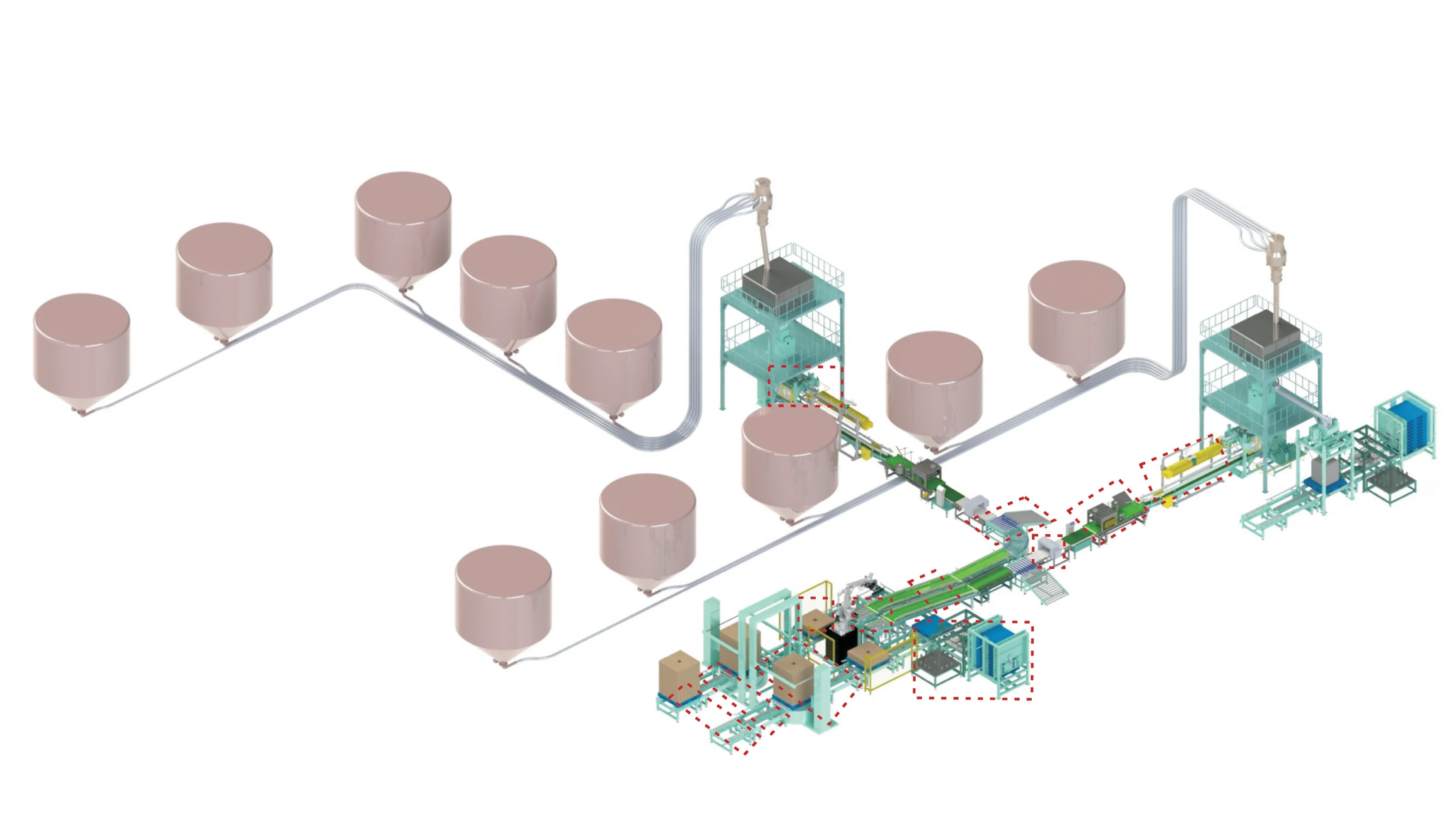

1. storage bin; 2. peneumatic conveying; 3. storage hopper;
4. weighing scale; 5. bag filling machine; 6. sealing & sewing machine;
7. bag conditioner; 8. metal detector; 9. check weigher;
10. rejecting machine; 11. inclined belt conveyor; 12. robot palletizer;
13. pallet dispenser; 14. palletizer conveyor; 15. bag pick-up conveyor;
16. wrapping machine; 17. output conveyor; 18. buffering conveyor
Detailed Images
Part 1 automatic packing system

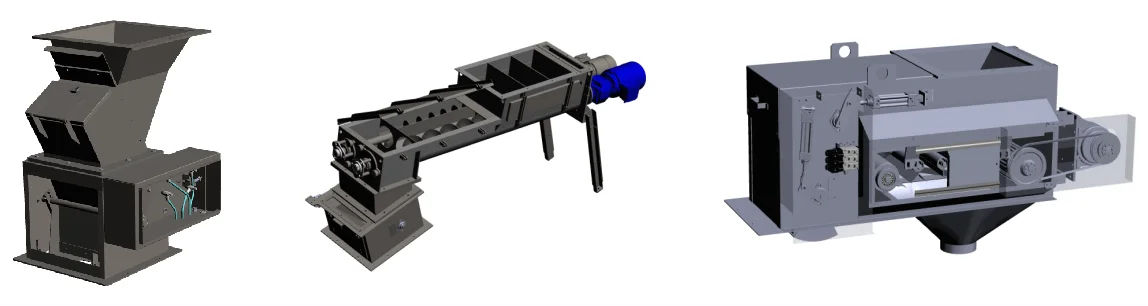

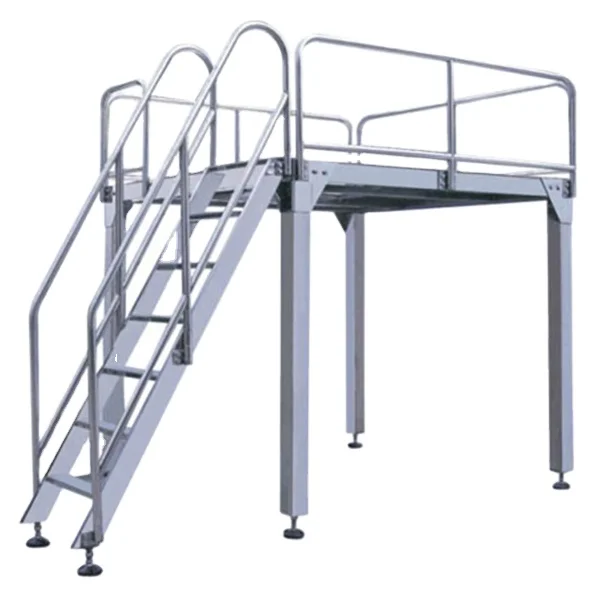

1) Platform(According to the actual size)
This platform is mainly used to hold the hopper and weighing device, it always customized as your workshop space.
Standard marerial is carbon steel with powder coated(paint color optional), stainless steel also can be customized.

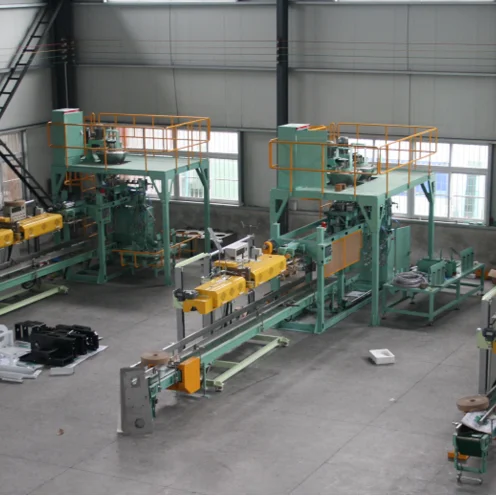

2) Weighing & Packing machine
This part for weighing and filling your product before packing it into the bags. Weighing range from 5kg to 25kg & 20kg to 50kg(different model)
First one: gravity type_ for granular(gravity + vibration can be provided to meet the particle packaging with higher speed requirements)
Second one: screw type_ for powder(vertical spiral form can be provided to meet the ultra-fine powder packaging project)
Third one: belt type_ for flaky
3) Automatic bag feeding machine

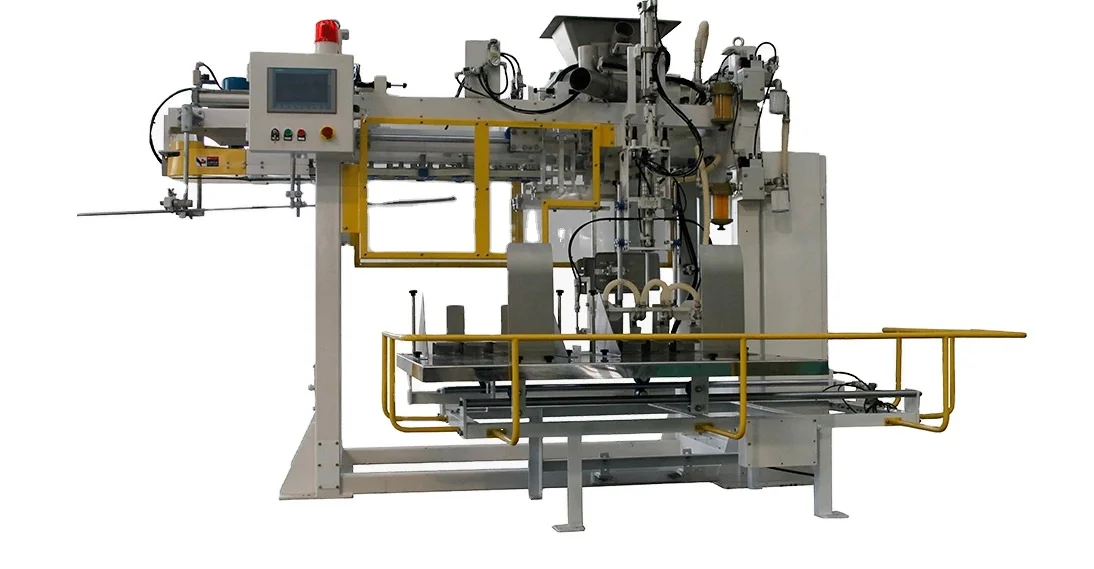

This series auto bagging machine is designed for bagging all types of free flowing materials into plastic, paper or poly-woven open-mouth bags.
The staff only needs to put a set of bags on the bag storage table. Open mouth bag will be feeded to the filling position from a bag magazine via a vacuum chuck. Then opens the bag and places it under the filling spout. Filling your bags becomes a fast and
reliable operation.
The staff only needs to put a set of bags on the bag storage table. Open mouth bag will be feeded to the filling position from a bag magazine via a vacuum chuck. Then opens the bag and places it under the filling spout. Filling your bags becomes a fast and
reliable operation.
Step 1
High performance suction cups pick up the empty bags from the magazine and place it onto the filling position.
Step 2
Holding the bag by 4 high polymer material bag clamp and open the bag by suction cups.
Step 3
filling your product into the bags then transfer to next working position.
Part 2 automatic palletizing system

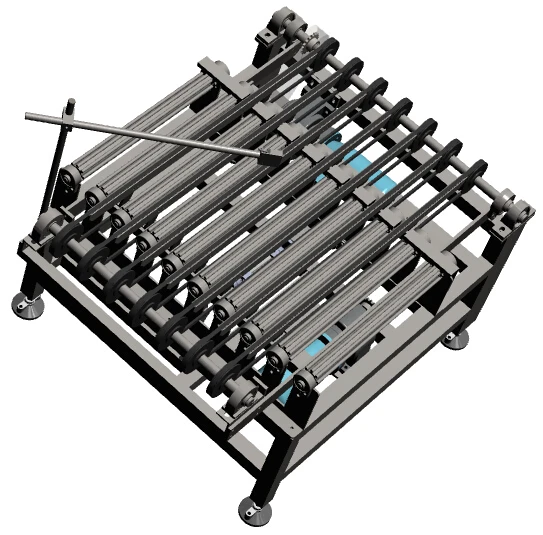

A. JB-SDZ1 turn bag shaped conveyor
This belt conveyor make the bag turn down and shapped the bag to the next work position. It will be necessary and easy for robot to pick up.
Model | JB-SDZ1 |
Conveyor type | PVC belt with roller to press the bag |
Length | 2500-2800mm |
Power | 220/380V 50/60Hz, 0.75KW |
Speed | 15m/min |
Dimension | L2610*w1370*H1290 |

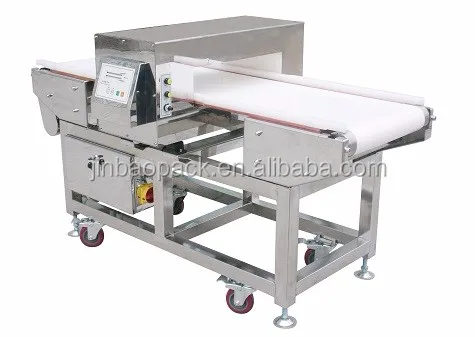

B. Metal detector
Check if the packaged bag contains metal.
OUR BRAND: SESOTEC/METTLER TOLEDO
C. HCW-25 weight check scale
The maximum checking weight for this check scale can load 150kgs. It is used for checking the bag weight in case there is something wrong in the filling work position. It can guarantee the qualification rate of factory products.
Model | HCW-25 |
Conveyor type | PVC belt |
Load cell | METTLER TOLEDO |
Accuracy | 5g for 25kg |
Speed | 15m/min |
Dimension | L1200*W850*H1100 |
D. Rejecting machine
* It can accept the disqualification signal from metal detector and check scale.
* Qualification bag can be sent to next position by roller conveyor.
* Disqualification bag will be sent to the left or right no power roller conveyor.
* Qualification bag can be sent to next position by roller conveyor.
* Disqualification bag will be sent to the left or right no power roller conveyor.

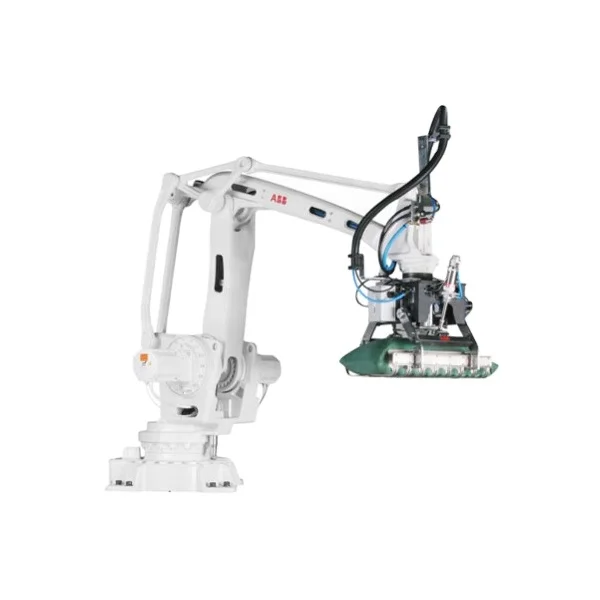

E. ABB Robot
We cooperated with ABB robot company aim to provide you the best quality robot to use in your factory.and we are responsible for after sale service.
Robot type | Gripper |
Drive | pneumatically |
Load | 1100kg |
Power | 0.4kw |
Dimension | L1000 * W900* H1200MM |
Repetitive position precision | 0.2mm |
Level of protection | IP67 |
Working radius | 2.4m |
Temperature | 0-45℃ |
Tempos | 2190time/hour |
F. Pallet dispenser
* There is a lifting construction below the pallet. There are 10 pallet can be put on this machine.And there is a conveyor besidefor transporting to the next working position.
* The whole system finish the action for pallet storage, dispenser and conveyor .
* The whole system finish the action for pallet storage, dispenser and conveyor .
Model | JCNDB-MTP |
Pallet storage | 10 pallet |
Power of conveyor | 0.75kw |
Air consumption | 200nl/min |
Material | carbon steel with powder coated or |
