MQ Model Four Link Jib Type Container Port Crane
Product Description
Four-link type portal crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, The main structures are composed of steel frame, lifting mechanism, luffing mechanism, slewing mechanism, crane travel mechanism spreader device (grab,container spreader, and hook and electrmangnetdisk), electrical equipment and other necessary equipments for safety. Steel structures include jib and A-frame, slewing platform and gantry frame.
Referenced standards: GB17495-1998 Harbor portal crane technical specifications, GB6067-85 liftequipments safety specification, GB3811-2008 crane design standards, ISO standards, FEM standards and JIS standards.

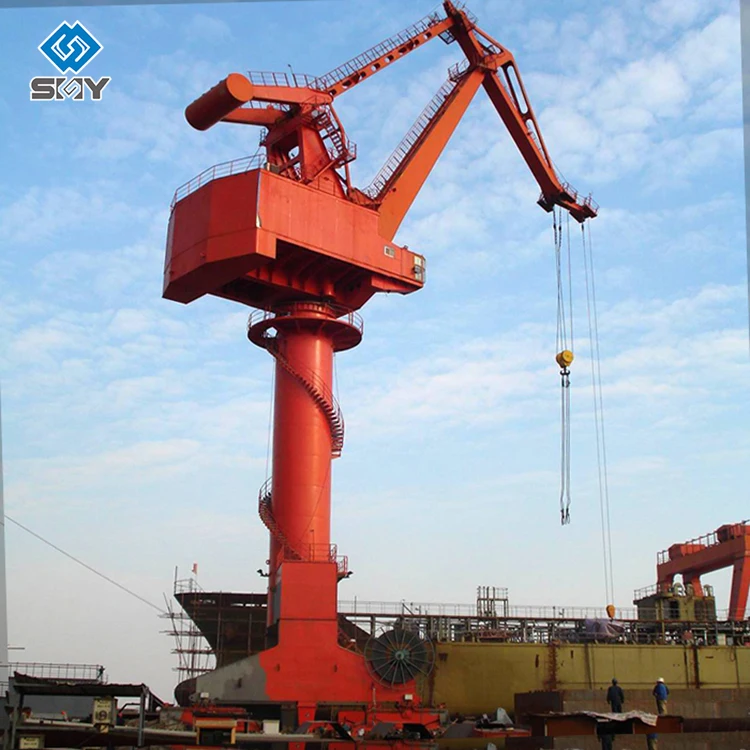

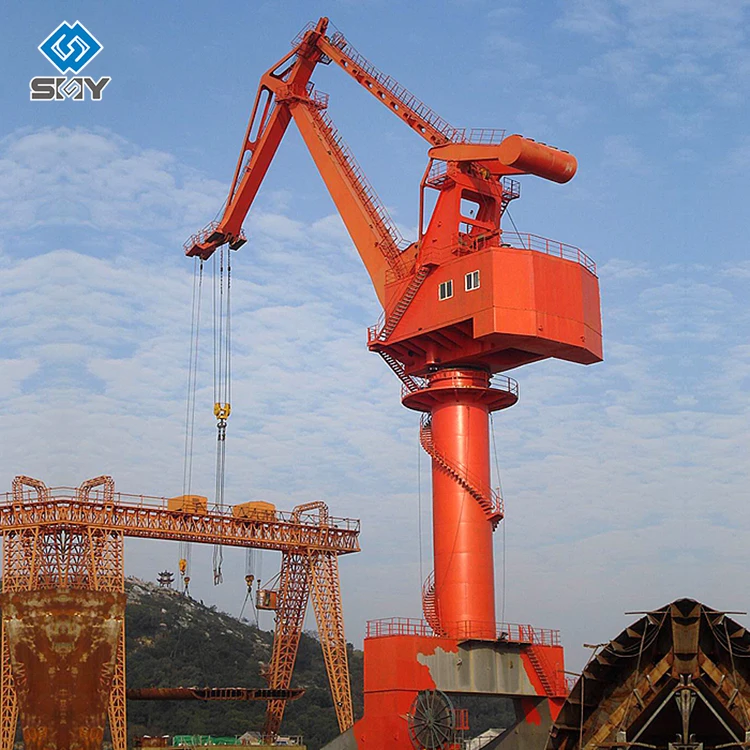

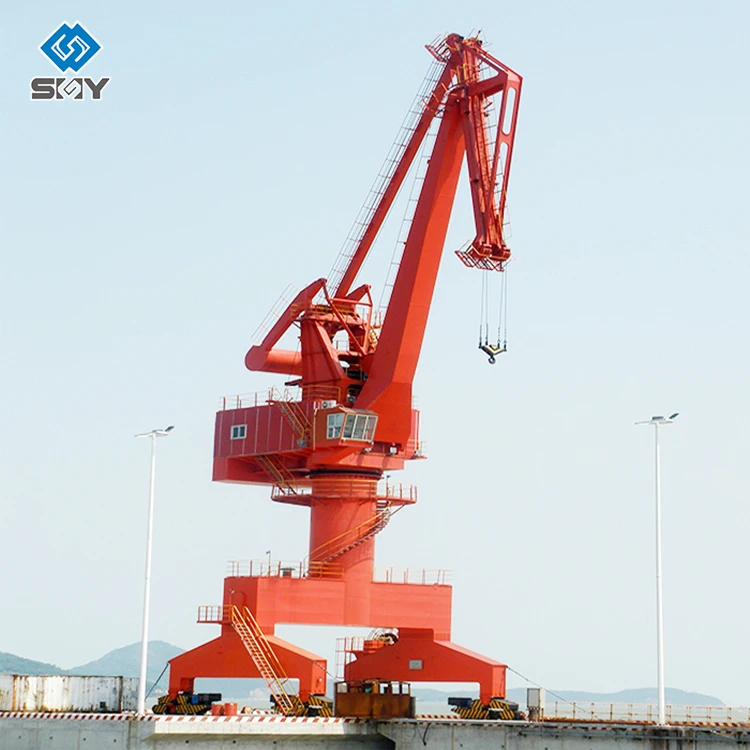

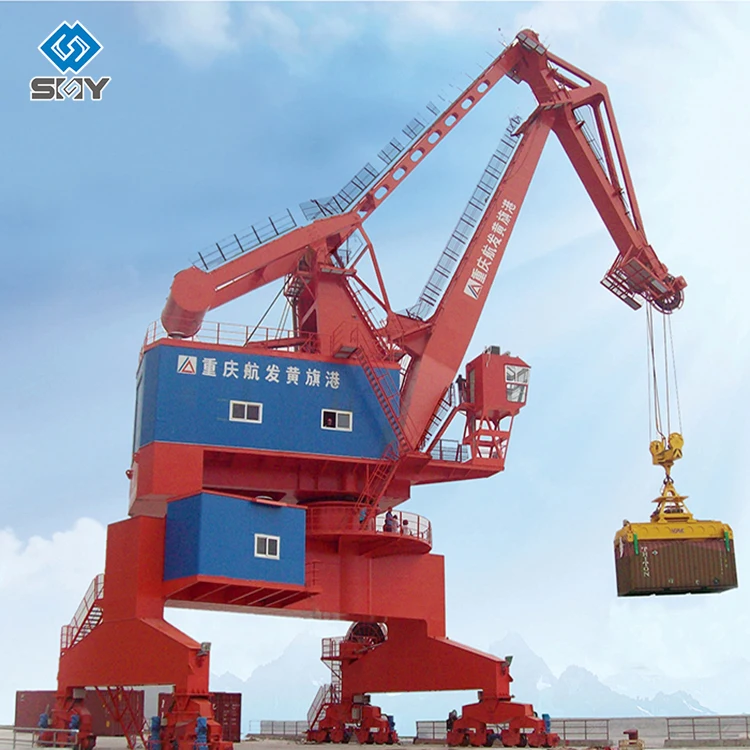

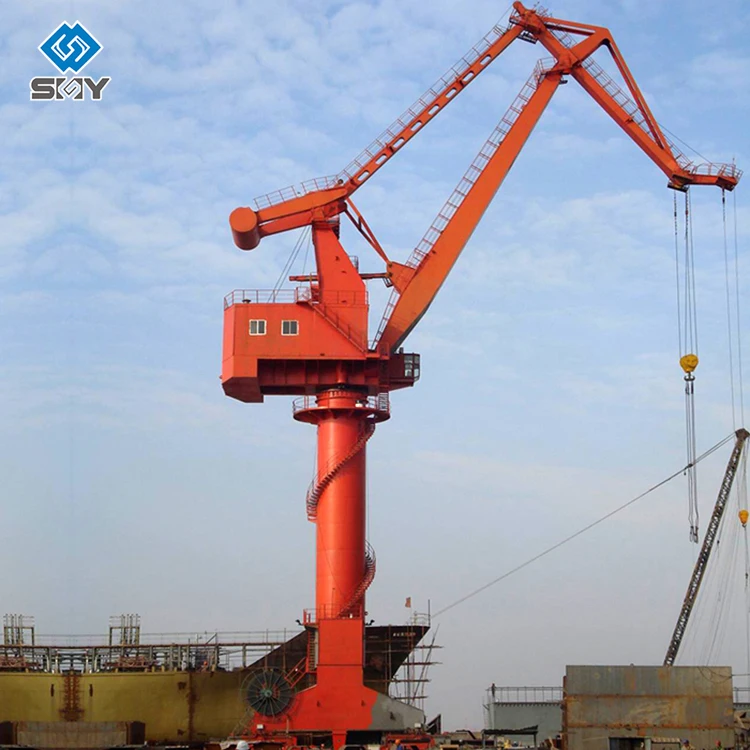

This kind portal crane is a mobile, full-revolving, and four-bar combined crane. Its arms and counter-weight are balanced. There are 2 types of portal frame: cylinder and four outriggers. This portal carne is for lifting containers with hooks or grabs.
Advantages: long arms, suitable for bigger ship, beautiful exterior, safe and reliable, durable advanced performance, convenient for maintenance. It's the best choice for comprehensive multi-typed cargo ports.
Contact us for more information
Technical parameters
Please contact me for customized parameters
Type | Cap. | Lifting/m | Lift height/m | Span* | Speed/ | Max | Capability | Ship | |||||
|
| Max | Min | Up | Down |
| Hoist m/min | Luffing | Slewing | Travel |
|
|
|
BP209 | 2 | 9 | 4 | 6 | 6 | 4.5×4.5 | 18 | 15 | 1.3 | 15 | 40 | 22 | 200 |
BP315 | 3.2 | 15 | 5.6 | 12 | 8 | 6×6 | 30 | 20 | 1.5 | 15 | 80 | 42 | 500-2500 |
BP322 | 3.2 | 22 | 7 | 14 | 8 | 6×6 | 40 | 20 | 1.5 | 15 | 90 | 58 | 1000-3000 |
BP515 | 5 | 15 | 6 | 12 | 9 | 6×6 | 40 | 24 | 1.5 | 15 | 120 | 120 | 500-1500 |
BP518 | 5 | 18 | 6 | 15 | 9 | 6×6 | 50 | 24 | 1.7 | 15 | <200 | 125 | 1000-3000 |
BP520 | 5 | 20 | 7.5 | 16 | 18 | 6×6 | 58 | 20 | 1.6 | 15 |
| 138 | 1000-3000 |
BP522 | 5 | 22 | 8 | 15 | 12 | 10.5×10.5 | 50 | 20 | 1.4 | 15 | 142 | 125 | 1000-3000 |
BP525 | 5 | 25 | 9 | 20 | 10 | 6×7 | 46 | 22 | 1.4 | 15 | <200 | 115 | 5000 |
BP1020 | Hook10 | 20 | 7 | 15 | 10 | 10.5×10.5 | 36 | 20 | 1.5 | 15 | 115 | 103 | 3000 |
| Grab5 |
|
|
|
|
|
|
|
|
|
|
|
|
BP2020 | 20 | 20 | 7 | 16 | 10 | 10.5×10.5 | 40 | 25 | 1.6 | 27 | 165 | 145 | 5000 |
BP-1025 | Hook10 | 25 | 8 | 20 | 12 | 10.5×10.5 | 50 | 48 | 1.6 | 27 | 185 | 132.8 | 5000 |
| Grab5 |
|
|
|
|
|
|
|
|
|
|
|
|
BP-1625 | Hook16 | 25 | 8 | 20 | 12 | 10.5×10.5 | 56 | 48 | 1.6 | 27 | 185 | 305 | 10000 |
| Grab10 |
|
|
|
|
|
|
|
|
|
|
|
|
BP-1627 | Hook16 | 27 | 10 | 22 | 15 | 10.5×10.5 | 56 | 50 | 1.6 | 27 |
| 305 | 10000 |
Features
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity specifications
