Decorative air conditioner round ceiling plastic air vent cover

Product Overview

Description

Decorative air conditioner round ceiling plastic air vent cover











Construction:

l  Panel, Cylinder and Disc: High quality plastic.



Description:.

l  Disc is fixed to the frame by threaded rod.

l  Air flow can be adjusted by regulating the cone up and down(+A or -A).

l  Foam gasket is sealed around the back of the frame to avoid the air leakage.

l  Disc valves are best suited to air distribution systems handling relatively low air flow rates within small circular duct work. It is recomm-ened for air supplying of small space,exha-ust of greasy and damp air in damp areas such as toilets, bathrooms and kitchens.

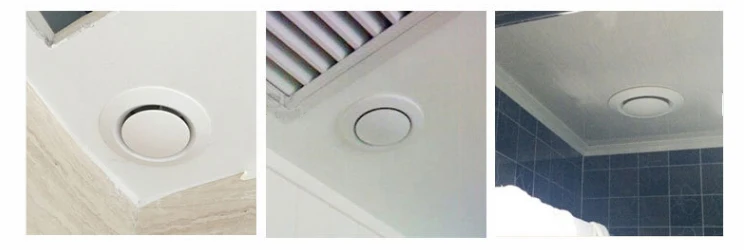

l  It can be mounted in the wall, ceiling or exposed to air ducts with mounting rings.



Color:

Any color is available. Standard color: white



Size:



Item Code	Neck Φ A (mm)	Face Φ B (mm)	H
DV-P-100	98	138	46
DV-P-125	123	165	46
DV-P-150	148	200	46
DV-P-200	198	250	46
