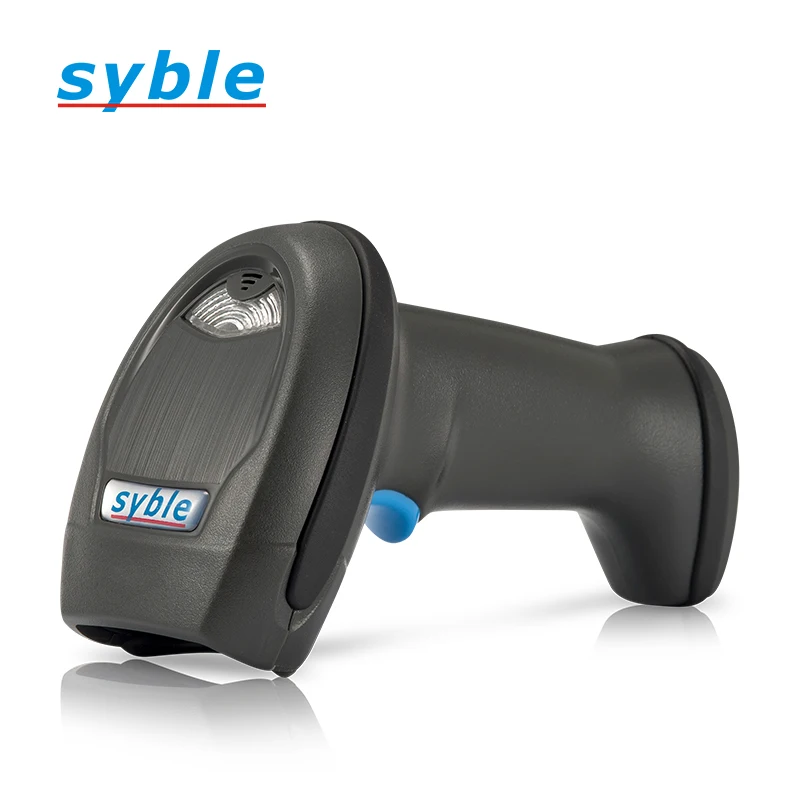

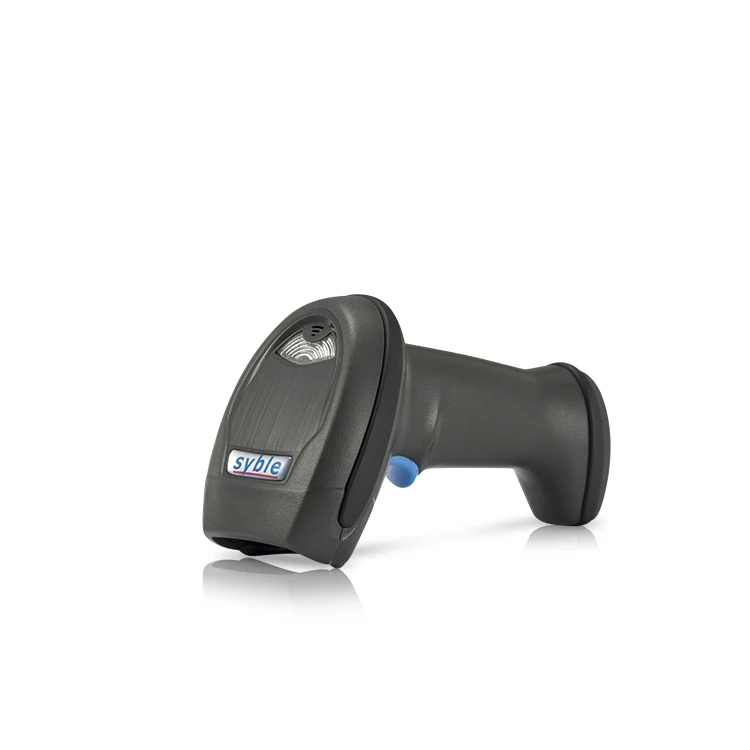

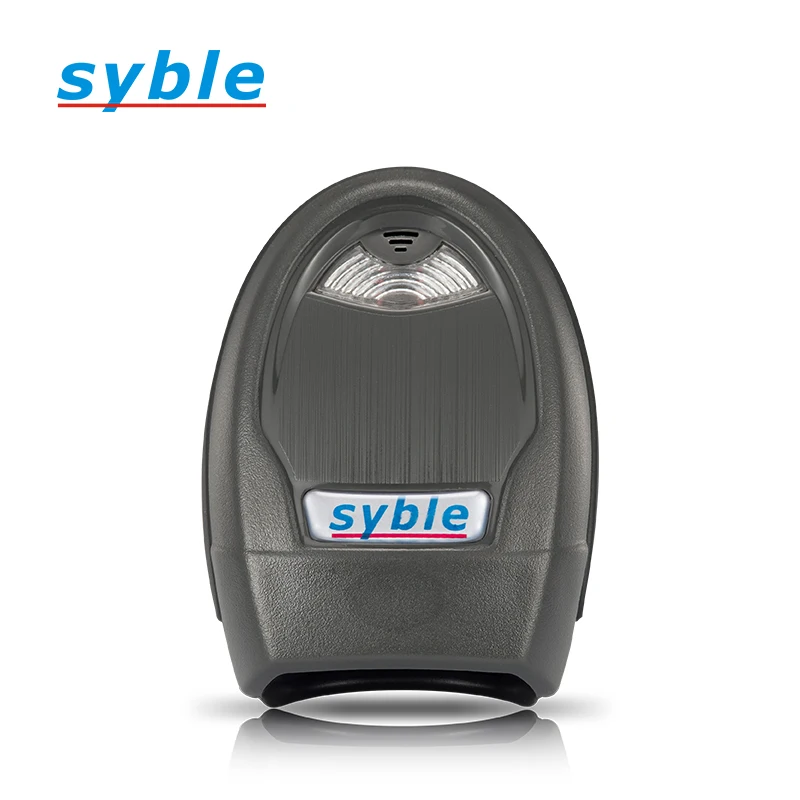

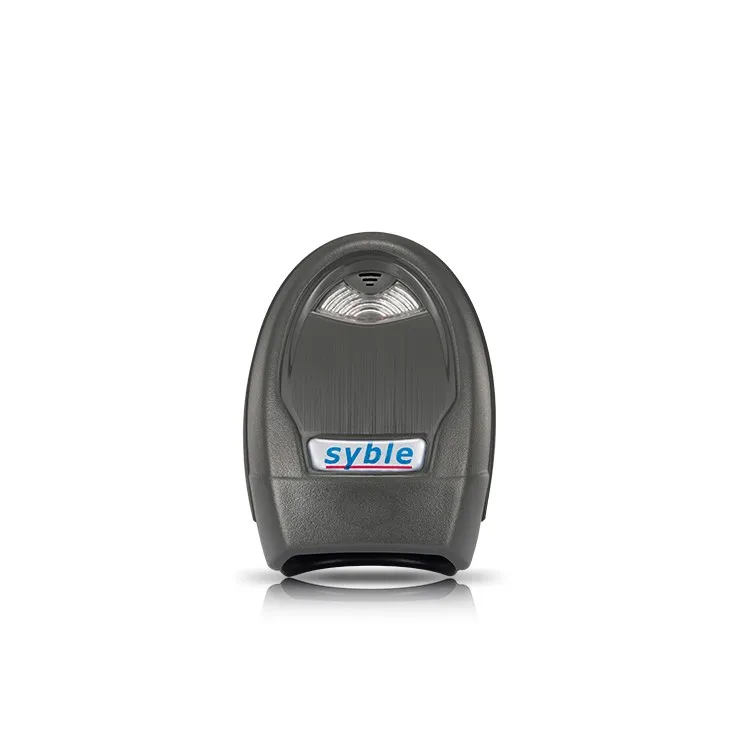

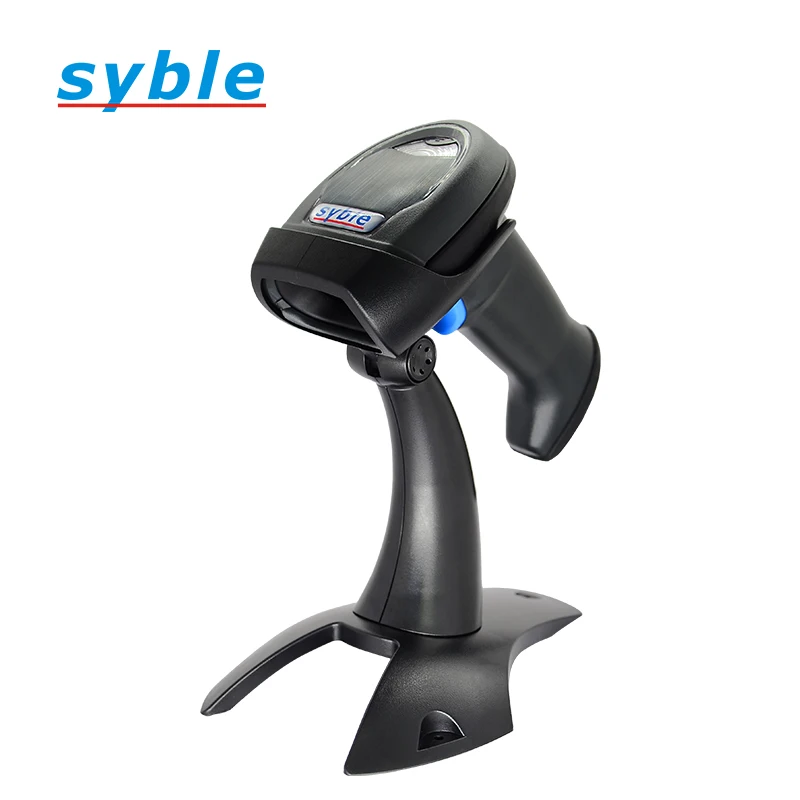

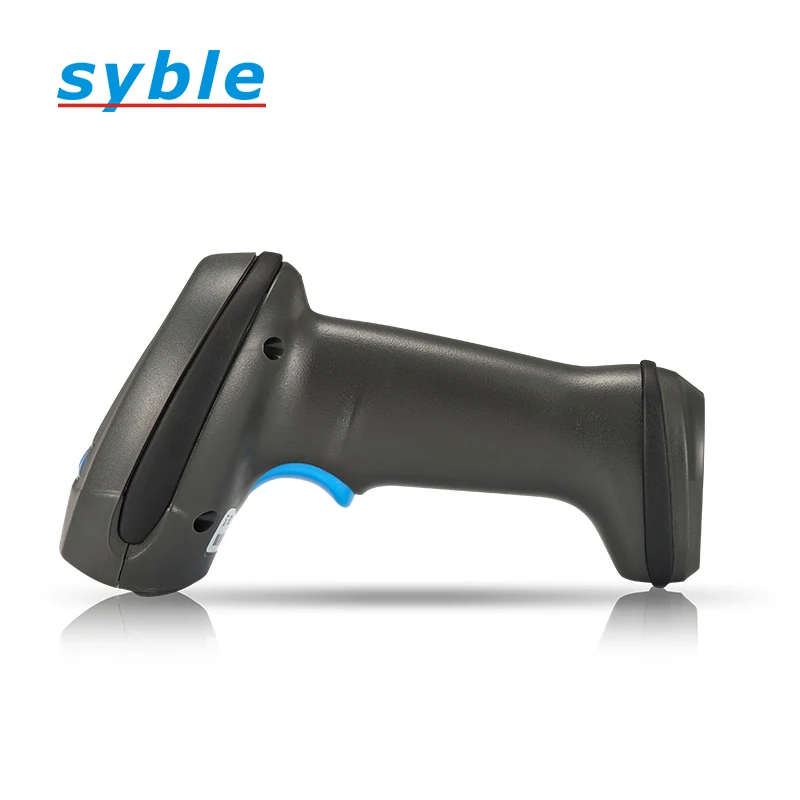

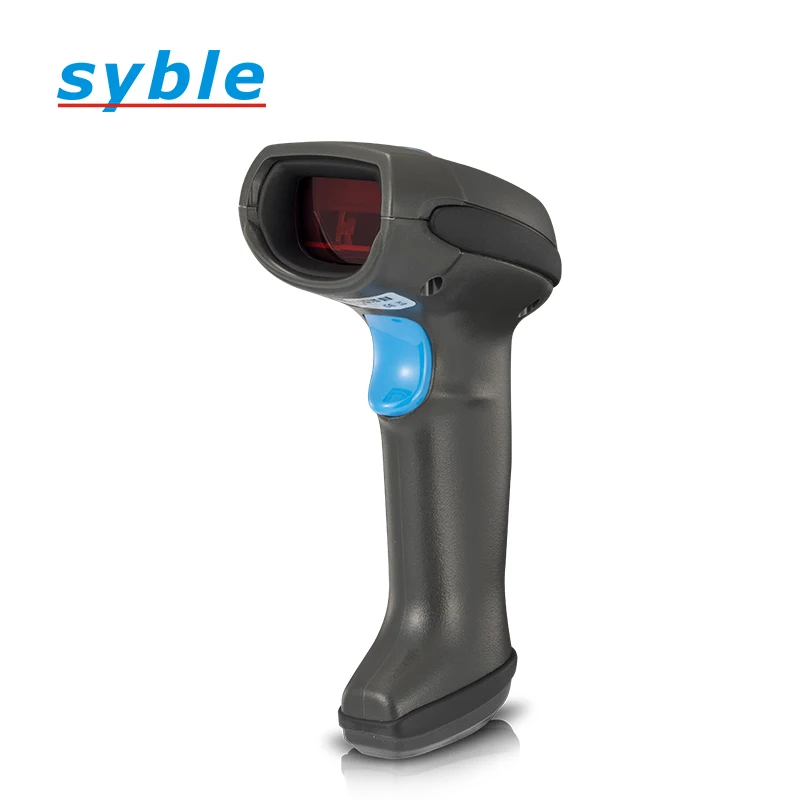

XB 2178G 1D Laser Barcode Scanner /Barcode Reader online for supermarket

Performanceparameters

Description

Light Source:

Visible Laser diode ,650nm

Scan rate:

300scans per second

Scanning Angle:

±60°±65°±42°(left&right, front&back, turn)

Scanning wideth:

30mm@   scanning window  220mm@200mm

Scanning type:

Single-line

Resolution:

0.1mm(4mil)at pcs 0.9

Depth of scanning field:

0-250mm(0.33mm.PCS 90%)

Print Contrast Minimum:

30%,minimum reflective difference(@650nm)

Indicator light:

LED DIODE

Interface Support

USB,PS2,RS232

Minimum Resolution:

3mil

Pysical  Charateristic

Description

Voltage:

DC 5V

Current:

85mA(Operating mode),36mA(Quiescent current)

Dimensions:

L100mm*W72mm*H176mm

Weight:

256g(include the cable)

USB:

2M(Can not remove)

Housing Materials:

ABS+PC

User Environment:

Operating Temperature:

 -10°~50°

Storage  Temperature:

 -40°~70°

Operating Humdity:

 5~95% relative humidity,non-condensing

Environment luminance:

 5,000 Lux Max(Fluorescence)

IP Level:

 IP54

Drop Specification:

withstands multiple 3m drops to concrete

Safe:

EMI/RFI:

 FCC class A and CE

Laser safety:

 CDRH class 2 laser product

Decode Capability:

UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN,Code 39,code39 full ASCII, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 ,codabar(NW7),code128,code 93 ,code 93 full ASCII,code 11(USD-8),MSI/Plessey,UK/Plessey,UCC/EAN 128,GS1 Data Bar ,China Post code,ect.

Certificate

RoHS
