4 inch Lab Rubber and Plastic Two roll mill DW5110

Product Overview

Description

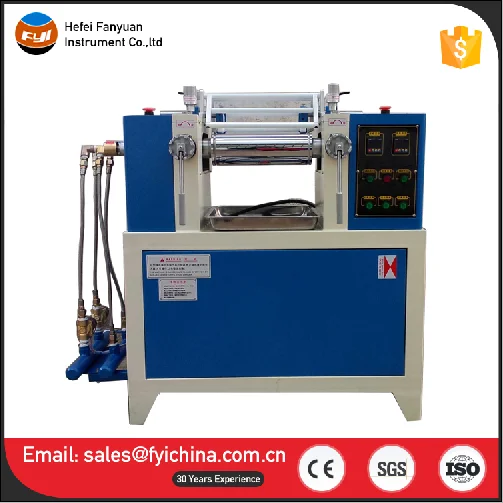

DW5110 Lab rubber and plastic two roll mill



APPLICATION

Lab Rubber and Plastic Two roll mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.





STANDARDS

STANDARDS

Note: this Lab Rubber and Plastic Two roll mill can conform to but not limit to the standards above, for more standards conformance, please contact us.





FEATURES

1, Cylindrical center-adjustable bearing;



2, Hard chromeplated steel rolls, rapid heat transfer, high hardness, high corrosionresistance;



3, Adjustable gap between the two rolls, high accuracy;



4, Electric heating optional for plastics experiments, sensitively and uniformly temperature control, high accuracy;



5, Water cooling optional for rubbers experiments;



6,With safety device.





KEY SPECIFICATION of Lab Rubber and Plastic Two roll mill

Roll hardness	HRC 55~60
Roll diameter	160mm
Roll length	320mm
Roll linear speed	0~20m.p.m
Roll speed	0~40rpm

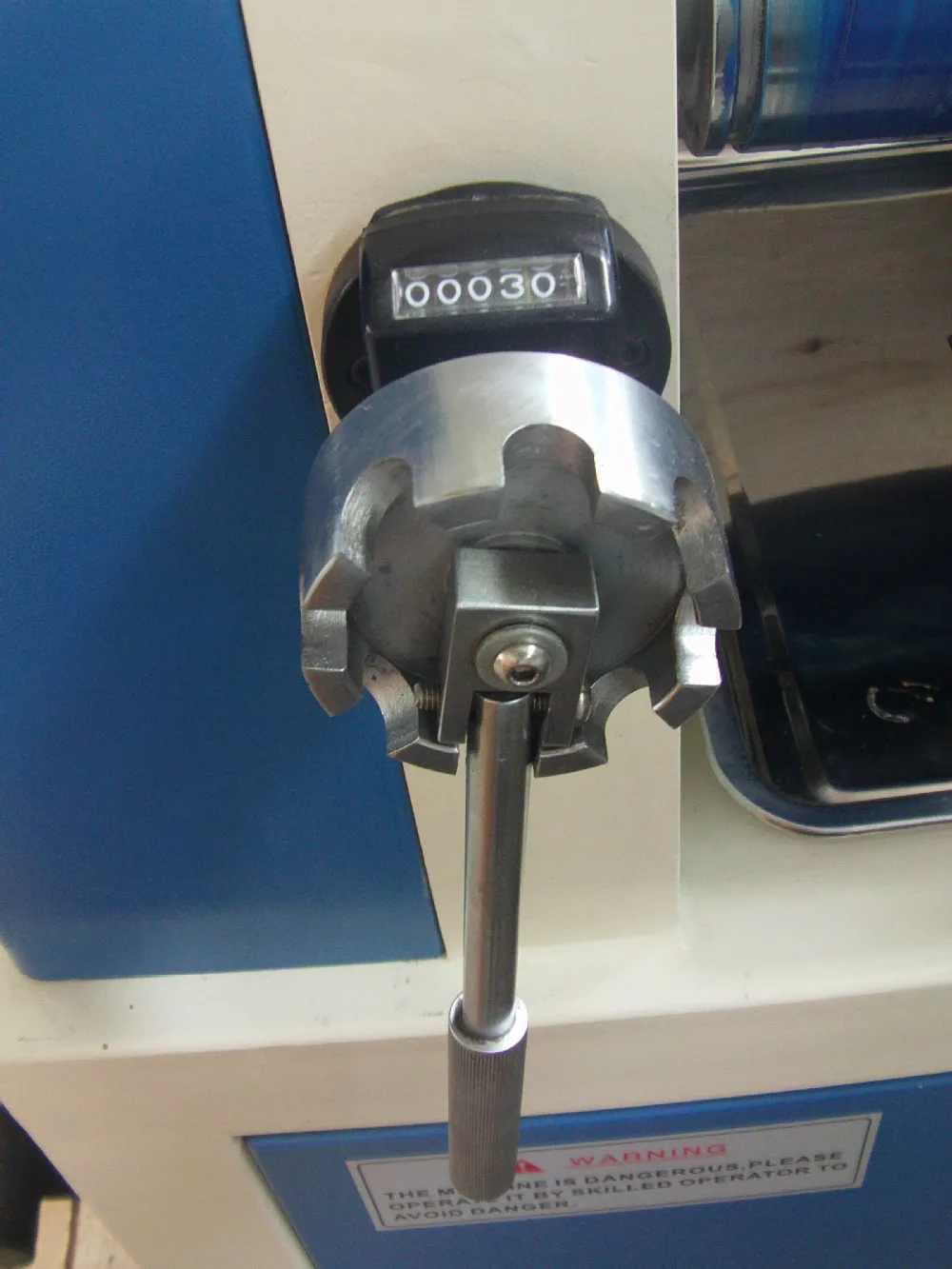

Gap adjusting device	manual, 0.1~6mm
Feeding quantity	1~2kg
Reducer	gear reducer
Safety device	touch type of emergency stop
Electric power request	3ph~380V, 26A



Two Roll Mill	Plastics experiment	Rubbers experiment
Speed ratio (front roll: back roll)	1.25:1	1.35:1
Motor power	1.5kw	5.5kw
Heating or cooling	Electric heating, 7kw	Water cooling
Working temperature	Room temperature~300°C	Room temperature
Temperature accuracy	±3.5°C
Dimensions(L×W×H)	1000×550×1250mm	1100×600×1250mm
Weight	Approx. 600kg	Approx. 650kg

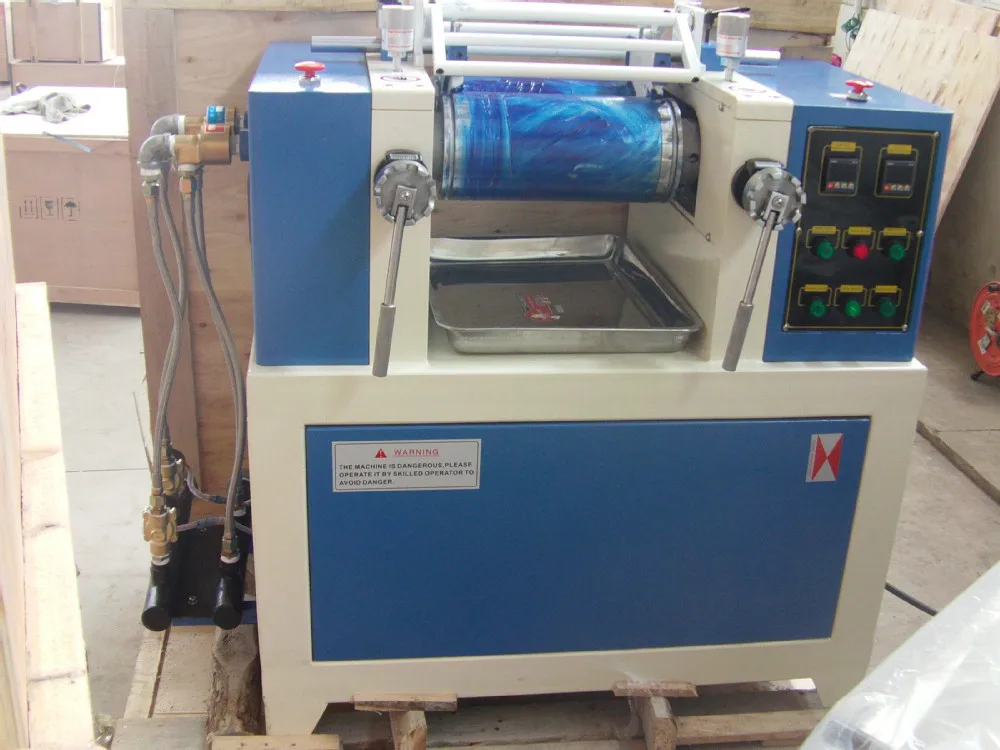

Details Pictures:  Rubber and Plastic Two Roll Mill
