Telescopic Mast With ground Foundation

Product Overview

Description

Introduction



This product is mainly suitable for installation on the ground . It can also be installed on the building roof.

This product can be used to install communications antennas, lighting, and other monitoring equipment.

This type of telescopic mast and nested height, extended height and top load can be made with the customer's needs.

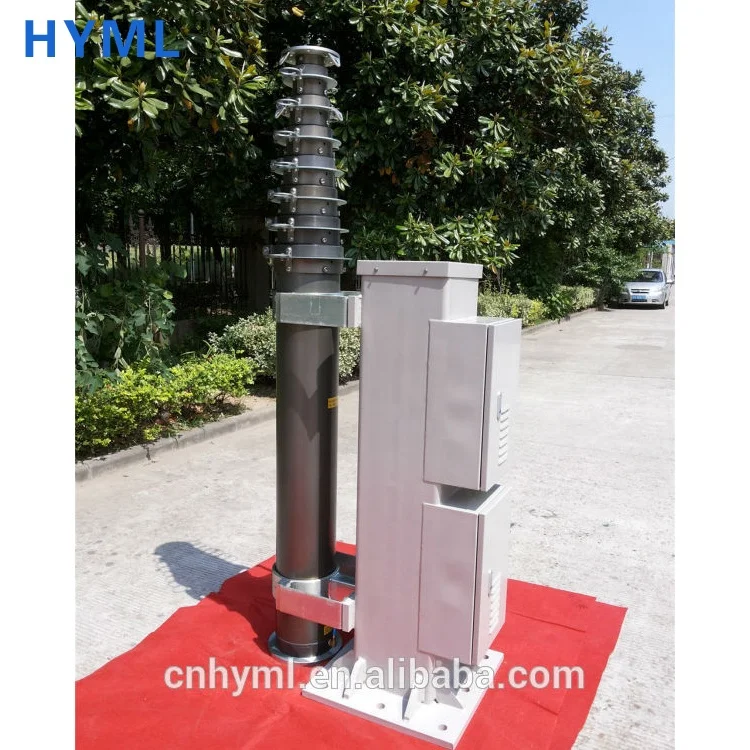

The product in photograph is AZ8-215-2150-10000, namely nested height of 2.15m, extended height of 10m, the design top load 80Kg, masts maximum outer diameter 229mm, masts with fixed locking clamps.

This installed square foundation of the mast is made of 300 * 300 steel pipes ,the hot-dip zinc ,surface spray, color with customer requirements.

This product uses 220V supply original American Thomas pump.

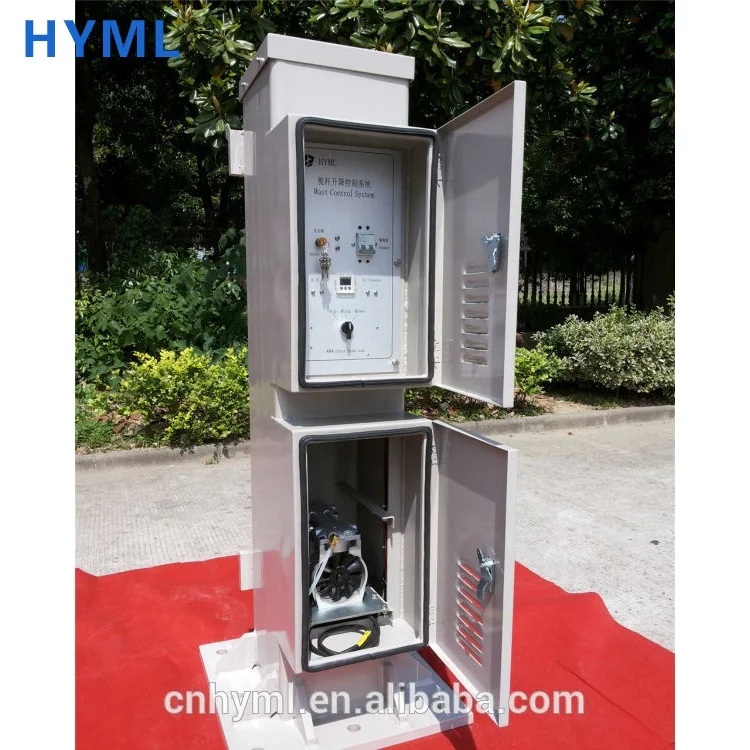

This telescopic mast control box is integrated with mast square foundation, waterproofing: IP56.

The each mast section has the cable rings according to user requirements.

This product has double-Φ5mm steel rope, each 3 or 4 pcs

The connection flange size between mast square foundation and ground concrete foundation is 600 * 600 mm.

The height of the mast square foundation can be changed according to the different mast model

If you need to make concrete foundation to install the product , our company can provide its drawings.

If you want to know more about this product in the picture ,we can provide more detailed information.

If you have some special requirements, we can specially design and manufacture for you.
