solar power telescopic Lighting trailer

Product Overview

Description

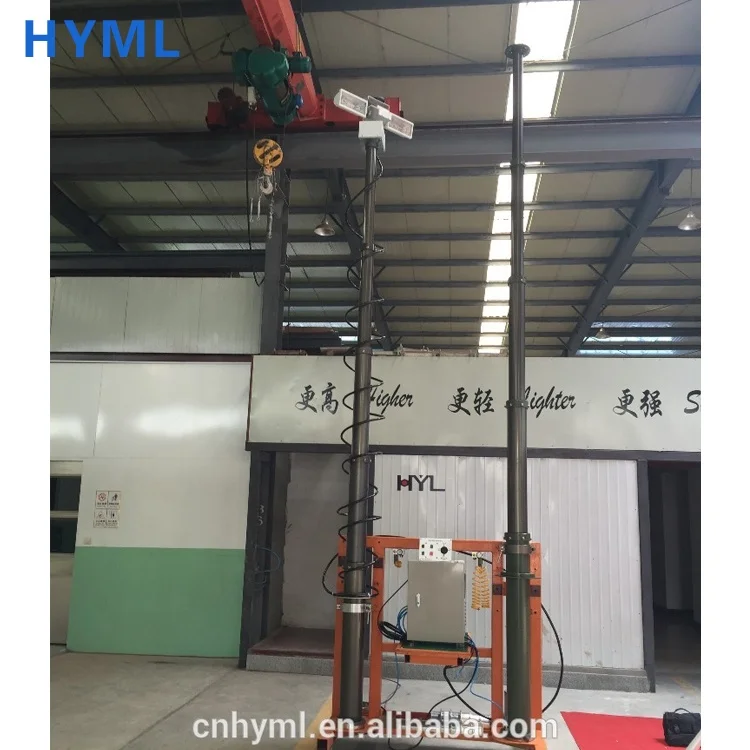

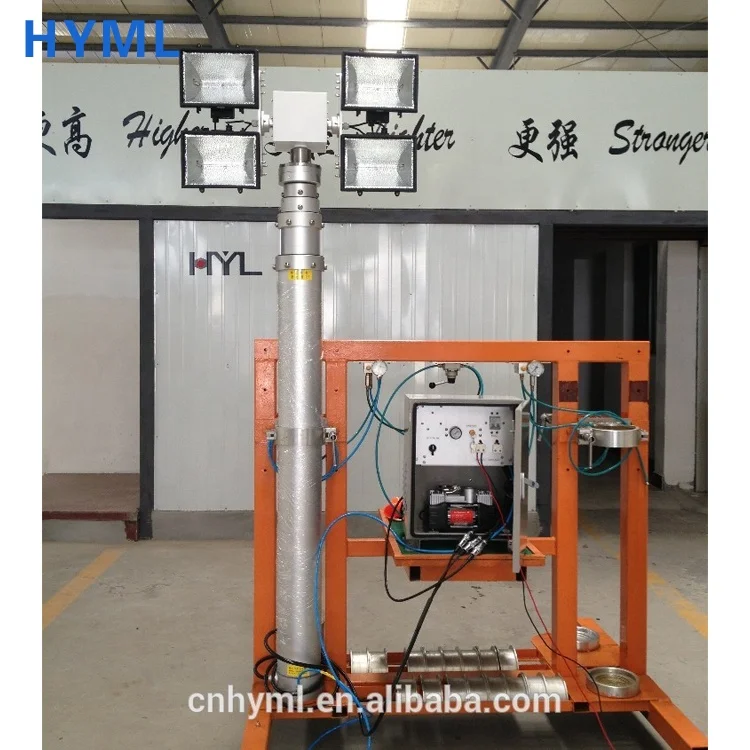

This is a small solar power trailer. A HYML small pneumatic telescopic mast is installed on it . The mast top has a rotating head which has 4pcs lamps.

There are two ways of mounting for the trailer, one is the vertical mounting which is suitable for short nested height mast . Another is the laid down mounting which is suitable for long nested height mast .



Common Mast						h:nested height H:extended height D:outer diameter d:inner diameter L:top payload      If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
DATE:2016.1
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
A4-110	1.2	3.5	118	60	50-80
A4-110	1.3	4	118	60	50-80
A4-110	1.5	4.5	118	60	50-80
A4-110	1.6	5	118	60	50-80
A4-110	1.7	5.5	118	60	50-80
A4-110	1.8	6	118	60	50-80
A6-150	1.2	4	160	60	50-80
A6-150	1.4	5	160	60	50-80
A6-150	1.5	6	160	60	50-80
A6-150	1.6	7	160	60	50-80
A6-150	1.8	8	160	60	50-80
A6-150	2	9	160	60	50-80
A6-150	2.2	10	160	60	50-80
A6-150	2.5	12	160	60	50-80



Do you have Skype ID ? My Skype is erinyixing

Welcome to buy one sample and visit our factory

 Erin

Mobile : 0086 -13706155652
