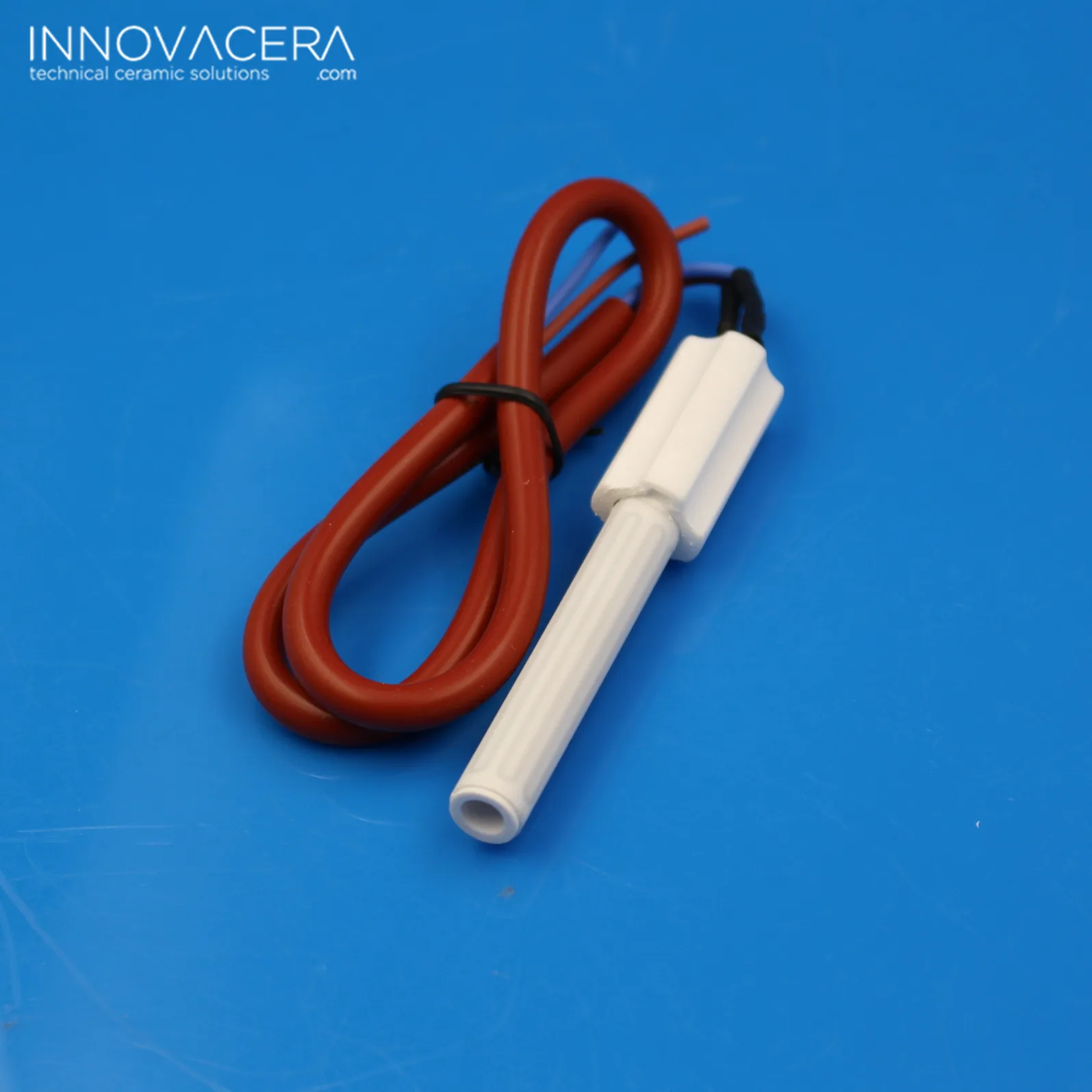

INNOVACERA Alumina Heaters Ceramic Pellet Igniter for Pellet Stove 300W
INNOVACERA Alumina Heaters Ceramic Pellet Igniter for Pellet Stove 300W
INNOVACERA Alumina Heaters Ceramic Pellet Igniter for Pellet Stove 300W

INNOVACERA Alumina Heaters Ceramic Pellet Igniter for Pellet Stove 300W

Share on (60262194098):


Price:

Quantity:


Product Overview

Description

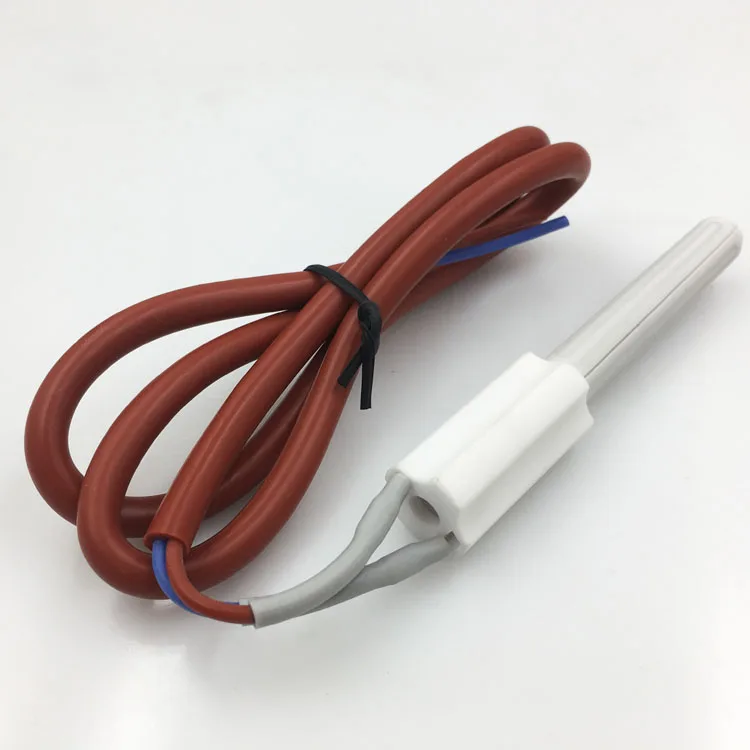

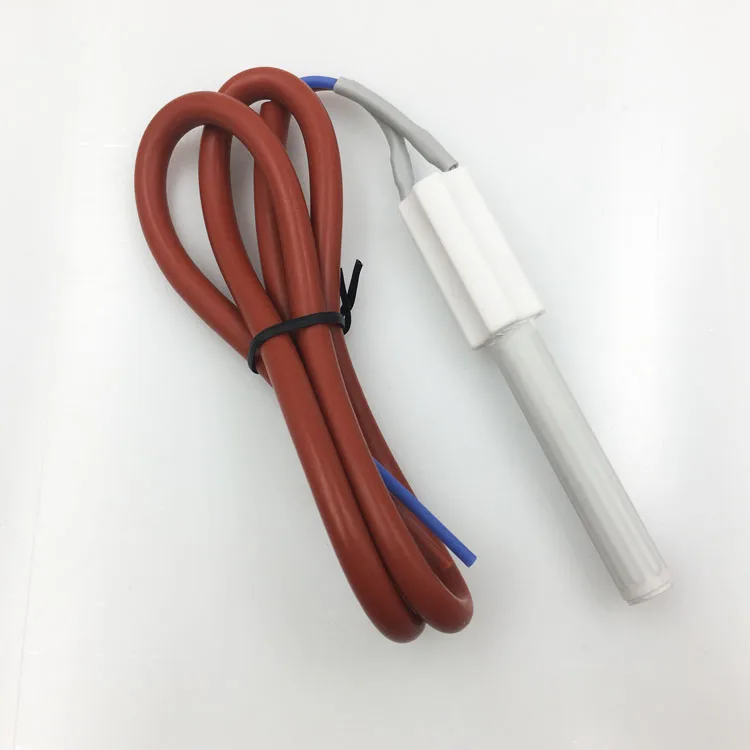

Ceramic Pellet Igniter consist of Al2O3 insulation ceramics with an integrated W conductor, and reach a permanent
operation temperature of between 900°C and 1100°C.



●
Part No.
INC108115
●
Usage
ignition
●
Working Voltage
120 VAC/ 230VAC
●
Power
160W / 180W / 210W / 225W / 230W / 240W / 255W
●
Dimension of product
Existing Sample: OD11.5*ID6.5*108MM
Holder Size: D17.5*35MM
Customized sample is acceptable
Lead wire:
300mm / 400mm / 500mm / 900mm (Customized is accept)
●
Electrode
Welding leads on the electrode
●
Advantages
■Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
■Air can flow through and around inside and outside of heater
■Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
■Lifetime up to 100,000 heating cycles, depending on operating conditions
■Oxidation and corrosion-resistant
■Ignition through air heating: Due to extremely high heater temperature and ideal     geometric conditions, air is heated in a very short time to very high temperatures
 – the ideal ignition blower!
■Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible.






Pellet Igniter Supplier Advantages:
1.Higher temperature, about twice of traditional metal sheathed heater;
2.Shorter ignition:time, about 60~90 seconds
3.Electrically insulated with no exposed electric contacts
4.Wear and corrosion resistance
5.Long life time
6.Easy to install and replace


Ceramic Igniter Concrete applications:
* Hot surface igniters (ignition of gas, oil, biomass, pellets)
* Hot air generation
* Tool heating
* Melting/Welting/Soldering/Hot air soldering
* Heaters for chemical analysis and laboratory equipment (eg: min-furnaces, reactors)
* Customer-specific heating solutions





Alumina Ceramic Heater Design Structure
Ceramic Heaters are manufactured by printing resistors on alumina sheets,being laminated and sintered into
one pieces.
* Types:
■ Rectangular alumina ceramic heating element
■ Round shape alumina ceramic heating element
■ Rod shape alumina ceramic heating element
■Tube shape alumina ceramic heating element







Thermal Properties for Alumina Heater
Item
Unit
Value
Vickers Hardness
Gpa
11.5
Flexural Strength
Mpa
300
Compressive Strength
Mpa
2000
Modulus of Elasticity
Gpa
300
Poisson's Ratio
---
0.22-0.23
Fracture Toughness
Mpam1/2
3.5-4.0
Thermal Conductivity
W/(m·k)
25
Thermal Expansion Coefficient
10-6/℃
6.5-7.5
Thermal Shock Resistance
△T℃
200
Maximum Use Temperature
℃
1600
Dielectric Strength
KV/mm
>12
Dielectric Constant
εr
9-10
Dielectric Loss Angle (1MHz)
---
0.0002
Volume Resistivity
Ω.m
>1015
Specific Heat
J/(kg·k)
0.78x103











RFQ

1.What's the max using temperature ?
Max 1700degree

2.Which composition suitable for metallized ceramics?
95%, 96% alumina

3.What's the 99 alumina's major applications?
Pump Shaft,Drive Shaft,Sealing Ring

4.Can you do OEM?
We are mostly doing by drawing

5.What's the delivery time?
About 20days
