Factory price quarry limestone gravel concrete riverstone clay rock crushing machine, vertical shaft fine stone impact crusher
- Category: Crusher >>>
- Supplier: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
1. We are factory and be able to give you the lowest price than market one;
2. Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3. we have a professional after-sale service team to promptly and thoroughly solve your problems;
4. Provide free process design.

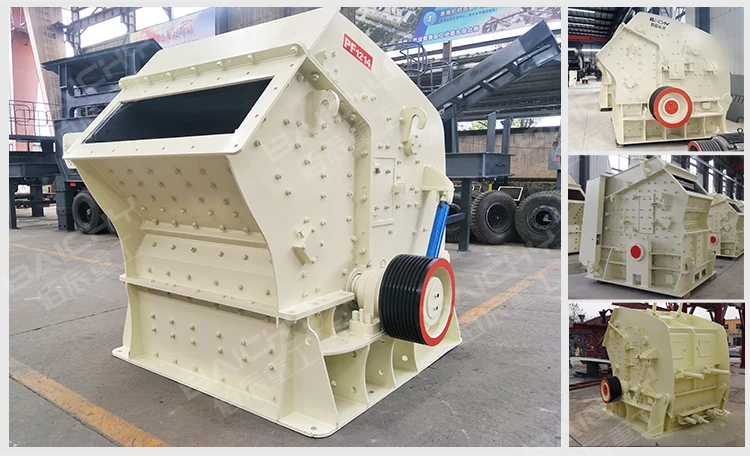

Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete ,etc.)With max feed size less than 500mm and compression strength less than 350Mpa. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.
Combining outstanding manufacturing process and accurate analytic technique, European Type Impact Crusher has been launched to market. This machine takes advantages of safety operation and large carrying capacity, particularly, the semi automatic adjusting device highlights intellectualization and advancement.

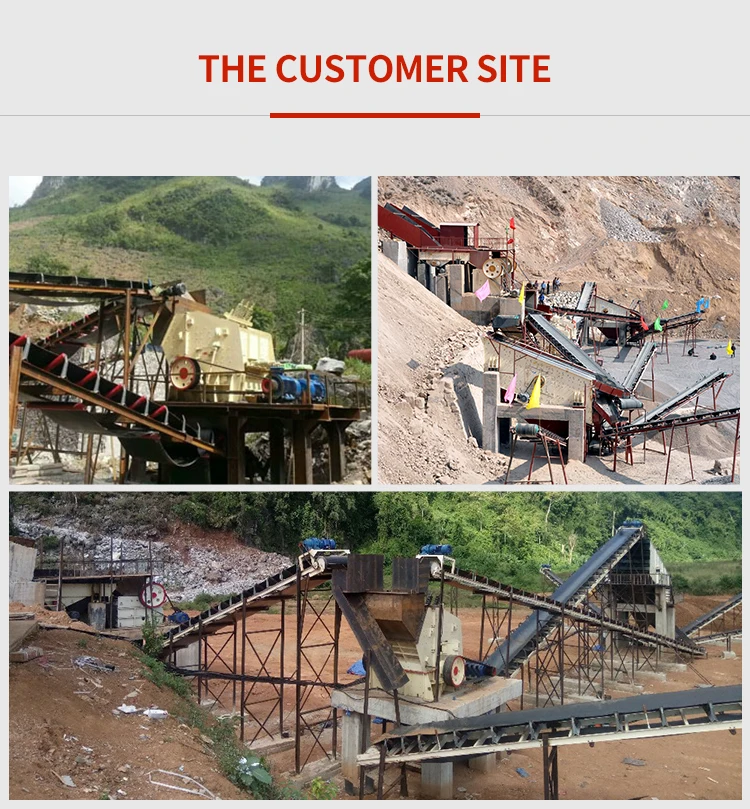

It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.
Working principle

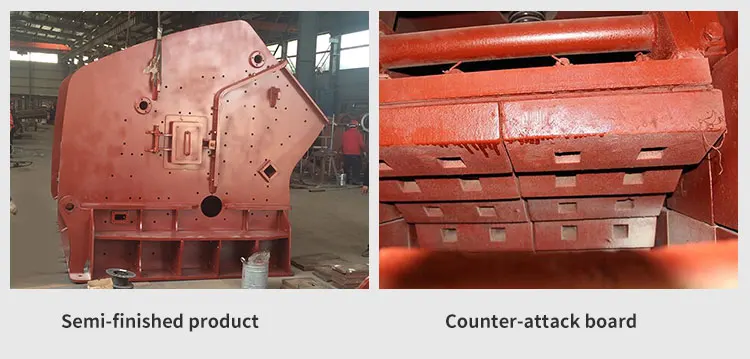

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.
PF impact crusher can process many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP(such as limestone, gypsum, concrete, etc.). The adoption of no-board connection and hydraulic valve not only reduces the customer's operation cost, but also improves the production efficiency. Finished products are cubic without tension or cracks and the shape is quite good.
| Type | Feeder opening size(mm) | Max feeding size(mm) | Rotor size D*L(mm) | Capacity(t/h) | Power(kw) | Overall Dimension (mm*mm*mm) |
| PF-1007 | 450X750 | 250 | Φ1000X700 | 10-60 | 45 | 2330*1700*2560 |
| PF-1010 | 450X1100 | 300 | Φ1000X1050 | 50-90 | 55 | 2330*2010*2560 |
| PF-1210 | 450X1100 | 300 | Φ1250X1050 | 70-130 | 90 | 2640*2010*2850 |
| PF-1214 | 450X1450 | 350 | Φ1250X1400 | 90-180 | 132 | 2640*2400*2850 |
| PF-1315 | 650X1500 | 350 | Φ1320X1500 | 120-250 | 160-200 | 2930*2670*3150 |
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
