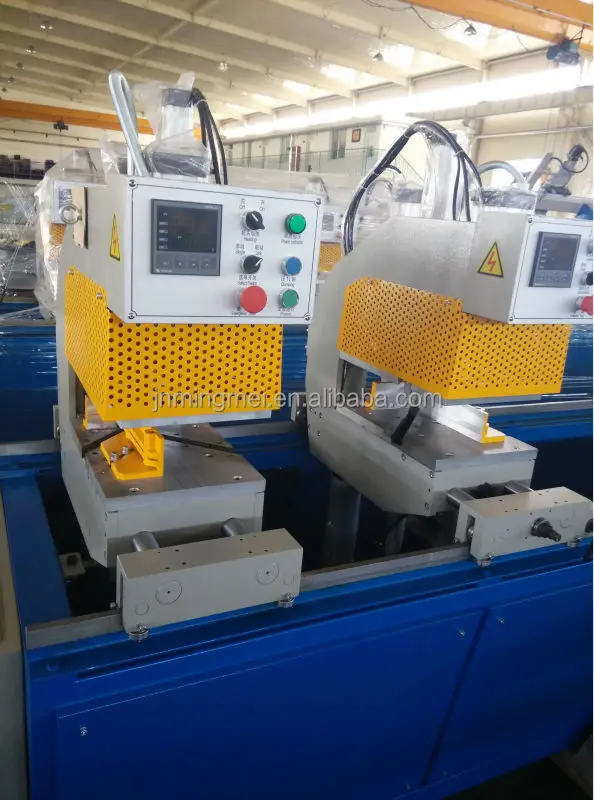

Pvc window machine 2 head welding machine / UPVC Window Door Making Machine

Product Overview

Description

Pvc window machine 2 head welding / UPVC Window Door Making Machine

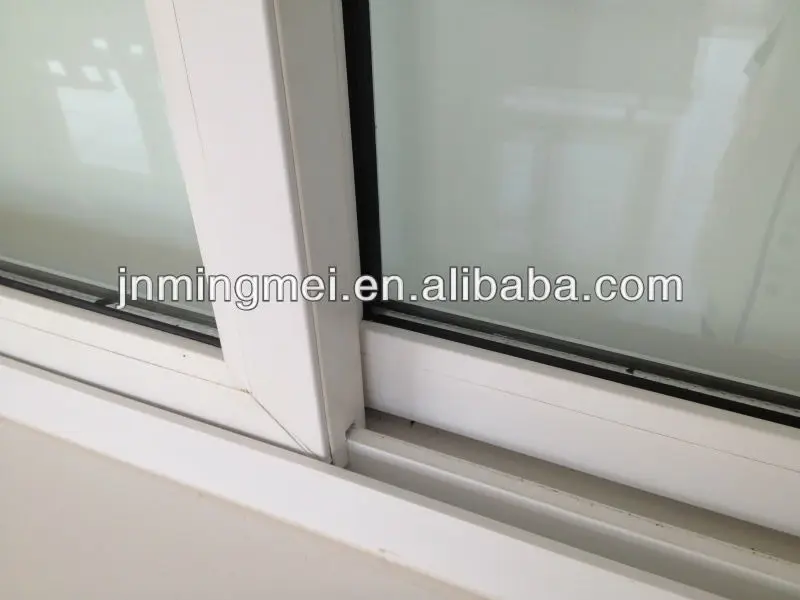

1.for welding PVC window-door
2.Welding two point, single point, transom, cross-transom and special angle.
3.Two heads can work individually, simultaneously or combinatively.
4.Assembled with B to make up 3+2 five-head welding machine.
5.PLC control, pneumatic transmission, simple operation and high stableness.

Technical parameters

input power	2.5KW
Working voltage	380V 50HZ
Air pressure	0.4-0.8Mpa
Air consumption	150L/min
Welding profile height	20-100mm
Welding profile width	0-120mm
Welding range	400-3500mm
Size	4400*1100*1700mm
Weight	1300KGS

Remarks

1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.

2. International CE standard high flexibility, high shielding cables.

3. Warranty time: 1year

4. Quotation Valid: 90 days

5. Payment terms: 30%T/T as deposit, 70% belance made before shipment by T/T

6. Delivery time: 30 days upon receipt of 30% deposit by T/T

7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full contaner load, then without wooden box,just use the tray)

8. Aftersales service:

1)24 hours service on Internet and Telephone, free instructions and problem solving

2) Free training to make sure a master of the operating of cnc router for the person who come to our factory

3)User-friendly English manual or operating video for machine using and maintaining

4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60-80 USD/DAY Salary)

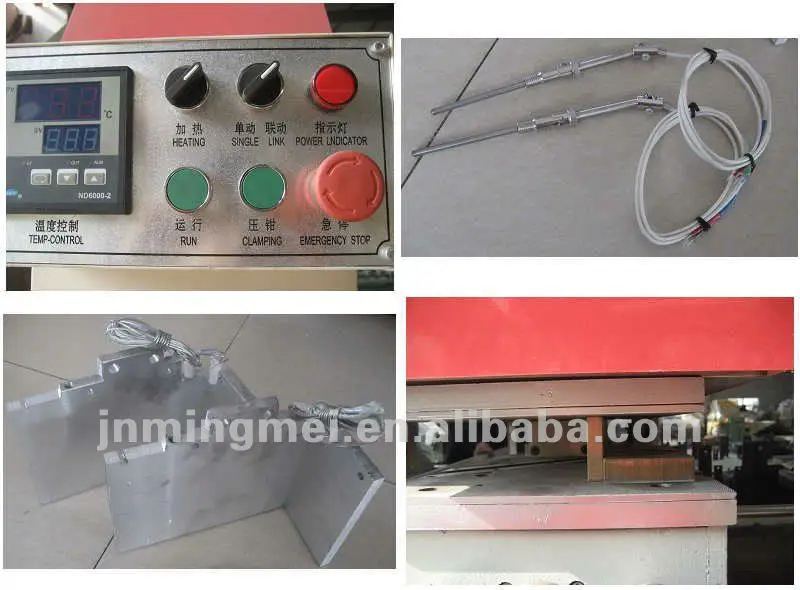

welding plate:

guide rail:
