ram type universal milling machine manufacturer with best services provided
- Category: >>>
- Supplier: Tengzhou Hising Machine Tools Co. Ltd.
Share on (60262312481):
Product Overview
Description
The Features of ram type universal milling machine manufacturer with best services provided:
1. CAST IRON OF HIGH RIGIDITY.
2. GUIDEWAYS QUENCHED AND FINE GRINDED.
3. X, Y, Z AXIS AUTOMATIC FEEDING DRIVEN BY SERVO MOTORS.
4. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.
5. DIFFERENT COLORS REQUESTS ACCEPTABLE.
6 OEM SERVICE PROVIDED
7. BALLSCREW CAN BE ORDERED SPECIALLY.
The Specification of ram type universal milling machine manufacturer with best services provided:
Specifications | Unit | X5746 | X5750 |
Table size | mm | 460*1235 | 500*1600 |
T-slots(NO./width/pitch) | mm | 5*18*80 | |
Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 |
Swivel angle of milling head | - | 360° | |
Spindle taper | - | ISO40 | ISO50 |
Spindle speed range | r.p.m | (27) 30-2050 | |
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 |
Table rapid speed |
| 2200/2200/1100 | |
Distance between spindle nose and table surface | mm | 32-482 | 25-525 |
Distance from spindle center line to column | mm | 47-697 | 55-755 |
Main motor power | Kw | 5.5 | 7.5 |
Feed motor | Kw | AC servo motor X/Y:15NM; Z: 18NM | |
Max load | Kg | 800 | 1800 |
Overall size | mm | 1835*2362*2090 | 2475*2260*2180 |
Net weight | kg | 3200 | 4000 |

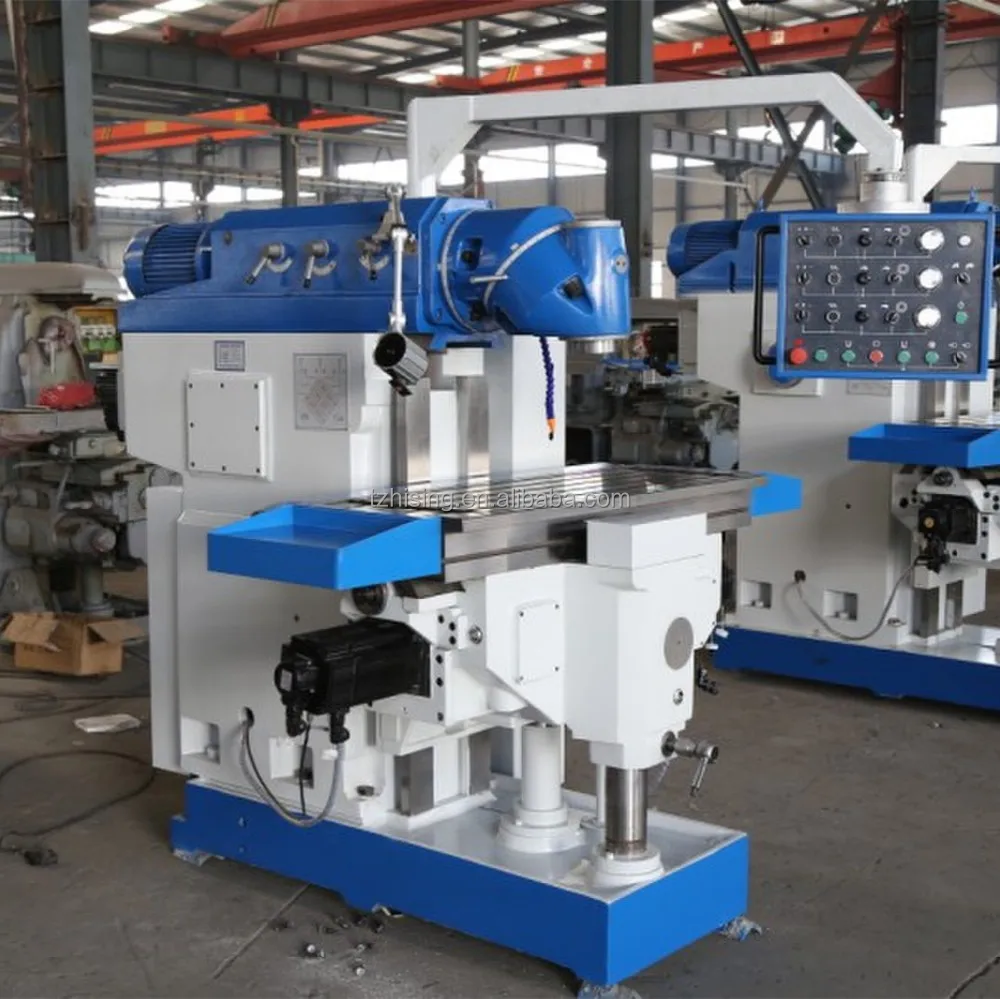

PHOTOS OF ram type universal milling machine manufacturer with best services provided:
