high temperature gas nitriding furnace, nitrogen atmosphere furnace for sale

Product Description

It can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas.It’s an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company.

Nitriding furnace widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.

argon atmosphere furnace.jpg

Features of nitriding furnace  :

1.Side door, easy to operate

2.High quality imported fiber, resistance high temperature.

3.Programmable and PID automatic control

4.Metal key or touch panel operating interface for your option

5.Stainless steel sealed tank

6. Max. energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.

7. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.

Technical Parameter for nitriding furnace :



Model

1200A

1400A

1600A

Max temperature

1200C

1400C

1600C

Working temperature

1100C

1300C

1500C

Heating rate

0~20C/min

0~15C/min

0~15C/min

Accuracy of

temperature control

+/-1C

+/-1C

+/-1C

Heating elements

Electric resistance

wire with molybdenum

SiC rode

MoSi2 rode

Refractory material

1430 type alumina

ceramic fiber

1600 type alumina

ceramic fiber

1800 type alumina

ceramic fiber

Furnace structure

Double water

cooling system

Double water

cooling system

Double water

cooling system

Thermocouple

K

S

B

Max.Vacuum level(supporting customized

products)

7X10-3 Pa

7X10-3 Pa

7X10-3 Pa

Normal voltage

110-415V

50/60Hz

110-415V

50/60Hz

110-415V

50/60Hz

Chamber Size

150x150x150mm (6"x6"x6")

150x150x200mm (6"x6"x8")

200x200x200mm (8"x8"x8")

200x200x300mm (8"x8"x12")

250x250x300mm (10"x10"x12")

300x300x400mm (12"x12"x16")

350x350x400mm (14"x14"x16")

400x400x400mm (16"x16"x16")

500x500x500mm (20"x20"x20")



 Note: there are different chamber sizes for your choice.

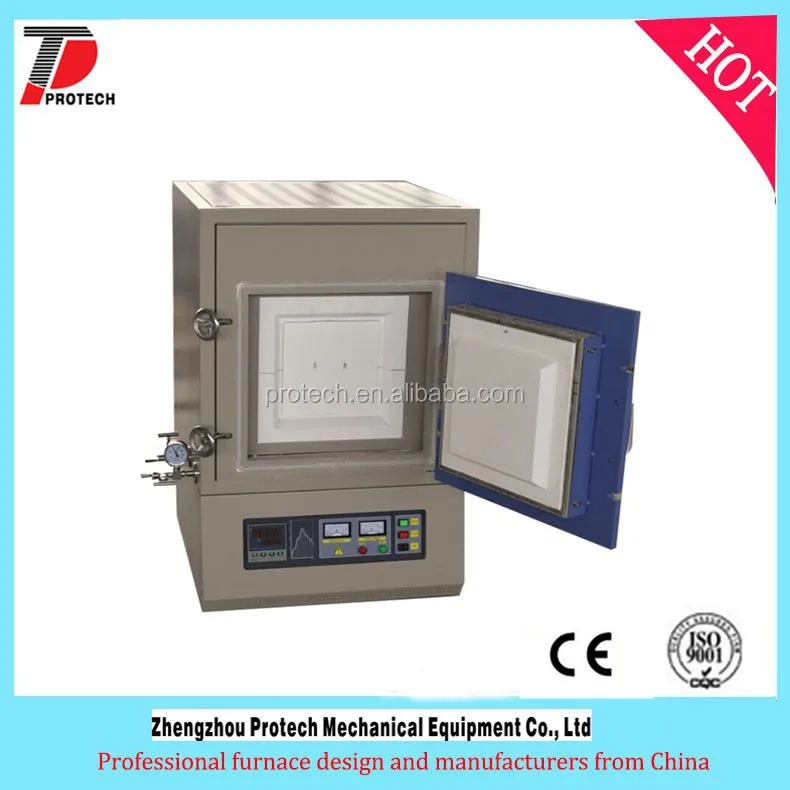

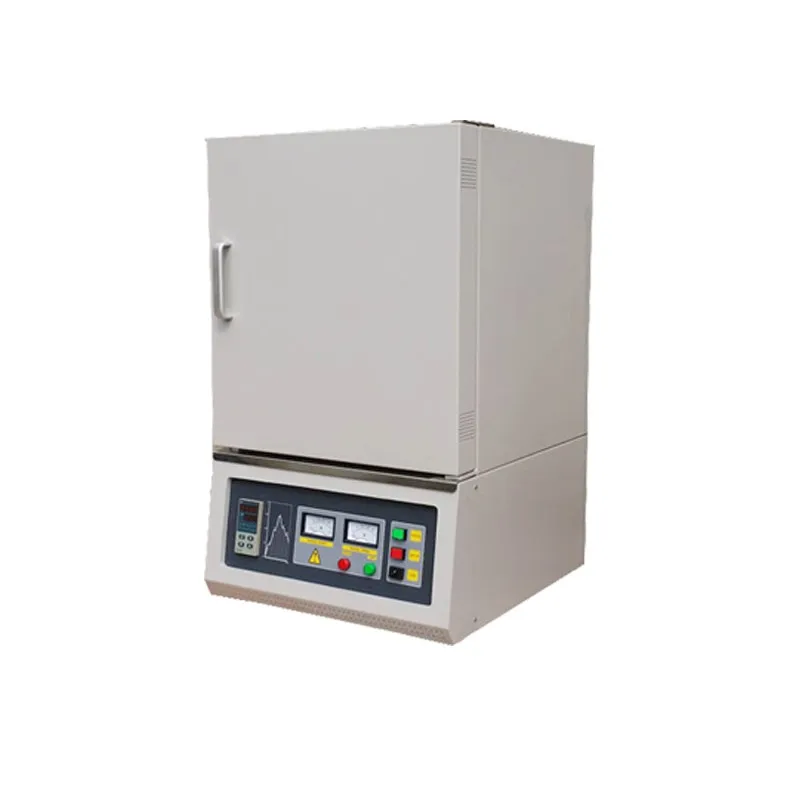

 Detailed Images of nitriding furnace :

atmosphere furnace4



atmosphere furnace156.jpg

Our other furnaces:




Quality Certification:

PROTECH CE CERTIFICATE

Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and

professional engineers and staff.

5. Professional factory : We are manufacturer, specializing in laboratory furnaces.

Packaging



  Plastic paper inside, Polyfoam filled, Wooden box outside.

FAQ

1. Are you a manufacturer or trade company ?

Yes,you can assured that we are a producer with full experience

doing business in domestic and oversea.

2. We are not professional for operation and installation of your machine?

While it is not a stumbling block,our machine is easy to operate,no need to

professional training,and the instruction manual and vedio sent to you are

enough.What’s more,we have professional engineers and they can solve all questions.

3. How about packaging ?………….if machine damaged,what should I do ?

Usually machine is packed with wooden case and standard export carton,

plywood carton or as your requirement.Damage haven’t happened before,

if happen,we will arrange replacement.

4. We haven’t do business before,how can I trust your company and machine ?

We have been GOLD supplier for three years with no complaints on Alibaba.and

our machine have exported to Eath Asia,South Asia,the middle East Asia,Africa etc.

areas and have a good feedback.



Welcome your inquiry and trail order!!!
