Red Rawl Plugs
US $0.061-$0.068
Zinc Plated Pin Type Anchor Bolts, Hammer Drive Anchor
- Category: >>>
- Supplier: Kunshan Grace Precision Hardware Co. Ltd.
Share on (60263146849):
Product Overview
Description

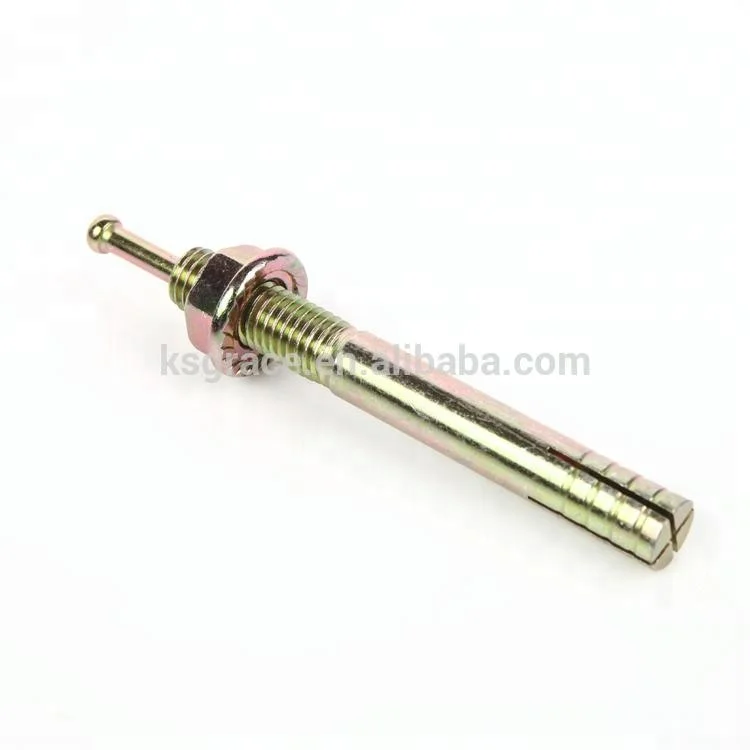

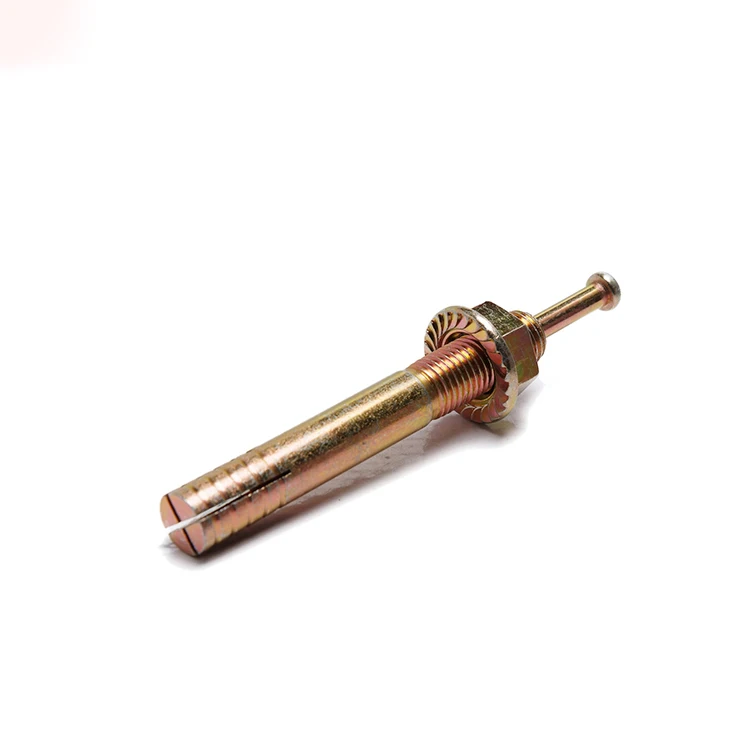

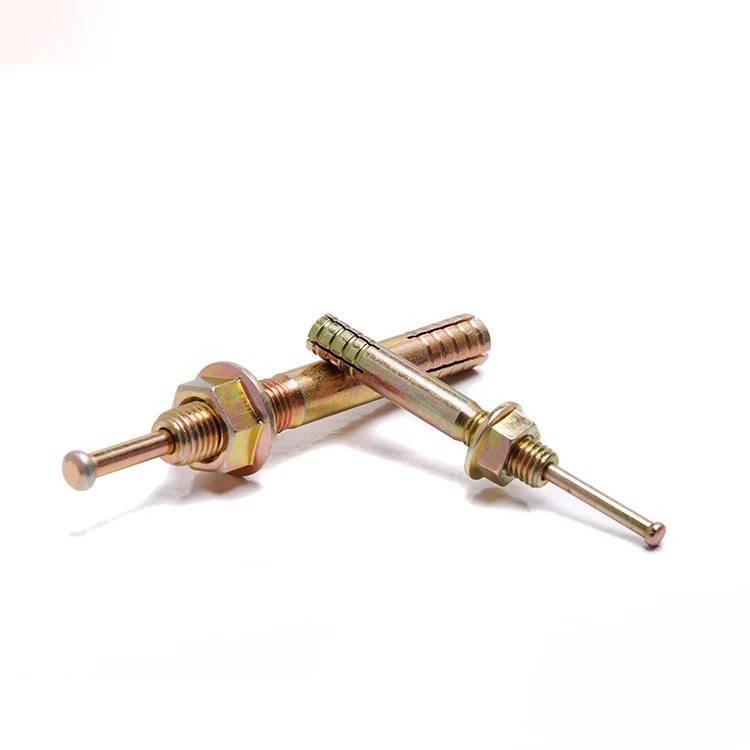

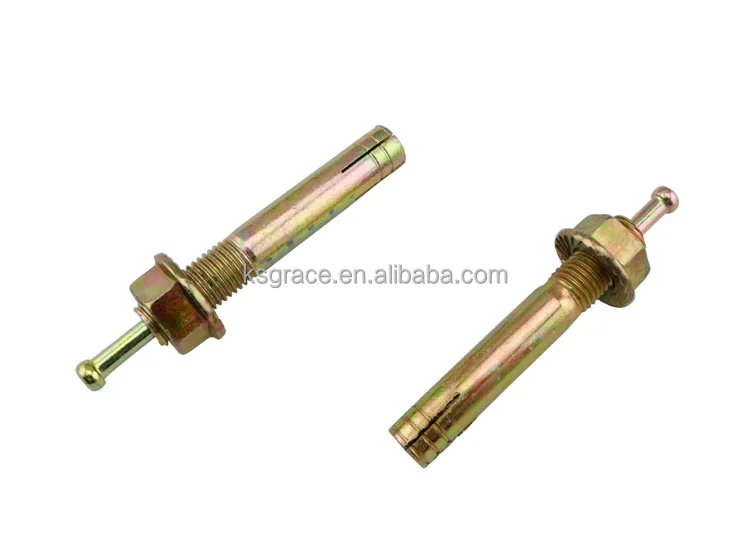

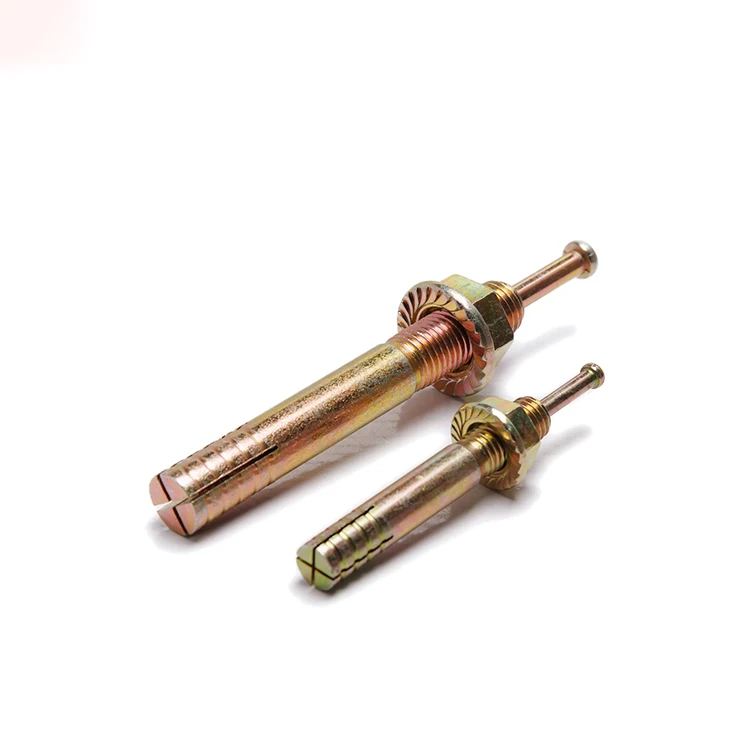

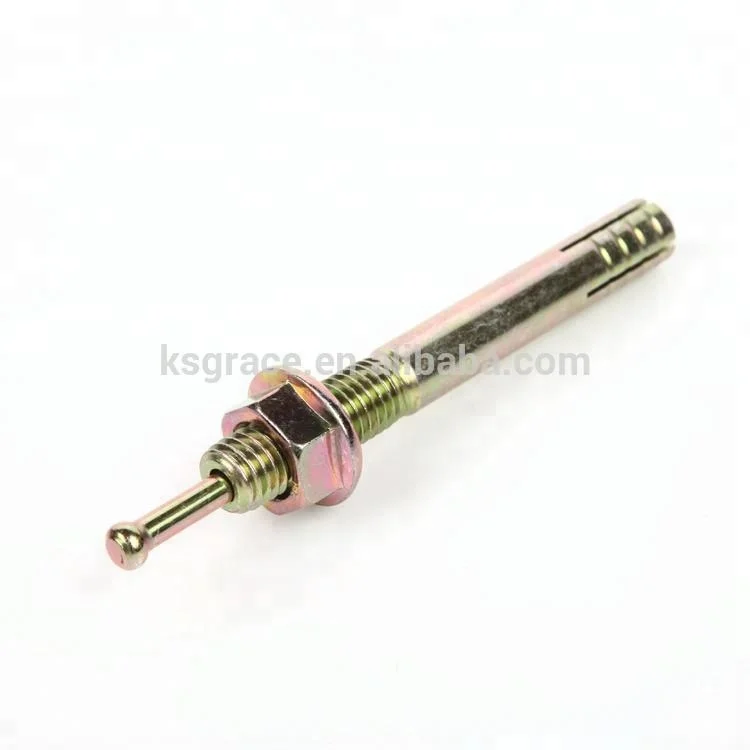

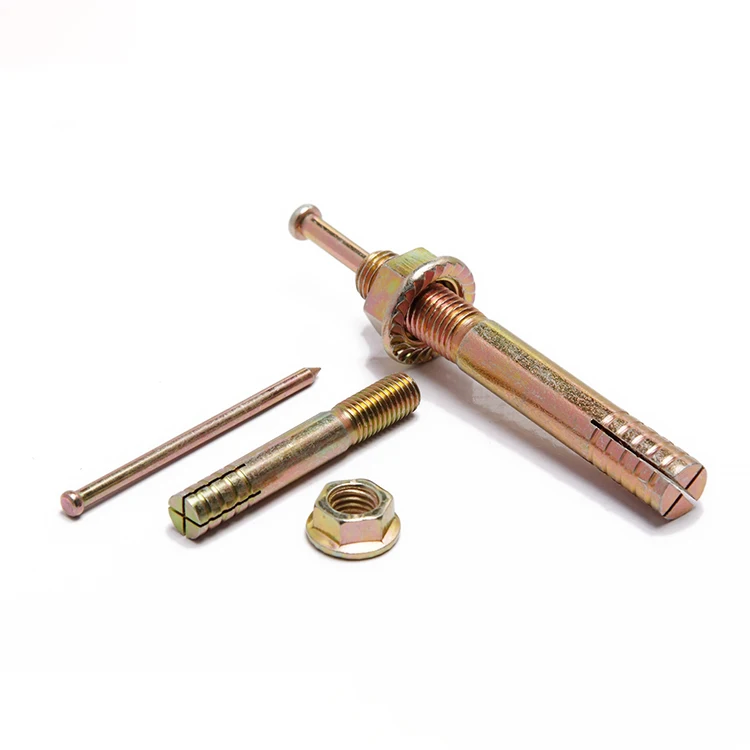

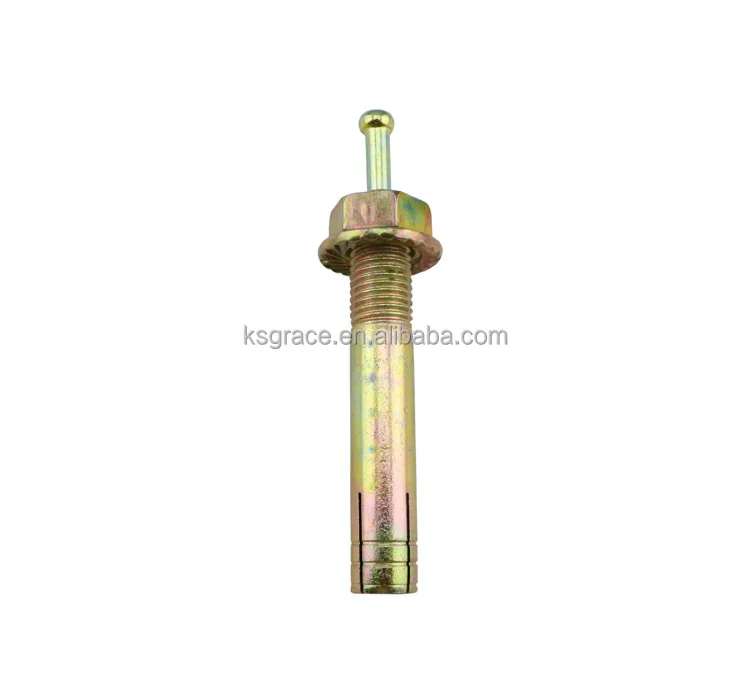

Zinc Plated Pin Type Anchor Bolts, Hammer Drive Anchor
Product Description

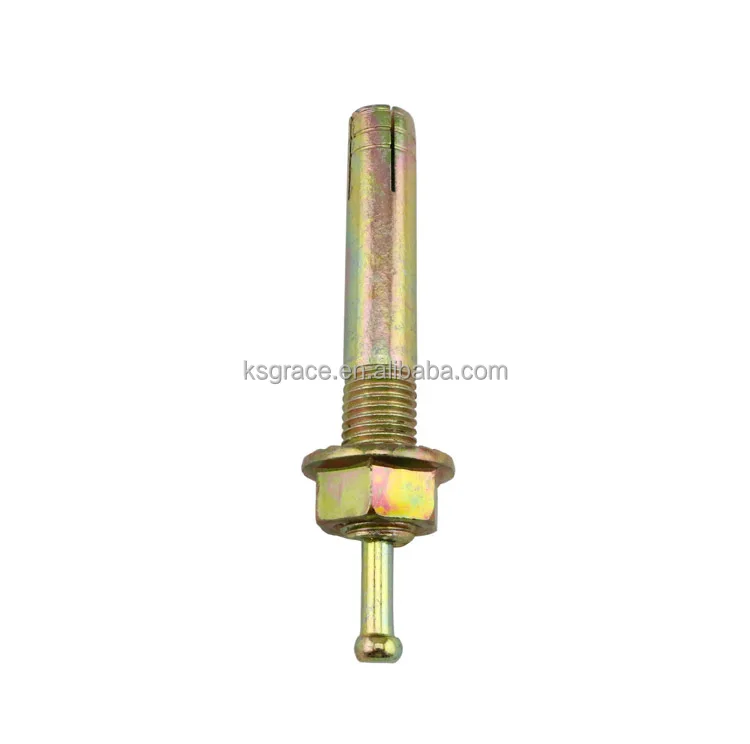

Yellow Zinc Plated Pin Type Anchor Bolts, Hammer Drive Anchor
Features:
- Drill hole size is equal to actual anchor size, thus no templates required.
- Quick and simple hammer set installation eliminates need of any special tools and also reduces installation time.
- Easy (visually) inspection
- Yellow Dichromate plating over zinc.
Applications:
- Railings
- Profiled Steel
- Machines
- Gratings
- Fire Fighting Equipments
- Lighting Fixtures
- Conduit Pipes
- Gates
- Consoles
- Steel Constructions
Installation Guide:
- Drill a hole of sufficient depth using a hammer drill and properly sized carbide bit of the same diameter as the anchor being installed.
- Clean out hole of all the drilling dust.
- Place the washer and nut on the anchor, turning nut on to the anchor as required :With nut, washer and pin in place, insert the anchor through the material to be fastened and into the concrete base material.
- Flush with top so as to secure the threads while the anchor is being hammered.
- Thread them fully.
- With nut, washer and pin in place, insert the anchor through the material to be fastened and into the concrete base material.
- Using a proper sized hammer, set pin with several accurate strikes on the head of the pin until the pin is flush with the top of the anchor. The concrete anchor is now properly set eliminating the need to torque the nut to set the anchor.
Technical Description:
Suitable for:
- Concrete
Also known as:
Hit Anchor | Strike Anchor | Nail Anchor |
Easy Set Expansion Anchor | EZA |
|
Technical Specification:
Sr. No. | Size | Length Range (mm) | Thread Size (mm) | Drill Hole (mm) | Ultimate Loads In Concrete (kN) | Quantity | |
Per Box (pcs) | Per Cartoon (pcs) | ||||||
1 | M6 | 40 - 100 | 6 | 6 | 5 | Variable | Variable |
2 | M8 | 40 - 150 | 8 | 8 | 7.2 | ||
3 | M10 | 50 - 200 | 10 | 10 | 13 | ||
4 | M12 | 50 - 300 | 12 | 12 | 21 | ||
5 | M16 | 75 - 400 | 16 | 16 |
| ||
6 | M20 | 75 - 450 | 20 | 20 |
| ||
7 | M24 | 100 - 600 | 24 | 24 |
| ||
