Product Overview
Description
Product Description

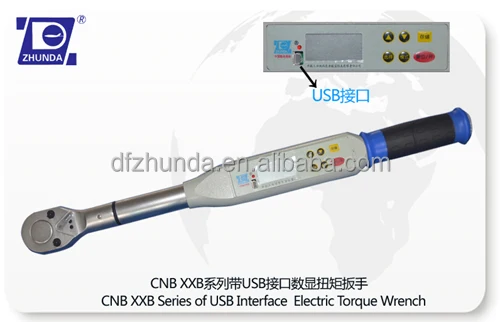

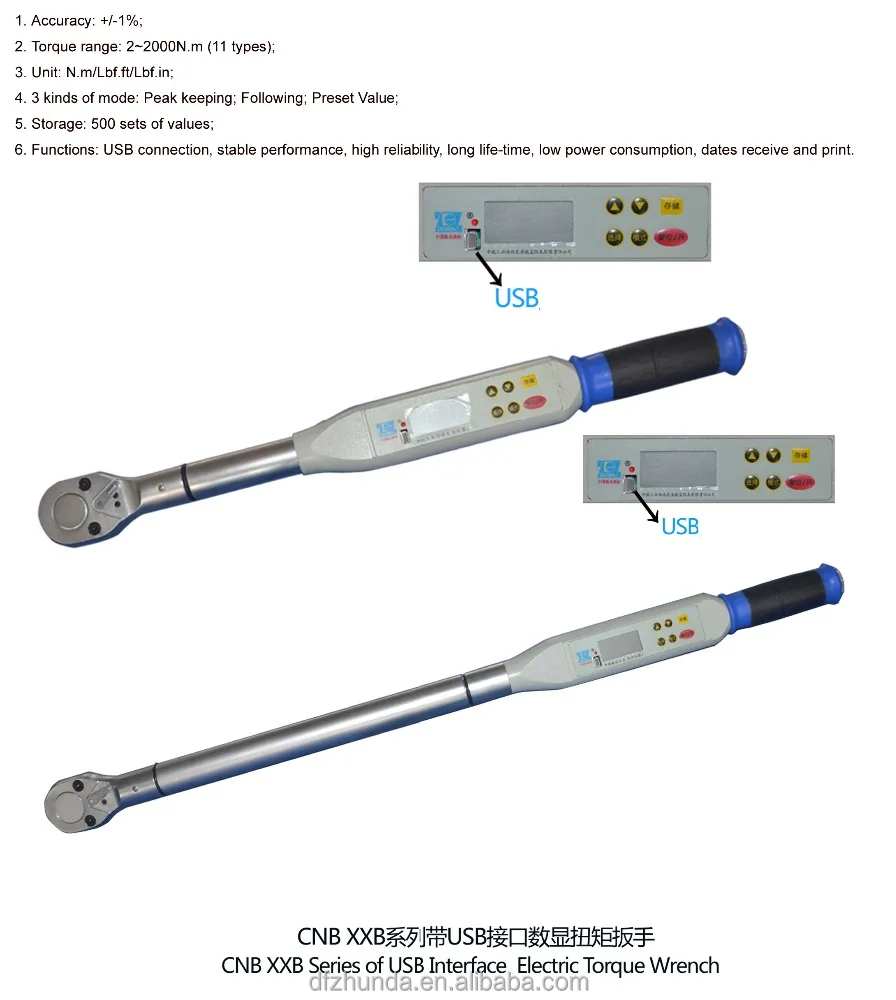

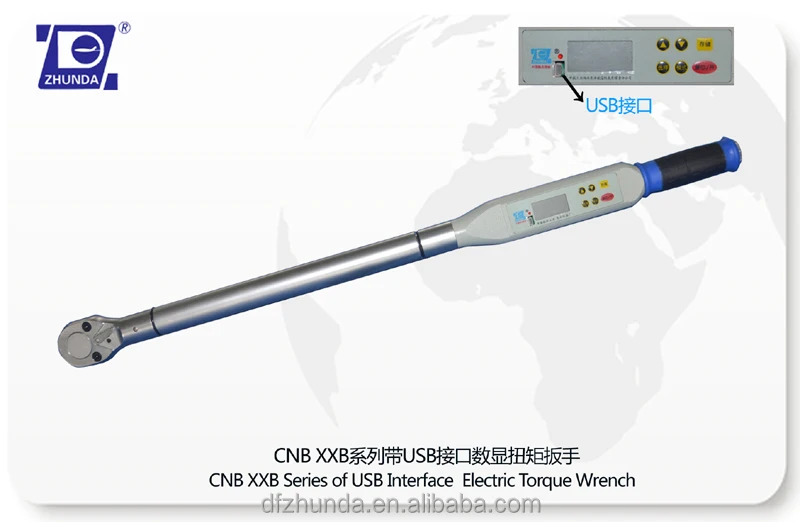

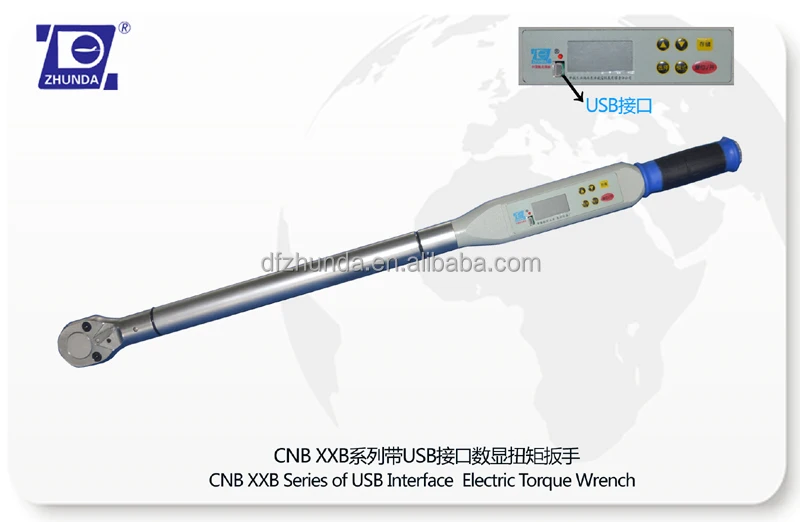

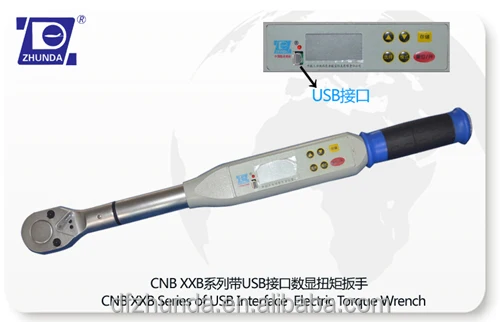

CNB XXB Series of USB Interface electric torque wrench (Accuracy Class:+/-1%)
ZHUNDA CNB XXB Series of USB Interface type electric torque wrench is the new update high quality type measuring tools of our CNB series of electric torque wrench.
1. It has the following features: high precision, stable performance, durable, low power consumption and operation easily.
2. This kind of type has the functions of data saving, saving data test and transfer.
3. Also it can connect with the PC for data communication and print.
ITEM | MODEL | RANGE | GRADATION | SQUARE JOINT SIZE(mm) | ARMS OF FORCE(mm) | TOTAL LENGTH(mm) | WEIGHT(Kg) | |||
N.m | Ibf.ft | Ibf.in | N.m Ibf.ft | Ibf.in | ||||||
1 | CNB10B | 2-10 | 1.47-7.38 | 17.7-88.5 | 0.01 | 0.1 | 3/8" | 283 | 360 | 0.75 |
2 | CNB20B | 4-20 | 2.9-14.7 | 35.4-177 | 0.01 | 0.1 | 3/8" | 283 | 360 | 0.75 |
3 | CNB50B | 10-50 | 7.4-36.9 | 88.5-442.5 | 0.01 | 0.1 | 3/8" | 283 | 360 | 0.8 |
4 | CNB100B | 20-100 | 14.7-73.8 | 177-885 | 0.1 | 1 | 1/2" | 330 | 412 | 1.1 |
5 | CNB200B | 40-200 | 29.5-147.5 | 354-1770 | 0.1 | 1 | 1/2" | 400 | 485 | 1.4 |
6 | CNB300B | 60-300 | 44-221 | 530-2655 | 0.1 | 1 | 3/4" | 500 | 588 | 1.7 |
7 | CNB500B | 100-500 | 74-369 | 885-4425 | 0.1 | 1 | 3/4" | 710 | 789 | 3.45 |
8 | CNB800B | 160-800 | 117-590 | 1416-7080 | 0.1 | 1 | 3/4" | 800 | 896 | 7.5 |
9 | CNB1000B | 200-1000 | 147-738 | 1770-8850 | 1 | 1 | 1" | 900 | 1045 | 7.5 |
10 | CNB1500B | 300-1500 | 221-1106 | ------- | 1 | ---- | 1" | 1200 | 1350 | 10.2 |
11 | CNB2000B | 400-2000 | 295-1475 | ------- | 1 | ---- | 1" | 1200 | 1350 | 10.2 |
