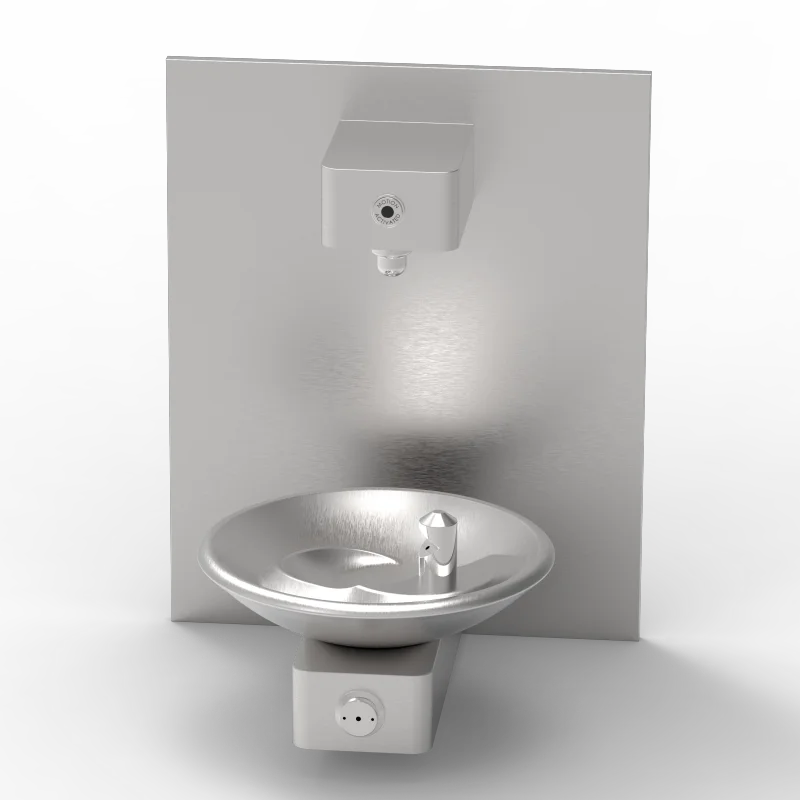

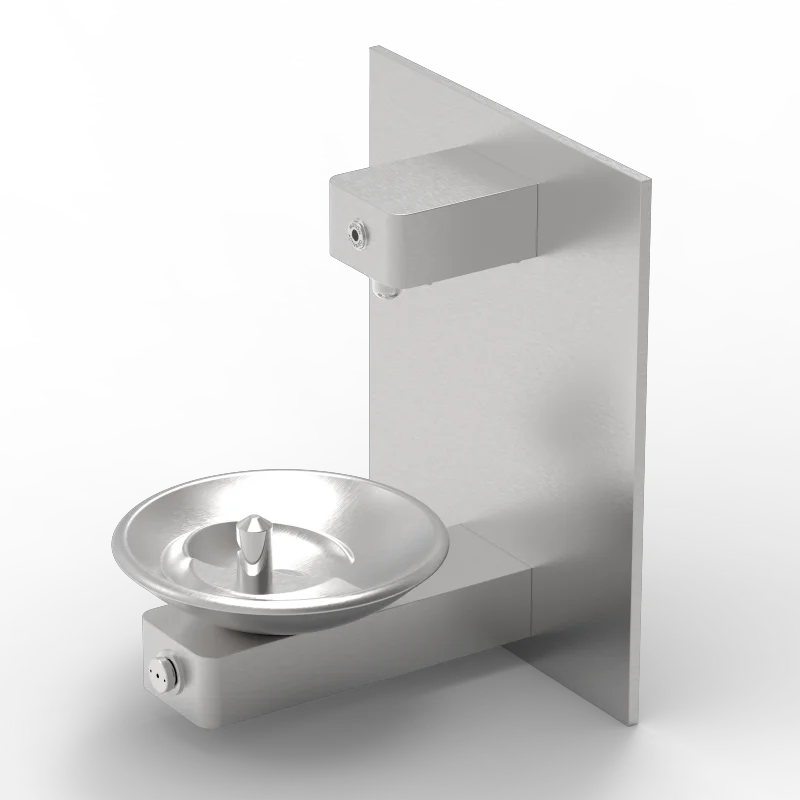

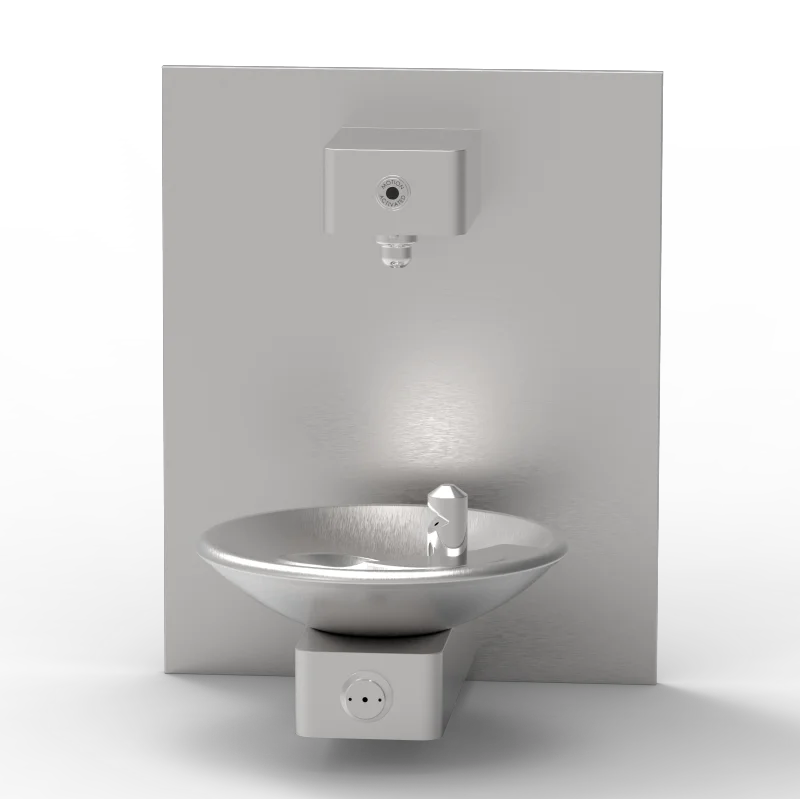

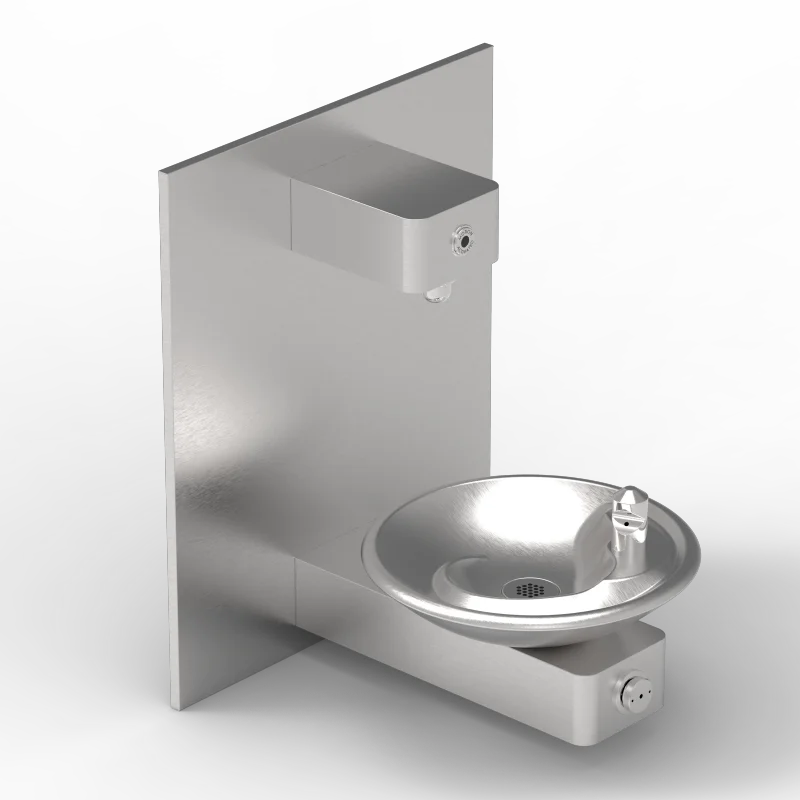

Model TB9 1FS ADA Vandal Resistant Fountain And Motion Activated Bottle Filler Touchless Water Cooler

ADA Vandal-Resistant Fountain and Motion-Activated Bottle Filler

The Moerdeng TB9-1F ADA stainless-steel drinking fountain and touchless bottle filler incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on the bottle filler, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the fountain. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

  Touchless operation on the bottle filler for safety and peace of mind
 20-second obstruction time-out to reduce tampering of sensor
 Vandal resistant components include bubbler, bowl, button, drain and bottom plates
 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket and bottle filler
 Front access plate allows for front access of P-trap and stop
 1 gpm (3.78 L) bottle filler laminar flow
 Stainless steel vandal-resistant bubbler head with integral laminar anti-squirt flow eliminate water splash
 Trap and shut off must be in the wall
 Brushed stainless steel finish is corrosion resistant and attractive.
 Rated for indoor

Product Customization
 If you are looking for a drinking water solution that is outside of our standard offerings, we can help you tailor an existing Moerdeng product to meet your unique specification.     No matter what you want to change or you have a brand new idea, we will help you achieve and exceed your expectations.

Nameplate Customization
All Moerdeng drinking fountains,water coolers & bottle fillers are customizable with your company-specific logos.
Creating Your Custom Nameplate:
1,Choose your products.
2,Send us your desired logo and Pantone® colors.
Moerdeng’s custom team will handle the rest!
It's that simple.

All of our products will be packed with protecting foam. Express, Air & Sea shipment are available according to customer's needs.
