cheapest portable Ultrasound Scanner

Product Overview

Description

                          cheapest portable Ultrasound Scanner

Instructions:

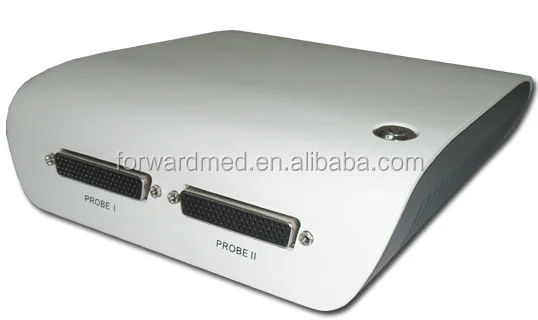

US4 Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.

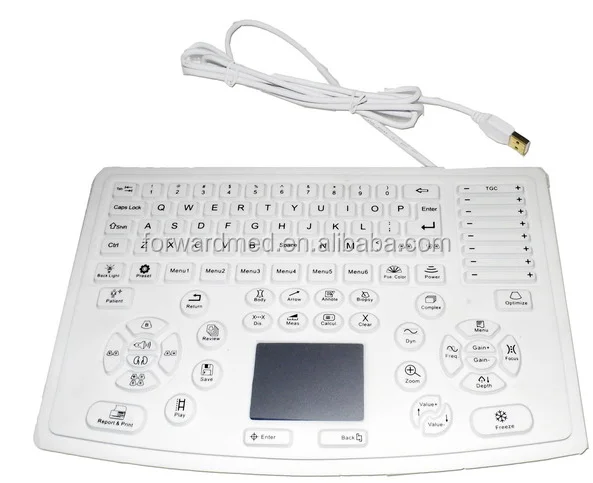

The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the "Space" key can be defined as "Freeze" button, the "+" and "-" can set to value increase and decrease, all by your define.

Feature:
-Use computer of user's, lost cost to get ultrasound scanner
-Small and light
-PC based, powerful function, large volume storage
-Full digital, clear image
-3D image function(option)
-Silica gel waterproof ultrasound keyboard(option)
-Print by computer’s USB laser/inkjet printers
-Can work with external battery(option)
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.

Specification:
-Operation system: windows XP(Best) or windows 7
-D-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop::max. 1024 frames
-Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
-Measurement and calculation(veterinary): Cattle: BPD, CRL, TD;
Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: by computer hardisk or USB disk
-Print: by USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-3D image function(function): can get rebuilt 3D image by any probe
-Dimension: 230mm×200mm×64mm
-Weight: with one probe around 1.2kg
-Work time by battery(optional): about 3 hours
-Probe Connector::2

Standard Configuration:
Ultrasound Box, USB connect cable, Convex probe(R60, 3.5MHz), Power adapter,
CD with ultrasound software, Manual.
Optional:
Linear, Trans-vaginal, Micro-convex, Rectal Probe; Ultrasound keyboard; Computer; Battery; Bag.
