KEYPOWER Load Bank with generator tester 800 kw load bank for generator testing

Product Overview

Description

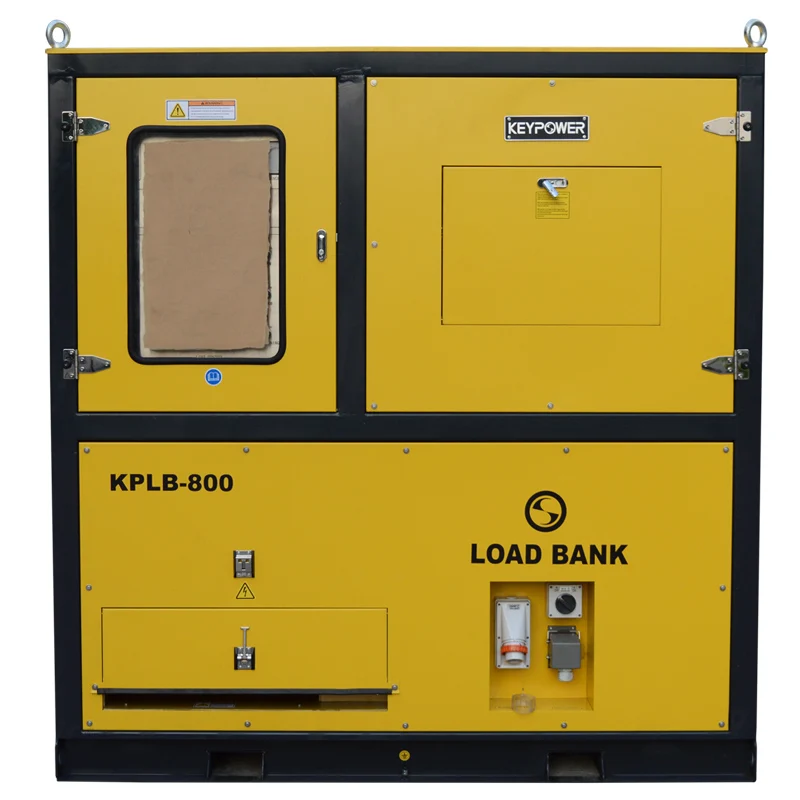

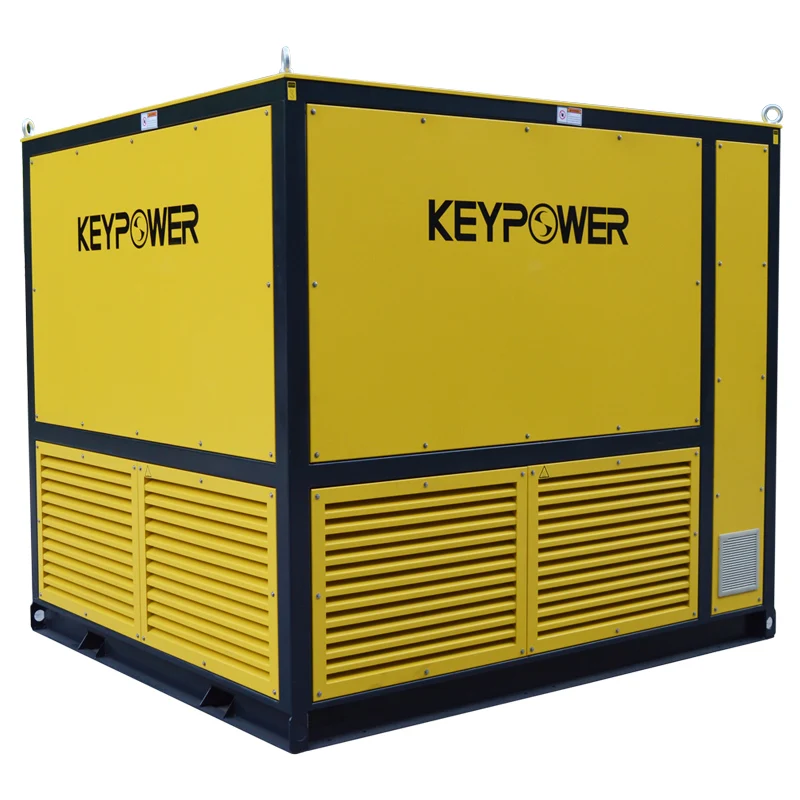

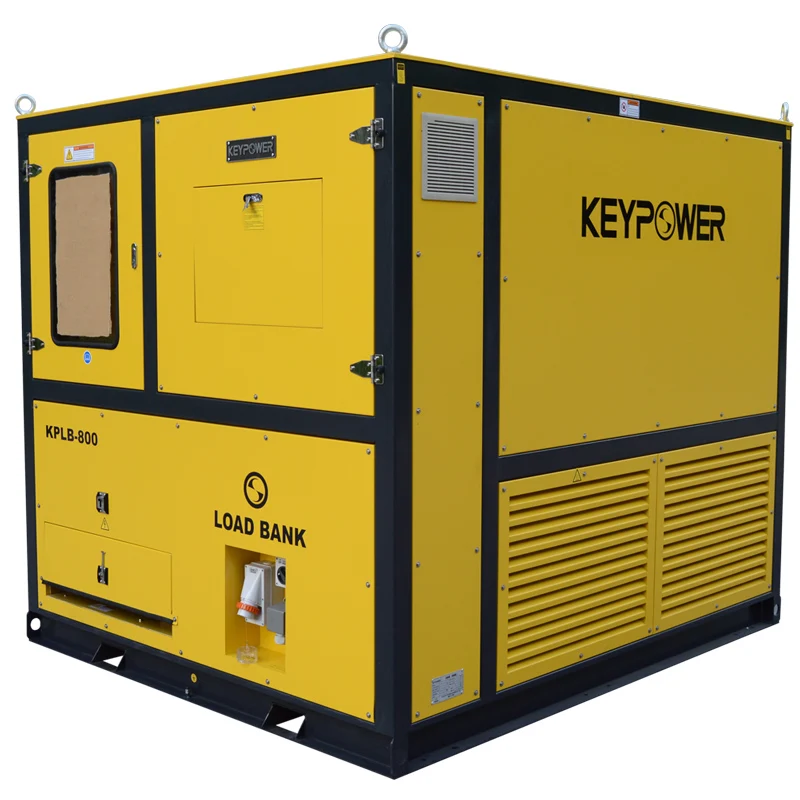

KEYPOWER 800 kw load bank for generator testing with generator tester

 Product Details >>>>>>>>

KEYPOWER GENERATOR TESTER SPECIFICATIONS
Measurement	Range	Accuracy	Resolution	Overload
Voltage (V)	10.0~500.0V	± (0.4% reading+0.1%range)	0.1V	600V
Current (A)	0.030~5.000A	± (0.4% reading+0.1%range)	0.001A	6A
Power	According to volt range  &  current range	Power factor =1.0	<200W 0.1W
		± (0.4% reading+0.1% range)	≥200W 1W
		Power factor =0.5	≥2kW 10W
		± (0.8% reading+0.2% range)
Power Factor	0.20~1.00	±0.02	0.001
Frequency	45~65Hz	±0.2Hz	0.01Hz
Running Time	99h59m	±2min/hour	1 minute
Energy  (kWh)	99999kWh	Power factor= 1.0	0.001kwh
		± (0.4% reading+0.1% range)
		Power factor=0.5
		± (0.8% reading+0.2% range)
Harmonic Analysis  (%)	2-50 times  and total harmonic



Models You Can Choose
Model	Testing  capacity	Type  of  load	Duty	Cooling  system	Phase	Rated  Testing  Voltage	Rated  Frequency	Dimensions       (L*W*H)  (mm)	Weight  (kg)
KPLB-100	0 - 100 kw	Resistive  or  Reactive,   PF =  1.0 or 0.8	Continuous	Industrial  grade  axial fan	Available  at both  single  and  three  phase	110-480  VAC	50/60 Hz	960*960*1400	320
KPLB-200	0 - 200 kw							1300*1200*1570	500
KPLB-300	0 - 300 kw							1600*1200*1700	900
KPLB-400	0 - 400 kw							1600*1400*1700	1000
KPLB-500	0 - 500 kw							2100*1560*1700	1200
KPLB-600	0 - 600 kw							2100*1560*1700	1300
KPLB-700	0 - 700 kw							2100*1560*1800	1400
KPLB-800	0 - 800 kw							2100*1660*1900	1600
KPLB-1000	0 - 1000 kw							2200*1900*2150	2000
KPLB-2000	0 - 2000 kw							20 ft container	6000





Specifications

100-2000KW Load Bank for Generator Load Test:

1.Premium components

2.Durable and reliable

3.Easy to transport
Load bank is a simulating load test equipment used for generators,

UPS, battery banks etc power systems load test.

1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.
2. Rated testing voltage: AC 3P4W, 110-480V 50/60 Hz.
3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally. Testing power or external utility power supply for fans.
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
5. Load bank features world-famous components to ensure reliable performance and longer service life including:
SCHNEIDER contactors.
Siemens switches, knobs and indicators.
ABB Circuit breakers.
OMRON intermediate relays.
PHOENIX terminal blocks.
6.  Parameter measuring accuracy grade: 0.3
7. Load control accuracy: ± 5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A)Local manual control;
B)Optional: Manual control via a remote control panel (max control distance is 30m).

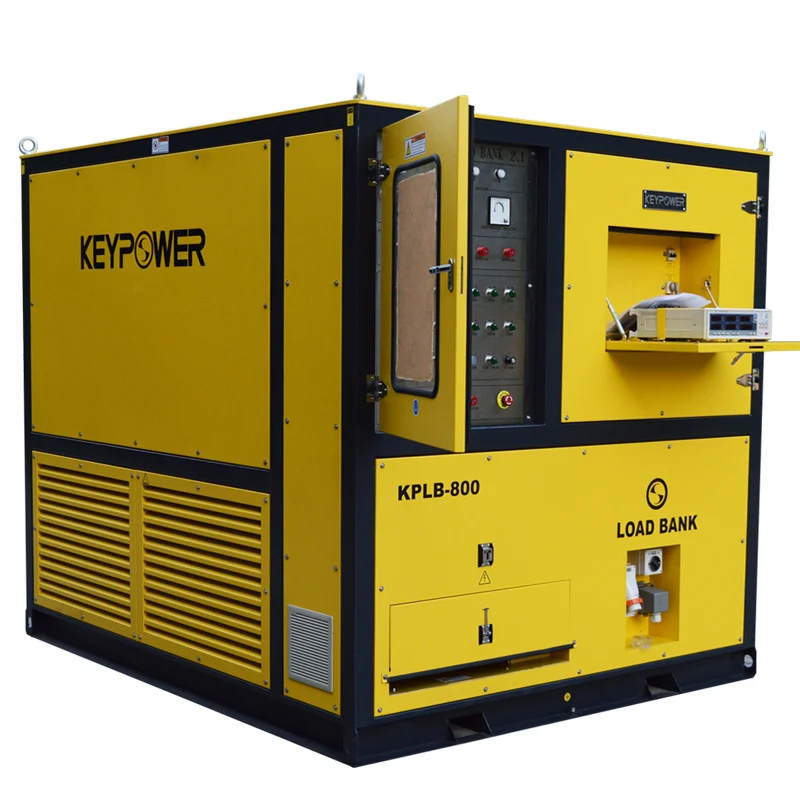

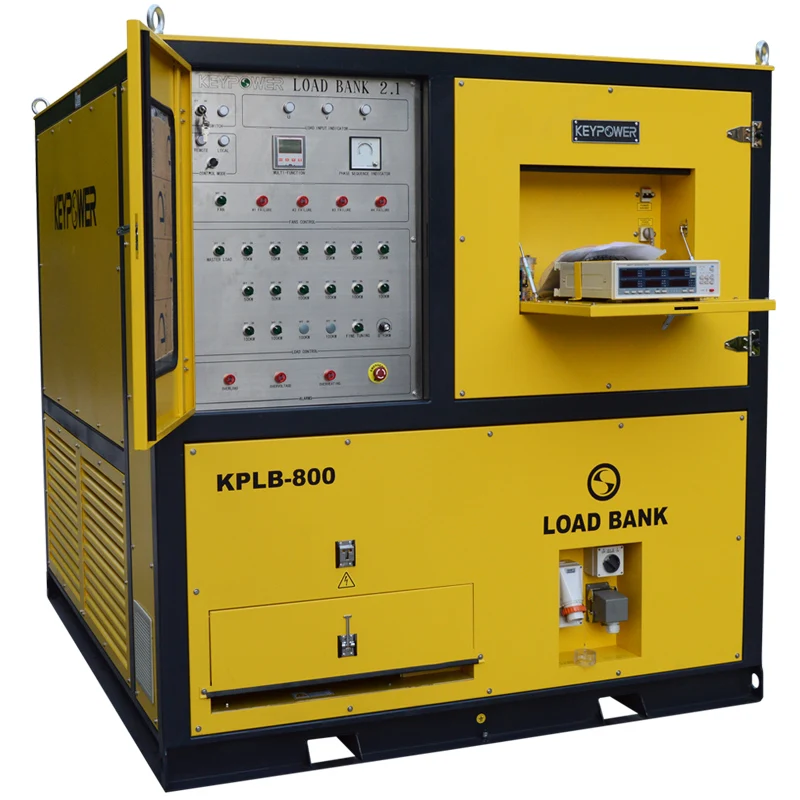

10. Parameter display and measurement:
Control panel contains a LOVATO Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "
11. Operating environment:
Altitude: ≤ 3000m above sea level. Ambient temp: -10~+50 ℃
Relative humidity: ≤ 80% ventilated environment without explosive or corrosive dust. Not allowed to use in rainy outdoor environment.

Any question, please contact me directly.
