NO/NC Wooden Door Metal Door Electric bolt lock Mortise Lock Cylinder

Product Overview

Description







High Quality Mortise Lock Cylinder electric bolt lock PY-EL14



Technical Specifications:



Fail Secure: Unlocked when energized



Face Plate: 260Lx30WX48H(mm)



Strike: 100Lx25Wx3H(mm)



Bolt: 16mmDIA,stainless steel 16mm throw



Voltage: DC12V



Start Current: 950mA



Standby Current: 150mA



Solid Bolt: polishing housing, 2000Kg Holding Force



Suitable For: Wooden Door,Metal Door



Autolock Time Delay: 0,3,6,9sec.



Signal Output: Lock status Output,NO/NC/COM



Surface Temp: Low Temperature



Induction Distance:8mm



Operating temp: -10~+55°C(14-131F)



Operating Humidity: 0~90%(non-condensing)



Special Designed: Tested to 500000 operations



Face place material:Stainless Steel



Weight: 1.436kg



Standard Packing: 10pcs







High Quality electric bolt lock Mortise Lock Cylinder for Wooden Door Metal Door  Features:



* Low Temperature, safe & Durable
* Low Power, Environmental Protection
* Special photoelectricity control,three steps current application
* Long Life  with 500000 Operations
* MOV Provides Reverse Current Protection
* Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt
* Autolock Time Delay: 0,3,6,9sec.
* Door statue signal output contact(NC.COM)
* Double protection for loading current
* Auto-relock if no Action within 5 secs.
* Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the  electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology, prevent the machanical defect.

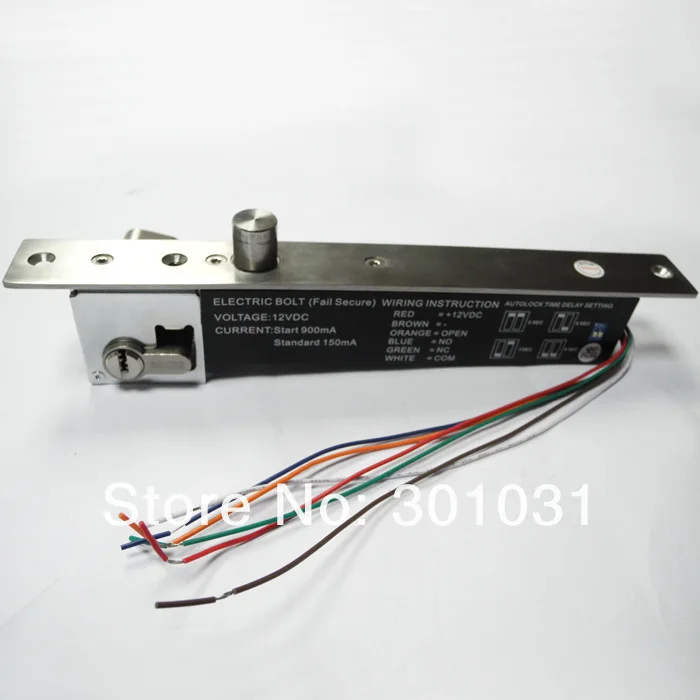

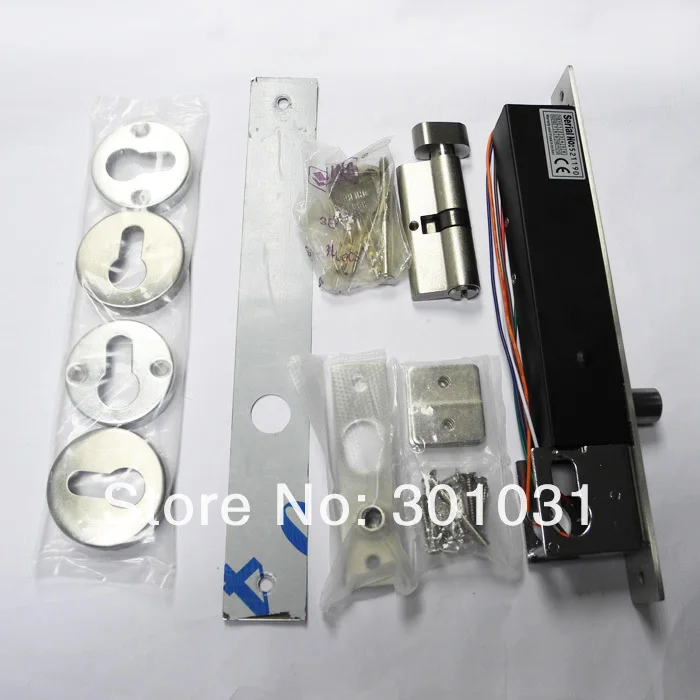

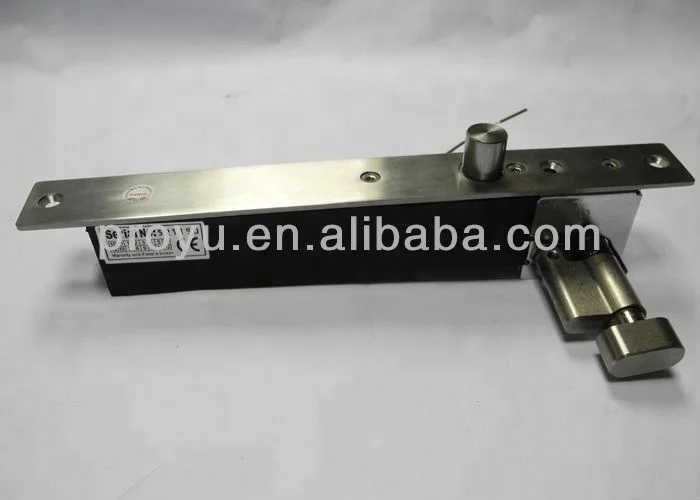

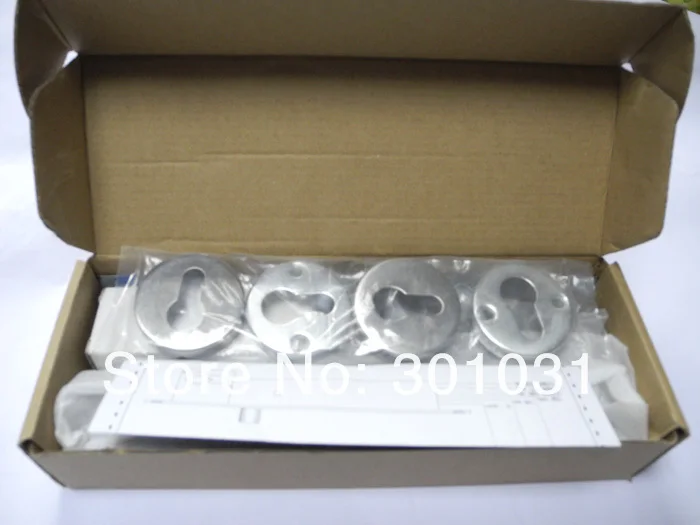

High Quality electric bolt lock Mortise Lock Cylinder for Wooden Door Metal Door k Displayed Product pictures



Advantage:

1.Good quality with competitive price

2.Professional technique supports and great services

3.Fast delivery and safe shipping way

Payment terms:

T/T,Western Union, Paypal

Shipping way

Fast way: by Express courier, such as DHL,FedEx,UPS,TNT,EMS etc.,

Feedback quickly:

Any inquires will be replied within 24 hours;

We can provide online supports for you when need helps on testing.

Warranty:

1-2 years warranty from the date of delivery.A lifetime technical support.

We warmly welcome you will join us,make Win-Win cooperation.
