Press in single channel passive HDCVI Camera balun Transceiver for Analog camera AHD TVI
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60264126768):
Product Overview
Description
Product Description

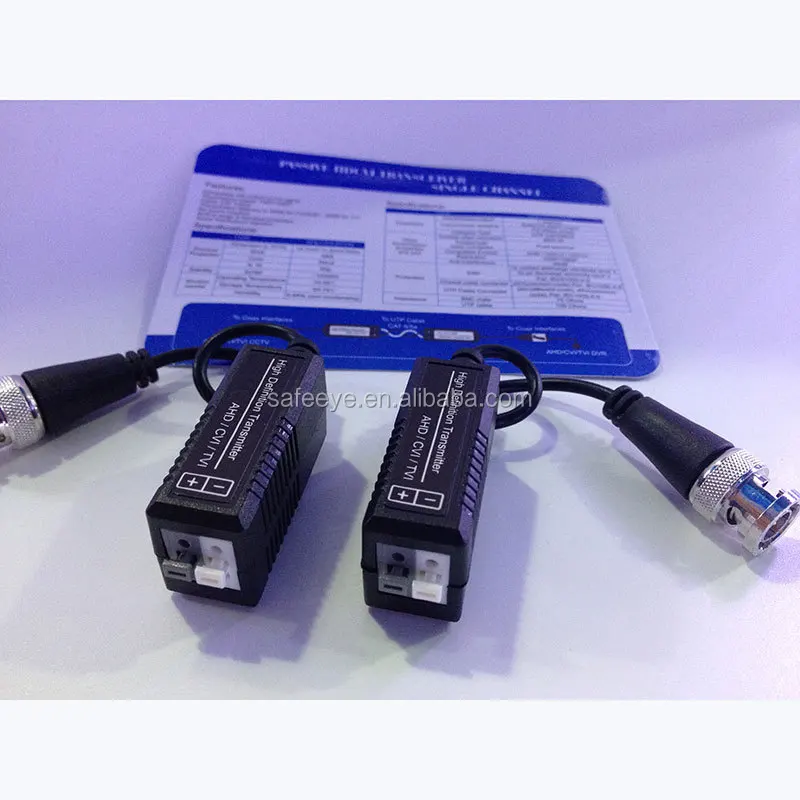

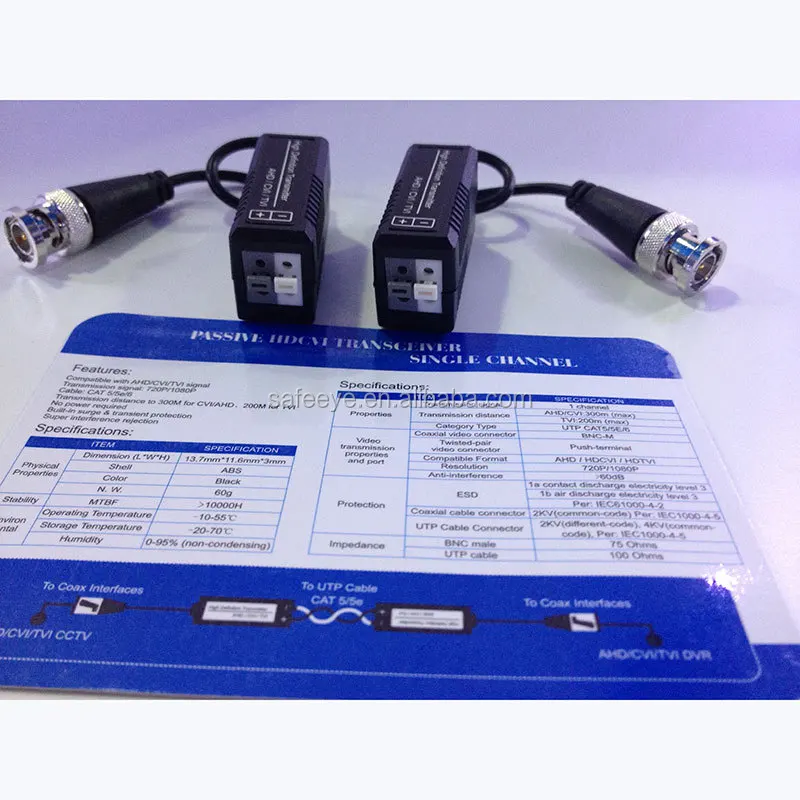

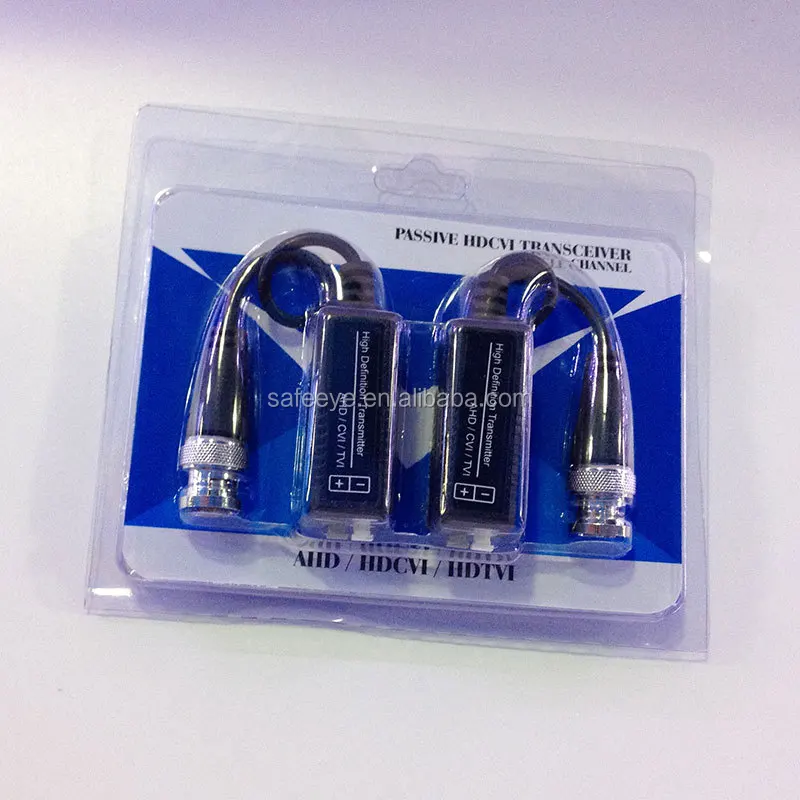

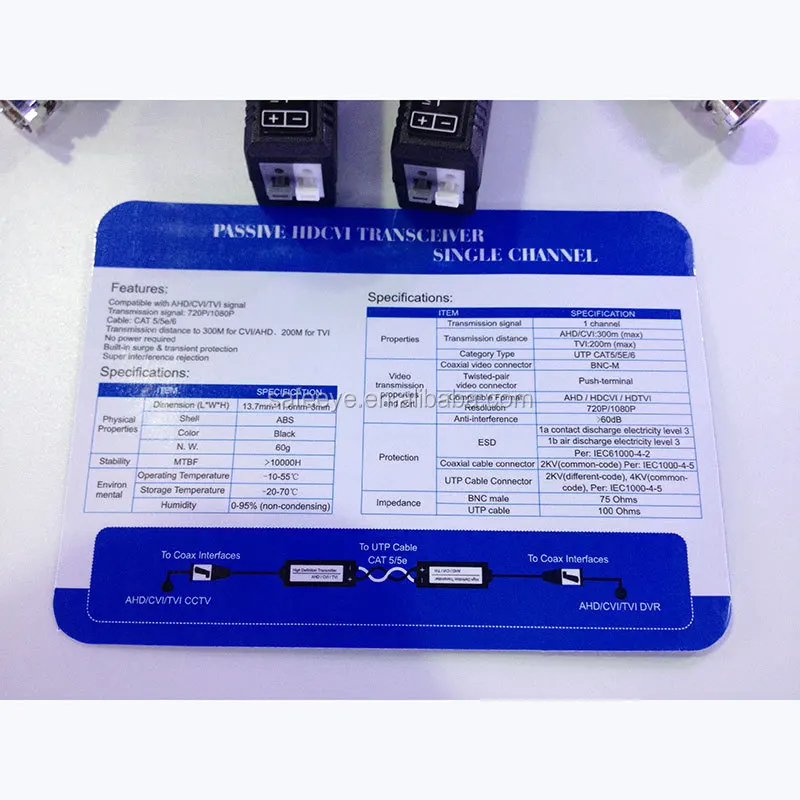

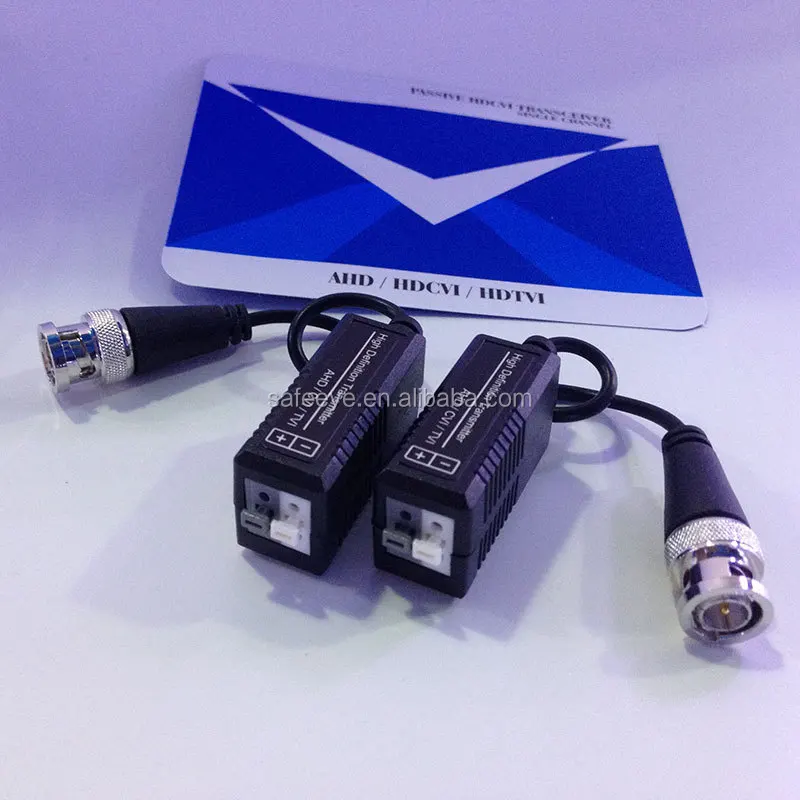

Press-in single channel passive HDCVI Camera balun Transceiver
Product Description
| Features | ||
| No power required | ||
| HDCVI video format compatible | ||
| Real time transmission | ||
| Exceptional interference rejection | ||
| Wave Filter Design,Anti-Static Design,Lightning Protection | ||
| Long-distance transmission and high-quality image | ||
| Compact size and easy installation | ||
| Cost-effective | ||
| ITEMS | SPECIFICATION | |
| HDCVI signal | 1 channel | |
| Transmission cable | UTP CAT5/5E/6 | |
| Transmission Distance | 720P:400m | |
| 1080P:200m | ||
| Video | ||
| Compatible Format | HDCVI | |
| Resolution | 720P/1080P | |
| Operating Frequency | DC to 6MHz | |
| Anti-interference | Less than 60dB | |
| Attenuation | 1.5dB typ Max | |
| Impedance | Male BNC:75Ω | |
| UTP cable:100Ω | ||
| External power required | No | |
| Protection | ||
| ESD | 1a contact discharge electricity level 3 | |
| 1b air discharge electricity level 3 | ||
| Per:IEC61000-4-2 | ||
| Renewable solid state surge protection | ||
| Video Input | 2KV(common mode),per:IEC1000-4-5 | |
| Video Output | 2KV(different-mode),4KV(common mode),per:IEC1000-4-5 | |
| Connector | ||
| Video input/output | Male BNC / Push terminal | |
| Mechanical | ||
| Housing | ABS engineering plastic | |
| Body Color | Black | |
| Dimensions | 53*20*17mm(connector excluded) | |
| Net weight | 25g/pair | |
| MTBF | More than 10000H | |
| Environment | ||
| Operating Temperature | -10℃-55℃ | |
| Relative Humidity | 0-95%(non-condensing) | |
| Storage Temperature | -20℃-70℃ | |
shipping and packaging :
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)
3.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
4.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
After-sale Service
1.) All of our products will strictly checked in house before packing and shipping.
2.) All products will be well packed before shipping.
3.) All our products have 2 year warranty, And we sure our products will be free from maintenance within warranty period.
Delivery
We have sample in stock; bulk production time is 7 working days.
Our Services
1.We only use best quality (original) components to ensure our product in high level.
2.All products we sold out are strictly tested by our QC department.
3. We are professional manufacturer factory, welcome to visit our company website for more information.
4. OEM/ODM available:
a.) Silk print logo
b.) Customized camera housing
c.) Customized color box
FAQ
1.Payment:We accept payment by L/C,T/T,Western Union,MoneyGram, Paypal
2. Do you have any certificates?
We have CE/Rohs/FCC certificates.
3.What about the warranty?
Our camera/NVR/DVR warranty is 2 years. The accessories warranty is 1 year.
4. How to choose a suitable CCTV camera for your needs?
Choosing the correct CCTV Camera that fits your digital surveillance requirements is very important. Below is a simplified set of guidelines when choosing the correct CCTV camera for your application.
a) Location: Indoor or outdoor application
b) Requirement for day and night surveillance
c) The angle of view requirement. Wide angle coverage or a narrow field of view is required.
d)Budget
5. What should i do if your item is good?
Follow as below: .Any Question or Problem Regarding the Camera ,Contact us at Skype ,Email ,MSN.
Click “send” to get the latest price list from us.
