Новое поступление, Теплопроводящая силиконовая прокладка для светодиодов PCB
- Category: Electronic Accessories & Supplies >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (60264203948):
Product Overview
Description
New arrival PCB LED heat resistant thermal conductive silicone pad
Recommend Products
Thermal Pad | ||||||||
Sheen Pad Series | Thermal conductivity | Thickness | Dielectric Breakdown Voltage (KV/AC/mm) | Hardness (Shore 00) | ||||
1.5 W/mk | 0.15~10 mm | >5KV/AC/mm | 30-90 Shore 00 | |||||
2.0W/mk | 0.15~10 mm | >5KV/AC/mm | 35-90 Shore 00 | |||||
2.5 W/mk | 0.15~10 mm | >5KV/AC/mm | 35-90 Shore 00 | |||||
3.0 W/mk | 0.25~10 mm | >5KV/AC/mm | 30-90 Shore 00 | |||||
3.5 W/mk | 0.25~10 mm | >5KV/AC/mm | 35-90 Shore 00 | |||||
4.0W/mk | 0.5 ~ 5.0mm | >5KV/AC/mm | 30~90 Shore 00 | |||||
5.0W/mk | 0.3~10 mm | >5KV/AC/mm | 60-90 Shore 00 | |||||
6.0 W/mk | 0.5~10 mm | >5KV/AC/mm | 60-90 Shore 00 | |||||
7.0W/mk | 0.5 ~ 5.0mm | >5KV/AC/mm | 50~80±5 Shore 00 | |||||
8.0W/mk | 0.5~10 mm | >5KV/AC/mm | 50~80±5 Shore 00 | |||||
10.0 W/mk | 0.5~10 mm | >5KV/AC/mm | 55±5 Shore 00 | |||||
Product Description
SF500G thermal pad are used for filling the two contact surfaces.They are ultra soft and have good resilience,so effectively exclude air from the contact interface. The products are naturally tacky,can be die-cut into various shapes,easy to operate.The thermal conductivity can reach 3.50w/m-k.
Product Name | Thermal pad | ||
Item No. | SF500G | Test Method | |
Color | Pink,yellow,blue | Visual | |
Main ingredients | Silica gel | ||
Thickness (inch/mm) | 0.3-10mm | ASTM D751 | |
Density(g/cc) | 3.0 | ASTM D297 | |
Hardness(shore A) | 70±5 | ASTM D2240 | |
Tensile Strength | 30 | ASTM D412 | |
Fire Rating | UL94 V0 | Equivalent UL | |
Breakdown voltage(V) | >2500(Thickness≥0.02″) >4500(Thickness≥0.03″) | ASTM D149 | |
Volume Resistivity (TΩ.cm) | 2 X 1013 | ASTM D257 | |
Dielectric Constant (1M HZ) | 5.6 | ASTM D150 | |
Thermal Conductivity (W/m k) | 3.5 | ASTM D5470 | |
Service Temperature | -58 to 392 °F -50oC ~ 200oC | *** | |
Customization Ability
Different thermal conductivity can be customized
•thermal pad：1.0~10.0w/mk
Different mechanical properties can be customized
•Hardness SHORE 00 5~90
•Heat conducting silica gel resistant to friction, breakdown and toughness
Various colors and shapes can be customized
•Customize different colors according to customers' requirements
•Customized roll
•Customized roll
Reliability Test
1000 hours cold and hot shock test
1000 hours high temperature and humidity test
1000 hours vertical drop test & cracking test
Our products have passed 1000 hours cold and hot shock test,1000 hours high temperature and humidity test,1000 hours vertical drop test & cracking test, Committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries.
Sertifications
ISO9001:2015
ISO14001:2015
IATF16949:2016
UL
REACH
ROHS

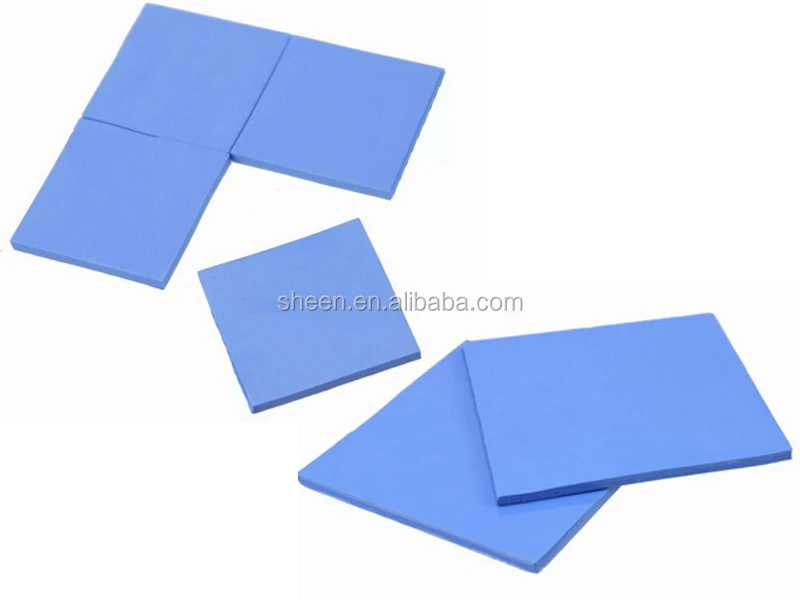

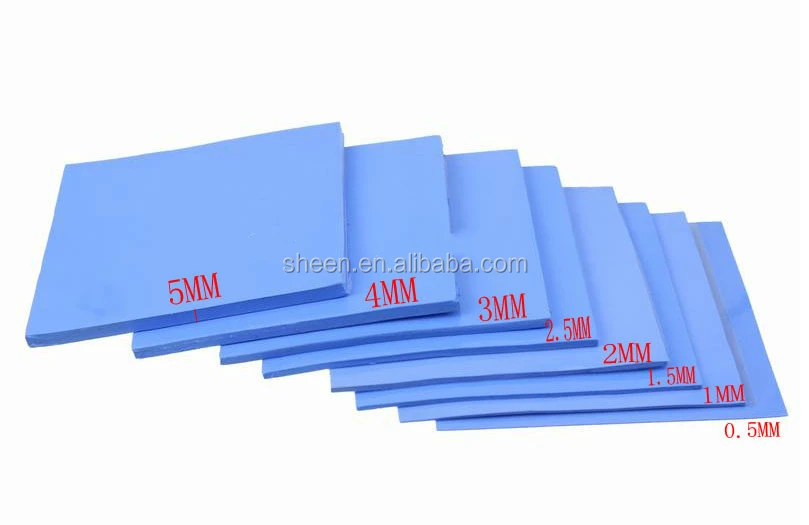

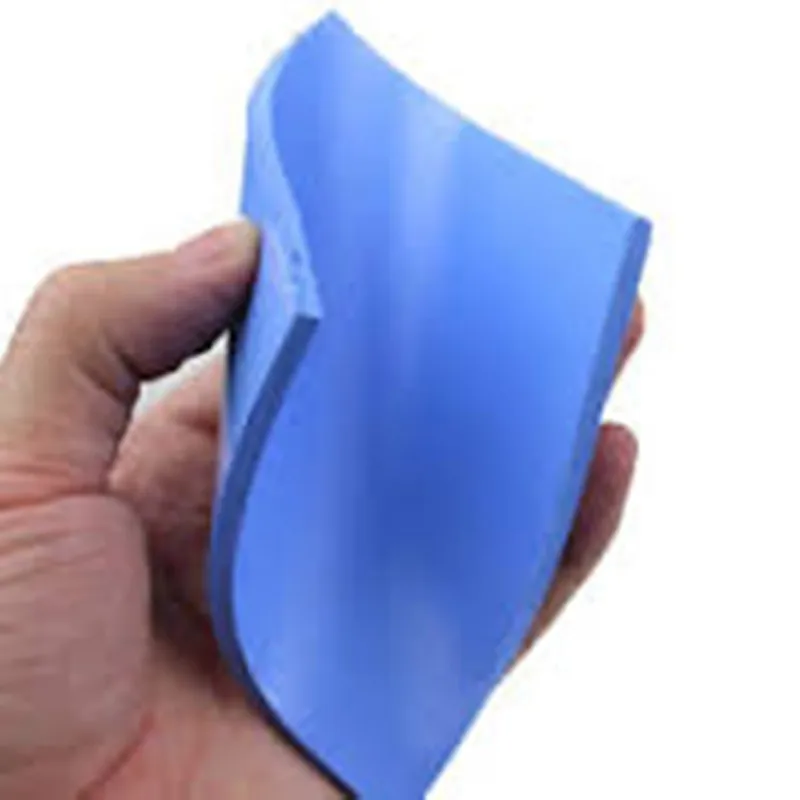

Details Images

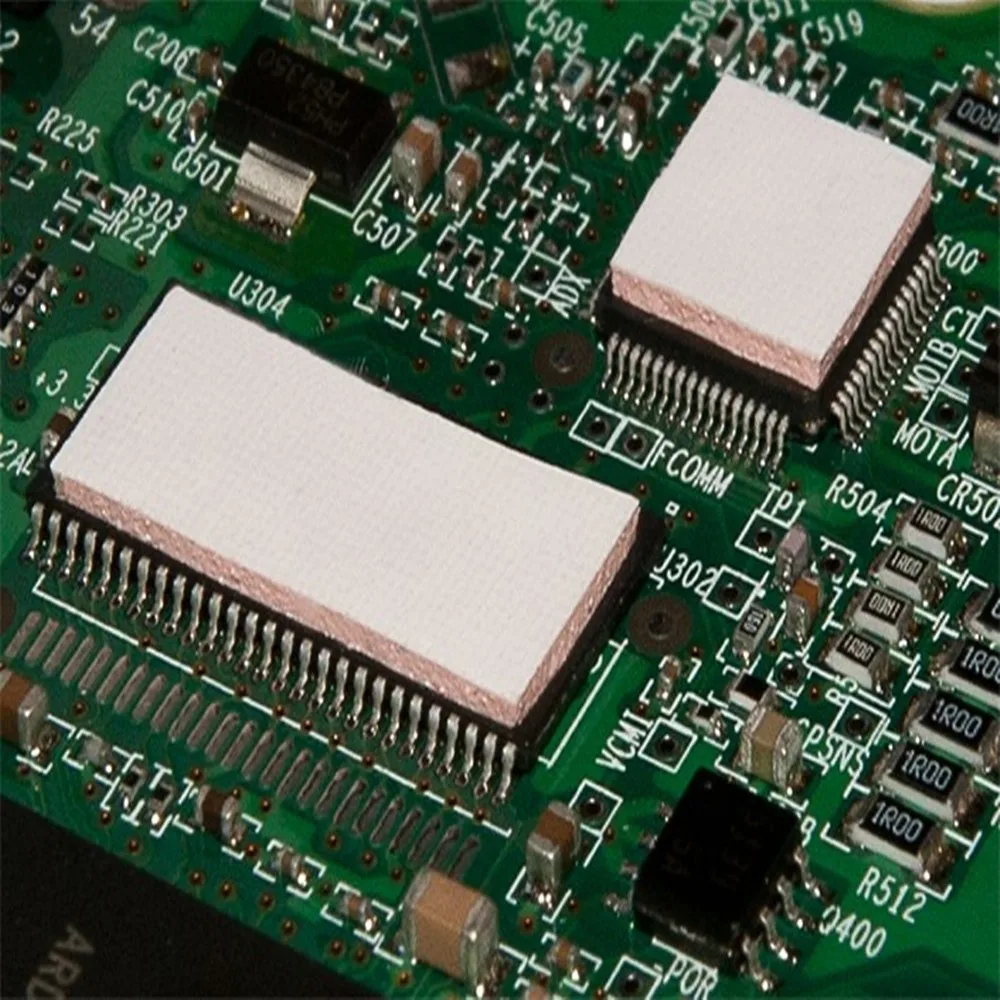

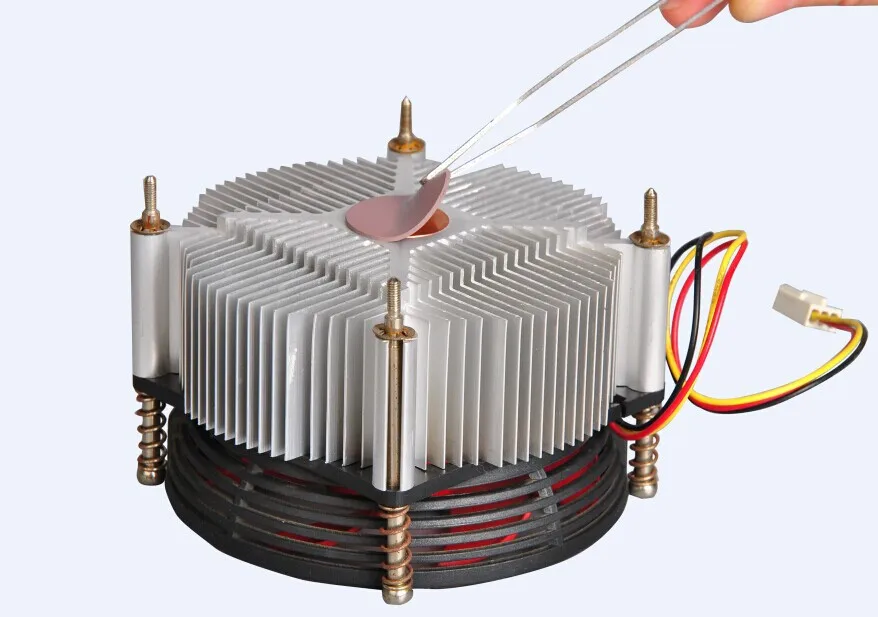

Applications
◇Power battery pack
◇Vehicle navigator
◇Optical precision equipment 、Camera equipment ◇ Notebook computer
◇ Mobile and communication equipment
◇ Automotive engine control equipment
◇ High end industrial control and medical electronics
◇ Mobile and communication equipment
◇ Automotive engine control equipment
◇ High end industrial control and medical electronics
Company Introduction
Dongguan Shengen electronic / Shengyuan New Material Co., Ltd. was founded in 2008. It is a manufacturer specializing in R & D and customization of high reliability thermal conductive materials. We are committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries. The company has a professional R & D team and complete testing equipment. The company's main products are SF thermal conductive silicone sheet, SE thermal conductive gel, SP thermal conductive phase material, AF silicon free thermal pad and SG thermal conductive paste. At present, it has become the main supplier of many well-known manufacturers at home and abroad. The company has obtained iatf16949:2016, iso14001:2015, iso9001:2015 system certification and the title of national high-tech enterprise.
Contact Us
Tel | +86-769-22479425 | Address | 6th Floor, Building M, Jinxiongda Science and Technology Park, Datanglang Villiage, Dalingshan Town, Dongguan City, Guangdong Province, China |
Fax | +86-769-82784017 | ||
Web | //sheen.en.alibaba.com/ //www.usheenthermal.com/ | E-Mail Address | tina@u-sheen.com |
FAQ
1. What are your main products?
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
