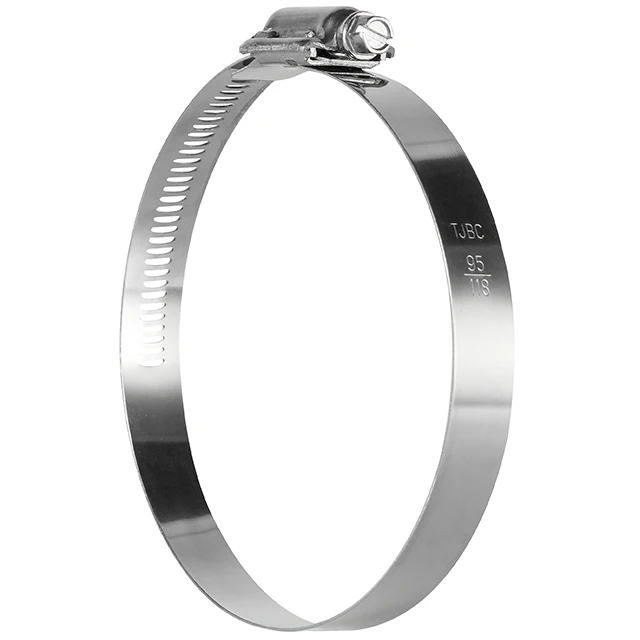

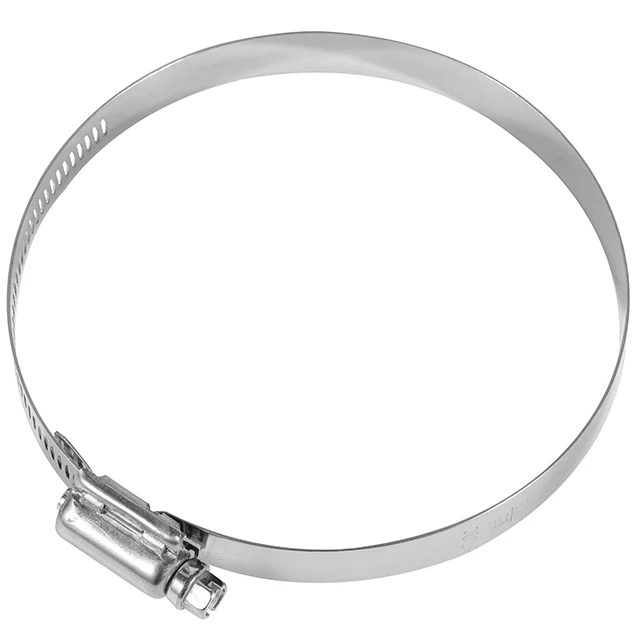

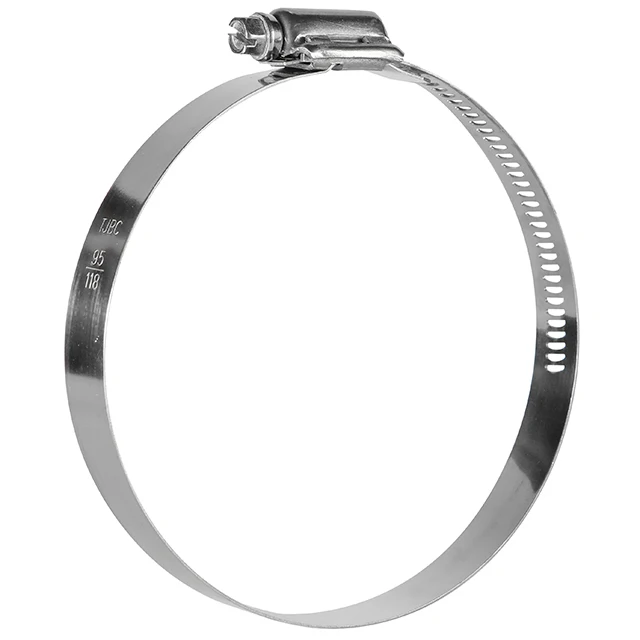

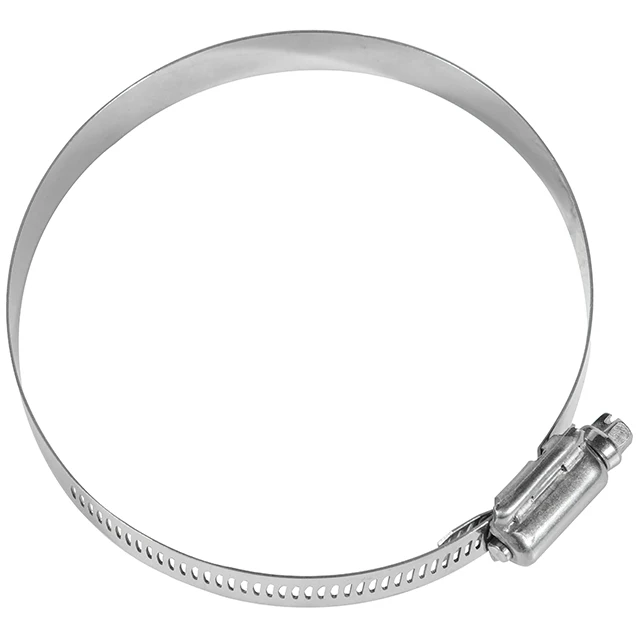

Perforated Stainless Steel American Type Big Hose Clamp
- Category: >>>
- Supplier: Tianjin Kainuo Industrial Co. Ltd.
Share on (60264227531):
Product Overview
Description
2-pcs housing perforated hose clamp--15.8mm bandwidth | ||
| Size | Item NO | |
| bandwidth 15.8mm | ||
| mm | inch | W4 |
| 25-45 | 1"*1-3/4" | MS08D2545 |
| 32-54 | 1-1/4"*2-1/8" | MS08D3254 |
| 45-67 | 1-3/4"*2-5/8" | MS08D4567 |
| 57-79 | 2-1/4"*3-1/8" | MS08D5779 |
| 70-92 | 2-3/4"*3-5/8" | MS08D7092 |
| 83-105 | 3-1/4"*4-1/8" | MS08D83105 |
| 95-118 | 3-3/4"*4-5/8" | MS08D95118 |
| 108-130 | 4-1/4"*5-1/8" | MS08D108130 |
| 121-143 | 4-3/4"*5-5/8" | MS08D121143 |
| 133-156 | 5-1/4"*6-1/8" | MS08D133156 |
| 146-168 | 5-3/4"*6-5/8" | MS08D146168 |
| 159-181 | 6-1/4"*7-1/8" | MS08D159181 |
| 172-194 | 6-3/4"*7-5/8" | MS08D172194 |
| 184-206 | 7-1/4"*8-1/8" | MS08D184206 |
| 197-219 | 7-3/4"*8-5/8" | MS08D197219 |
| 210-232 | 8-1/4"*9-1/8" | MS08D210232 |
Material | Band | Housing | Screw | suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | MS05 5.3Nm |
| W2 | AISI 301SS | AISI 301SS | Zinc plated steel | MS06 7.5Nm |
| W4 | AISI 304SS | AISI 304SS | AISI 304SS | MS08 11Nm |
