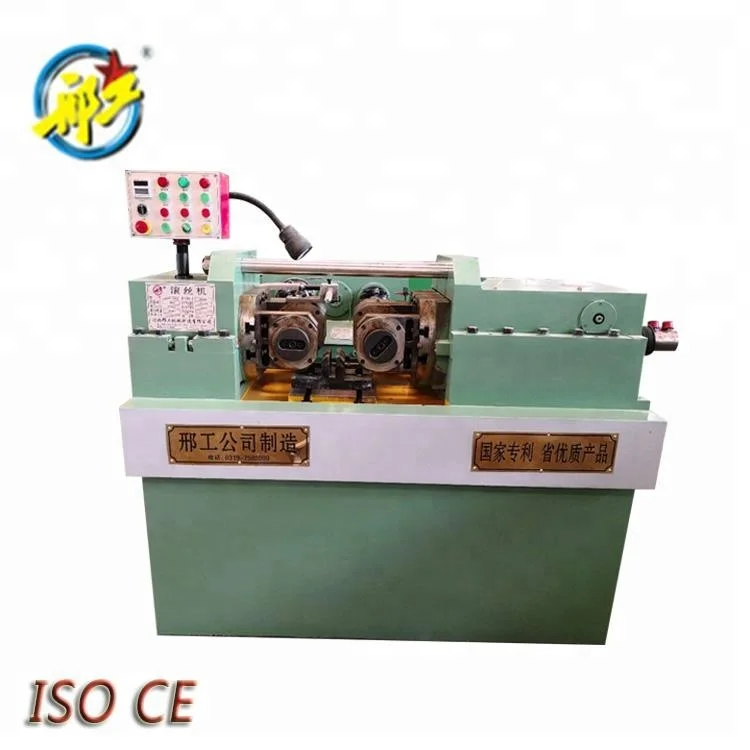

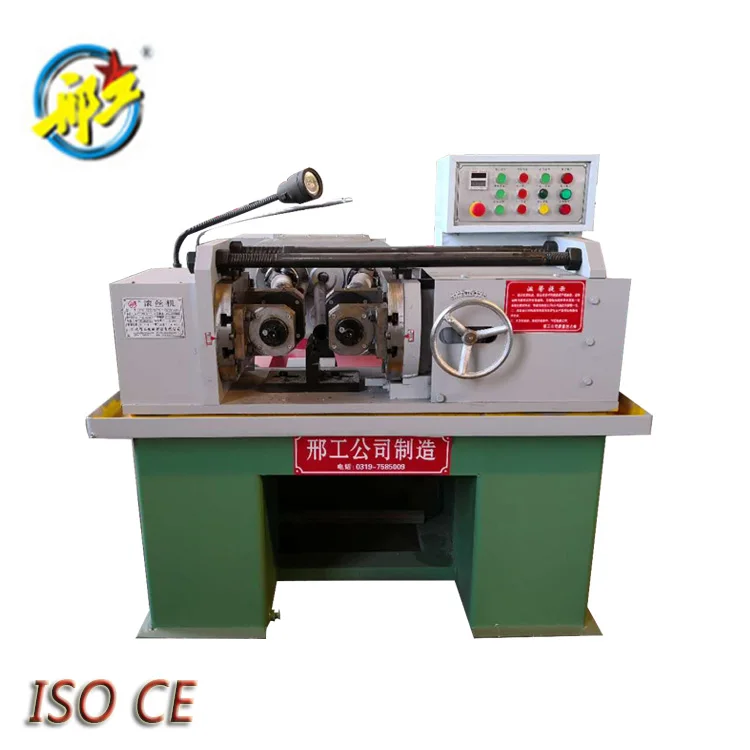

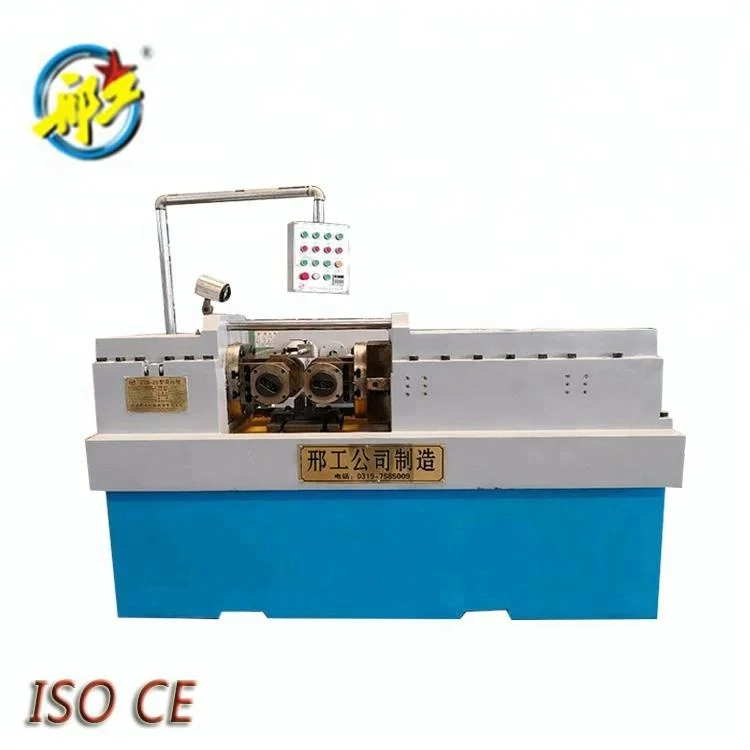

screw making machine nuts and bolts making machines thread rolling machine

Product Overview

Description

Product Information

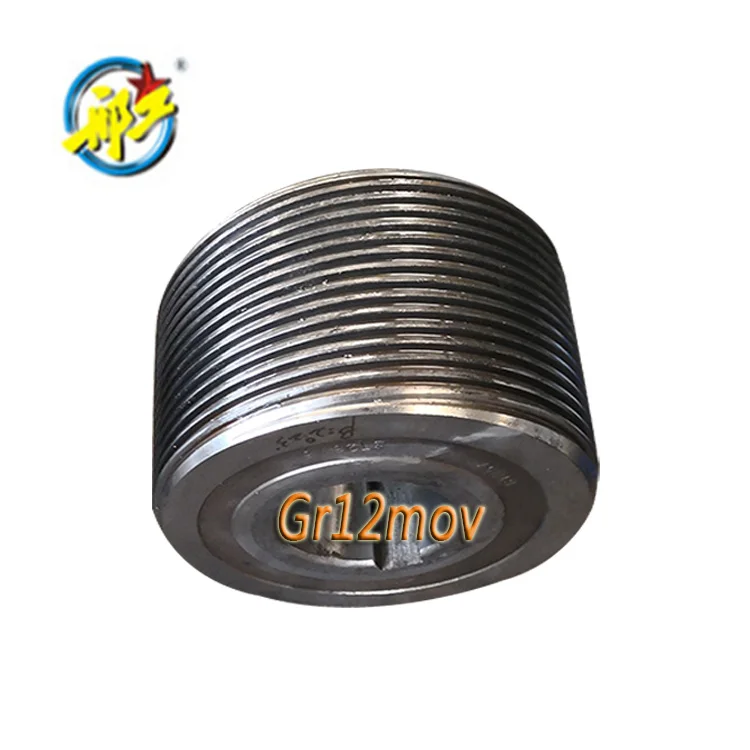

roll knurling with thread rolling dies



This model is suitable for cold forming of straight thread,screw thread and twill thread with range of 4-36mm.theembossing roller is optional for processing clamping screw and through screw.the machine is made with welded steel plate,featuring rational structure,easy operation and reliable quality,it is an idea machine to produce standard and non-standard parts.







Specifications of bolt threading machine



PRESSURE	80KN
RANGE OF DIAMETER	4-36mm
OD OF ROLLER	120-170mm
BD OF ROLLER	54mm
MAX. ROLLER WIDTH	100mm
CENTER DISTANCE OF MAIN SHAFT	120-200mm
SPINDLE ROTARY SPEED	36,47,60,78(r/min)
FEED SPEED OF MOVABLE SHAFT	5mm/s
THREAD LENGTH	No limits
MAIN POWER	4kw
HYDRAULIC POWER	2.2kw
WEIGHT	800kg
SIZE	1300*1250*1470mm







Company Information

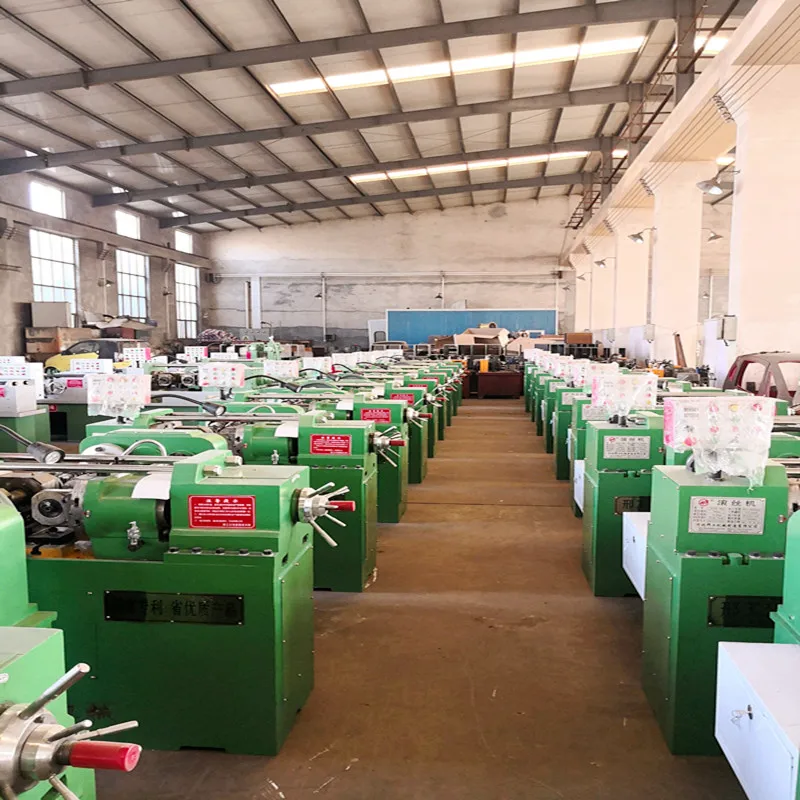

Xinggong Machine Manufacturing Ltd. Of Hebei is located at Xingwan Industrial Zone, Xingtai City, Hebei Province, which has a long history of machinery manufacturing. As a member of China Association of Mechanical Parts Sectors, this company has got successive extension ever since 1984 and has trained numbers of qualified personnel on technology and management. Currently, threading machine is the leading product of this company, it has a series of 4 and covering more than 1200. Thanks to the perfect management, advanced technology, reliable quality and firstclass service, the company passed certification of ISO 9001 international quality control system in August, 2003. “Xinggong” has been conferred as a famous brand of Hebei Province. The thread rolling machine has been given the title of “High-Quality Product of Hebei Province”.
