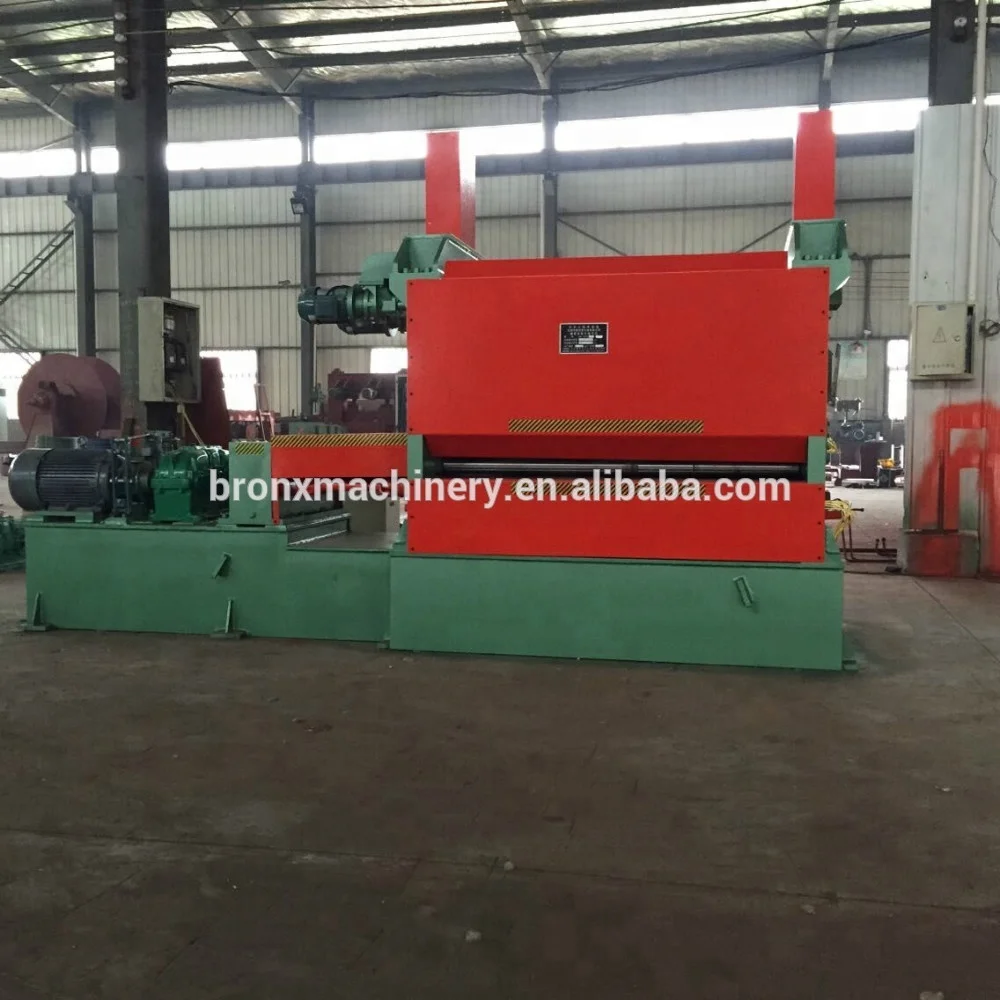

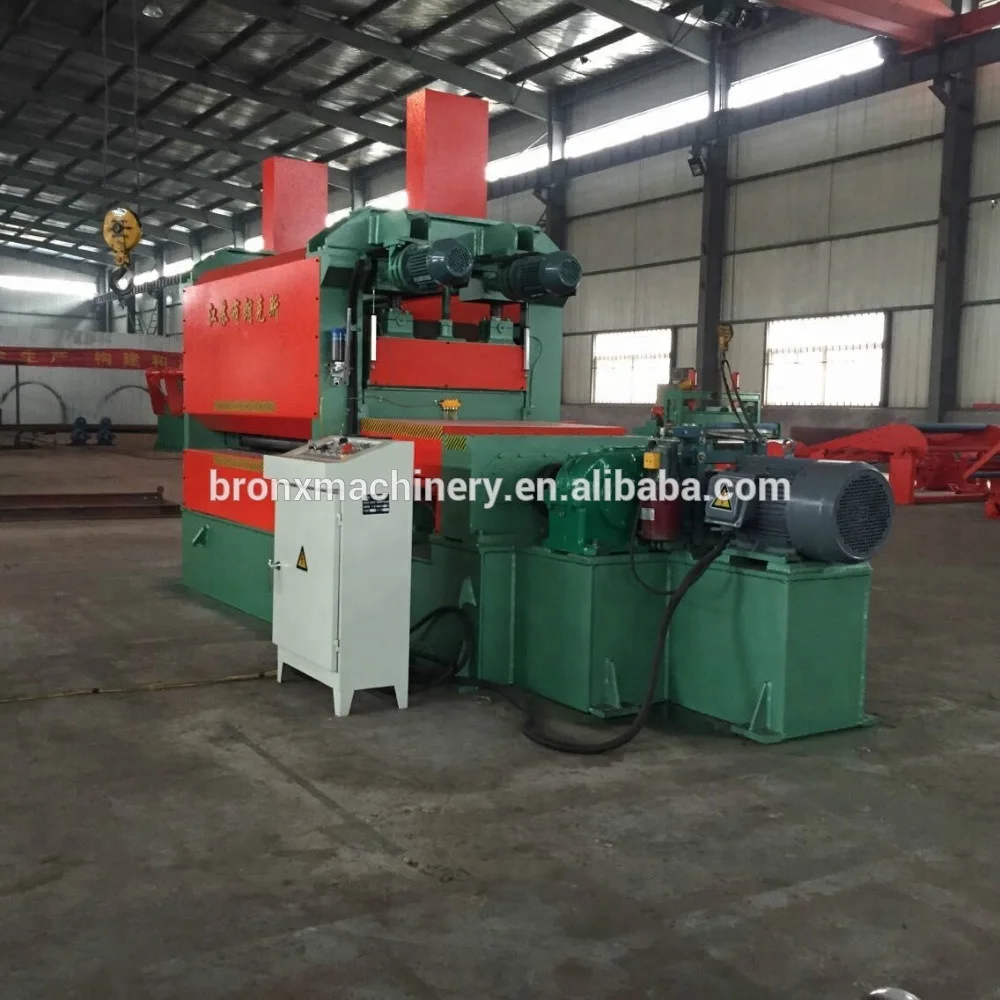

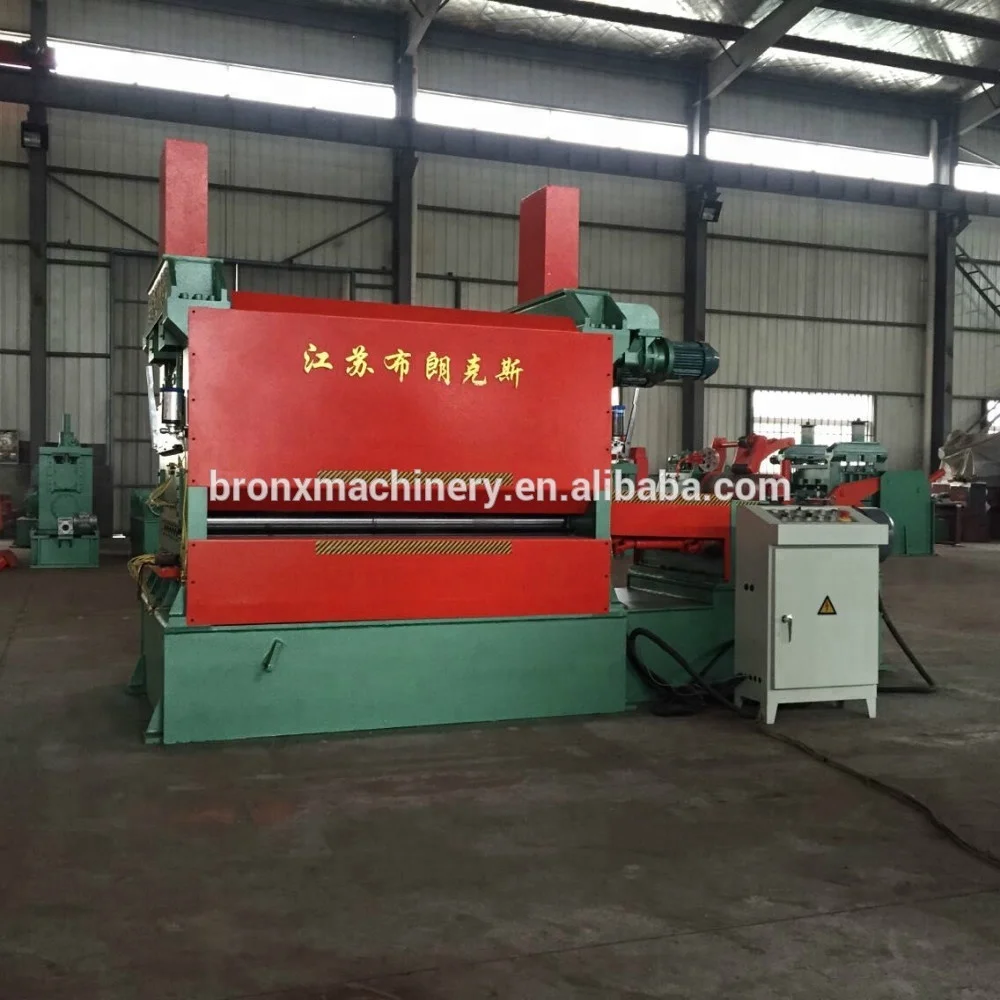

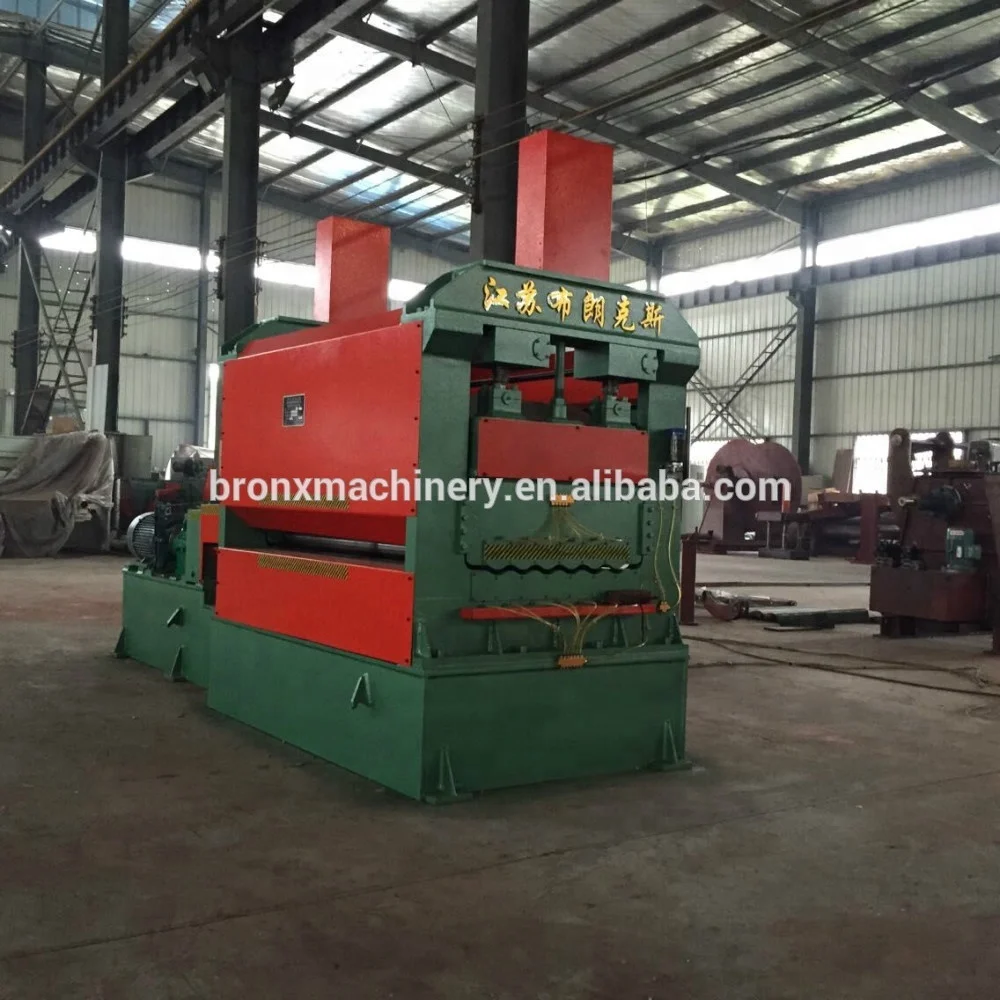

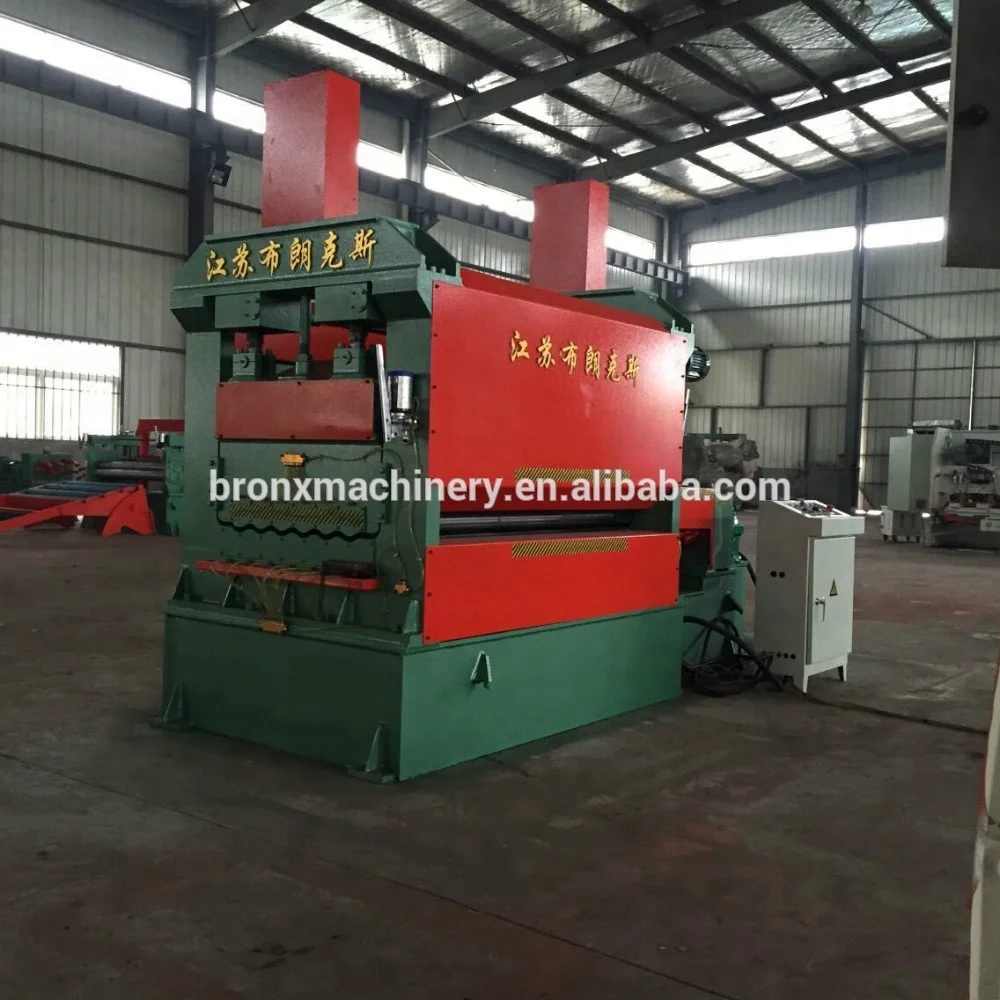

Decoiler feeder and straightening machine
- Category: >>>
- Supplier: Jiangsu Bronx Machinery Co. Ltd.
Share on (60264603495):
Product Overview
Description
QR-WG43-4x1500 leveling machine is special equipment for leveling metal plate and is used to level the drum plate and uneven plate
(carbon plate, stainless steel, aluminum plate and the other metal plate) in cold condition. It can also make up the
uncoiling-leveling-shearing production line and the other product producing line together with the relative equipment. It is
suitable for the fields of machinery, vehicles, metal product, household appliances, steel structure and omament etc..
Performance features:
1. The machine employs a four-high structure of a leveling roll and multi-group support rolls.
2. Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3. Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for
cold plate, stainless steel plate and leveling roll surface.
4. Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5. Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi
penetration gear.
6. Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7. Adjustment methods: manual and electrical adjustment.
8. Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9. Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
WG43-12x1800 automatic sheet leveling machine Patameter:
(carbon plate, stainless steel, aluminum plate and the other metal plate) in cold condition. It can also make up the
uncoiling-leveling-shearing production line and the other product producing line together with the relative equipment. It is
suitable for the fields of machinery, vehicles, metal product, household appliances, steel structure and omament etc..
Performance features:
1. The machine employs a four-high structure of a leveling roll and multi-group support rolls.
2. Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3. Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for
cold plate, stainless steel plate and leveling roll surface.
4. Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5. Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi
penetration gear.
6. Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7. Adjustment methods: manual and electrical adjustment.
8. Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9. Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
WG43-12x1800 automatic sheet leveling machine Patameter:
Specification | |
Thickness min. (mm) | 1 |
Thickness max. (mm) | 4 |
Yield limit (Mpa) | 235 |
Width (mm) | 1500 |
Distance between rollers (mm) | 85 |
Diameter of the roller (mm) | 75 |
Qtt. of the rollers (pcs) | 15 |
Speed (m/min) | 6 |
Flatness tolerance (mm/m2) | +-1.0 |

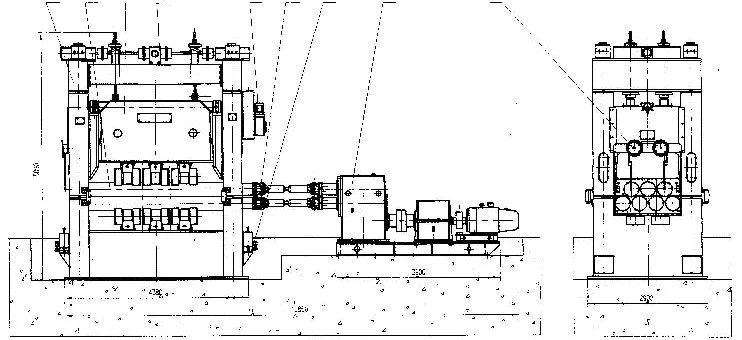

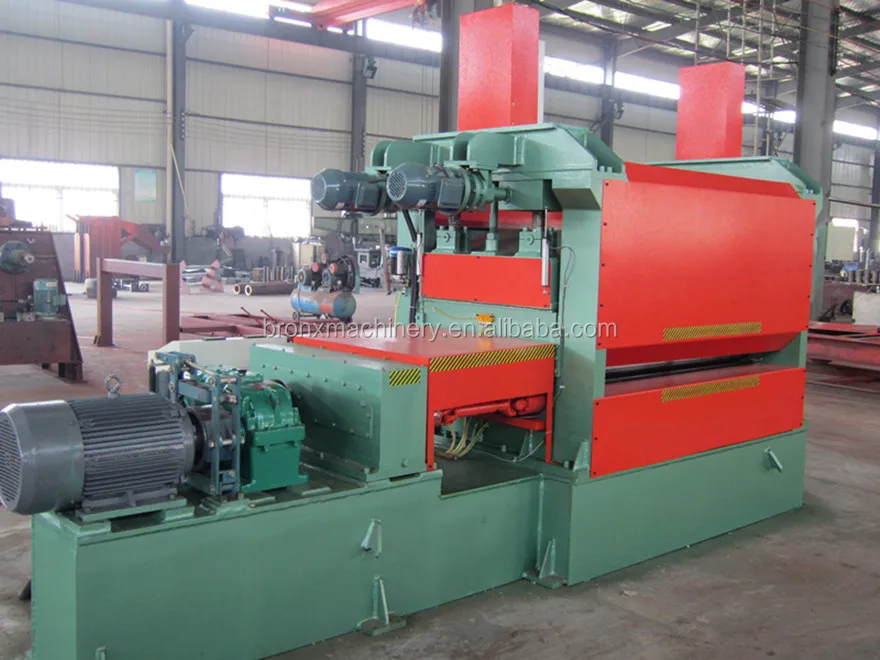

OVERALL VIEW
If you have special requirements for the machine, please do not hesitate to contact us. And you can advise us your ideas and
thoughts for the machine,we can design specially for you and communicate with you for further details.
thoughts for the machine,we can design specially for you and communicate with you for further details.
