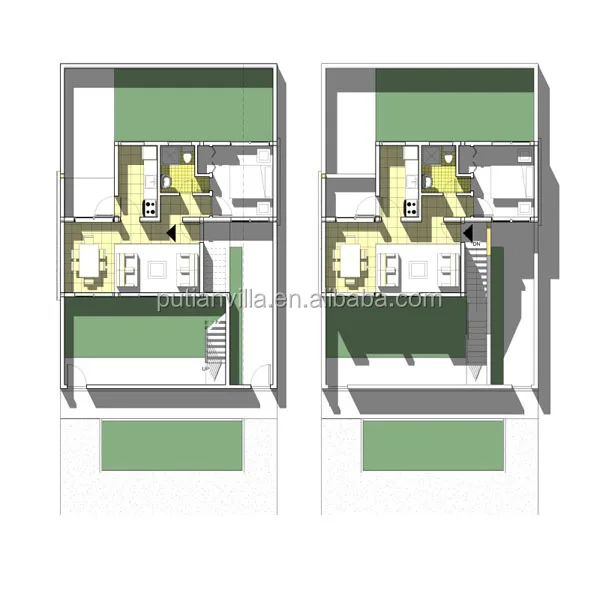

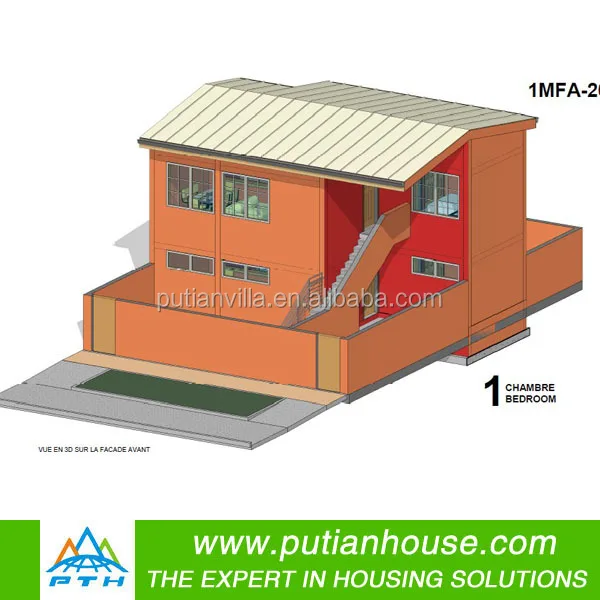

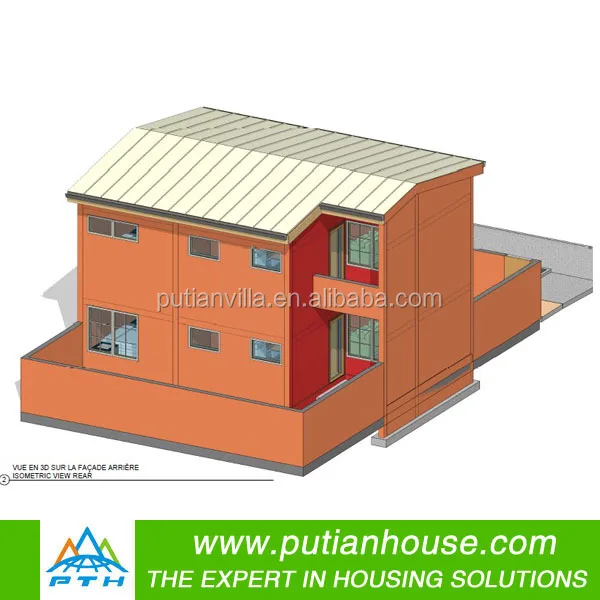

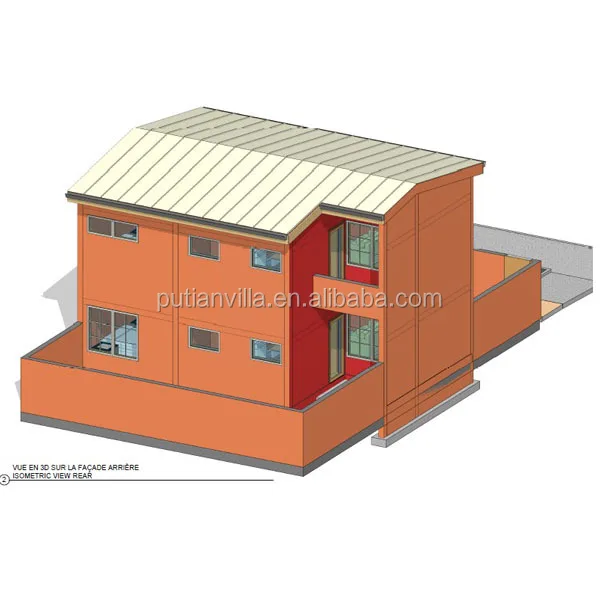

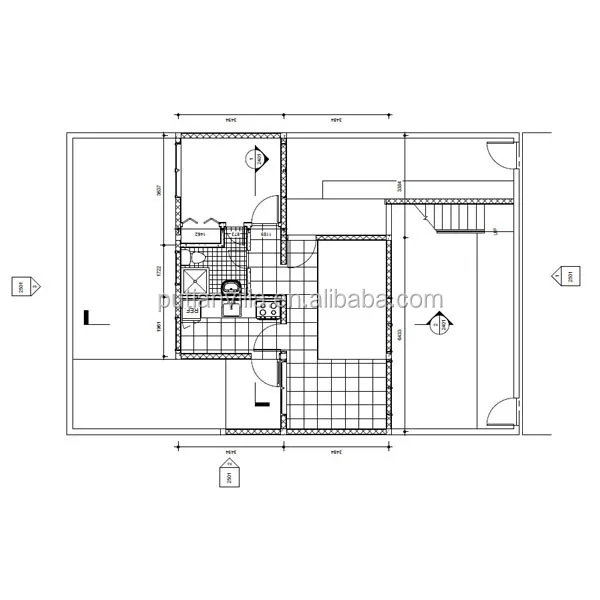

Light Steel Villa
1. Specifications of steel prefab house
| (I) | Primary structure for steel construction building | |
| Light steel keel | Wall system: 140/89mm; Roof system: 70mm(Q550 Galvanized) | |
Light gauge steel channel for light gauge steel construction building
| (II) | MAINTENANCE of light gauge steel construction building | |
| EXTERNAL WALL | 27mmPU EMBOSSED STEEL PANEL+HOUSE WRAP+12mmOSB BOARD+150mm INSULATION GLASS WOOL+12mm WATERPROOF GYPSUM BOARD | |
| INTERNAL WALL | 12mm WATERPROOF GYPSUM BOARD+150mm INSULATION GLASS WOOL | |
| FALSE CEILING | 0.5mm COLOR STEEL SHEET | |
| 9mm GYPSM BOARD | ||
| FLOOR SUPPORTING BOARD | 1mm GALVANIZED MODELED FLOOR SUPPORTING BOARD | |
| GALVANIZE | ||
| FLASHING EDGING | 0.5mm SELF FOLDING COLOR STEEL SHEET | |
| DOOR | 1200*200mm STEEL DOOR | |
| 960*2050mm STEEL DOOR | ||
| 800*210mm PVC MODELED DOOR | ||
| 700*210mm PVC MODELED DOOR | ||
Roof and gutter system of light gauge steel construction building
Sample of the wall system of light gauge steel construction building
| (III) | FITTINGS of steel construction building | |
| HARDWARE | ||
| RAINWATER SYSTEM | 75*50mmPVC RECTANGULAR TUBLE | |
| PVC EAVES GUTTER(WITH ACCESSORIES) | ||
| ELECTRICITY | LIGHTS, SWITCHES, SOCKETS, DISTRIBUTION BOX | |
2. Producing Cruising
Frame CAD(NZ)--expert for light gauge steel constructure construction building & light gauge steel structure house
3.Packing& Delivery
Loading the steel keel of steel construction building
5. Sample steel prefab house details
Sample light gauge steel construction building in Putian factory
Details of the sample steel construction building
Inner decoration of light gauge steel construction building
Roof details of light gauge steel construction building

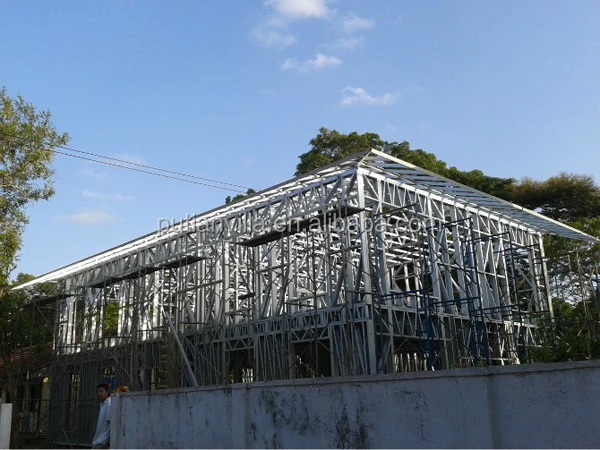

light gauge steel construction building (project in Srilanks)
5. Workshop Cruising
Overview of Putian Factory & workers team
Overview of Putian Factory
Based on FrameCAD system, we provide a Turnkey Solution for your steel construction building project
ISO standard light gauge steel for main structure. one or two also three floors available. fireproof, heat insulation, wind and earthquake resistance. green, energy save. economically.
PTH is a professional integrated building supplier, focusing on the new building system - light gauge steel(LGS) framing system and its design, manufacturing and installation.
PTH LGS building system provides a Turn-Key solution on LGS housing roof, which can provide the customers with numerous values, including excellent thermal insulation, light weight, high strength, easy installation, beautiful appearance and long useful life.
Available Wall Options of steel construction building
A variety of wall combination forms can meet customers’ different requirements. All kinds of ductworks can be laid in pre-reserved wall holes and prevent the wall being destroyed. The wall is stuffed with fiber glass insulation, and exterior wall is laid with XPS insulation and other materials, which can make thermal and acoustic insulation more effective.
Available Floor Options
A variety of ductworks and HVAC pipeline are installed inside the floor, which will reduce the building’s storey-height occupancy, and thereby, improve the house’s space ratio.
Foundation System
PTH LGS Housing System can take simple forms as its foundation and lower cost on a large scale for its light weight. Unique foundation insulation design can efficiently prevent underground moisture and harmful gas from invading.
Why Choose Light Gauge Steel Structure?
- 1)Lifetime for structure: 50 years.
- 2)Earthquake resistance: Max. more than 8 grades.
- 3)Wind resistance: max 64m/s.
- 4)Fire resistance: all the materials used can be fire resistance.
- 5)Snow resistance: max 2.9KN/m²as required
- 6)Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
- 7)High acoustic insulation: 60db of exterior wall 40db of interior wall
- 8)Insect prevention: Free from the damages by insects, such as white ants
- 9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
- 10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
- 11)Installation: the average is one worker one day install one SQM.
- 12)Installation guide: dispatch engineer to guide on site.
Technology Design Details:
- (1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
- (2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
- (3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
- (4) ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Package of steel construction building:
- 1. All the materials are well packed by the plywood or the steel skid before loading the container.
- 2. One 40’HQ can load about 80 square meter construction building .
- 3. All the materials are well fixed and tight to prevent the moving during the transport.
- 4. Loading plan will be designed before the materials loading to utilize the loading space and reduce the shipping cost
