Power/Video/Audio 1CH Passive Video Balun BNC to RJ45 Balun

Feature:

Specifications
*Frequency response: DC to 8MHz
*Attenuation: 0.5dB typ
*CMRR: 60dB
*Impedance: BNC : 75 ohms, Terminal: 100ohms
*Working Temperature: -10degree to + 70degree C
*Storage Temperature: -30degree to + 70degree C
*Humidity: 0 to 95%
*Dimension: 56mm*17mm*15mm
*Material: ABS Plastic Feathers:
*With lightning protection function *Full-motion CCTV video at distances up to 330m when used with any passive transceiver
*Up to 1500m with any active UTP video receiver.
*Lower budget, the price of CAT 5 cable is much less than co-axial cable
*NTSC, PAL and SRCAM video formats
*No power required
*60 dB crosstalk and noise immunity
*Compact size and easy installation

The effective transmission distance 600m

Weight Approx:75g

product models:JD15-1058

Using twisted pair instead of 75 ohm coaxial cable as the transmission of video signals. Ensure the quality of the image, enhance image clarity. Excellent control interference / anti-surge. Cable utilization, reduce the cost of the project.

Power input: no need to provide

Image Access: BNC (male)

Transmission distance: up to 600 m (black and white) / 300 meters (color)

Input image formats: NTSC / PAL / CCIR / SECAM

Frequency Response: DC - 10MHz

Twisted-pair connection point: a group of single-point connection head

Common Mode Rejection: 70db

Input Impedance: 75 ohms

Output impedance: 100 ohms

Use wire: a twisted pair: unshielded twisted pair UTP C

if you can't find the products from our web, pls send us an inquiry to us,even if we can't make ,we know china market very well ,you see our alibaba using time is more than any other supplier of alibaba,so we can tell you where you can buy the prodcucts you needed or we buy it for you without any profit for us !

Q1:Are you a trading company or manufacturer?

     Changzhou Jinda electronics Co,Ltd. is a professional manufacturer established in 1986
,not a trading company,Thus,we can control your order from the first begining to the last delivery

what we  seek is a long cooperation,not a lump sumt order

Q2: What kinds of products does Changzhou Jinda  manufacture?

       we start from 1986,now we can make most cables and connectors in the market, even if we can't make ,we know china market very well ,so we can tell you where you can buy the prodcucts you needed or we buy it for you !

Cables:

av cable,usb cable,tv cable,power cable,xlr cable,speaker cable,optical fiber cable,telephone cable,coaxial cable,microphone cable,displayport cable,test leads and so on

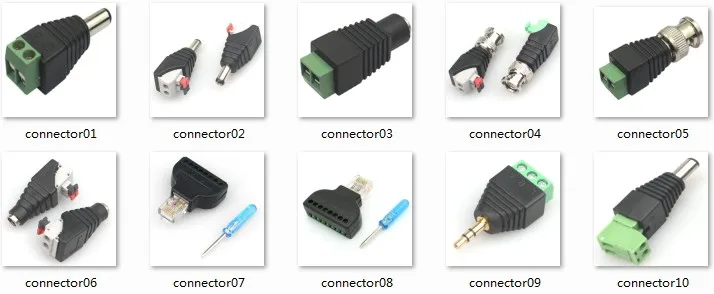

Connectors:

cctv camera connector,banana connector,binding post,audio adapter,dc connector,rca connector,tv connector,auto cigarette connector,battey case,speaker terminal board,xlr connector,rf connector,din connector and so on

Q3:Can we have our logo or company name to be printed on your products or the package?
    Yes,you can.Logo and company name can be printed on our products by silk screen printing.
You can send us the artwork by email in JPEG or TIFF format.

Q4:Do you have inspection procedures for electronics appliances?

 100% self-inspection before packing

Q5: Is the MOQ fixed?
The MOQ is flexible and we accept small order in the first time as trial order.

Q6:Can I have a visit to your factory before the order?

Sure,welcome to visit our factory.

our factory address information(1hours train from shanghai or Ningbo)

:

CHANGZHOU JINDA ELECTRONICS CO,LTD

Address:Banshang district,Lijia Town,Changzhou city,Jiangsu province,China213165

Tel: 0519-86731686
