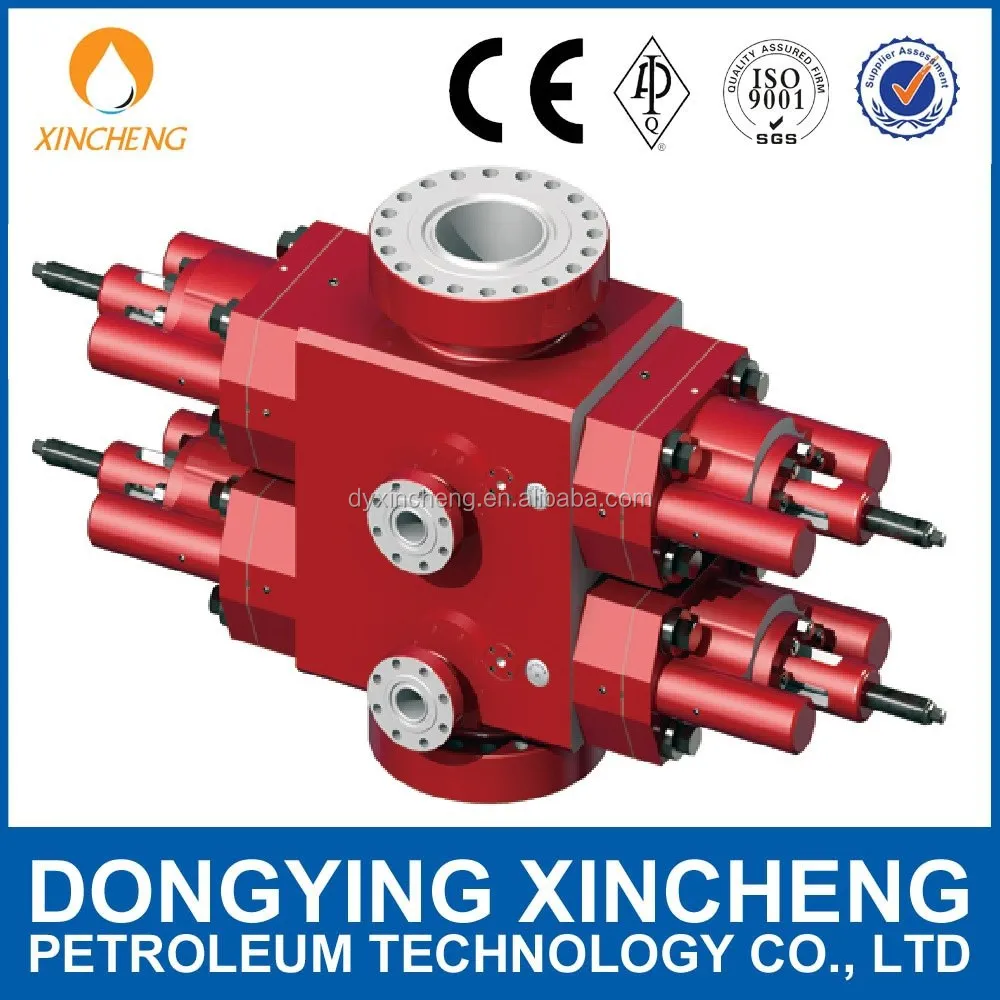

Cameron type 13 5/8' 10000psi shear Ram BOP for oil well drilling

The series blowout preventer conform to API Spec16A and are granted the right to use API Spec 16A and Spec 6A monogram.

Product Features:

1. Annular B0P

Adopts sphere rubber core or tapering core structure.

The top and bottom connection is flange or thread.

Hydraulic Pressure:8.4~10.5MPa.

Hydraulic connection:NPT1.

A Media: Oil gas & drilling fluid containing H2S.

Working temperature:: -29~121°C.

2. Ram Blowout Preventer

Hydraulically/manual operated locking mechanism.

Secondary seal.

Flat and side door structure or hydraulic control type flat door structure.

The side door and shell are connected by triple hinges.

Open and close the valve in sequence by using pressure bar(C type ram BOP)

The guide frame is set at the end of the side door, when the side door is opened, the ram can be pulled out along the guide rail and the ram can be replaced(D type ram BOP)

Pistons indicator.

Concealed oil way.

The cavity of ram is ellipse.

Hydraulic Pressure: 1200~1500PSI(8.4~10.5MPa)

Hydraulic connection: NPT1

Working temperature: -29°C~121°C

Media: Oil gas & drilling fluid containing H2S

Ram size and type : series size pipe ram, reducing ram and cutter ram.
