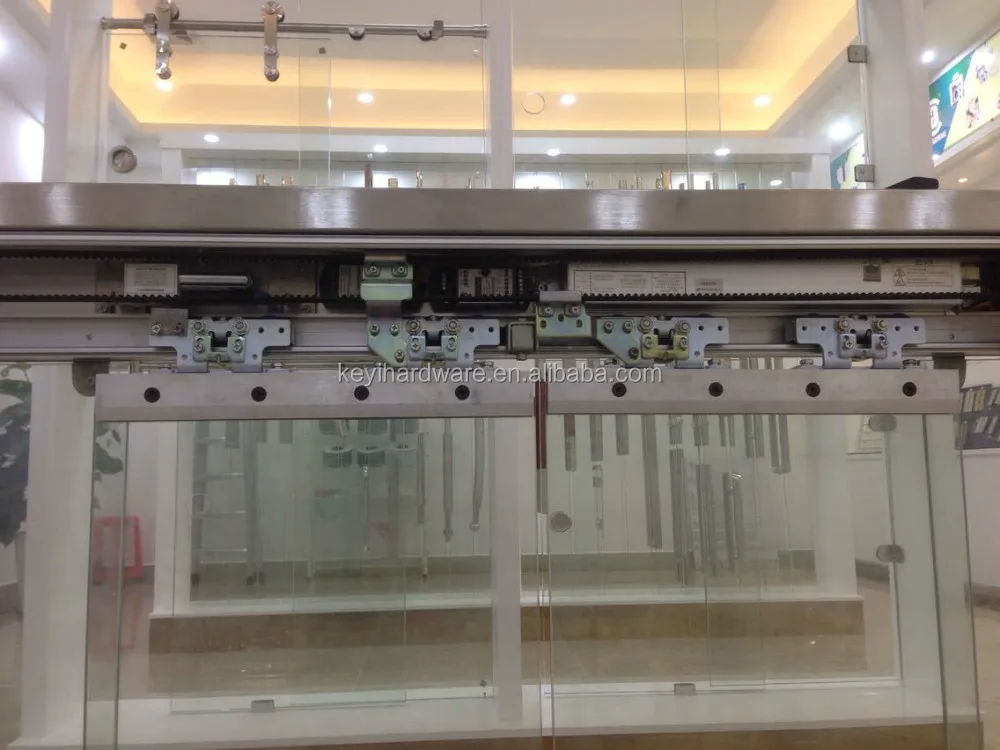

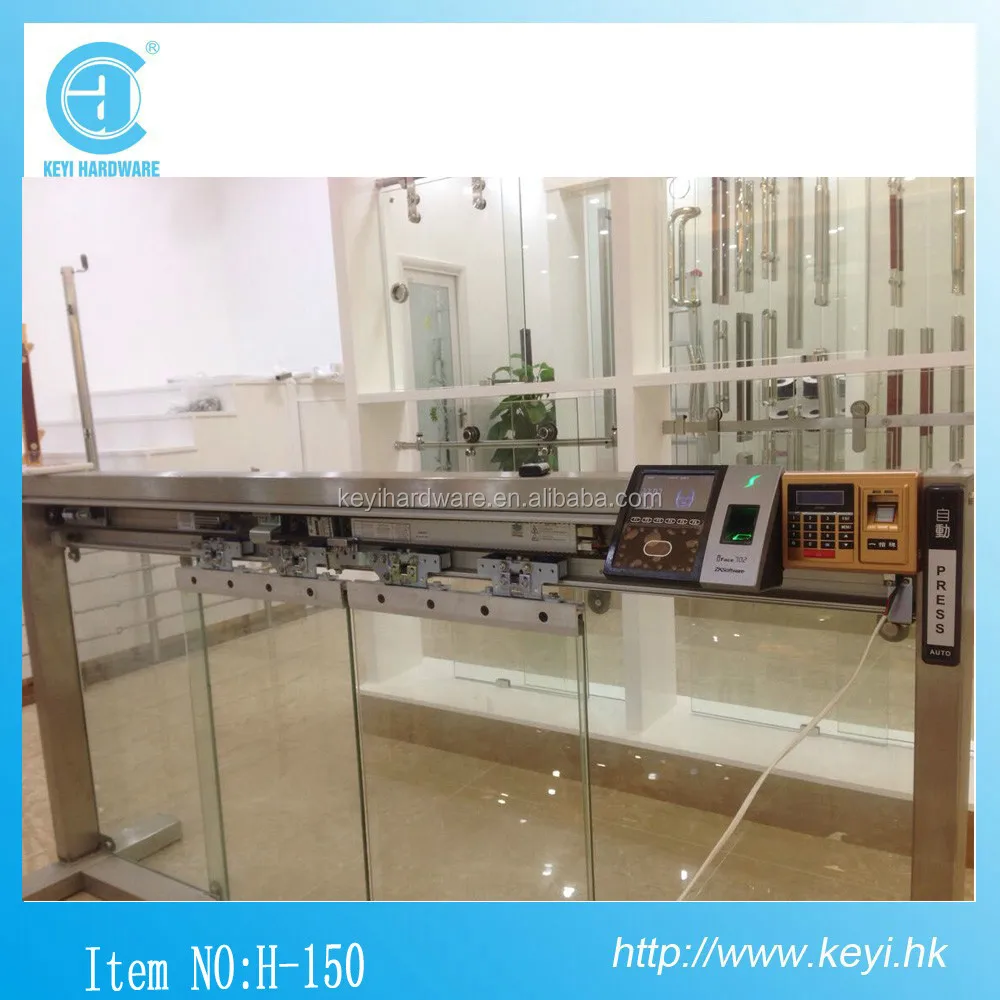

High quality automatic glass sliding door motor

Product Overview

Description

Automatic door

Including Itrems:

Motion sensor, Controller, Aluminum track, Idler pulley, Sync.belt, DC-1000brushless motor, Hanger, Transformer,

Door blocks, Screws for hanger plate, Hanger plate and Exterior cover(optional) .

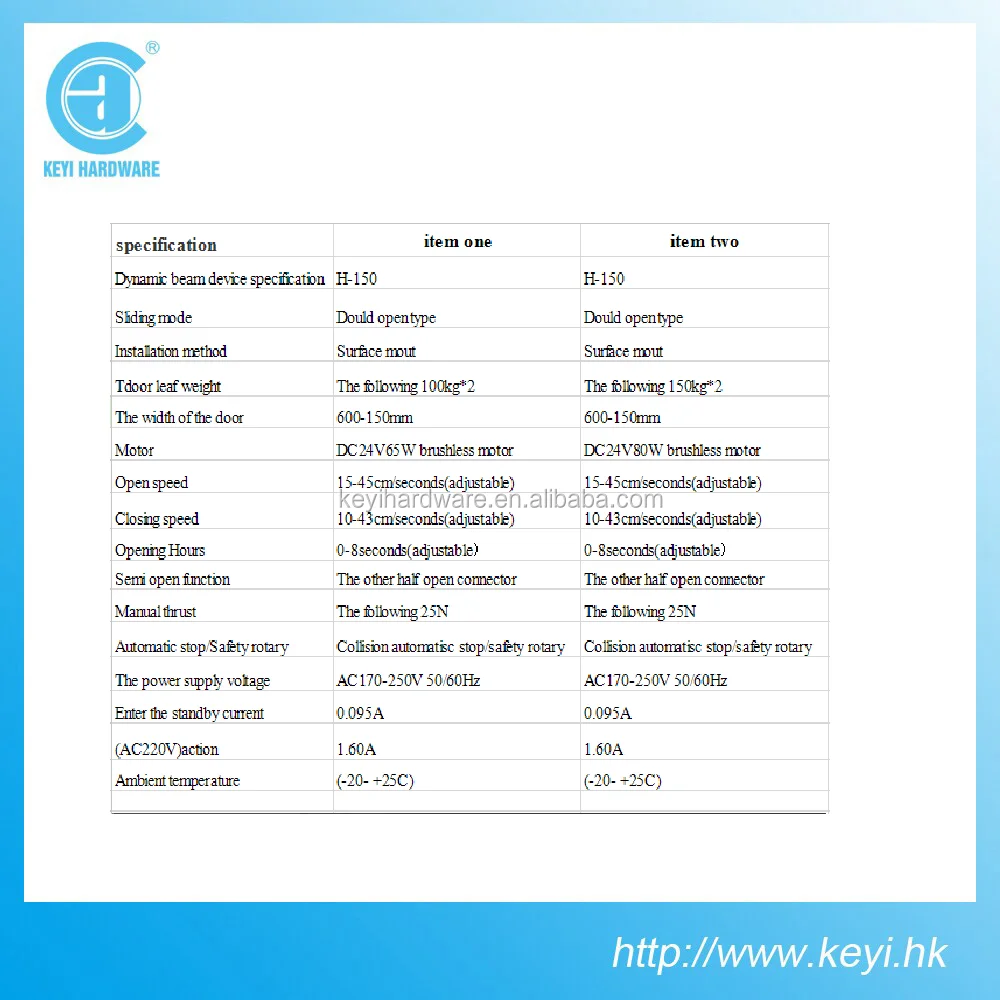

specification	item one	itemtwo
Dynamic beam device specification	H-150	H-150
Sliding mode	Dould open type	Dould open type
Installation method	Surface mout	Surface mout
Tdoor leaf weight	The following 100kg*2	The following 150kg*2
The width of the door	600-150mm	600-150mm
Motor	DC24V65W brushless motor	DC24V80W brushless motor
Open speed	15-45cm/seconds(adjustable)	15-45cm/seconds(adjustable)
Closing speed	10-43cm/seconds(adjustable)	10-43cm/seconds(adjustable)
Opening Hours	0-8seconds(adjustable)	0-8seconds(adjustable)
Semi open function	The other half open connector	The other half open connector
Manual thrust	The following 25N	The following 25N
Automatic stop/Safety rotary	Collision automatisc stop/safety rotary	Collision automatisc stop/safety rotary
The power supply voltage	AC170-250V 50/60Hz	AC170-250V 50/60Hz
Enter the standby current	0.095A	0.095A
(AC220V)action	1.60A	1.60A
Ambient temperature	(-20- +25C)	(-20- +25C)
