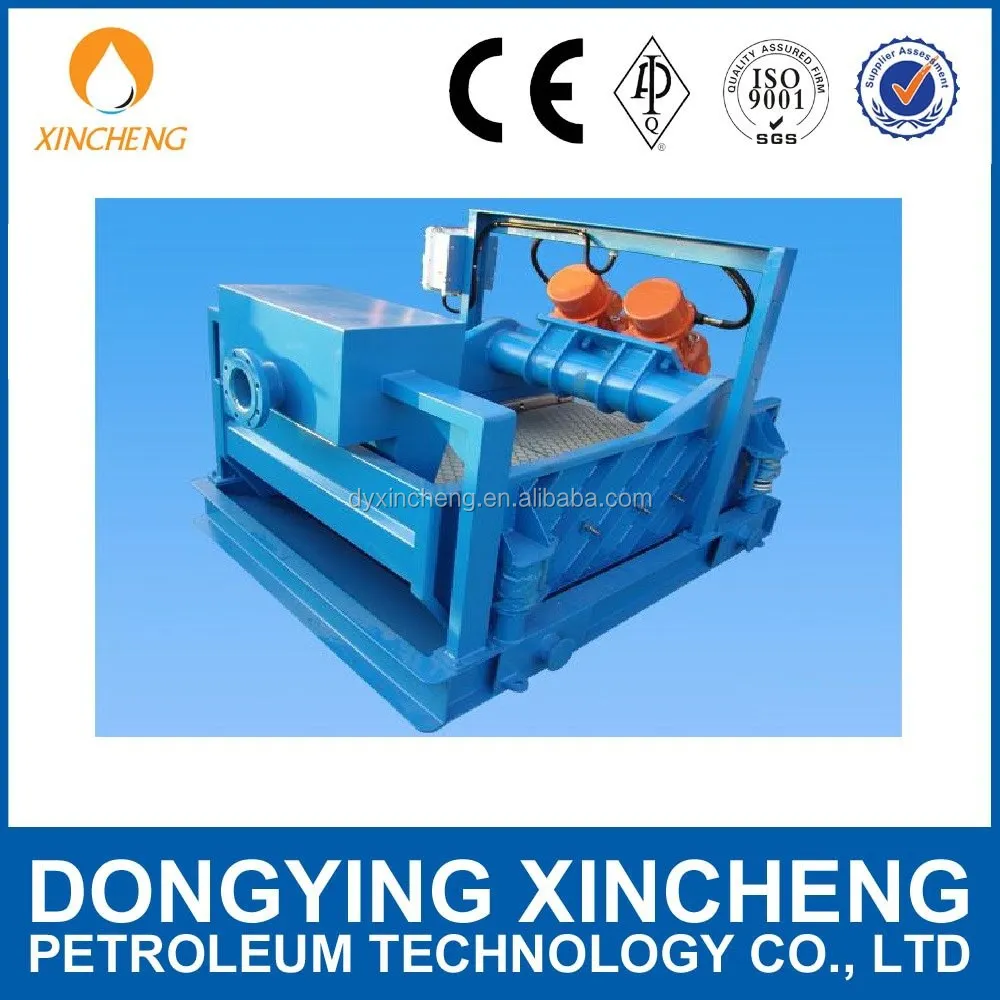

best price solids control shale shaker for drilling

Product Overview

Description

                       Dongying Xincheng petroleum technology co. ltd.





Shale shaker is the first phase solids control equipment in drilling mud system,

                       also the core equipment for the solids control system.

                       provides tandem shale shaker and triple combination shale shaker,

                       we also provide the third generation linear motion shale shaker and the

                        fourth generation balanced elliptical motion shale shaker.



GN Drilling mud shale shaker strengths

• First API certified solids control equipments manufacturer in China
• Own world’s most advanced patent 4^th generation BEM shaker
•  Products have been exported to over 50 countries and regions
•  All Facilities total area are over 70,000sqaure meters
•  is one of the very few China companies who provide Vertical Cutting Dyer & Hi G Dryer.

 GN shale shaker Applications

(1)  OIL&GAS DRILLING----Solids Control System

(2)  HDD & CBM Drilling ----Mud Recycling System

(3)  Mining & Industrial----Slurry Separation Plan



Complete Line Products

• Ø   Main Equipment: Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc.
• Ø  GN Manufacture all types of shale shaker screens in Asia largest wiremesh center city.

GN Drilling mud shale shaker parameters

Model	ZS852	ZS703	ZS853	ZS703D
Deck No.	Single Deck			Double Deck
Vibrating Mode	Linear Motion
Treating Capacity	350 GPM(80m3/h)	528 GPM(120m3/h)	615 GPM(140m3/h)	528GPM(120m3/h)
Motor Power	2×1.0 Kw	2×1.5Kw	2×1.5Kw	2×1.94Kw
Vibrating Strength	≤7.5G (Adjustable)			≤7.0G (Adjustable)
Deck Adjustment	-1°~3°	-1°~5°	-1°~5°	-1°~5°
Power	380V/50HZ, 460V/60HZ or Customized
Shaker Screen	2 Panel  2.1m2	3 Panel  2.6m2	3 Panel    3.2m2	Up:2.0m2  Down:2.6m2
Weir Height	Buffer Box Top Type:1042mm  Back Type:944mm
Dimension (Top Buffer Box)	1975x1884x1448mm	2403x1884x1448mm	2830x1884x1448mm	2403x1884x1448mm
Dimension (Back Buffer Box)	2283x1884x1340mm	2750x1884x1340mm	3180x1884x1340mm	2750x1884x1340mm
Weight	1200Kg	1390Kg	1650Kg	1740Kg
Remarks	Treating capacity test from mud:1.2g/cm3density & viscosity 45s & API 40 screen for single Deck, Upper screen API 20,down screen API 60 for Double Deck.



































Features & Benefits for GN shale shaker

l  Design :Adopt ANSYS Limited Element Analysis to optimize structure

l Shale shaker Vibrating Motor: Italy OLI Brand, IEC Ex and ATEX Option Available

l Shale shaker Deck Material: Q345 High Strength alloy material

l  Heat Treatment on complete shaker deck

l  Surface painting & coating with heavy anticorrosive Japan Kansai paint

l  Electrical components: SIEMENS, Schneider Brand

l  Steel frame Pyramid shale shaker screen to maximize effective screen area

l  Wedged Type shale shaker Screen for fast screens changing.

l  Mechanical Deck Adjustable shale shaker while operation for reliable performance

Our factory and company are Quality Management System ISO 9001-2000 certified.GN solids control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution service.Buy Linear motion from China manufacturer.Your best shale shaker deal starts here.
