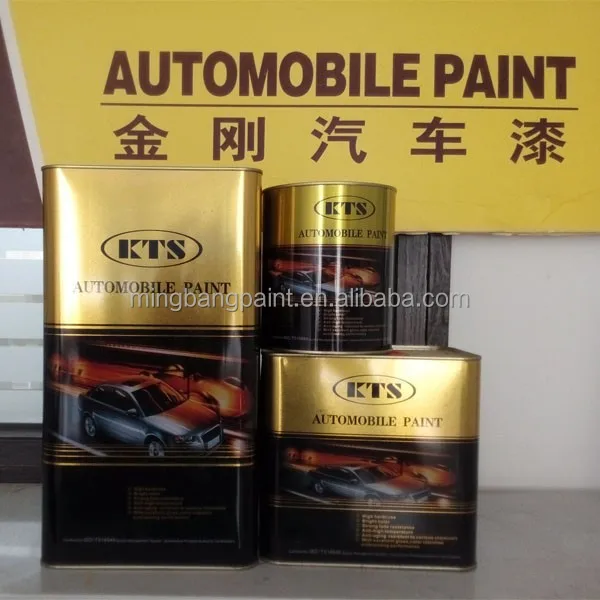

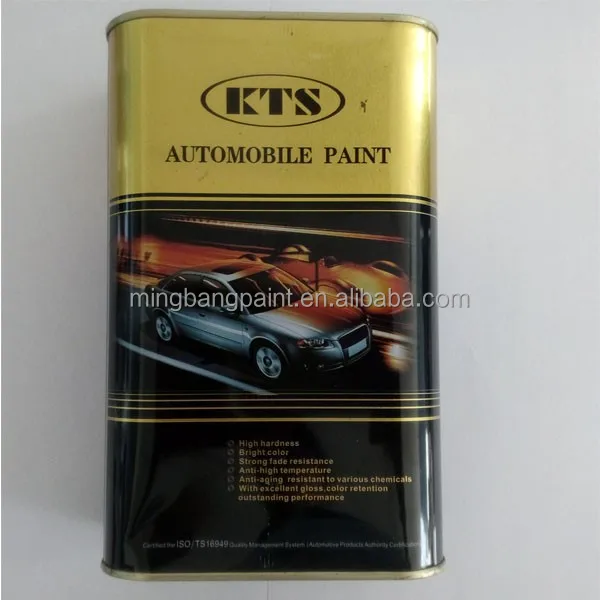

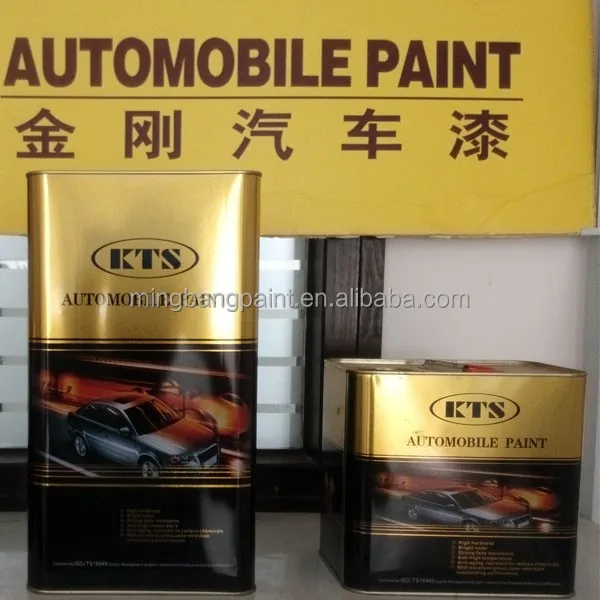

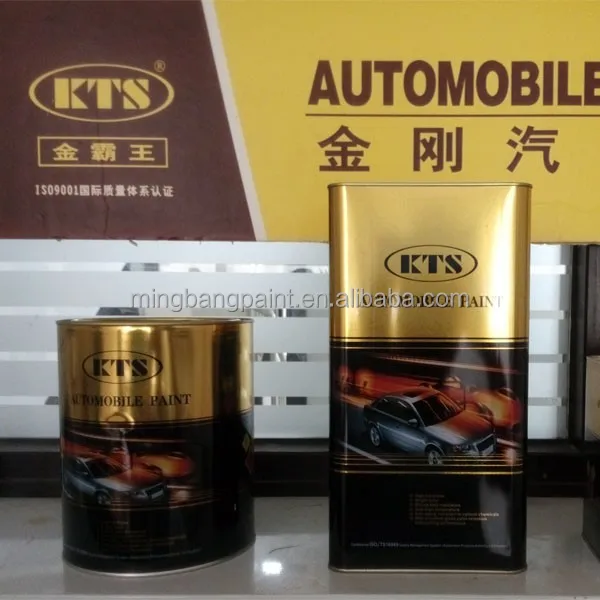

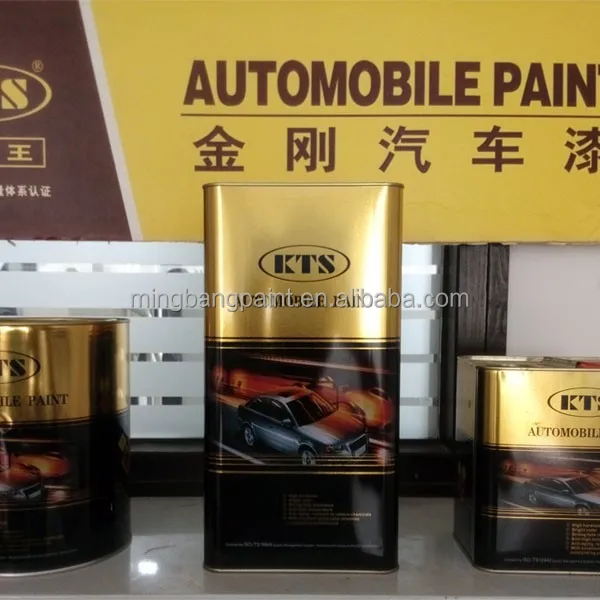

Acrylic Resin 1k Automotive Based Paint Supplies

Characteristic

The paint is made by several durability - improved resins , high quality and good coverage . The base paint can be blended to optimum metallic , solid or pearl color effects . Its excellent adhesion and interlayer adhesion for the physical properties of finishing varnishes .

Applicable base materials

Existing paint that have been de-greased and sanded with #1000 sand paper in wet , 1020R and 1K intermediate paints coat on surface of primer .

Surface Cleaning

Degreasing cleaning agent, silicone materials and other impurities

Mixing ratio

10 - 25°C

Above 25°C

basecoate : 100 portions ;

K- 801B Primer paint thinner

K- 801B general thinner :80 -100 portions

basecoat : 100 portions

K-801B General thinner

K-801M Slow-drying thinner : 80 - 100 portions

Serviceable time

 24 hours , 20  °C

Spray Layers

2-3 layers,50-75um total thickness

Interval

5-10mins,20°C

Spray gun & Pressure

Gravity Feed Spray Gun 1.2-1.5mm 3-5kg/cm2
Suction Feed Spray Gun 1.4-1.7mm 3-5kg/cm2

Item

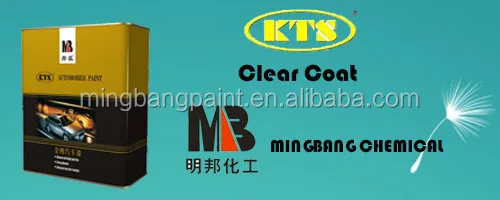

KTS clear coat

Applicable base material

It applies to the surface of base coat

Mixing ratio

12 - 18 °C

Standard varnish : 100 portions

Quick-drying drier : 50 portions

SX-1 current thinner : 10 - 20 portions

18°C-24°C

Standard varnish : 100 portions

standard hardener : 50portions

K-801 General thinner : 10 - 20 portions

30°C - 40°C

Standard varnish :100 portions

K-808M slow-drying hardener : 50 portions

K-808T Extremely slow-drying thinner : 10 - 20 portions

Serviceable time

Hardener( quick-drying ) : 3 hours,25 °C

Hardener ( standard ) or

Hardener ( slow-drying) : 5 hours,25 °C

Spraying and applying layers

2 - 3 layers , 40 - 60 μm total

Interval

25 ℃ , 5-10min between coat , baking after 15 - 20 mins of air - dry

Spraying and

applying tool

Gravity Spray Gun ( upper bottle ) 1.2-1.5mm 3-5kg/cm²
Suction Spray Gun ( lower bottle ) 1.4-1.7mm 3-5kg/cm²

Curing Time

Temperature

 Free Dust time

Touchable by fingers

Competely dry

20 °C

45 mins

2-3 hours

7 days

60 °C

5 mins

10 mins

45 mins

Storage life

Store for more than 2 years keep in original container at 20°C

Packaging

1L*12 tins/ctn , 5L*4 tins/ctn
