HORIZONTAL METAL BAND SAW MACHINE GT4228
- Category: >>>
- Supplier: Tengzhou,Runfa,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

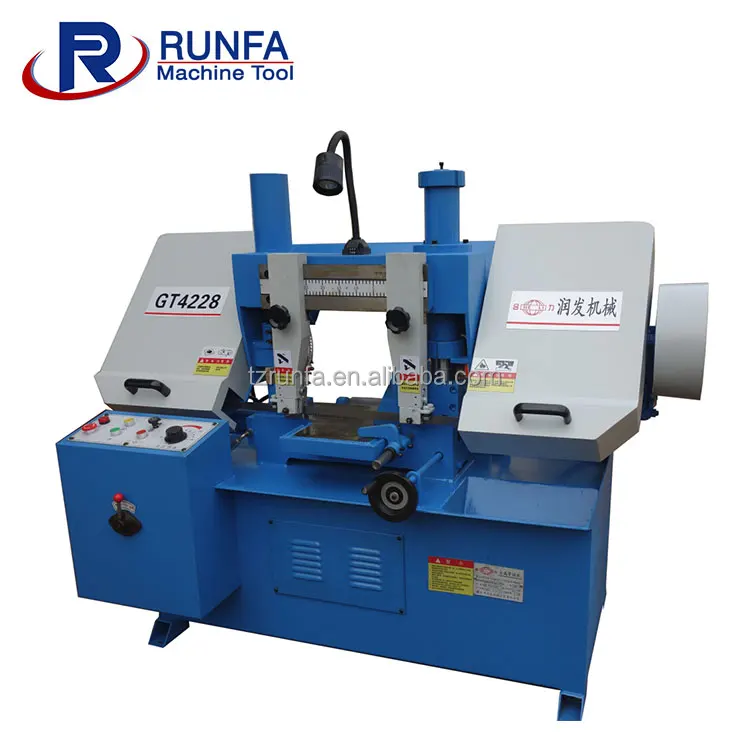

GT4228 METAL CUTTING BAND SAW
The metal band saw GT4228 is a sawing equipment that uses a metal saw blade as a cutting tool and is used to cut metal materials. It ismainly used for square materials of ferrous metals. The cutting of round materials and various profiles can also be used to cut non-ferrous and non-metallic materials. Because the band saw has a narrow cut and precise cutting, it consumes less energy and wastes less material. It is a cutting equipment with remarkable energy-saving and material-saving effects. The main drive of the double-column band saw machine adopts worm gear box variable speed, the feed adopts hydraulic transmission, and the workpiece clamping adopts manual and hydraulic hybrid clamping. It has the characteristics of compact structure and convenient operation and maintenance.
FEATURES AT A GLANCE
1. Double column horizontal band sawing machine mainly used for all kinds of large-scale material sawing with high efficiency and
high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
back side of band saw
Left side of band saw
Optional rorate type GTX4228
PRODUCT SPECIFICATIONS
Specifications | GT4220 | GT4228 | GT4235 | GT4240 | GT4250 | ||||||||
Max Cutting Diameter(mm) | ●200 ■200WX200H | ●280 ■280WX280H | ●350 ■350WX 350H | ●400 ■400WX400H | ●500 ■500WX500H | ||||||||
Saw Blade | Size(mm) | 2650*27*0.9 | 3505*34*1.1 | 4115*34*1.1 | 5000*41*1.3 | 5800*41*1.3 | |||||||
Speed | 27,45,69m/min | ||||||||||||
Guides | Carbide and bearing blade guides | ||||||||||||
Cleaning | Power wire brush & flood coolant | ||||||||||||
Tension | Manual | ||||||||||||
Blade Feed type | Hydraulic | ||||||||||||
Feed Type | manual | ||||||||||||
Motor power | Blade | 2.2kw | 3kw | 4kw | 4kw | 5.5kw | |||||||
Hydraulic | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | ||||||||
Coolant | 0.04kw | 0.04kw | 0.04kw | 0.125kw | 0.125kw | ||||||||
Clamping Vice | Hydraulic | ||||||||||||
Main Transmission structure | Worm gear | ||||||||||||
Machine Size(mm) | 1300*800*1100 | 1860*1000*1400 | 2000*1100*1500 | 2500*1300*1600 | 2800*1300*2000 | ||||||||
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in England
SIMILAR PRODUCTS
FAQ
1. What to do when you don’t know which model need to buy?
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
