High Quality EVA Roll Splitting Machine By United Chen
Product Description
LC-161B EVA Roll Splitting Machine
1. Features:
*For Roll Splitting
Circulation Type splitting machine can split the material into the thickness customer needs and collect the finished product, unfinished product will collect automatically, and then split again.
The machine is suitable for rubber foam board, EVA foam board (sole of sport shoes, beach shoes, sole of slippers, and etc.) for splitting use.
Fully automatic for thickness adjusting and displayed by LED, convenience for operation and rapidity.
When splitting knife wears, it's convenient and easy to adjust the position of feeding roller, prevent trouble of adjusting splitting knife.
Equipped with safety warning lamp and safety micro adjuster. Machine will stop automatically and the warning lamp light on when feeding roller touch splitting knife mistakenly during adjustment.
The electric control panel includes letter with image, let it easy to operate.
Model
A(LC-161)
B
C
Total power
13HP
3HP
6-1/2HP
Working
width
1550mm
1550mm
1550mm
Working
thickness
1-70mm
-
-
Splitting
tolerance
+- 0.1mm
-
-
Machine size
(L*W*H)
3900*1400*1820mm
2300*2300*1600mm
6400*2300*2550mm
Weight
3500kgs
1600kgs
3600kgs

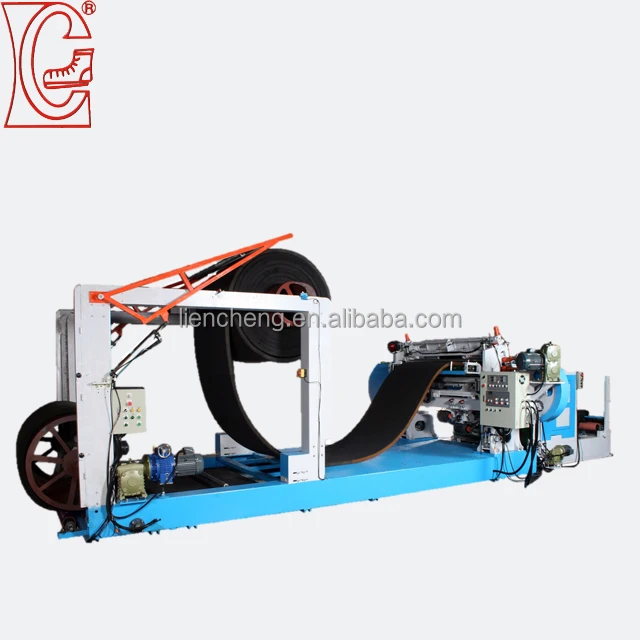

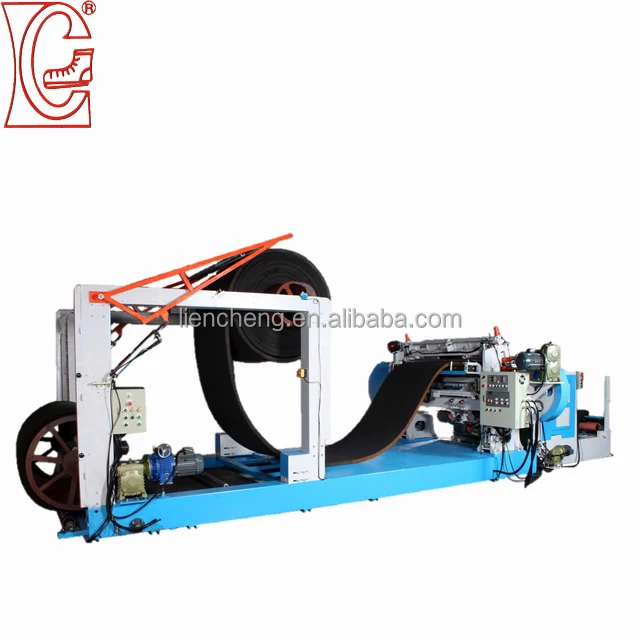

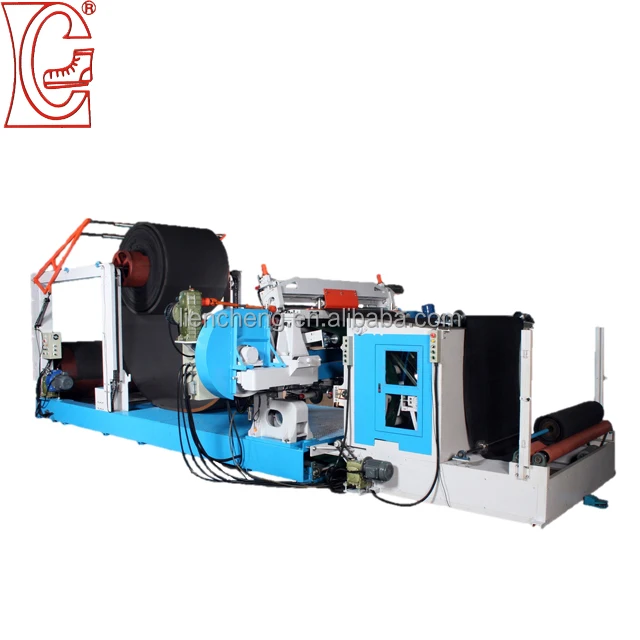

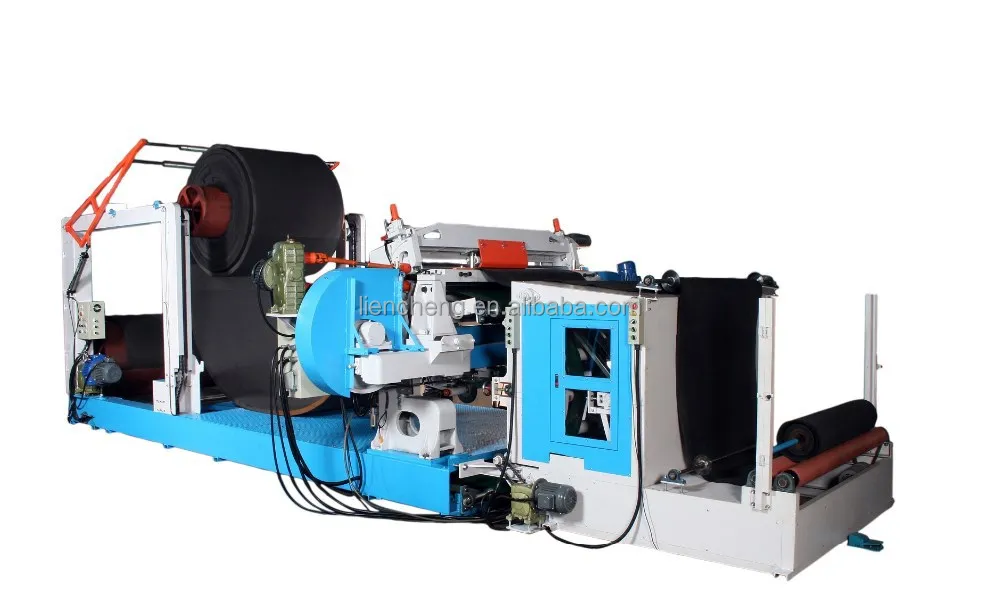

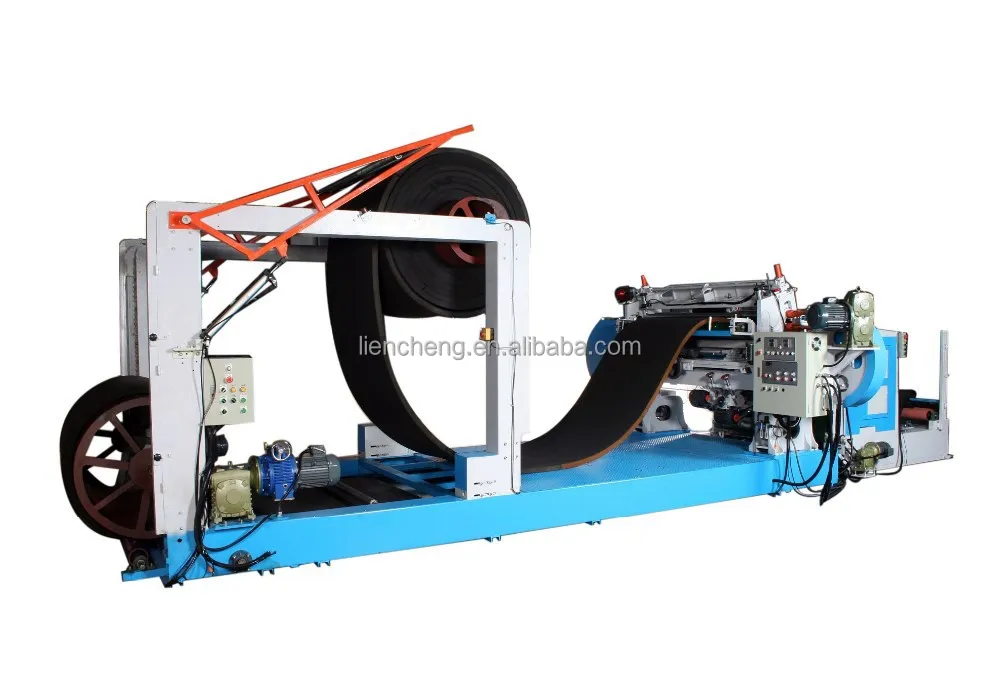

2. Machine Pictures:
Company Information
Company profile
As a pioneer in shoes making machinery, UNITED CHEN INDUSTRIAL CO., LTD.
The company was founded in Taiwan in 1980.
In 1993, we set up new company in China. We already have 12,000m2 of land.
We have been dedicating to developing, designing and manufacturing various types of machinery for shoes roughing, hydraulic pressing and shoe forming.
We also research and develop high precision equipment, such as CNC Engraving Machine, Screen Printer, and etc.
By sticking to the corporate tenet of "Quality First, and Service First"
R & D
To provide various products to customers, United Chen owns strong R & D team.
Our products are used to many different kinds of industries. Such as: Woodworking, Shoe making, Aluminum machine, CNC machine, Screen printer.
Most important of all, we focus on R & D which is based on customized production in order to enhance the competitive ability.
