Carbon Steel Wire Rope Thimbles Thimble for Rope
- Category: >>>
- Supplier: Qingdao Q-Ran Import & Export Co. Ltd. [Shandong China]Qingdao
Share on (60266902280):
Product Overview
Description

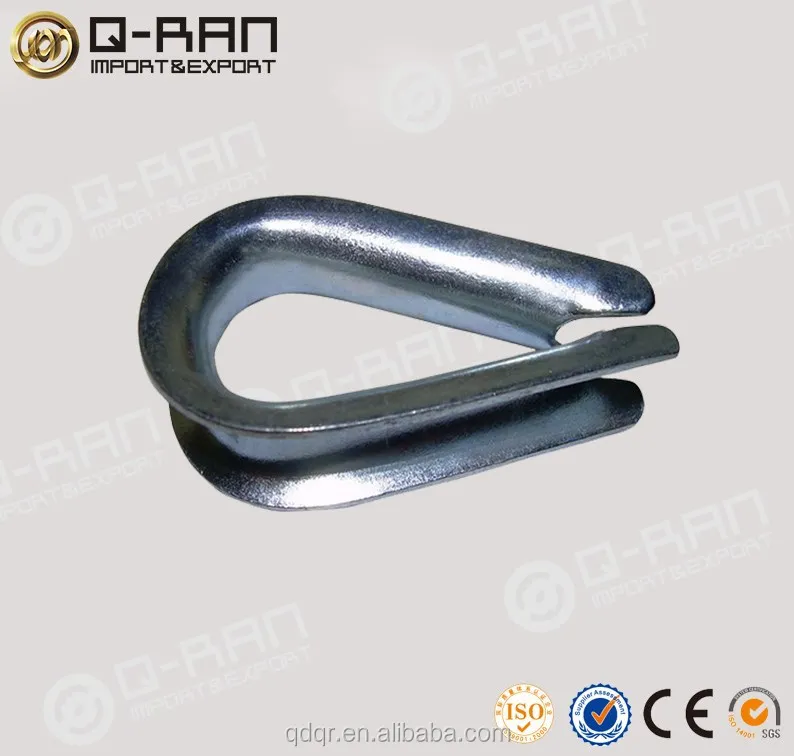

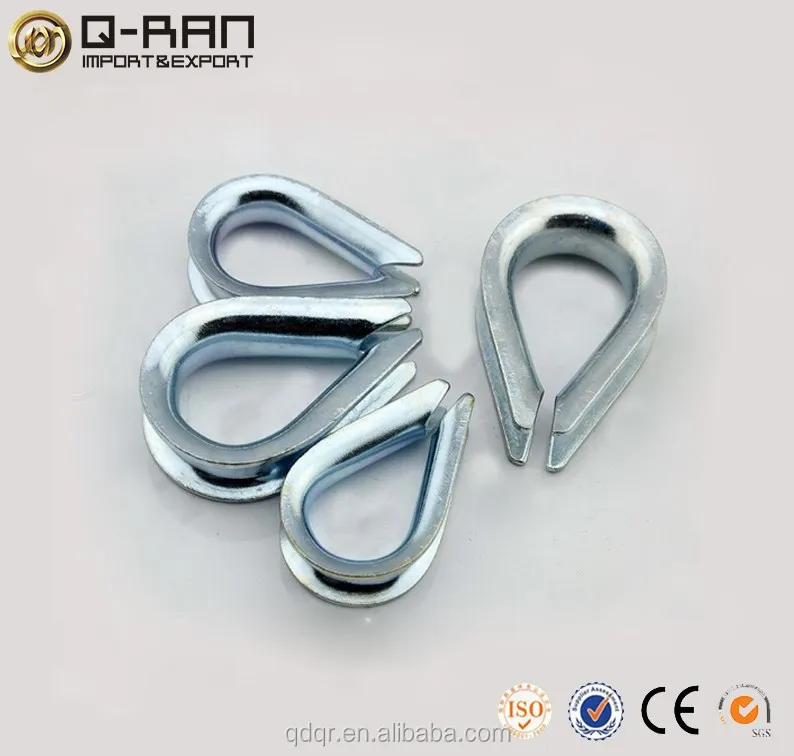

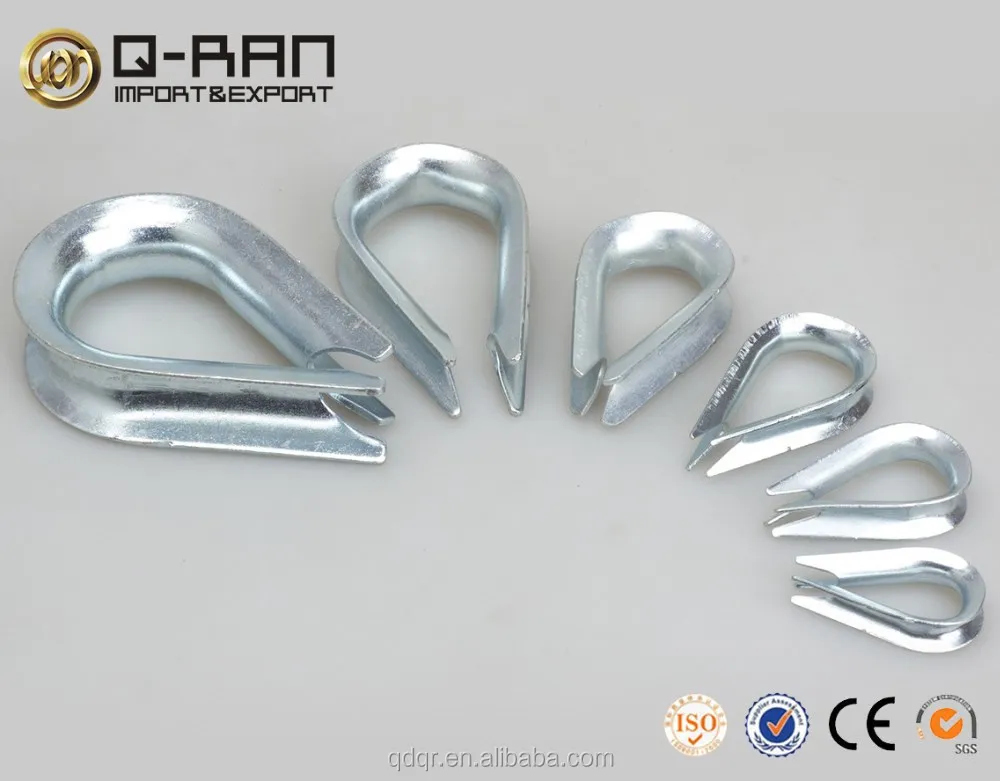

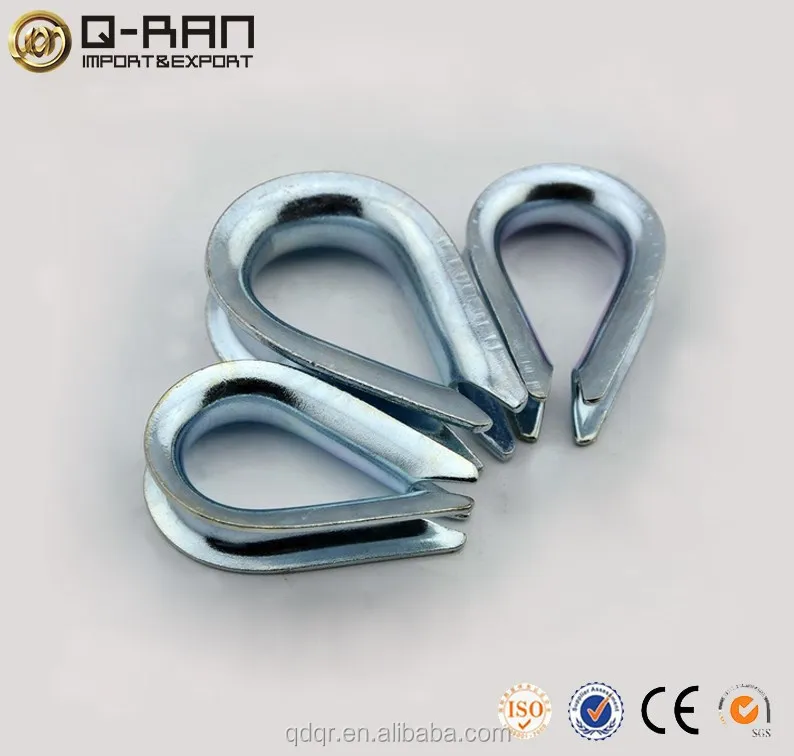

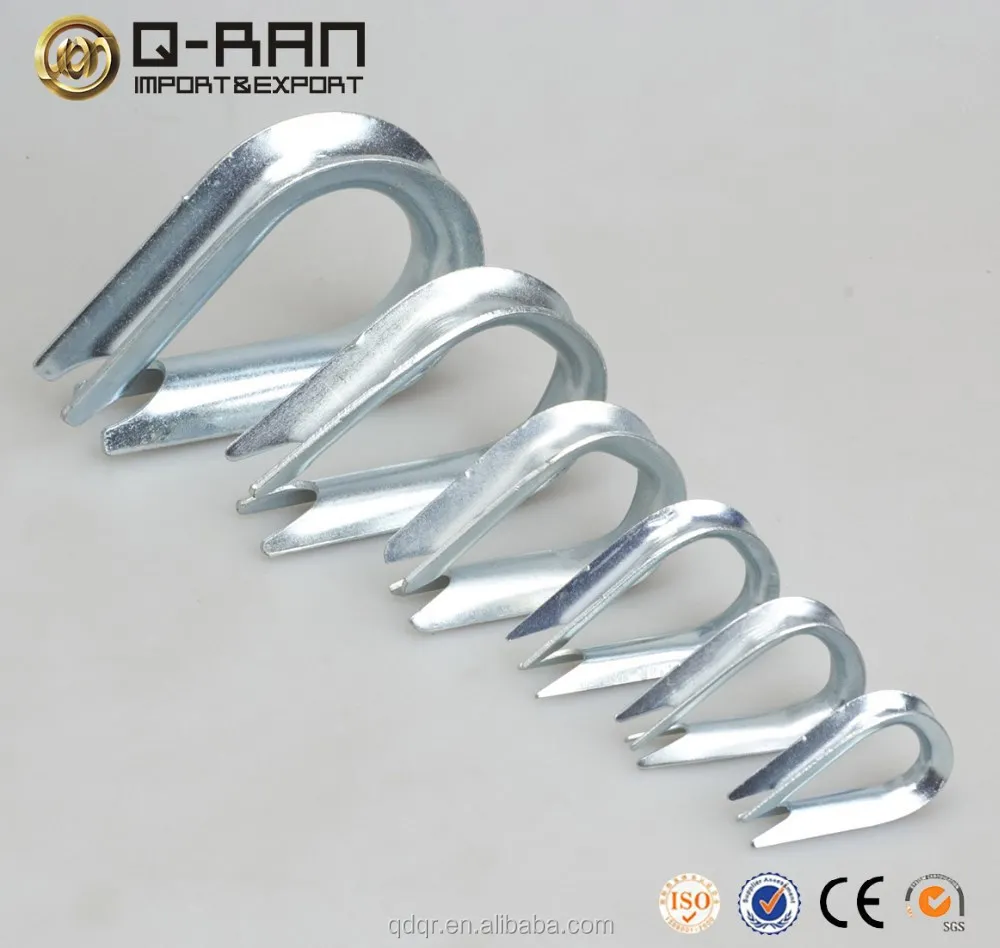

Cold-rolled DIN6899 Wire Rope Thimble
Product Description
| PRODUCT DETAILS | |
| Product name | Cold-rolled DIN6899 Wire Rope Thimble |
| Place of origin | Shandong,China. |
| Brand | Q-RAN |
| Material | Carton steel |
| Size | From 1/4 to 2-1/4 inch |
| Surface | Electro Galivanized;Hot Dip Galivanized |
| Standard | G414 thimble |
| Grade | None |
| Stock | There are emergency stocks for regular sizes. |
| Sample | The sample is free,the freight should on your account before your first order. |
| Packing method | packed in cartons ,then on pallets . |
| Payment term | 30% advanced by T/T,the balance should be paid after see the copy of the B/L;L/C at sight;Western Union. |
| Delivery time | Usually within 15-30days according to your required size&quantity. |
| Using range | 1. Wire rope,fastener,industry,hoist,heavy duty lifting equipment |
Dimension
| Rope Sise(IN) | Dimension (inch) | Weight 100pcs(Lbs) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/4 | 2.19 | 1.63 | 1.50 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 | 6.75 |
| 5/16 | 2.50 | 1.88 | 1.81 | 1.06 | 0.50 | 0.34 | 0.08 | 0.28 | 11.25 |
| 3/8 | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 | 25.00 |
| 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 | 30.00 |
| 1/2 | 3.63 | 2.75 | 2.75 | 1.50 | 0.81 | 0.53 | 0.14 | 0.41 | 51.00 |
| 9/16 | 3.63 | 2.75 | 2.69 | 1.50 | 0.88 | 0.59 | 0.14 | 0.41 | 51.00 |
| 5/8 | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.50 | 75.00 |
| 3/4 | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | 0.78 | 0.22 | 0.66 | 147.00 |
| 7/8 | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 | 175.00 |
| 1 | 6.13 | 4.50 | 4.94 | 2.50 | 1.56 | 1.06 | 0.25 | 0.88 | 275.00 |
| 1-1/8--1-1/4 | 7.00 | 5.13 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.13 | 400.00 |
| 1-1/4--1-3/8 | 9.00 | 6.25 | 6.81 | 3.50 | 2.19 | 1.44 | 0.38 | 1.13 | 817.00 |
| 1-3/8--11/2 | 9.06 | 6.50 | 7.13 | 3.50 | 2.56 | 1.56 | 0.50 | 1.13 | 1175.00 |
| 1-5/8 | 11.25 | 8.00 | 8.13 | 4.00 | 2.72 | 1.72 | 0.50 | 1.38 | 1700.00 |
| 1-3/4 | 12.19 | 9.00 | 8.50 | 4.50 | 2.84 | 1.84 | 0.50 | 1.31 | 1775.00 |
| 1-7/8--2 | 15.13 | 12.00 | 10.38 | 6.00 | 3.09 | 2.09 | 0.50 | 1.50 | 2775.00 |
| 2-1/4 | 17.13 | 14.00 | 11.38 | 7.00 | 3.63 | 2.38 | 0.63 | 1.63 | 3950.00 |
Packaging & Shipping
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Packaging and Shipping
Packing:
Safety Carton and pallet,sack and pallet,according to customers requirement.
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time:
3-7 days for samples; within 30 days for batch goods.
Product Uses
Wire rope thimble is widely used in machinery, metallurgy, electric power, railway, water conservancy, port, mining, construction, port, paper making, chemical industry, etc.
Our Main Products
Qingdao Q-RAN import & export co., ltd is major in producing and sale rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
Advantages
Why choose us?
1.Ourselves factory with strong produce capacity;
2.Supply high quanlity products with lower cost;
3.Experienced and well-trained engineers and salesmen;
4. Professional and timely service for customers.
