Nylon monofilament filtering mesh fabric cloth

Product Overview

Description

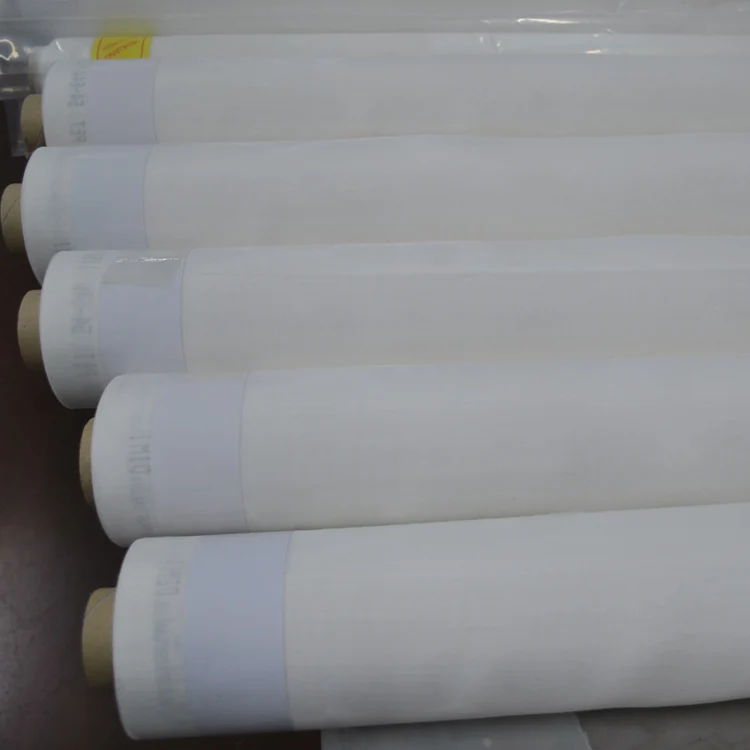

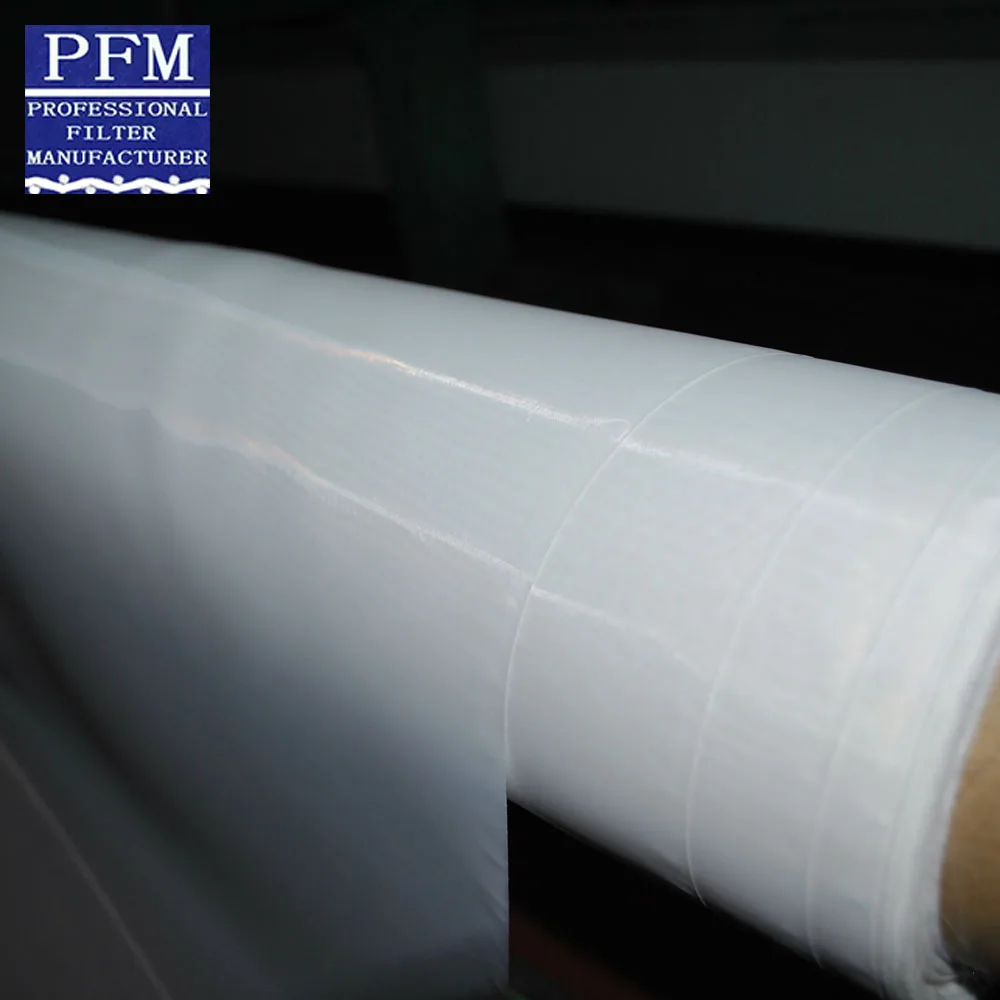

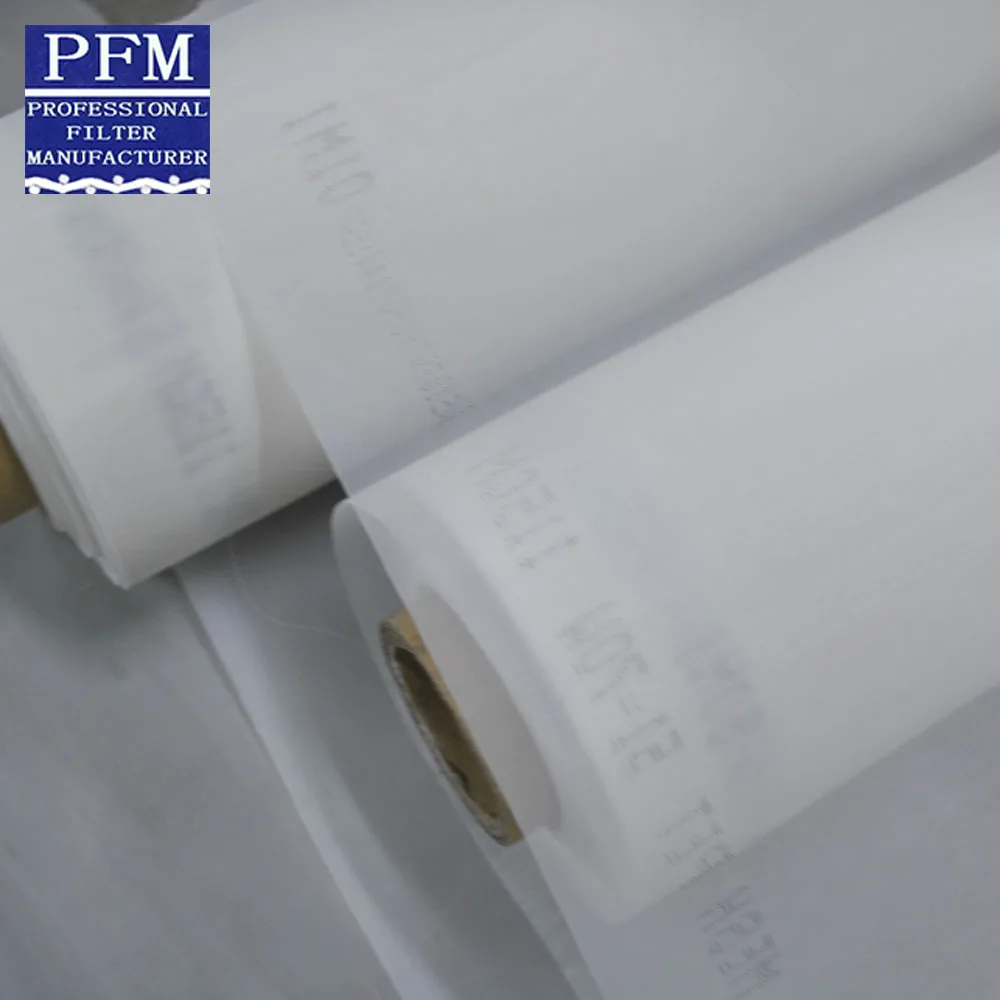

Nylon monofilament filtering mesh fabric cloth



Nylon monofilament filtering mesh fabric cloth



PFM SCREEN provides an array of different configurations in Nylon filtering Mesh fabric cloth. Nylon Mesh is used particularly in laboratory filtration of fuel and gas, mining and agriculture, aqua culture, pharmaceuticals, and much more. Our material is Nylon 6/6, with excellent abrasion as well as alkali resistance. Softening point for this Nylon Mesh is between 170°C and 230°C, melting between 210°C and 250°C. We have custom laser cut options available as well as sheet and roll stock available,

Specifications



Nylon Filter Mesh(Nylon Filter Cloth)
Model	Mesh/cm	Mesh/inch	Aperture  (μm)	Thread Dia.  (μm)	Open Area (%)	Thickness (μm)	Theoretical Ink (cm3/m2)
5-500	5	13	1500	500	56	1000	308
6-400	6	15	1267	400	58	840	228
7-350	7	18	1079	350	57	640	209
8-350	8	20	900	350	52	645	232
9-200	9	24	911	200	67	370	92
9-250	9	24	861	250	60	460	145
9-300	9	24	811	300	53	570	205
10-250	10	25	750	250	56	530	148
12-300	12	30	533	300	41	495	256
14-200	14	35	514	200	52	380	135
16-200	16	40	425	200	46	400	155
16-250	16	40	375	250	36	420	240
17-200	17	42	388	200	44	380	160
18-220	18	45	366	220	37	400	207
20-200	20	50	300	200	36	375	190
24-150	24	60	267	150	41	305	130
28-150	28	70	207	150	34	278	150
30-120	30	76	213	120	41	230	105
32-100	32	80	213	100	46	240	77
36-100	36	90	178	100	41	195	86
40-100	40	100	150	100	36	192	95
44-100	44	110	127	100	31	175	105
?48-80	48	120	128	80	38	150	73
56-60	56	142	120	60	44	110	48
59-60	59	150	110	60	42	98	50
64-60	64	163	96	60	38	120	55
72-50	72	183	89	50	41	90	44
80-50	80	203	75	50	36	93	48
88-40	88	224	74	40	42	65	34
96-40	96	244	64	40	38	76	37
100-40	100	254	60	40	36	78	39
104-40	104	264	56	40	34	79	40
120-40	120	305	43	40	27	80	46
Note:The above datas are theoretic,please reference the actual data if there is a difference!



Feature of Nylon monofilament filtering mesh fabric cloth

Material :manufactured by 100% polyester monofilament yarns

Opening :the mesh with great precision exact and regular square holes

Chemicals :no unwanted chemicals,no any chemicals treatment in the production process

Safe Grade :very safe,very thin,food grade

Shape :can made by disc,tube,piece,roll any sizes and shape,max roll length1000m

Temperature :high tensile,use temperature under 200℃

Dimensoinal :very good dimensional stability

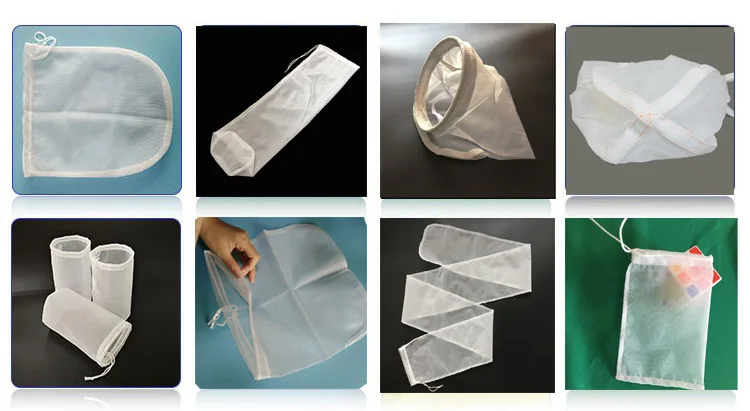

Application of Nylon monofilament filtering mesh fabric cloth :

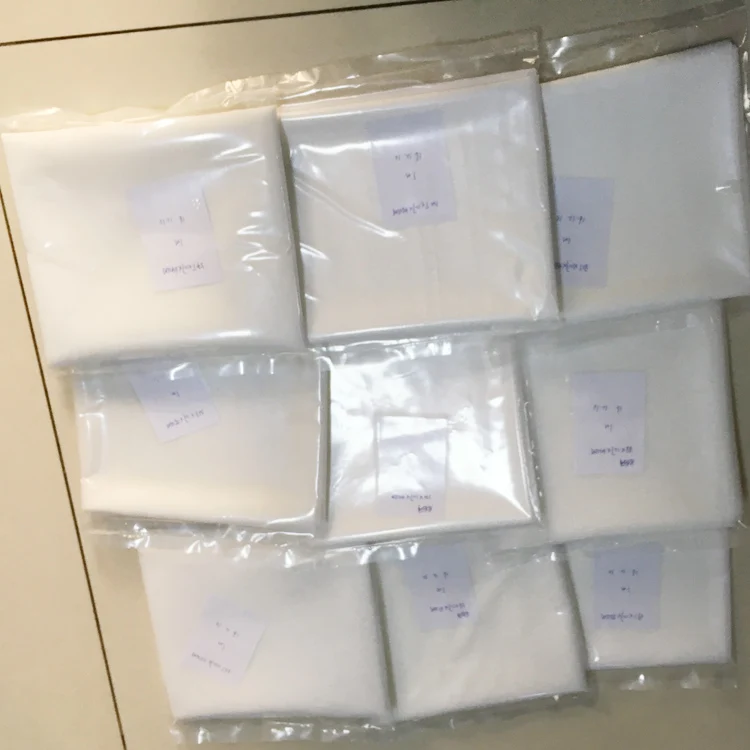

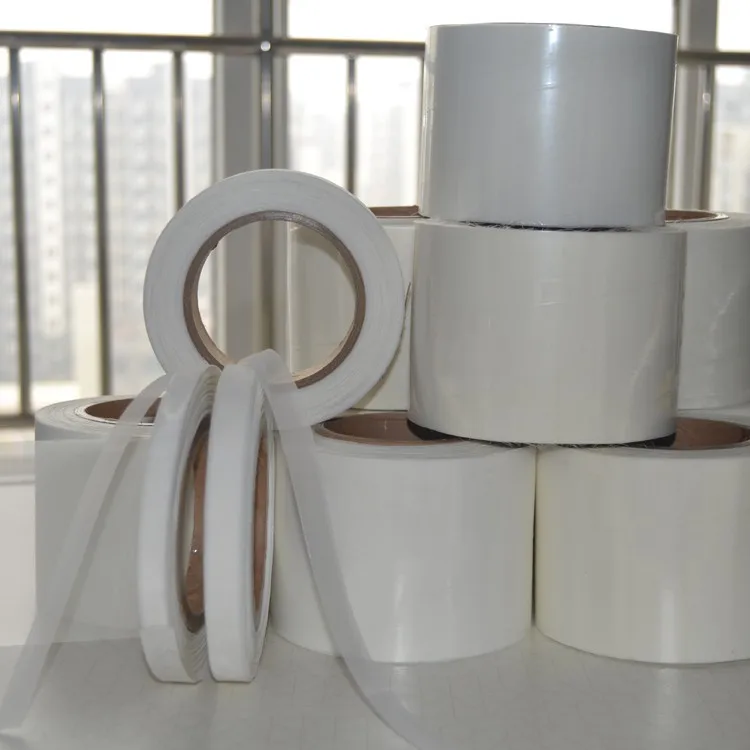

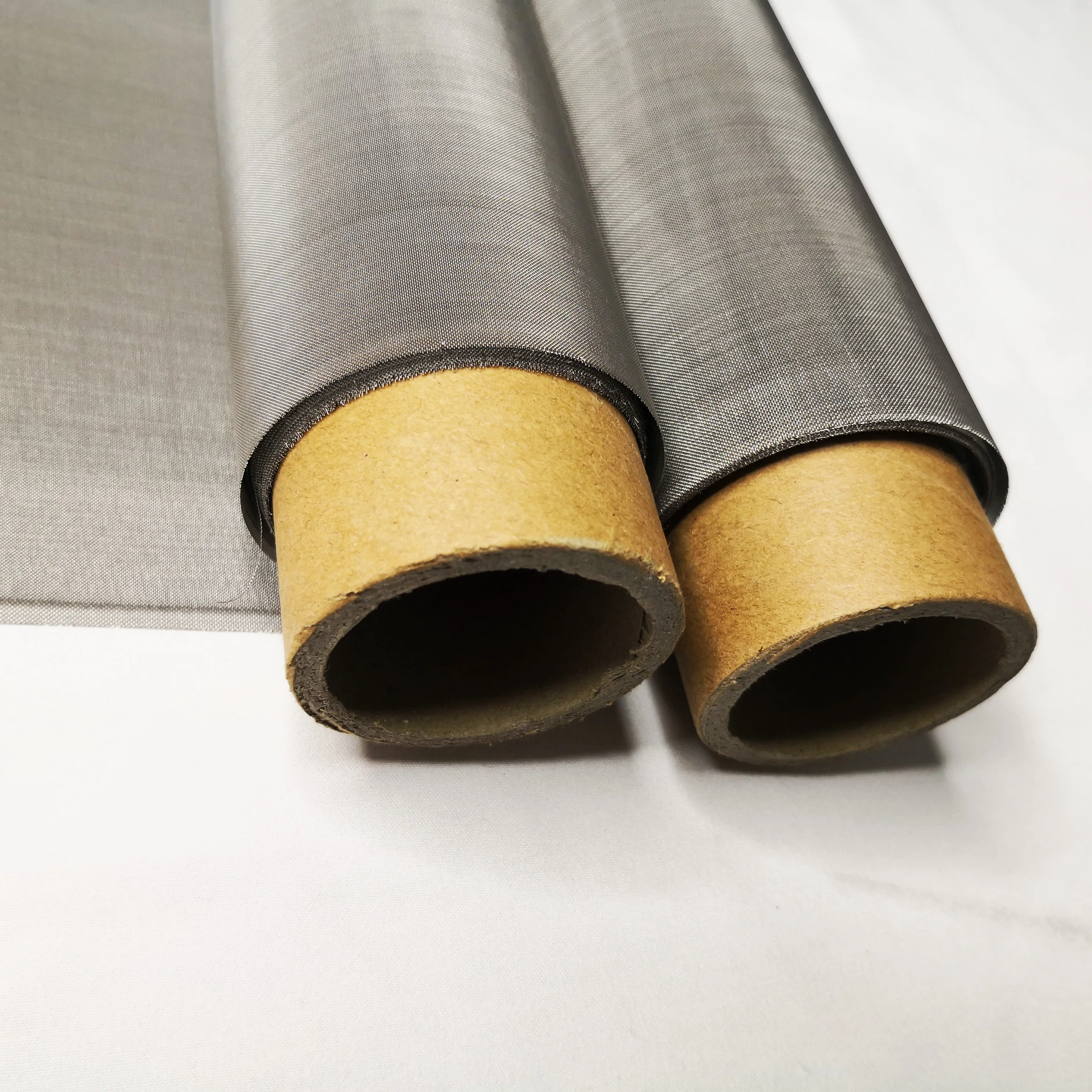

Nylon filter mesh sheets	Polyester nylon Filter Ribbon	Stainless steel filter mesh



Packaging:

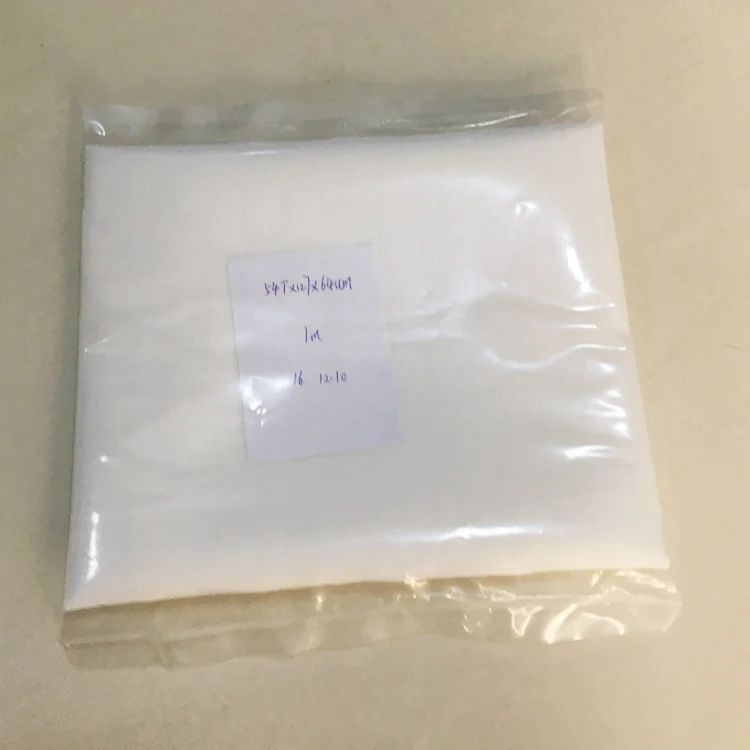

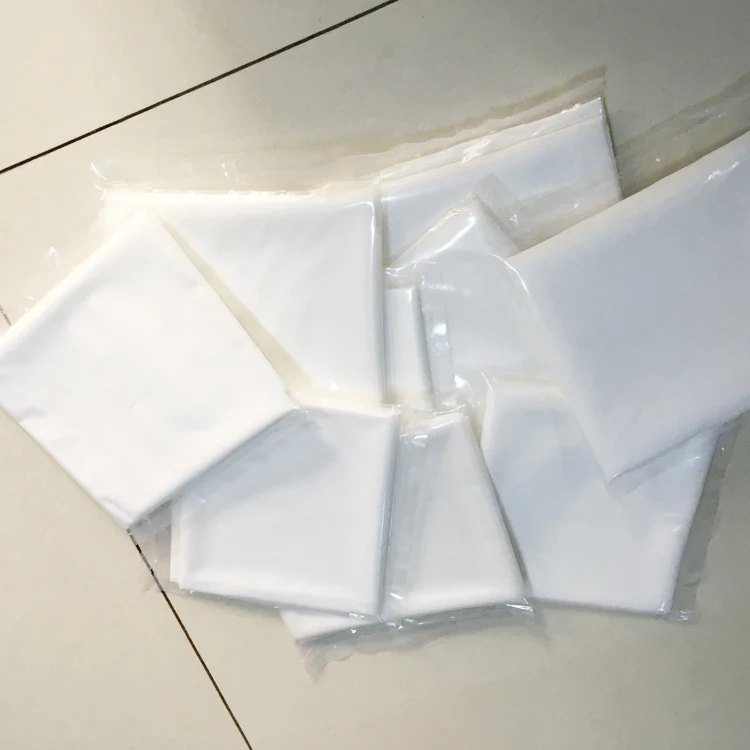

Nylon monofilament filtering mesh fabric cloth

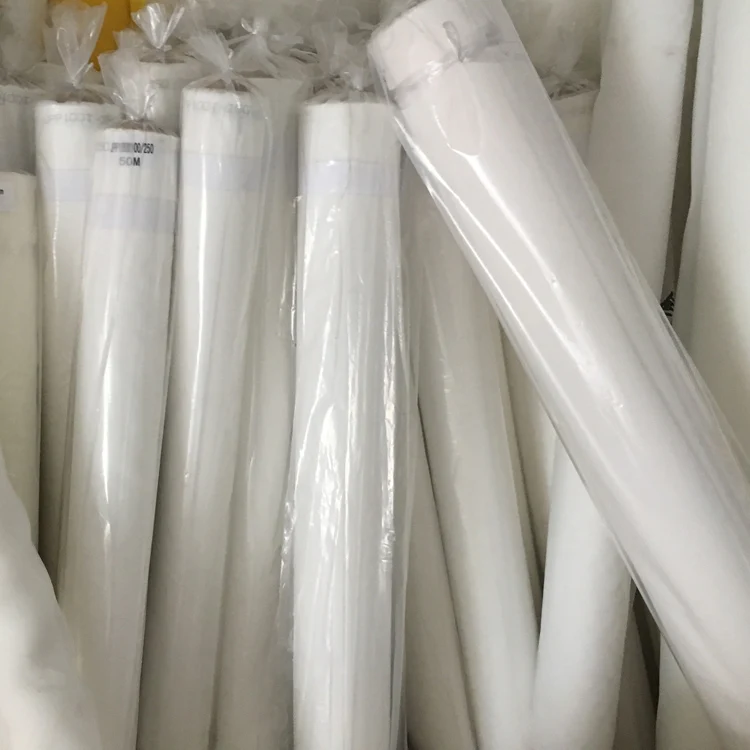

Plastic bag inside,carton case or wooden case outside,or according to the customer's request

Delivery :
1. for small quantity, shipped by courier.
2. for large quantity, shipped by air or by sea.
3. tracking number will be emailed to you after the order has been shipped.
4. If you have forwarder in China, we can send to your forwarder for free.





1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply to you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me feedback. If you have any questions about the problem, contact us, we will offer the solve way for you.

5.Sample testing support.

6.Changing for new if dissatisfaction.



Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral brown cartons. If you have legally registered a patent,

Q2. How long is your delivery time?
A: Generally it's 5-7 days and depending on quantity.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
