china hot selling non woven felts making production line

Product Overview

Description

Alibaba china hot selling non-woven felts making production line



S, SS, SMS customerized PP nonwoven fabric production line available.
Working width: 1600mm, 2400mm, 3200mm

Features Specifications:
1. Width: 1.6m, 2.4m, 3.2m
2. Max winding diameter: 1200mm
3. Productivity: 70g/square meter, 6t---7t/24 hours.
4. Monofilament Fiber number; 2.5 Den
5. Main material: PP chips or PP powder
6. Grammage: 15-250GSM
7. Mechanical speed: 10-120m/min.
8. Electricity consumption: 800-1400kwh/t
9. Material wastage consumption rate: 0.5%
10. Product quality standard: National spunbond nonwoven standard



Type of Machine:
Type: S1.6, S2.4, S3.2, SS1.6, SS2.4, SS3.2, SMS, 1.6, SMS2.4
(S stands for spunbonded, M stands for meltblown)



Features:
1)It's a professional non-woven fabric production line. Our company adopts overseas advanced technology and domestic production experience, developed this line. The line's advantage is lower investment, compact construction, smaller working area, easy production technology and operation, less labors and widely compatibility and so on.
This line produces polypropylene(PP) non-woven fabric, fabric is forming by negative pressure wind to make the PP spun-bonded non-woven fabric more even, great tensity, better ventilation and better soft feelings and so on. It has been in wide application for medical clothes, package and architecture and so on.
2)Under the conditions of technology requirement and safe requirement, reduce some unnecessary auxiliary facilities brings the lower investment, and the lower operation cost.
3)It's easy and reliable for technics adjustment, thanks to the computer control system to make the technics adjustment more easier and reliable, and the line can be suitable for different raw material to gain more widely usage.
4)Simple requirement for the work floor, it can greatly reduce the real estate investment and enlarge the utilization of the workshop and the steel platform.
5)Using more specialized processing equipment, improve the machine's accuracy and performance, reduce manufacturing costs, and better quality for the final product.



Model	TY-1600	TY-2400	TY-3200
Screw Diameter	105mm	150mm	170mm
L/D	30:1
Capability (T/Y)	1200	2000	3000
Max. Film Width(mm)	1600	2400	3200
Weight range(g/m2)	15-200
Fiber Number	2D-4D



Specification	1600 SS/S	2400 SS/S	3200 SS/S
Dies Quantity	SS:2 sets    S:1 set
Effective Width (mm)	1600	2400	3200
Weight Proportion (g/m2)	12-80
Rated Line Speed (m/min)	SS: 200-300
	S:150
Production Capacity (T/Y)	SS:3000-3900	SS:4500-5850	SS:6000-7800
	S:1500-1950	S:2250-2925	S:3000-3900
Fiber Denier	1.6-2.5 D



Specification	1600 SMS/SMMS	2400 SMS/SMMS	3200 SMS/SMMS
Dies Quantity	SMS: Spunbond 2 beams plus Meltblown 1 beam; SMS: Spunbond 2 beams plus Meltblown 2 beams;
Effective Width (mm)	1600	2400	3200
Weight Proportion (g/m2)	12 - 80
Rated Line Speed (m/min)	SMS: 300    SMMS: 400
Production Capacity (T/Y)	SMS:8000 SMMS:9000	SMS:6000 SMMS:6750	SMS:4000 SMMS:4500
Denier	Spunbond ≤2 D; Melt blown: 2 - 5 Microns.





Type\\Item	Diameter of main screw (mm)	Diameter of assistant screw (mm)	Screw L/D Ratio	Production capacity(t/y)	Max breadth (mm)	Weight range of product (g/m2)	Fibre degree	Total power (kw)	Installation Dimension (L×H×W)
SJ-TY-1600	130	105	30:01:00	1500	1600	10-200	2D-4D	436	18m×7.5m×12m
SJ-TY-2400	150			2200	2400			542	21m×8.4m×12m
SJ-TY-3200	170			3200	3200			653	21m×9.3m×12m



Polypropylene Spunbonded Non-woven Fabric equipment:

This is Polypropylene Spunbond Non-woven Fabric Plant. Its raw material is polypropylene(PP),

Applying the chemical fibre processing theory, the finished fabric is made from polymer long fibre formed into web style sheet in the spinning process and then bonded together by mechanical heat pressing treatment.

The finished nonwoven fabric is high strength, good softness, bacterium-proof, corrosion resistance, high tensile strength.

They are widely applied in garment industries, decoration materials, medical and hygiene materials, daily products and in many other industrial, agricultural fields.

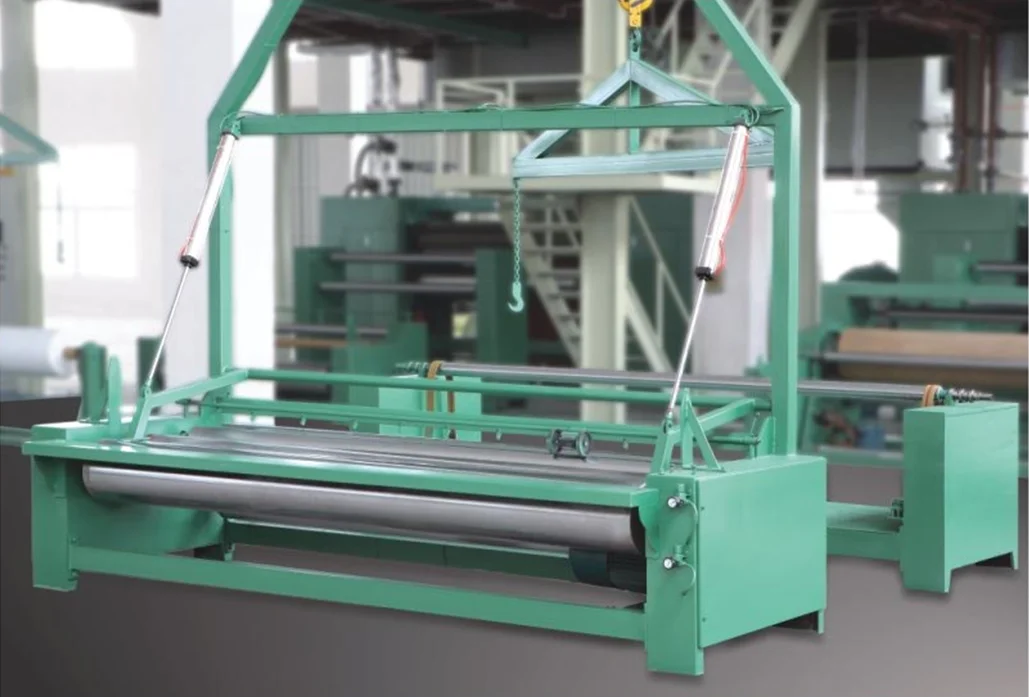

Pictures of non-woven felts making production line:















non-woven felts making production line
