Electric Hot Plate 1200 Degree Crucible Melting Furnace

Specifications

Electric Furnace

Crucible Melting Furnace

Electric Melting Furnace

Electric Crucible Melting Furnace

Product Description

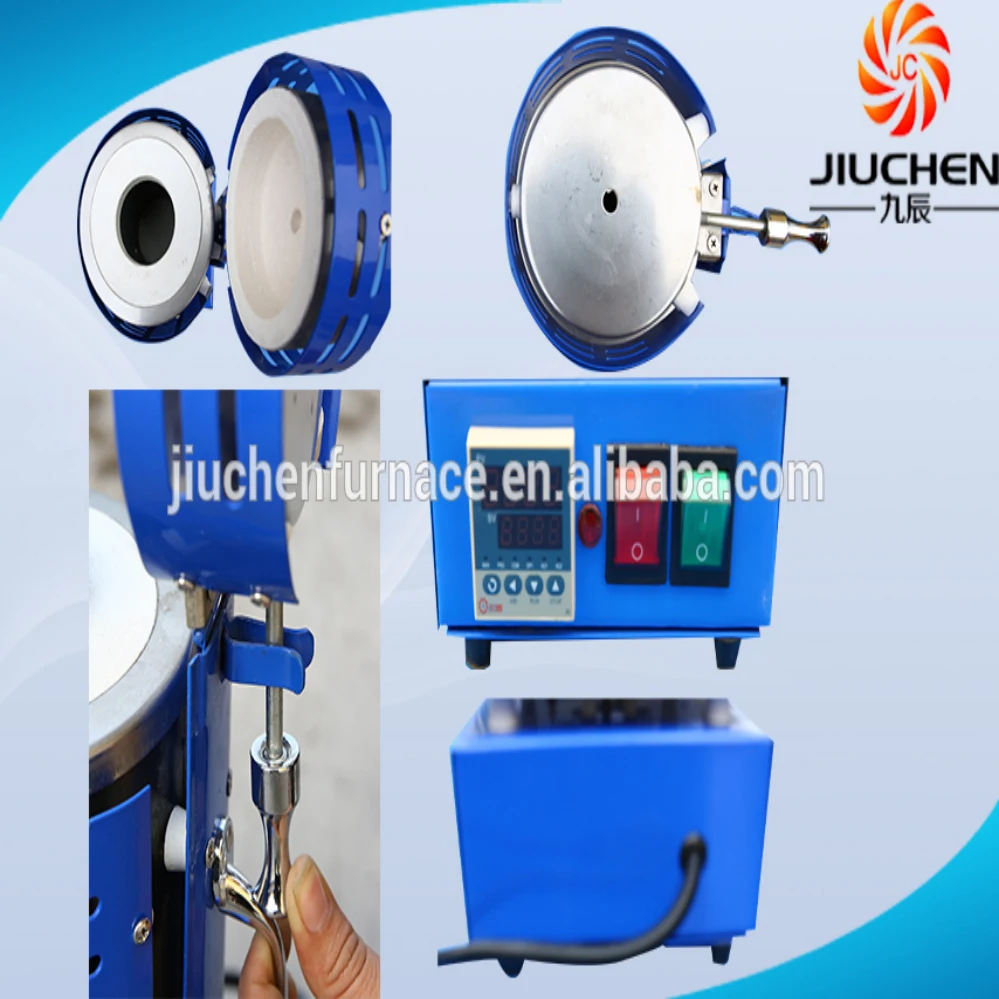

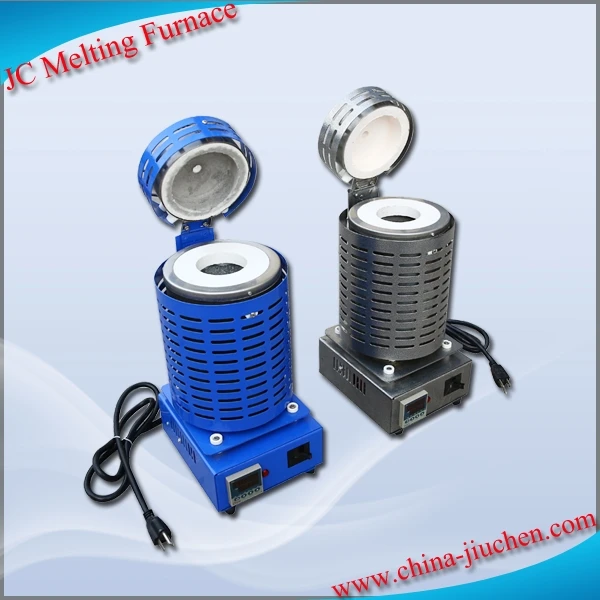

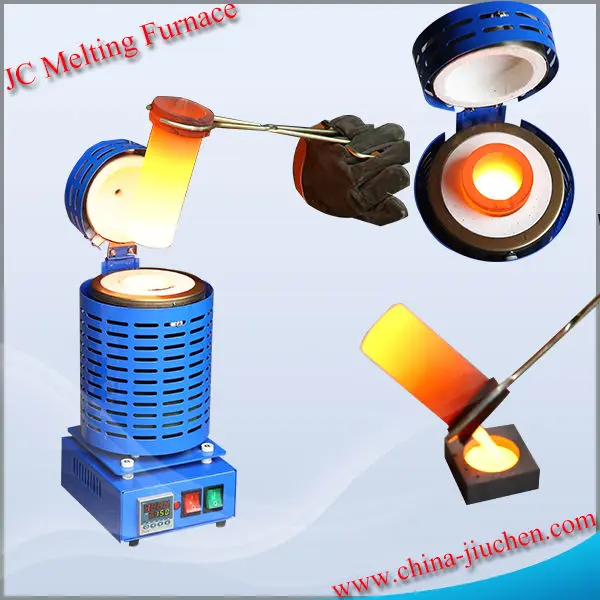

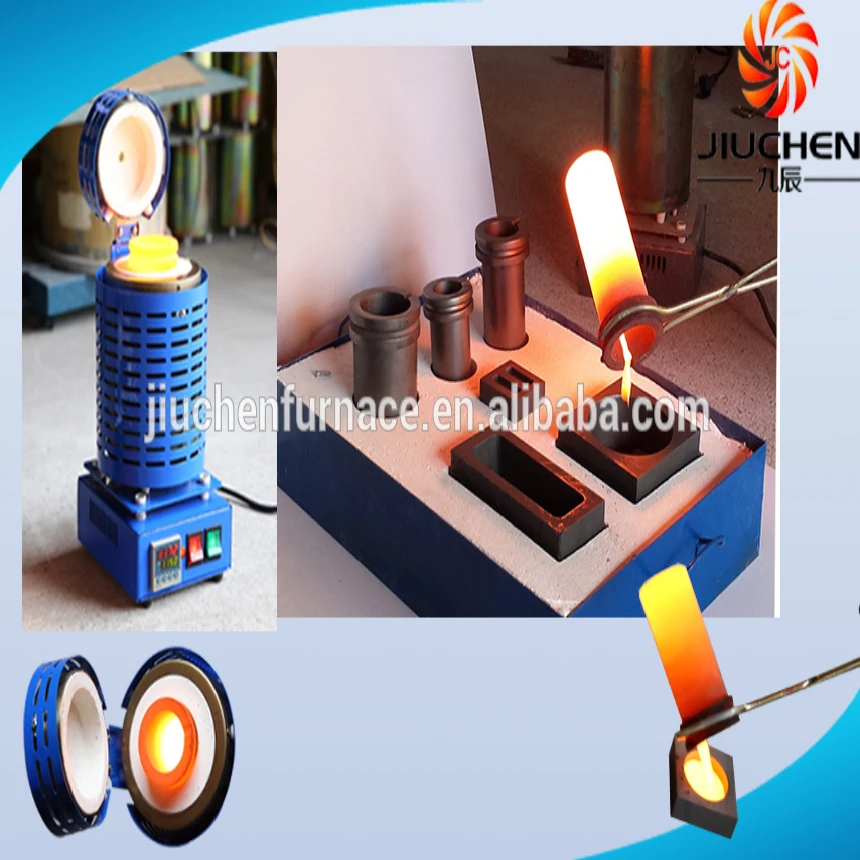

 JC Small Melting Furnace is the best choice for melting gold,copper, silver and other noble metals, metallurgy, petroleum , chemical, Laboratory, heat-treatment. It'll up to 1200 Degree Centigrade with 15-20 mins.The advantages of this furnace is Small size,light weight,easy operation and accurate temperature control.

JC Melting Furnace is equipped with Thermocouple, SSR, AI Temp-erature Controller. It is specially designed and constructed for melting metals for casting and alloying of metal up to 1200oC.



technical parameters

Model NO.

JC-K-220-1

 JC-K-220-2

             JC-K-110-1

JC-K-110-2

Voltage

220V

220V

110V

110V

Power

1KW

1.5KW

1KW

2KW

Specifications

170*220*370mm

170*220*370mm

170*220*370mm

170*220*370mm

Adjustable temperature

0°--1200°C

0°C--1200°C

0°C--1200°C

0°--1200°C

Heating rate

0C--1200C about 15-20mins

Accuracy

±1°C

±1°C

±1°C

±1°C

Display mode

Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time; Set data can be changed by arrow buttons

Material of the furnace liner

  silicon carbide materials

Material of the furnace cover

Stainless Steel

Note

With thermocouple input, relay output



characteristic

1). Exquisite & Convenient:

     Small size(170x220x370mm), light weight(N.W.:4.5KGS), independent operation,and portable

2). Easy operation:

    The parameters can be changed conveniently by pressing arrow buttons.

    The setting temperature and surveyed temperature can be shown at the same time.

3). Accurate temperature control:

     Microprocessor PID control, PID auto-tuning function ensure the accuracy of the temperature control in any state

 4). High efficiency:

    Fast heating, high efficiency, good insulation effect, low power



Packaging & Shipping

1.All the goods will be packed well before shipping to avoid damage during delivery.

2.Plastic bag inside, polyfoam filled ,carton outside. above 10units,pallet outside.
3.Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT, EMS. For a large quantity of goods, shipping by sea or by air.

Certifications

Our  furnace has obtained Chinese patent of Certificate of Utility Model Patent,Certificate of Design Patent and CE.Currently,we are cooperating with ICBC,domestic famous universities and national key laboratories.we open smoothly North America,EU, Australia and Southeast Asia,the furnace won high praise with more than 30 countries and region.



FAQ

1. Which countries your products are exported to?

Our products are sold all over the world and with related certifications.

2.How about the warranty?

All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3.How to install your machine?

We have paper installation instructions and videos, we will teach till you learn it.

4.If I order big quantity, what's the good price?

Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

Company Information

 ZIBO JC Eco-tech CO.,LTD is specialized in producing small melting furnace,ceramic fiber products & building glass. Who has been strived to the research and application of the small melting equipment and energy-saving material.  Now our customers are throughout China and the sales internet reaches as far as North America, Europe, Asia.
