Сенсорный экран 18,5 дюйма, светодиодный дисплей «Все в одном»
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen User Special Display Technologies Co. Ltd.
Share on (60267250558):
Product Overview
Description
18.5" touchscreen all in one LED display
Specification
High quality touch screen
Size: 18.5" TFT-LCD
Brightness:250cd/m2
Contrast: 800:1
Interface: VGA,HD,AV,DVI,CVBS,TV,YPbPr ,PC
Product Description
Technical Data Sheet
| Model No. | US-TH185LCHW- | ||||||||
| Panel size | 18.5" TFT-LCD | ||||||||
| Display area(mm)/mode | 320(W)×377(H) 16:9 | ||||||||
| Maximum resolution | 1366(H)×768(V) | ||||||||
| Display color | 16.7M | ||||||||
| Pixel Pitch(mm) | 0.283(H)×0.283 (V) | ||||||||
| Brightness (nits) | 250cd/m2 | ||||||||
| Contrast | 800:1 | ||||||||
| Visual angle | 178°/178° | ||||||||
| Response time | 5ms | ||||||||
| Horizontal frequency | 50-70KHZ | ||||||||
| Vertical frequency | 56-75KHZ | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Touch Panel | |||||||||
| Specification | Capactive touch | ||||||||
| Positioning accuracy | ±2mms | ||||||||
| Transmittance | 92% | ||||||||
| Hardness | 7H | ||||||||
| Click manner | double point/mult-point(optional) | ||||||||
| Response time | 10ms | ||||||||
| Output Resolution | 8192X8192 | ||||||||
| Life time | Single point of more than 60 million times | ||||||||
| Input and output | |||||||||
| VGA input | 2 | ||||||||
| CVBS input | 2 | ||||||||
| YPbPr input | 1 | ||||||||
| TV | 1 | ||||||||
| HD | 4 | ||||||||
| USB2.0 | 6 | ||||||||
| LAN | 1 | ||||||||
| PC Audio | 1 | ||||||||
| Audio(L/R) input | 1 | ||||||||
| Audio(L/R) output | 1 | ||||||||
| Speaker | 2×10W(8 ohm) | ||||||||
| Video | |||||||||
| Color system | PAL/NTSC/SECAM | ||||||||
| Compatible HD input/DVI | 480P,576P,720P,1080I,1080P | ||||||||
| 3D Comb filter | Yes | ||||||||
| Video reduction noise | Yes | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English | ||||||||
| Cardreader | |||||||||
| magnetic card swipe cardreader | |||||||||
| Computer | |||||||||
| Main chipset | Intel NM70 | ||||||||
| CPU | Intel Celeron 1.8 G | ||||||||
| System bus frequency | 800/1066/1333 MHz | ||||||||
| Graphics card | Integrated | ||||||||
| Audio card | Integrated AC97 | ||||||||
| Network card | Integrated 10/100/1000M adaptive | ||||||||
| Memory | 4G DDRIII | ||||||||
| Hard Disk | 250G SATA | ||||||||
| WIFI | Optional | ||||||||
| Operation system | Windows 7 | ||||||||
| Power | |||||||||
| Power supply | AC100V~240V,50/60Hz | ||||||||
| Maximum power consumption | 230W | ||||||||
| Standby power consumption | 3W | ||||||||
| Temperature | |||||||||
| Working temperature | 0℃~50℃ | ||||||||
| Storage temperature | -10℃~60℃ | ||||||||
| Working humidity | 20%~80% | ||||||||
| Storage humidity | 5%~95% | ||||||||
| Appearance | |||||||||
| Cabinet color/appearance | White, black, customized | ||||||||
| Cabinet material | SPCC/Aluminum/Customized | ||||||||
| Installation | Floor-standing | ||||||||
| Bulk Order Leading time | within 21working days | ||||||||
| Payment terms | T/T | ||||||||
| Warranty | 1year | ||||||||

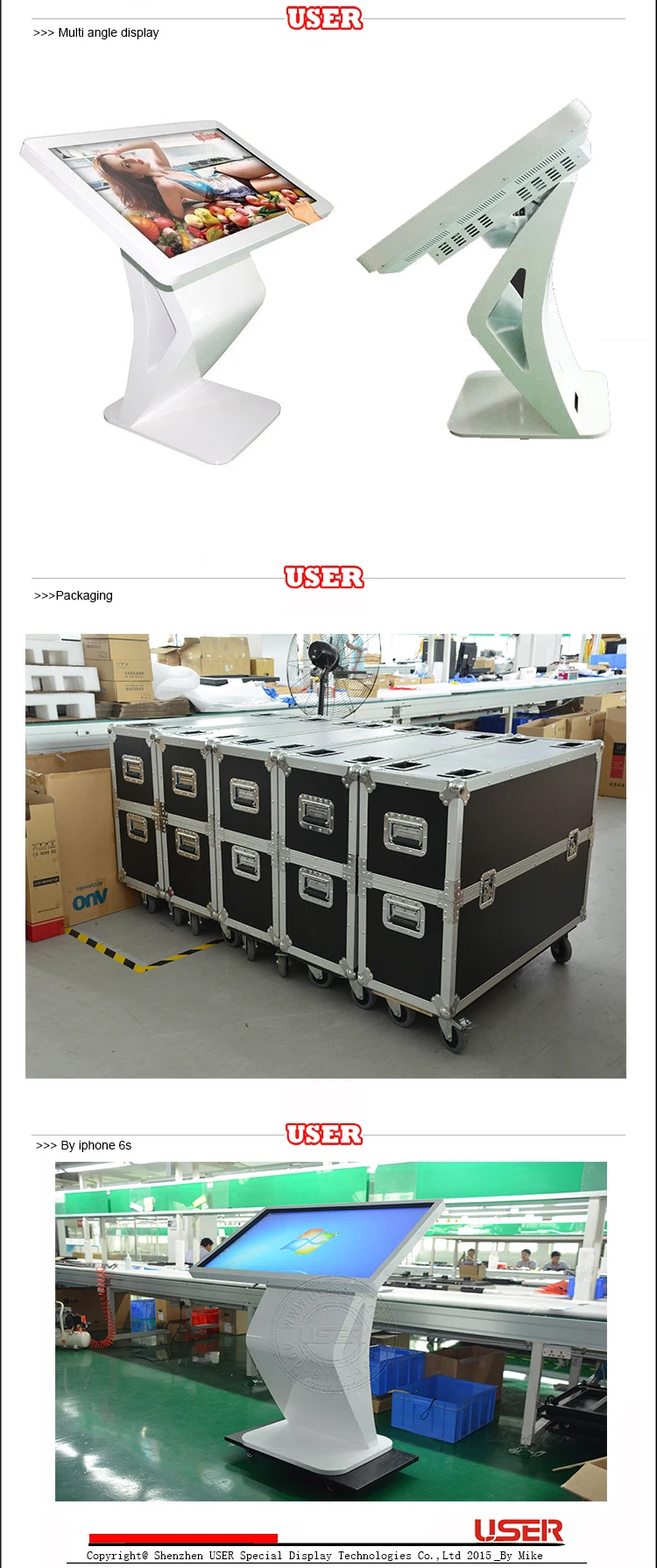

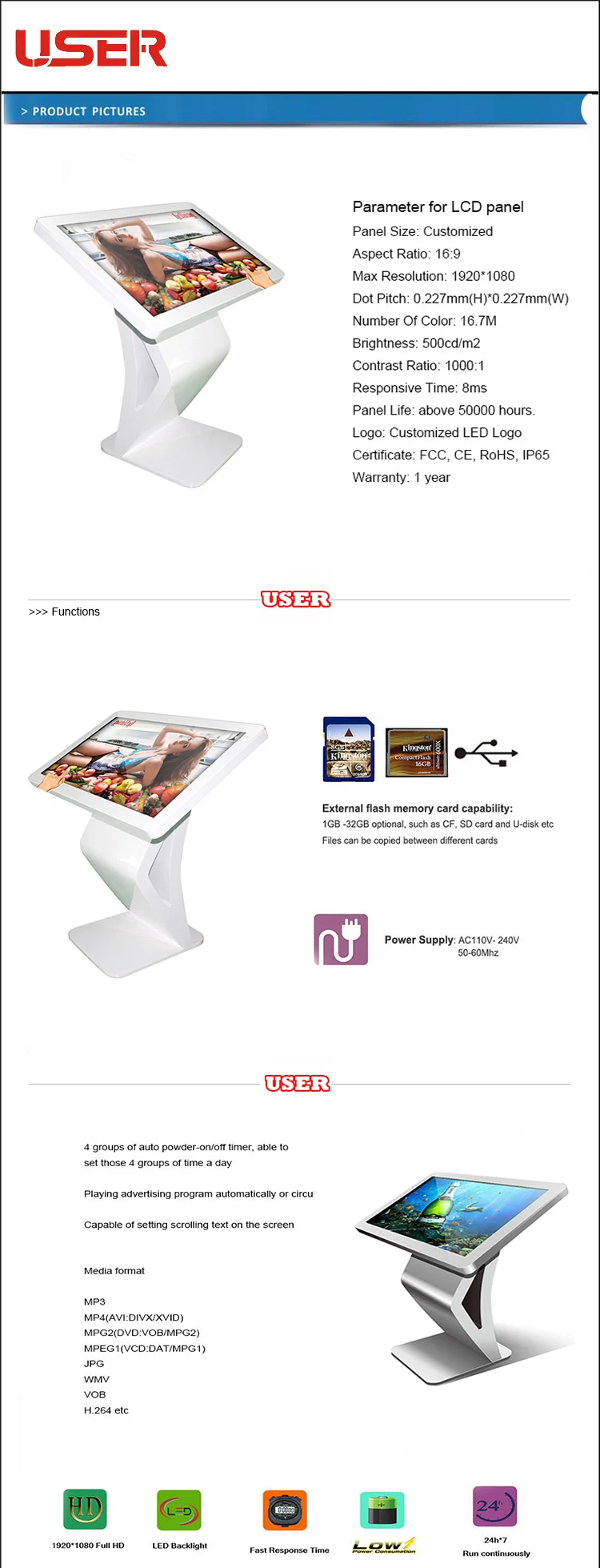

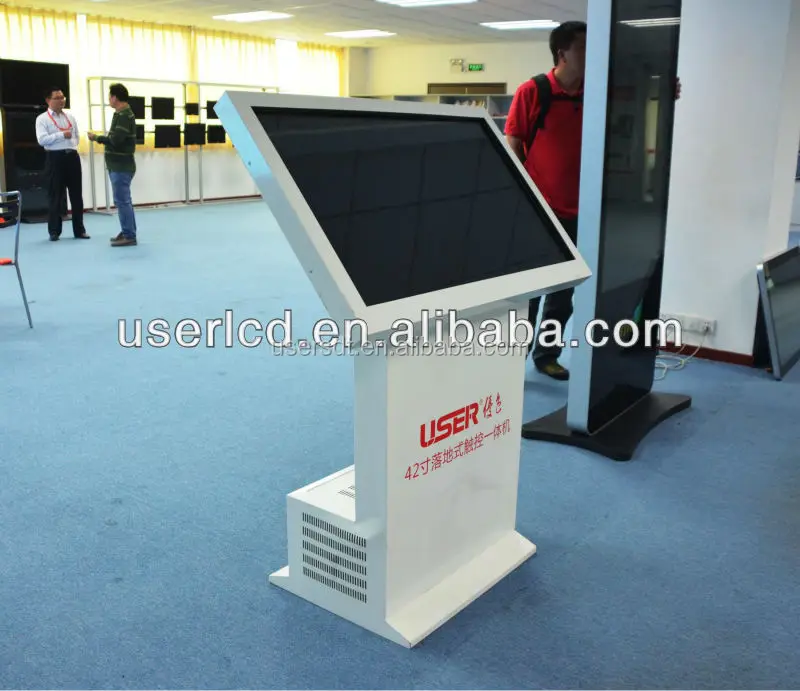

Product picture
Packaging & Shipping
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
why choose USER ?
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising )
8, Warranty (1-3 year)

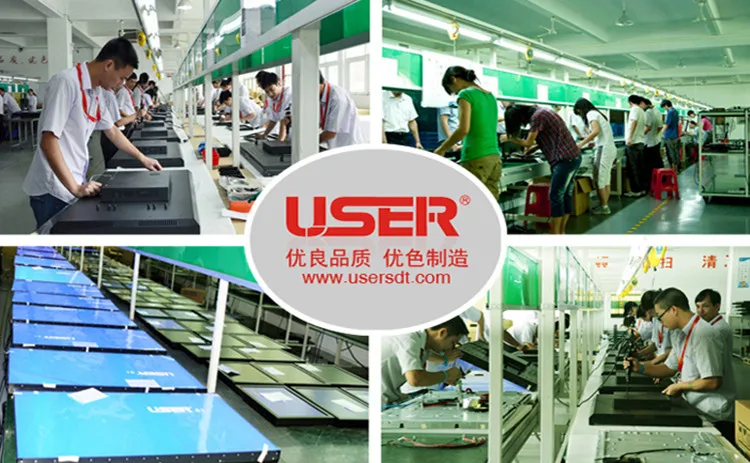

Company Information
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
FAQ
1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $323,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company USER perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
