Product Overview
Description
2015 poultry processing slaughtering equipment
Product Description
Complete Chicken Farming Equipment include:

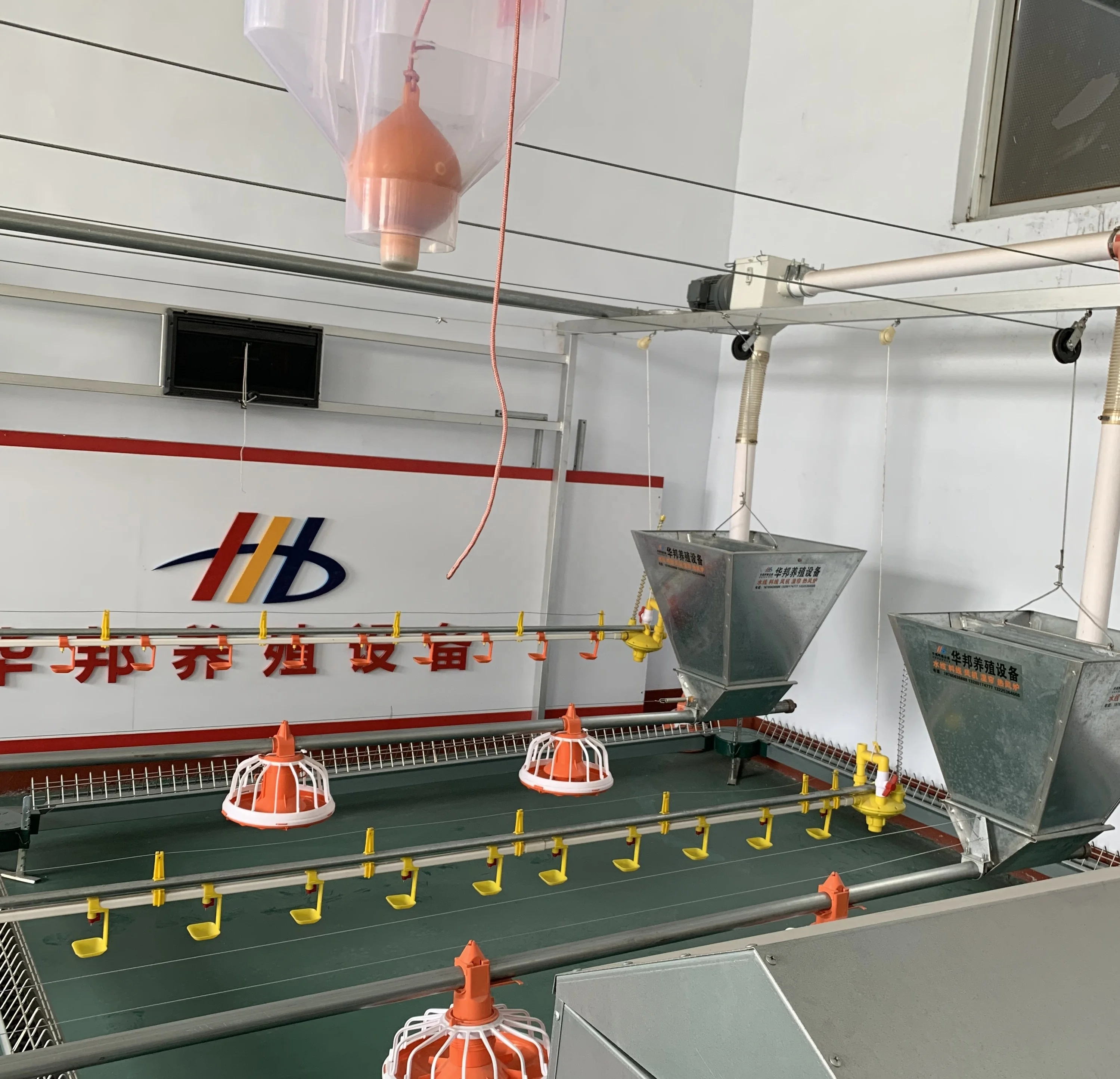

1.Main feeding line
2.Pan feeding system
3.Nipple drinker system
4.Ventilation system
5.Environment controller
6.Cooling pad system
7.Heating system
Specifications
1.Main feeding line
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.
automatic poultry feed processing equipment

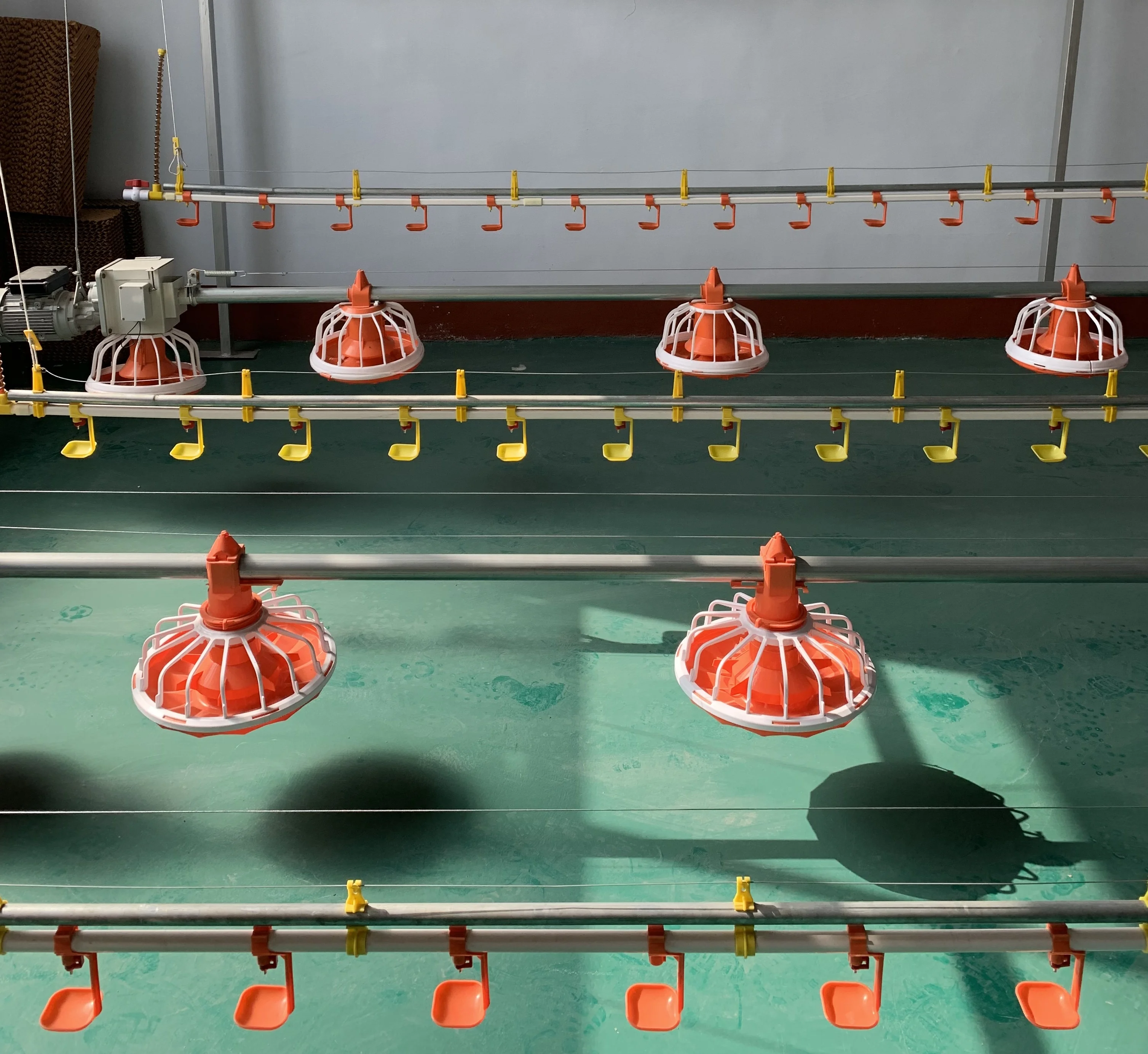

2.Pan feeding system
This system deliver feed automatically through motor under the control of feed sensor,which
ensure birds feeding during whole growing period.automatic poultry feed processing equipment
Details of Broiler feeder pan:
Details of broiler feeding pan |
|
No. of grilles per pan | 14 |
No. of birds per pan could feed | 40-55 |
Distance per grille | 70mm |
Density of broiler | 13-18birds/M2 |
Max feed per pan for one bird per day | 180g/bird |
Dimension | 330mm×330mm |

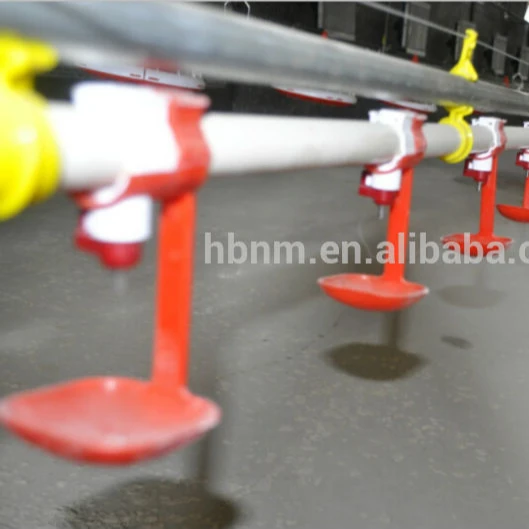

3.Niplple drinker system
This system can provide fresh and clean water for poultry which is crucial for the growth of
poultry.The drinkers can be triggered from 360 degree which helps young birds start well and
makes drinking easier.
Specification | 12nipple/3m & 15nipple/3m |
Max Work Length | 150m |
Nipple Drinking interval | 20cm/25cm |
Drinking Line interval | 2.5-3.5m |
Hanging Point interval | 3m |
No. of chicken supplied | 10-12 |
Standard Water Quality | Clean |
Shape of water pipe | Square or round |
Diameter of water pipe | 22mm or 25mm |
Material of water pipe | PVC |
4.Ventilation system
This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it's vital for growing birds. This system include poultry house fan, air inlet window.
automatic poultry feed processing equipment
36” Fan | 50” Fan | |
air capacity | 21000 m3/h | 43000 m3/h |
size | 1000*1000*450mm | 1380*1380*450mm |
noise | ≤64dB | ≤65dB |
power | 0.75kw | 1.1kw |
voltage | 380V | 380V |
electric current | 1.6A | 2.8A |
weight | 66kg | 88kg |
5.Environment control system
This system saves the labor and the resources under the condition of assuring the optimum growth
environment of the chicken.It is imported from Israel can set an optimum working mode according to
the local climate and raising environment.
6.Cooling pad system
(1)Thickness specification: 100mm,150mm
(2)Width and Heightspecification:as requirement
(3)Outer frame: galvanized sheet and aluminum alloy, rust prevention treatment
(4Aluminum alloy frame: high strength, good corrosion resistance, even water distribution
, compact structure, beautiful and practical.
automatic poultry feed processing equipment

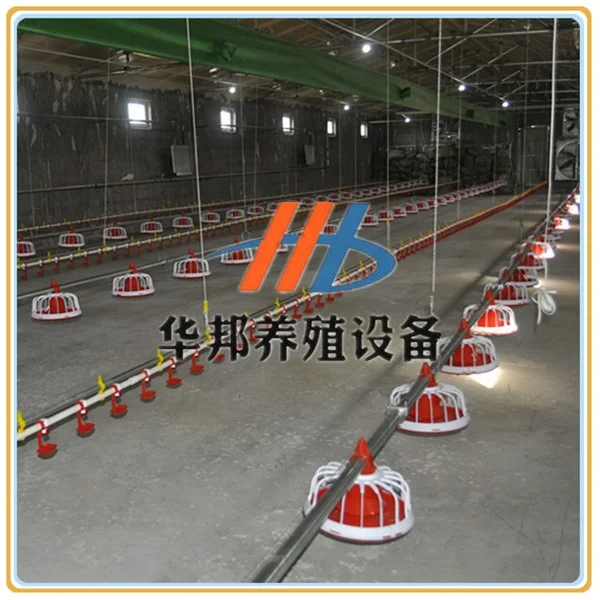

Customer's project with our equipment
Let 's hope for good cooperation between us .
