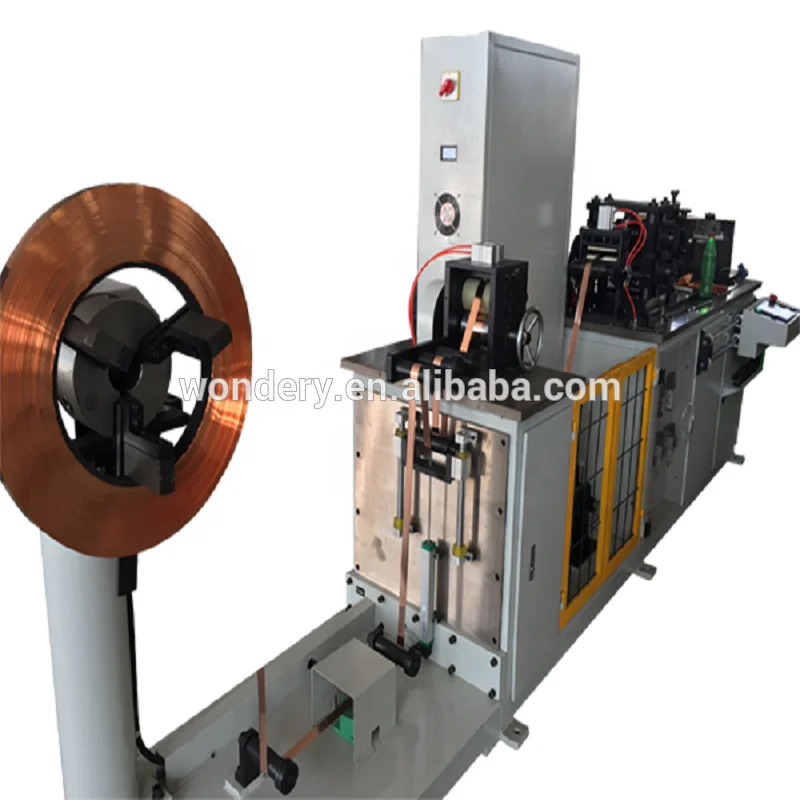

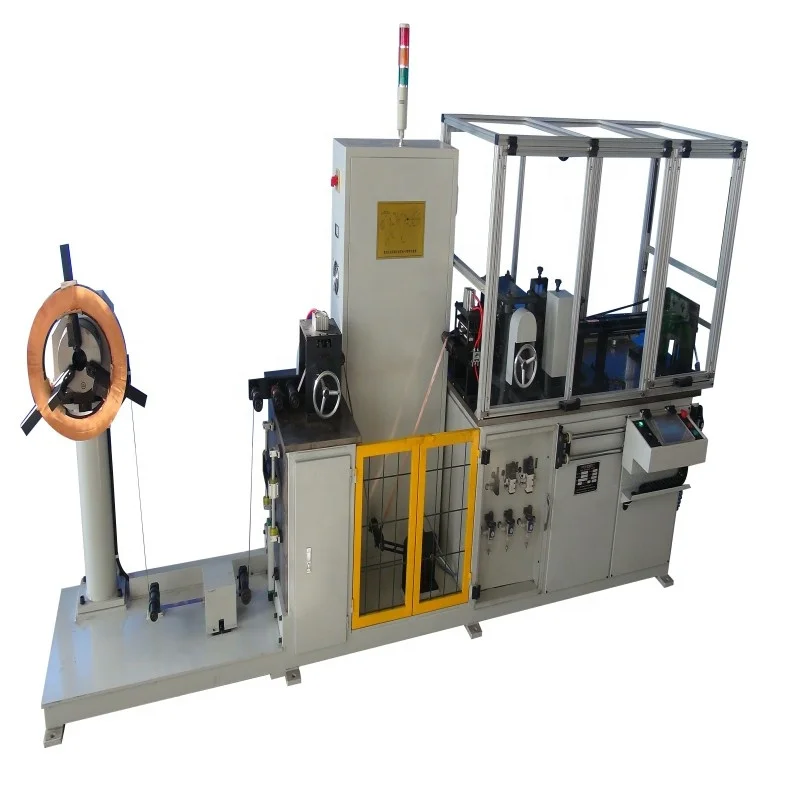

Auto Radiator Copper Fin Machine






Product Application

 Automobile Copper Fin  Machine is used to produce heat exchange wavy fins with or without windows.

The fin machine is also called as fin making machine, fin rolling machine, or fin forming machine. The fin machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.
The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.

fin machine/fin making machine/fin rolling machine



SPECIFICATIONS FOR Fin Machine

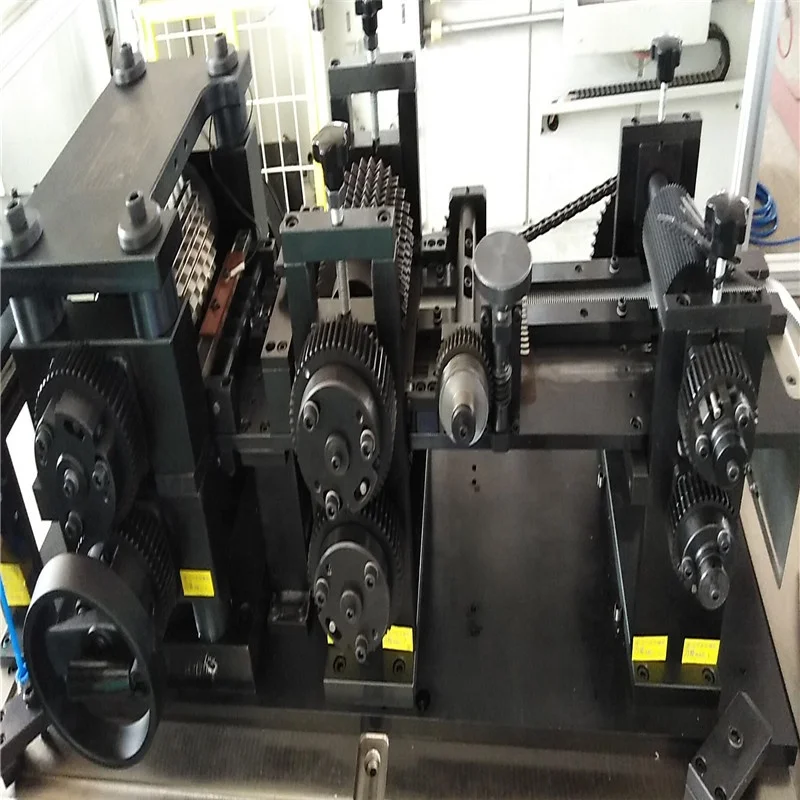

Fin Forming Unit
Copper Foil thickness
mm
 0.045
Fin forming blade material
cobalt-containing high speed steel forged parts
Copper foil material
TP2
Fin forming blade life
more than 1000 million fin convolutions
Fin Coil Information
Inner Diameter of Coil
mm
200
Outer Diameter of Coil
mm
max 1200
Productivity
Feeding speed
m/min
0-100
Fin convolution per minute
1000-4000
Machine Weight
Net Weight
kg
1800
Overall Dimension
L*W*H
mm
4000*900*1800


Advantages

1) The radiator fin rolling machine is equipped with PLC control, HMI operation, which is simple and convenient.

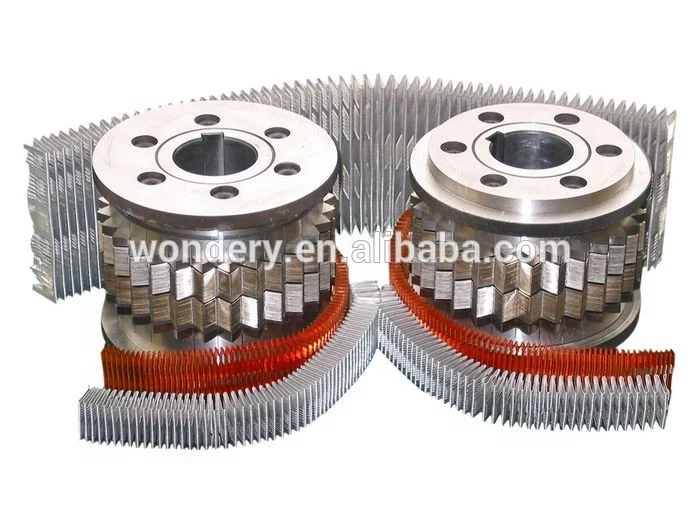

2) The fin forming roller is changeable, and different fin models can be produced on the same machine.
3) We have also the high speed fin machine at speed 180 M/min, and 280M/min for aluminum radiators. fin machine/fin making machine/fin rolling machine



Components List of  Fin Machine /Fin Rolling Machine
NO.
Item
Specification
1
Inverter
Delta, Taiwan
2
Pneumatic components
AIRTAC, Taiwan or SMC, Japan
3
Touch screen
Kunluntongtai
4
PLC
XC3-14R-E,Delta, Taiwan
5
Servo motor
Delta, Taiwan
6
Servo magnifier
Delta, Taiwan

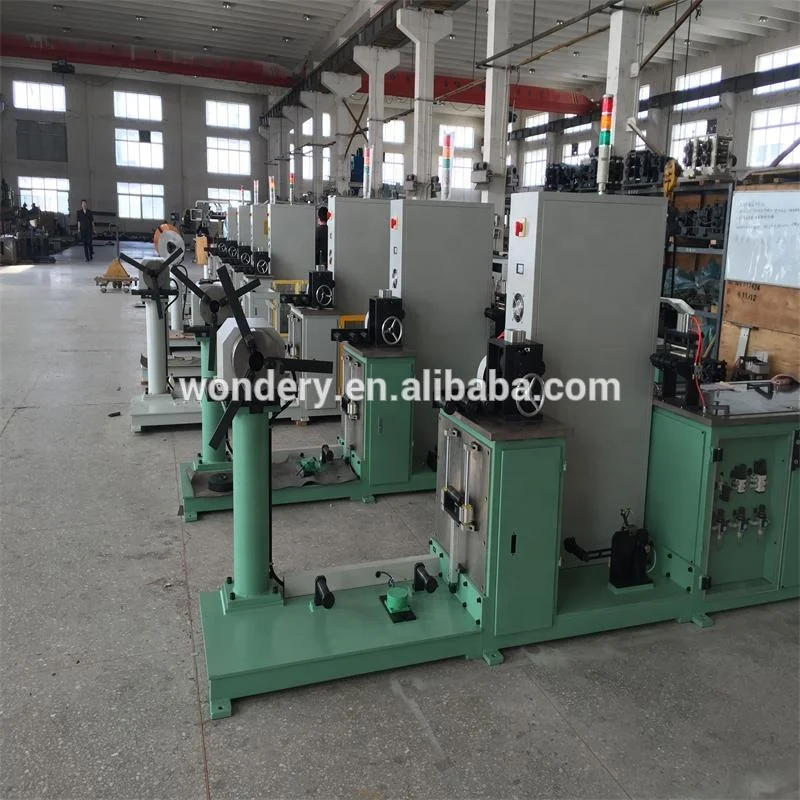

Fin Machine in our workshop fin machine/fin making machine/fin rolling machine












Wuxi Wondery Industry Equipment Co., Ltd, is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.














1. What is the power supply of the heat exchanger making machines?
The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 30-60 days after receipt of down payment.
