MSK AFA E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine

MSK AFA E200 Compact Roll to Roll Tape Casting Machine

Share on (60267767740):


Price:$999.00

Quantity:


Product Overview

Description





Product Description

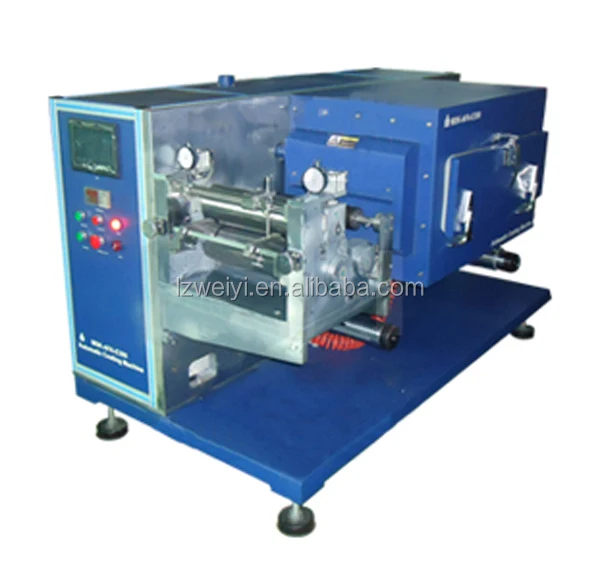

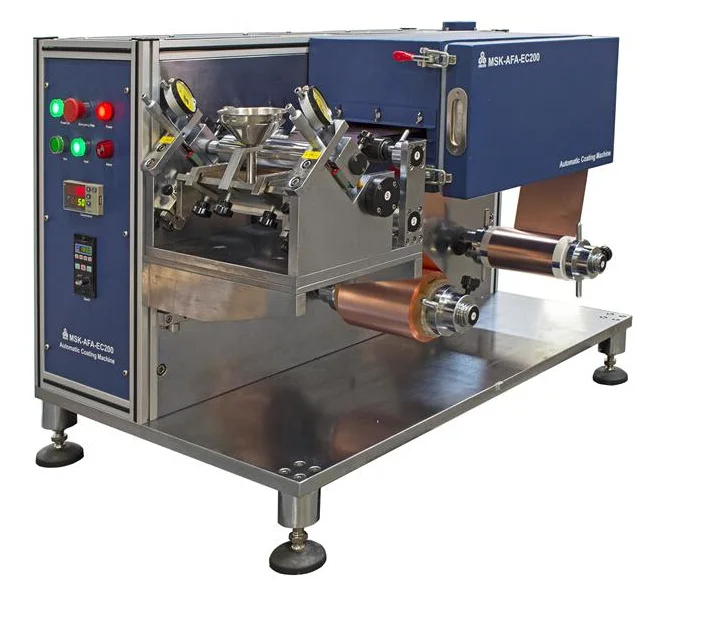

MSK-AFA-E200 is a compact Roll to Roll continuous coater for battery electrode sheets with a small footprint of 3.3‘x2.1' for battery research labs. This system integrates the functions/ features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 160mm in width and 500 meter in length automatically.
Comparing with MSK-AFA-E300, MSK-AFA E200 lacks the controllable sheet tension function, but comes in a much smaller size.


SPECIFICATIONS:










































































Working Voltage



208 – 240VAC, 50/60Hz, Single phase



Max. Power Consumption



3 KW



Coating Width



50-160 mm Adjustable



Coating Speed



0-200 mm / minute



Thickness Precision



+/-  0.006 mm



Drying Oven Temperature



40-150°C +/- 1°C



Reel-out/in System



50mm (ID)



Max. Rolled Diameter



200mm (OD)




Max. Coating Length





  • Depending on coating and substrate thickness.




  • Typically, 10um thick foil with 100um coating can get 500 meters of electrode length coated per run





Slurry Stirring



SS316 Moving Rod



Compressed Air



Requires 100 psi (Air compressor not included. Please click here to order)



Dimensions



1000mm(L) x 650mm(W) x 650mm(H)


Compliance


CE Certified


Warranty





  • One year limited warranty with life time support




  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty







Operation Instructions


Application Notes


  •






  • Please click the picture below to learn roll to roll coating (web coating) method:








  • Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting




  • Customers are welcome to visit our facility to receive technical training before shipping of equipment (Please schedule an appointment with us in advance)




  • On-site Training is available for customers within the US only (Expenses will be covered by customers)




Net Weight400 kg (882 lbs)
