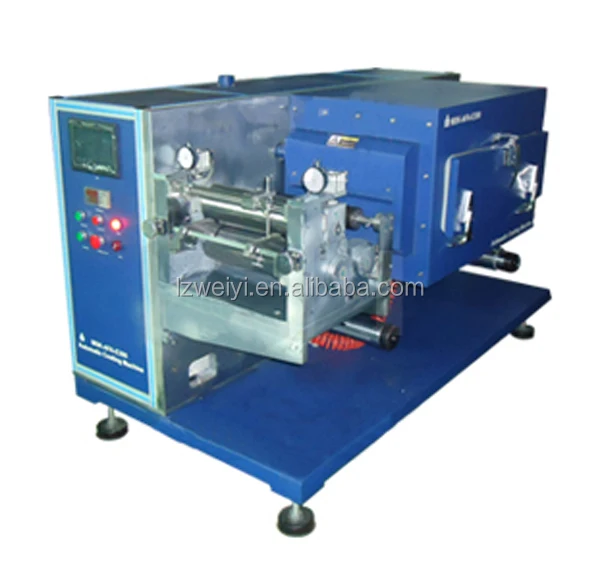

MSK AFA E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven
MSK-AFA-E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven

MSK AFA E300 Roll to Roll Battery Electrode Coating System (Max. 250mm Width) with Drying Oven

Share on (60267787712):


Price:$999.00

Quantity:


Product Overview

Description





Product Description


.jpg

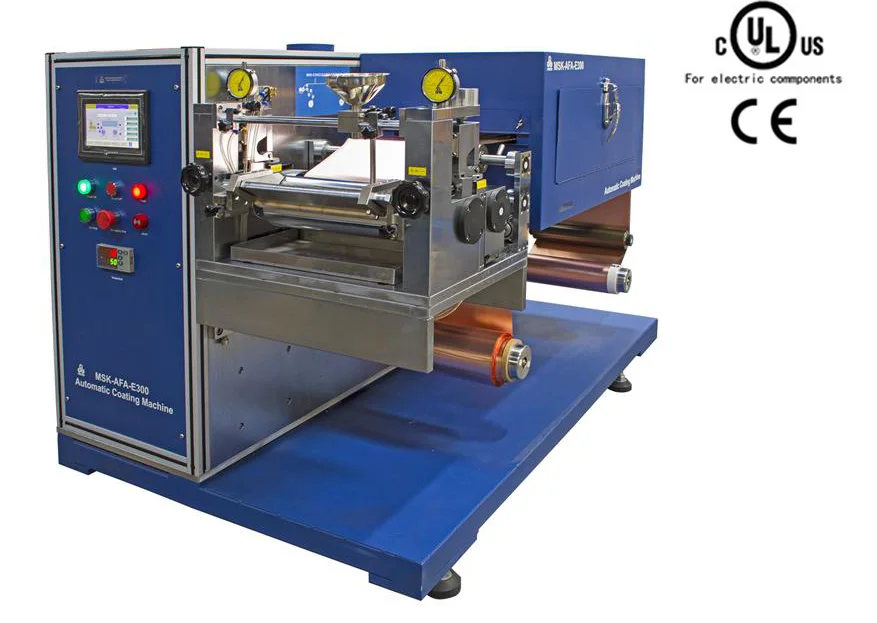

MSK-AFA-E300-UL is a CE Certified  and UL inspection ready automatic battery electrode coating system with a compact footprint that is less than 6'x3'. It is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience.

( Note: MSK-AFA-E300-UL is updated from MSK-AFA-E300 with all UL certified electric parts from June 1, 2014 , whcih is ready to pass UL or TUV test at extra cost )


SPECIFICATIONS:


























































































Working Voltage





  • 110VAC, 50/60Hz, single phase




  • 208 - 240 VAC, 50/60 Hz, Single Phase available upon request





Max. Power Consumption



3 KW ( 30A Air breaker required )



Max. Coating Width



250mm



Coating Speed



0-750 mm / minute



Thickness Precision



± 3µm (± 5µm at edges)



Max. Drying Temperature


150°C

Temperature Accuracy


±1°C

Heating Zone Length


710mm (28")

Reeling/Unreeling Shaft



75mm (ID)



Max. Reeling/Unreeling Diameter



250mm (OD)



Max. Coating Length





  • Depending on coating and substrate thickness.




  • Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run





Slurry Stirring




SS316 Moving Rod



Compressed Air



0.5-0.8 MPa (Air compressor not included. Please click here to order)



Optional



You may order  Dual-Filtration System for NMP Vapor and coonect it to the coating system for keeping enviromental healthy.






Product Dimensions



1750mm ( L) x 950mm (W) x 1060mm (H)



Compliance






  • CE Certified All electric components ( >24V) are UL / MET / CSA certified




  • The furnace is ready to pass TUV(UL61010)  or CSA certification at extra cost.( please click mark below to learn details )







Warranty





  • One Year limited warranty with lifetime support




  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty




Operation Manual & Video

Application Notes


  • Please click the picture below to learn roll to roll coating (web coating) method:








  • Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting




  • Customers are welcome to visit our facility to receive technical training before shipping of equipment (Please schedule an appointment with us in advance)




  • On-site Training is available for customers within the US only (Expenses will be covered by customers)




Net Weight900 kg (2000 lbs)
Shipping Dimension70" x 45" x 55"
