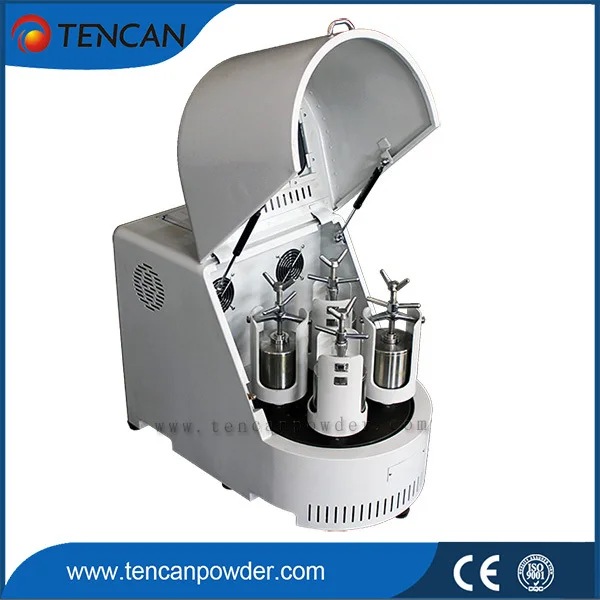

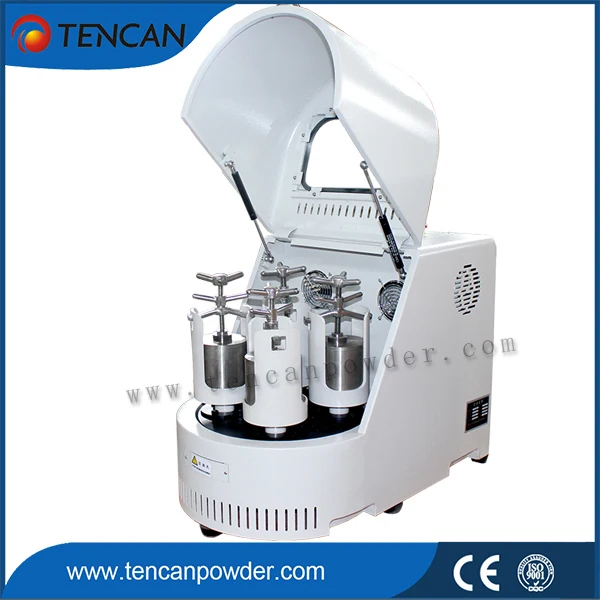

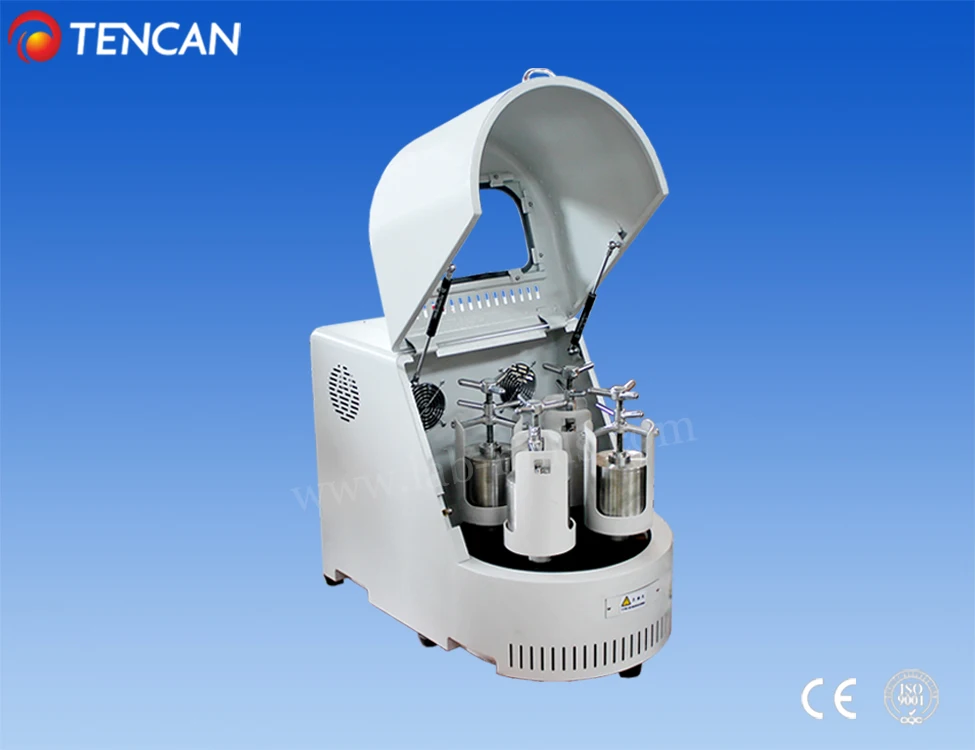

China Tencan 220V/110V 8L semi circle lab nano powder grinding planetary ball mill, laboratory use ball mill

Product Overview

Description





Technical Features



Drive Mode	Gear drive and belt drive
Operation Mode	Two or four grinding tanks working together
Maximum Loading Capacity	2/3 of the capacity of milling tank
Feeding Size	Soil material≤10mm, other materials≤3mm
Output Granularity	Minimum 0.1 μm
Rotational Speed Ratio	1/2
Max. Continuous Operating Time	72hours
Materials of Jar	Stainless steel, agate, nylon, corundum, zirconia, etc.











Working Principle

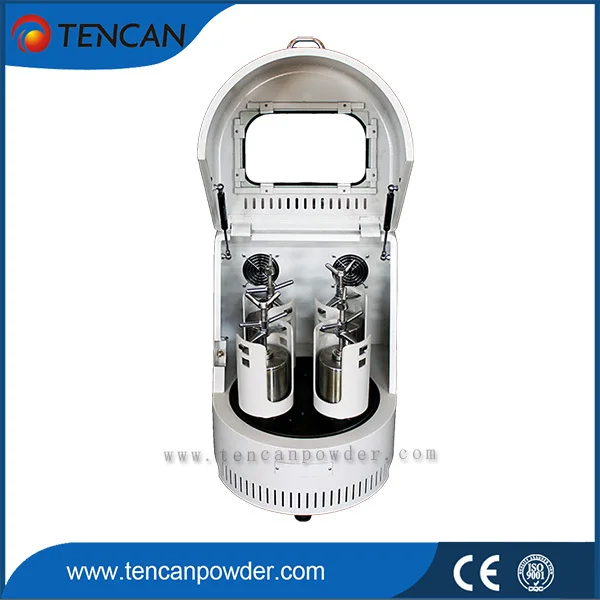

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

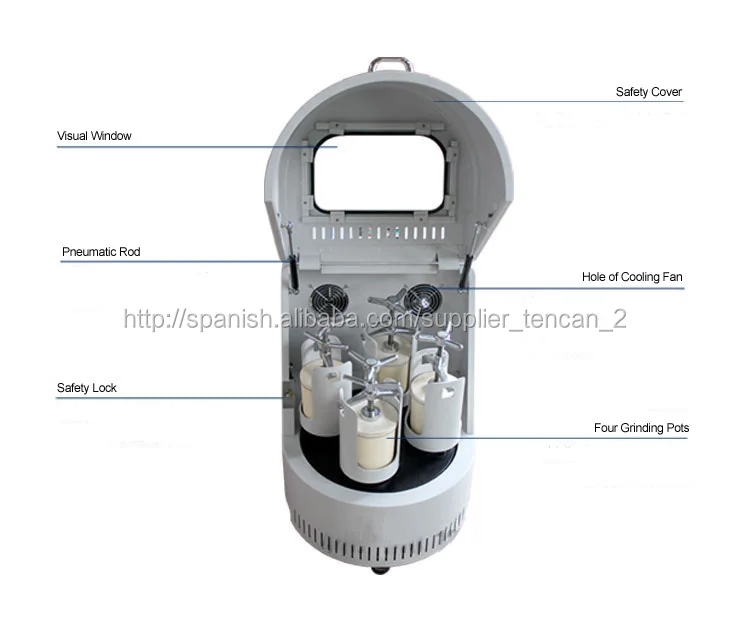

Structure Diagram of Vertical Planetary Ball Mill





 Technical Parameter



Vertical Planetary Mill Ball
Model	Dimension(mm)	Maximum Rotating Speed(rpm)	Power (KW)
XQM-0.4A	530*300*320	870	0.25
XQM-2	730*430*580	670	0.75
XQM-2A	730*430*530	670	0.75
XQM-4	800*470*560	670	0.75
XQM-4A	730*470*560	670	0.75
XQM-6	800*470*560	670	0.75
XQM-8	880*600*640	580	1.5
XQM-8A	880*600*640	580	1.5
XQM-10	880*600*640	580	1.5
XQM-10A	880*600*640	580	1.5
XQM-12	880*600*640	580	1.5
XQM-12A	880*600*640	580	1.5
XQM-16A	950*600*680	510	3
XQM-20	1200*760*750	430	4
XQM-40	1300*870*830	390	5.5
XQM-60	1500*950*1000	360	7.5
XQM-100	1750*1100*1350	240	11
XQM-200	1920*1400*1350	190	18.5

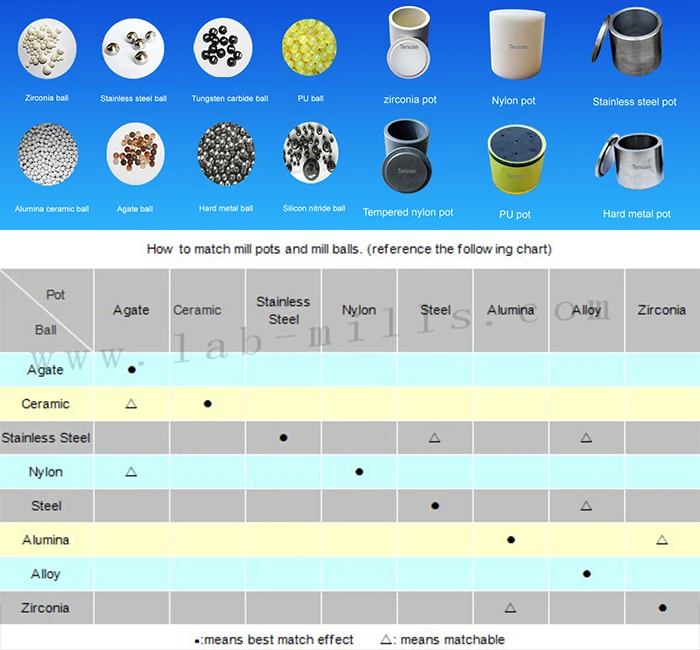

 Mill Jars  and Mill Balls:

 Our factory can provide stainless steel pot, alumina pot, nylon pot, PU pot, tungsten pot, etc. And

we can also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls,

tungsten balls, etc.

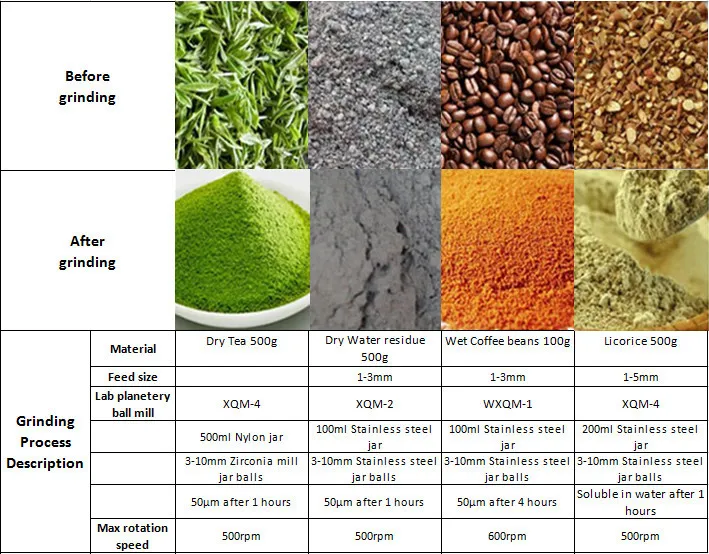

Application:

 Shippment & Payment



Product Quality Warranty:
Oneyear warranty period shall be provided to any client who buys our products and related accessories.

The following promises are valid within the warranty period which is calculated from time or date

when the client or consumer takes delivery of machine, opens case, inspects machine and receives

with signature. We promise to guarantee free replacement within one month, and guarantee free

repair within one year.



Client may enjoy free replacement within one month if any of following occurs:
1) The machine is broken in course of transportation;
2) Motor and frequency converter are burnt out;
3) The key part or main disk of the machine is seriously in failure.



Items	Name of Parts	Quality Warranty Period (Month)
Electric Parts	frequency converter	12
	motor	12
	fan	12
	keys	6
	travel switch	12
	air switch	12
	power line	6
	socket	6
Machinery Parts	main assembly parts	12
	belt pulley	6
Others	stay bar	12
	cage-supported	12
	top rod	6
Fragile and Easy-consumed Parts	belt	0
	pot/jar/tank	0
	mill balls	0







We shall promise to provide most favorable policy and best services after expiration of quality

warranty period.



After-sale Services Promises:



1) We shall make prompt response to any problem about the machine within 24 hours if you have.
2) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide

    trouble-shooting solutions until the fault is completely eliminated.
3) If the machine is found any fault or problem, please do not hesitate to notify us the details about

    faults, caused reasons and status. We shall do our great efforts to solve according to following

    terms:

• a. Common faults:

Common faults refer to failure of non critical parts or improper configuration that effects partial

operation or leads to Inconvenience of machine operation. We shall solve such problems by email

or posting parts by courier.



• b. Serious faults:

Serious faults refer to failure of key parts or improper configuration that influence running or

operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,

shall send replacement of parts by courier, until solve the problems. Courier freight shall be for

our account within quality warranty period.



Exception Clauses



Quality warranty service shall be exception and shall not be enjoyed if any of following occurs:



1) Faults and damages of machine which are caused by human factors or working under abnormal

   working environment.
2) Clients take liberty to disassembly, or repair, or refit the machine without factory’s agreement.
3) Damages of machine caused by bad transportation.
4) Damages caused by other force majeure factors such as fire, thunder strike, earthquake,

   abnormal voltage.
5) Normal old use, normal abrasion, break and infection.



Service Hotline:  0086-13357214760







Typical Clients



As one of the most professional powder equipment manufacturers in China, TENCAN have won a

high reputation and good recognition both in domestic  and abroad. The following are our cooperate

clients.



Q  What’s your warranty?

A   One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 13357214760  for after-sale service.



Q   Does your ball mill get to nano scale powder?

A   It depends on property of material and grinding process you set. Generally, most of materials can be ground into nano scale powder. Meanwhile, we provide sample grinding experiment free of charge if you send us sample of your material.



Q   What’s the delivery time?

A   We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed.



Q   Can you provide testing service of grinding powder experiment before we place order?

A   Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.



Q   Are you trade company or factory?

A   We are one of the largest manufacturers of powder mills and laboratory equipment in China.



Q   I need a mill machine for lab use, what’s your minimum type?

A   The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.



Q   Do you have mills for black carbon grinding?

A   We have customers who bought our planetary ball mills for black carbon grinding, as the black carbon is easy to sink and get together in the bottom of the mill jar, we recommend the full- directional planetary ball mill for black carbon grinding. According to the feedbacks from our customers, the model of full-directional planetary ball mill solved the above mentioned problems successfully.
